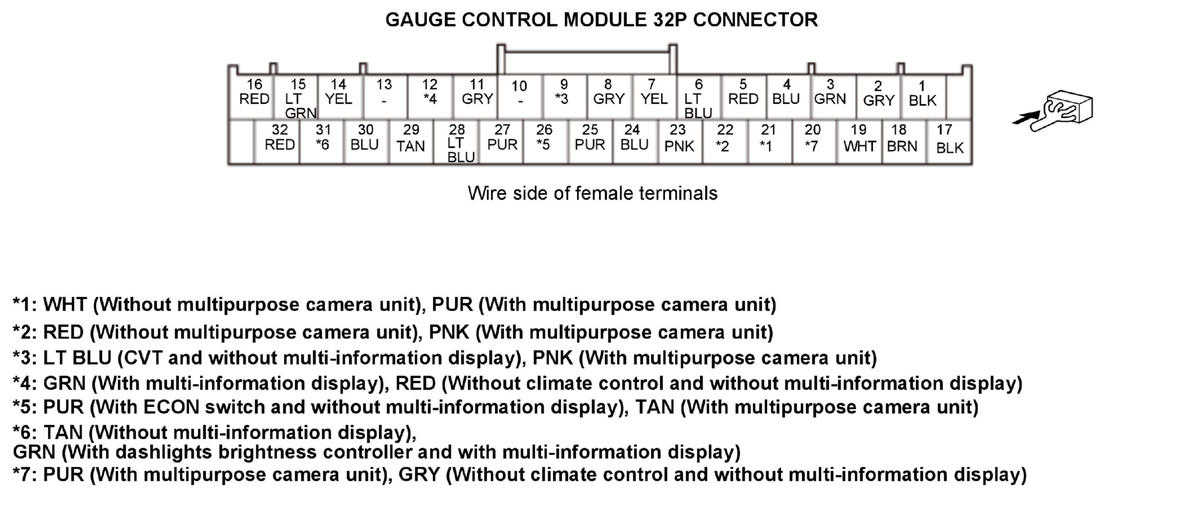

Gauge Control Module Connector for Inputs and Outputs (2019)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 *4 | GND | Ground for gauge control module | Less than 0.2 V at all times |
| 2 *10 | INFO GND | Ground for select/reset/information switch | Less than 0.2 V at all times |
| 3 *4*9 | ILL- (LED) | ILL- (LED) signal | --- |
| 4 | PARKING BRAKE SW | Detects PARKING BRAKE SW signal | With the vehicle in the ON mode and electric parking brake switch OFF: about battery voltage With the vehicle in the ON mode and electric parking brake switch ON: less than 0.2 V |
| 5 *4*9 | ILLUMI- (BULB) | ILLUMI- (BULB) signal | --- |
| 6 | BRAKE LEVEL SW | Detects BRAKE LEVEL SW signal | With the vehicle in the ON mode and brake fluid level switch OFF: about battery voltage. With the vehicle in the ON mode and brake fluid level switch ON: less than 0.2 V |
| 7 *5 | WASHER LEVEL SNSR | Detects WASHER LEVEL SENSOR signal | With the vehicle in the ON mode and washer fluid level switch OFF: about battery voltage. With the vehicle in the ON mode and washer fluid level switch ON: less than 0.2 V |
| 8 | VSA OFF SW | Detects VSA OFF SW signal | With the vehicle in the ON mode and VSA off switch OFF: about battery voltage. With the vehicle in the ON mode and VSA off switch ON: less than 0.2 V |
| 9 | ILLUMI CANCEL *1*9 | Outputs ILLUMI CANCEL signal | --- |
| CMBS OFF SW *8 | Detects CMBS OFF SW signal | With the vehicle in the ON mode and CMBS off switch OFF: about battery voltage. With the vehicle in the ON mode and CMBS off switch ON: less than 0.2 V | |
| 10 | Not used | --- | --- |
| 11 | FUEL GAUGE+ | Detects FUEL GAUGE+ signal | --- |
| 12 | TAM *2*9 | Detects TAM signal | With the vehicle in the ON mode: about 0.2 - 4.9 V (depending on outside air temperature sensor) |
| INFO SW *10 | Detects INFO SW signal | --- | |
| 13 | Not used | --- | --- |
| 14 | CRUISE SW | Detects CRUISE SW signal | With the vehicle in the ON mode: about 0.8 - 4.4 V (depending on cruise control/ACC combination switch) |
| 15 | IG1 METER | IG1 power source | With the vehicle in the ON or START mode: about battery voltage |
| 16 | +B BACK UP | Power source for gauge control module | About battery voltage at all times |
| 17 | GND | Ground for gauge control module | Less than 0.2 V at all times |
| 18 | FUEL GAUGE- | Ground for fuel gauge sending unit | --- |
| 19 | CRUISE GND | Ground for cruise control/ACC combination switch | Less than 0.2 V at all times |
*1: CVT
*2: Without climate control
*3: With TPMS
*4: With dashlights brightness controller
*5: Canada models
*6: With ECON switch
*7: Without multipurpose camera unit
*8: With multipurpose camera unit
*9: Without multi-information display
*10: With multi-information display
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 20 | OUTSIDE TEMP GND *2*9 | Ground for outside air temperature sensor | Less than 0.2 V at all times |
| DISTANCE SW GND *8 | Ground for ACC combination switch | Less than 0.2 V at all times | |
| 21 | F-CAN H *7F-CAN C H *8 | Communication line | --- |
| 22 | F-CAN L *7F-CAN C L *8 | Communication line | --- |
| 23 | B-CAN H | Communication line | --- |
| 24 | B-CAN L | Communication line | --- |
| 25 *3 | TPMS SW | Detects TPMS SW signal | With the vehicle in the ON mode and TPMS switch OFF: about battery voltage. With the vehicle in the ON mode and TPMS switch ON: less than 0.2 V |
| 26 | DISTANCE SW *8 | Detects DISTANCE SW signal | With the vehicle in the ON mode and DISTANCE switch OFF: about battery voltage. With the vehicle in the ON mode and DISTANCE switch ON: less than 0.2 V |
| ECON SW *6*9 | Detects ECON SW signal | With the vehicle in the ON mode and ECON switch OFF: about battery voltage. With the vehicle in the ON mode and ECON switch ON: less than 0.2 V | |
| 27 *6*10 | ECON SW | Detects ECON SW signal | With the vehicle in the ON mode and ECON switch OFF: about battery voltage. With the vehicle in the ON mode and ECON switch ON: less than 0.2 V |
| 28 *1*10 | ILLUMI CANCEL | Outputs ILLUMI CANCEL signal | --- |
| 29 *10 | PARK LAMP | Detects PARK LAMP signal | With electric parking brake switch OFF: about battery voltage. With electric parking brake switch ON: less than 0.2 V |
| 30 | BRAKE HOLD | Detects BRAKE HOLD signal | --- |
| 31 | ILL- (LED) *4*10 | ILL- (LED) signal | --- |
| PARK LAMP *9 | Detects PARK LAMP signal | With electric parking brake switch OFF: about battery voltage. With electric parking brake switch ON: less than 0.2 V | |
| 32 *4*10 | ILLUMI- (BULB) | ILLUMI- (BULB) signal | --- |
*1: CVT
*2: Without climate control
*3: With TPMS
*4: With dashlights brightness controller
*5: Canada models
*6: With ECON switch
*7: Without multipurpose camera unit
*8: With multipurpose camera unit
*9: Without multi-information display
*10: With multi-information display
