Shift Position Indicator Component Location Index (CVT)

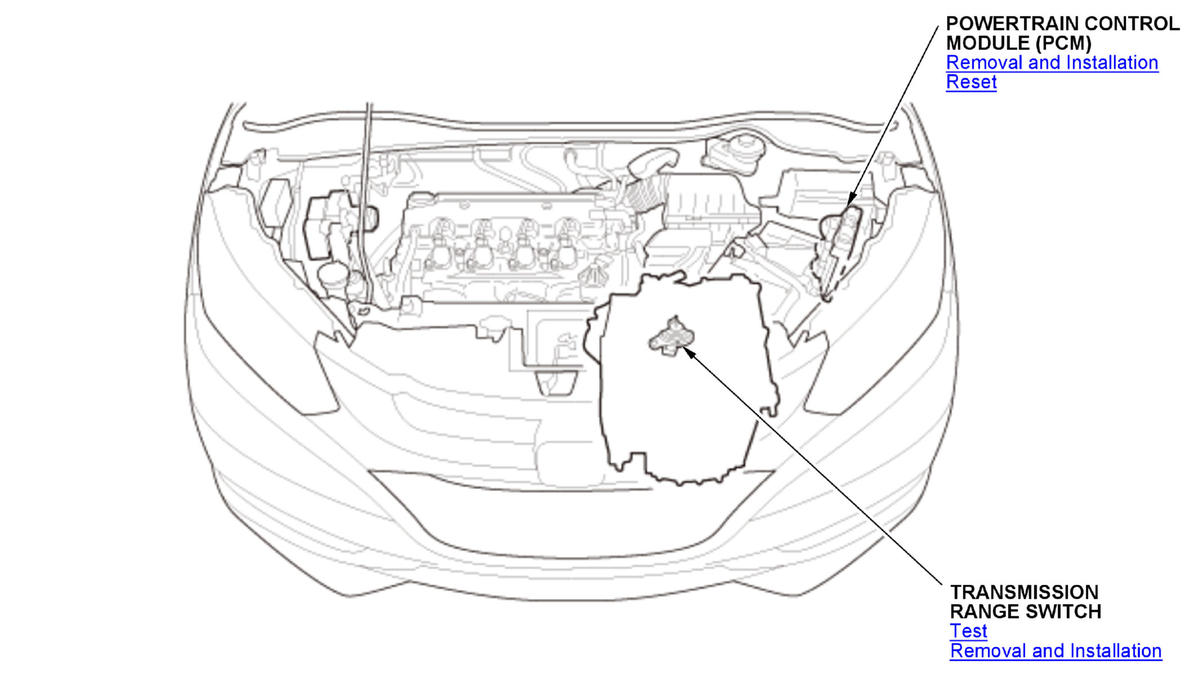

GHH436237

Courtesy of HONDA, U.S.A., INC.

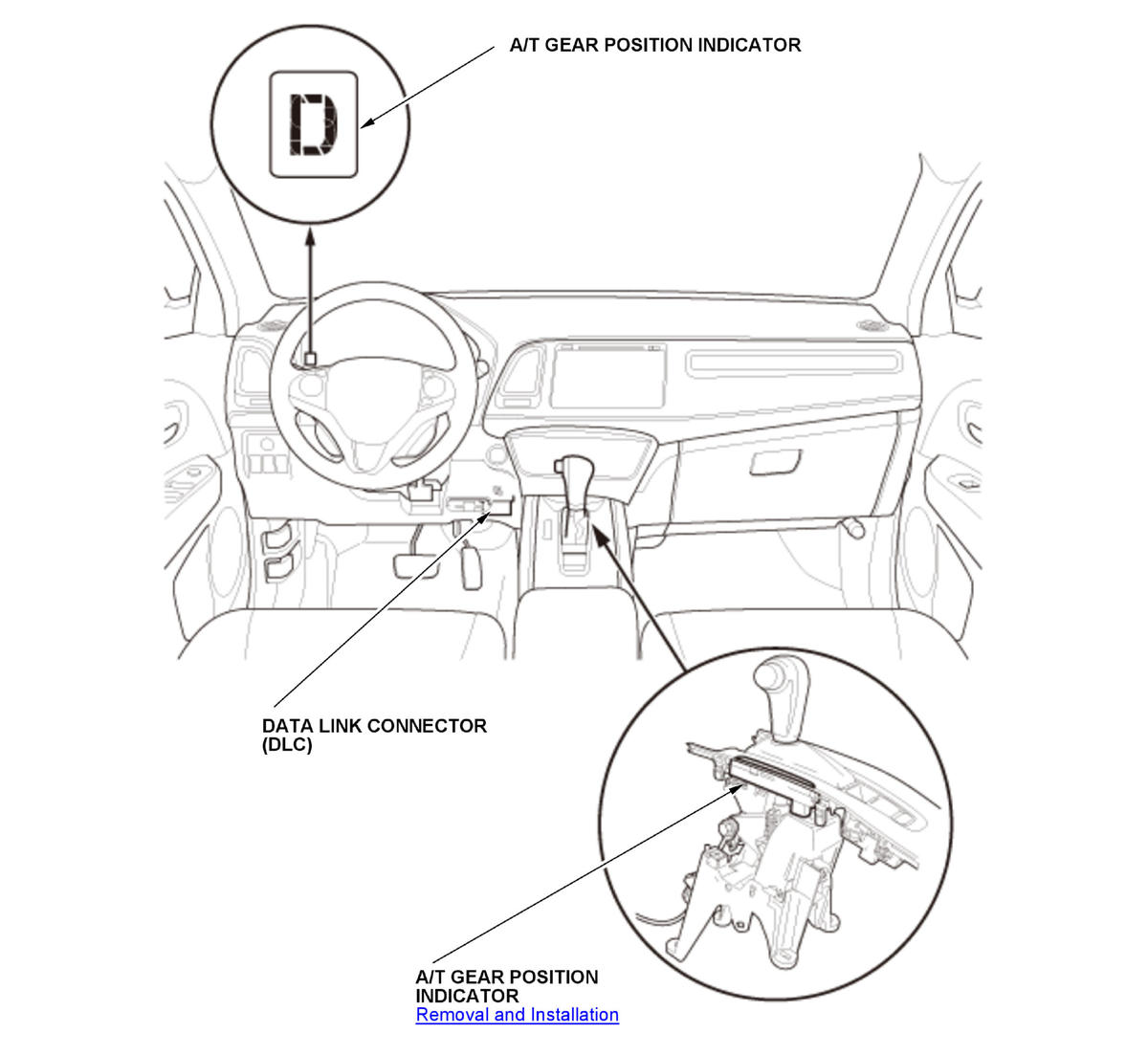

Without paddle shifter

GHH436238

Courtesy of HONDA, U.S.A., INC.

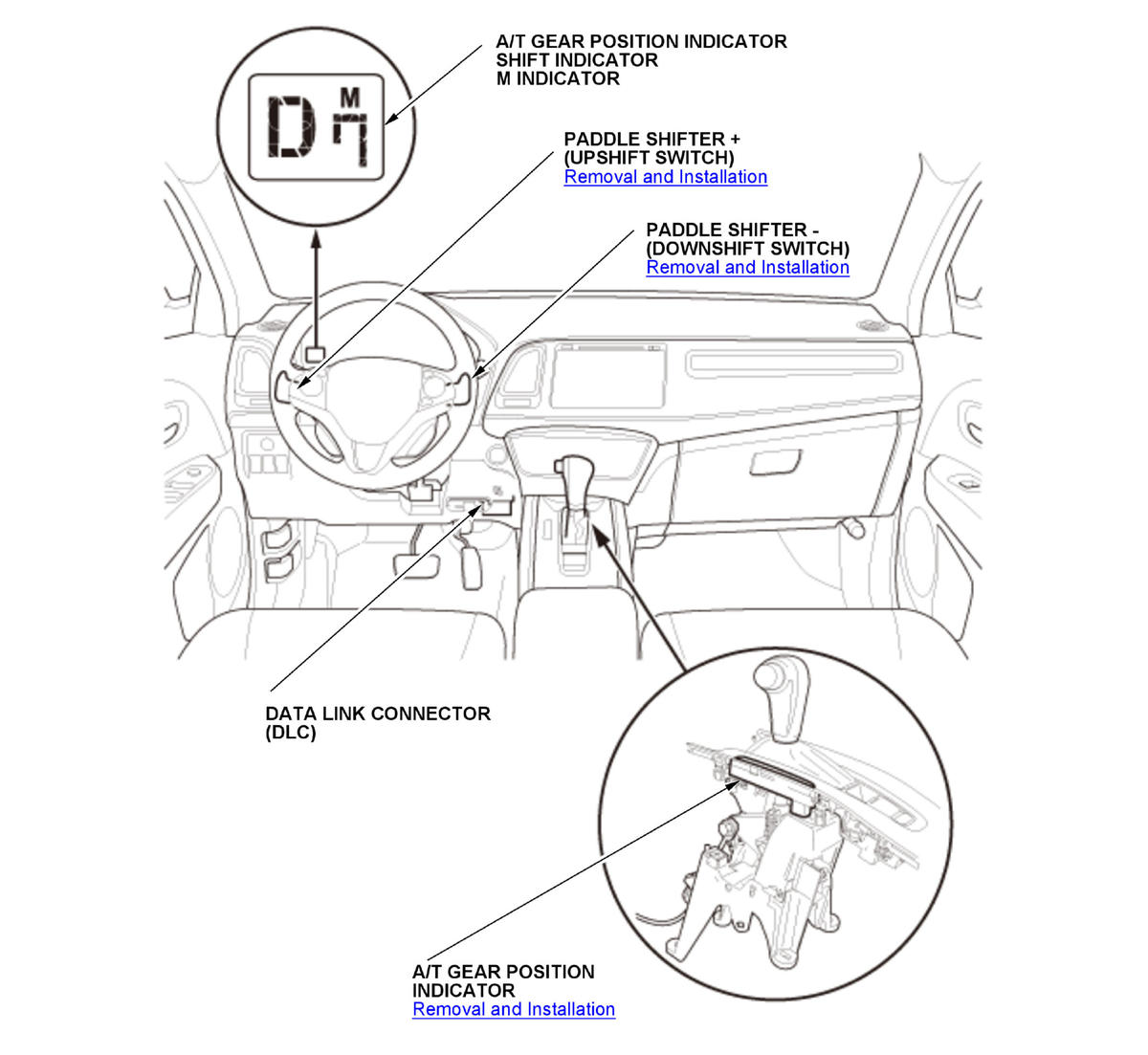

With paddle shifter

GHH436239

Courtesy of HONDA, U.S.A., INC.
