Gauges Circuit Diagram (2019)

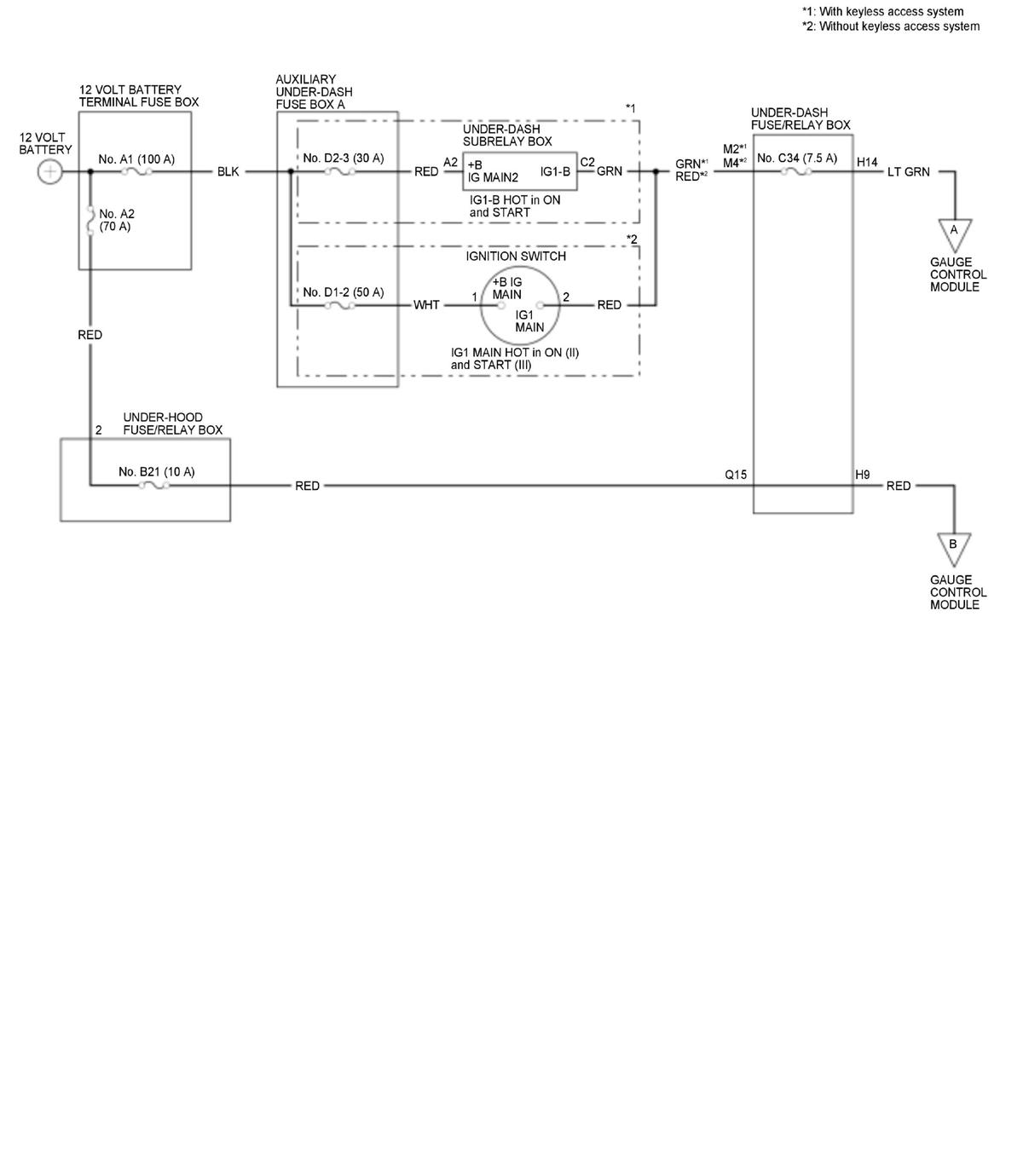

GHH436306Courtesy of HONDA, U.S.A., INC.

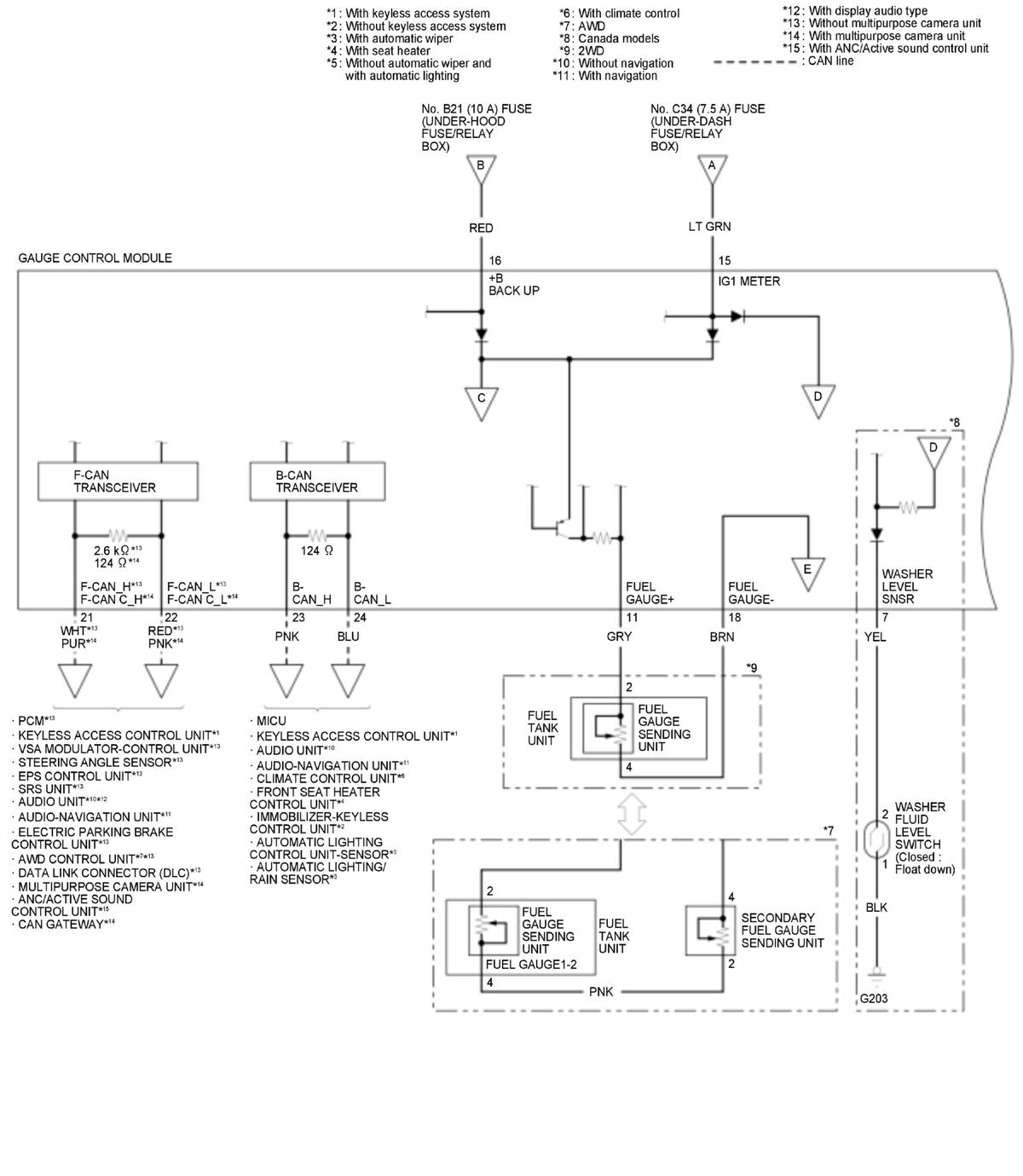

GHH436307Courtesy of HONDA, U.S.A., INC.

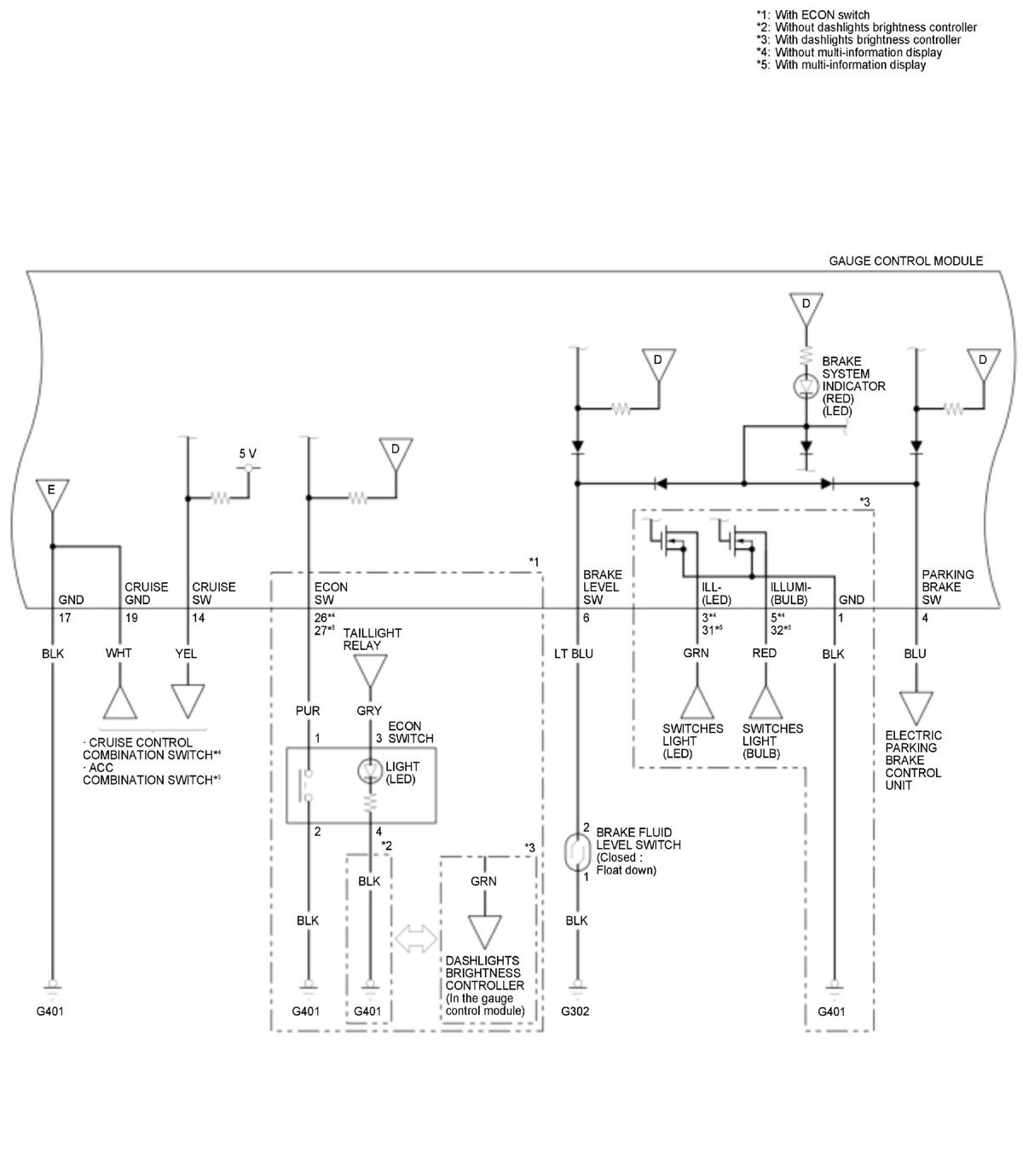

GHH436308Courtesy of HONDA, U.S.A., INC.

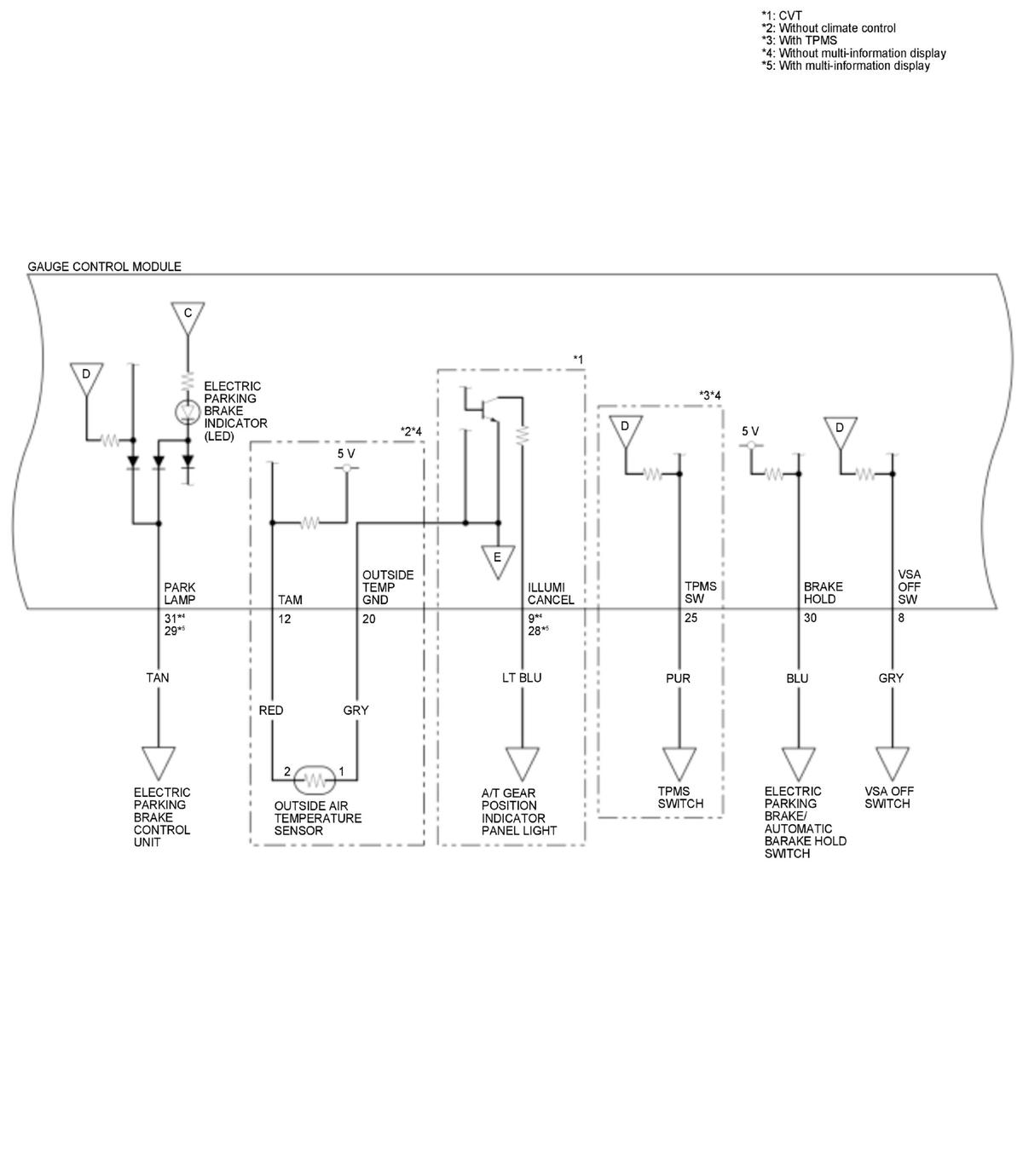

GHH436309Courtesy of HONDA, U.S.A., INC.

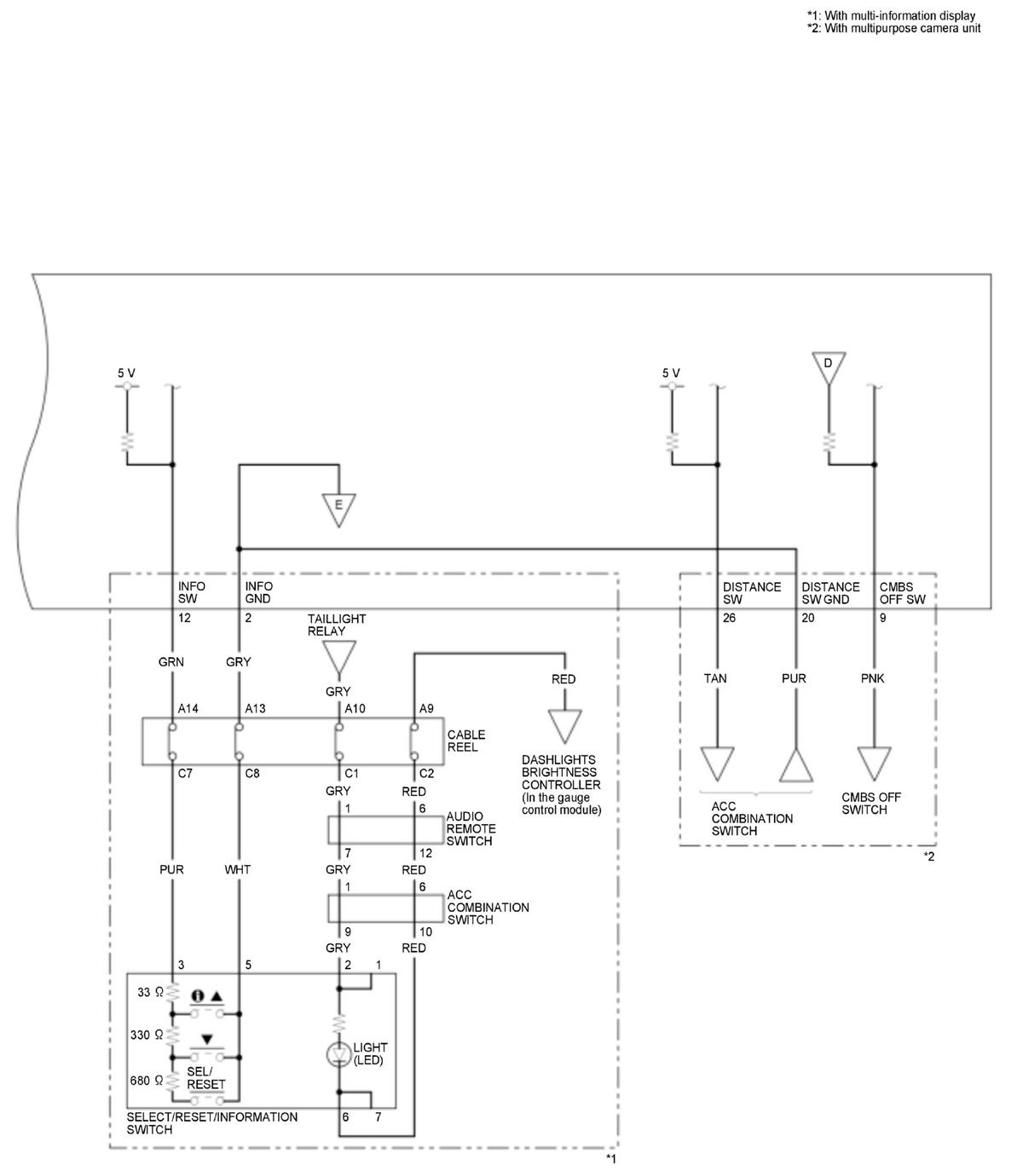

GHH436310Courtesy of HONDA, U.S.A., INC.
