Circuit Diagram
>>

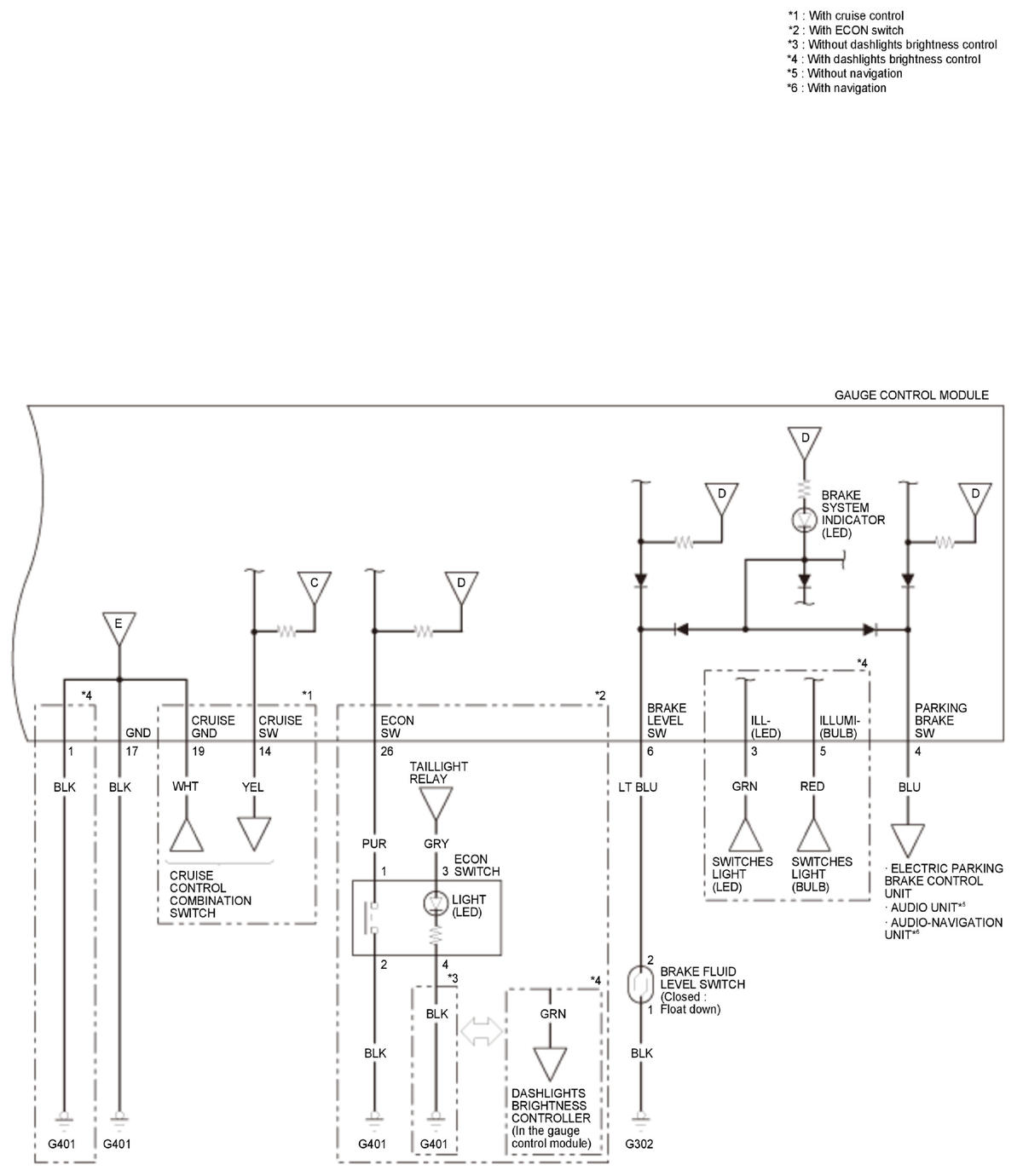

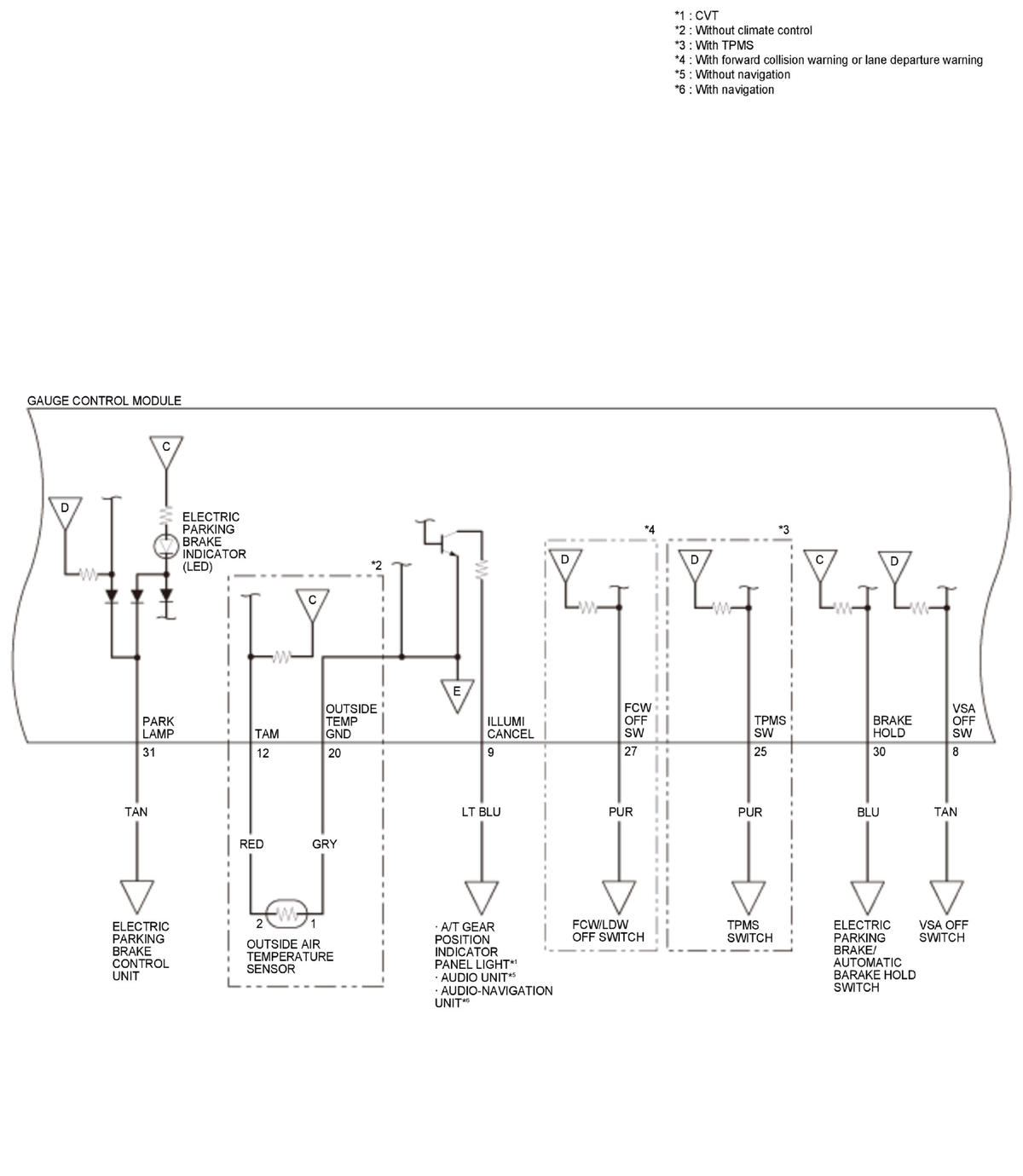

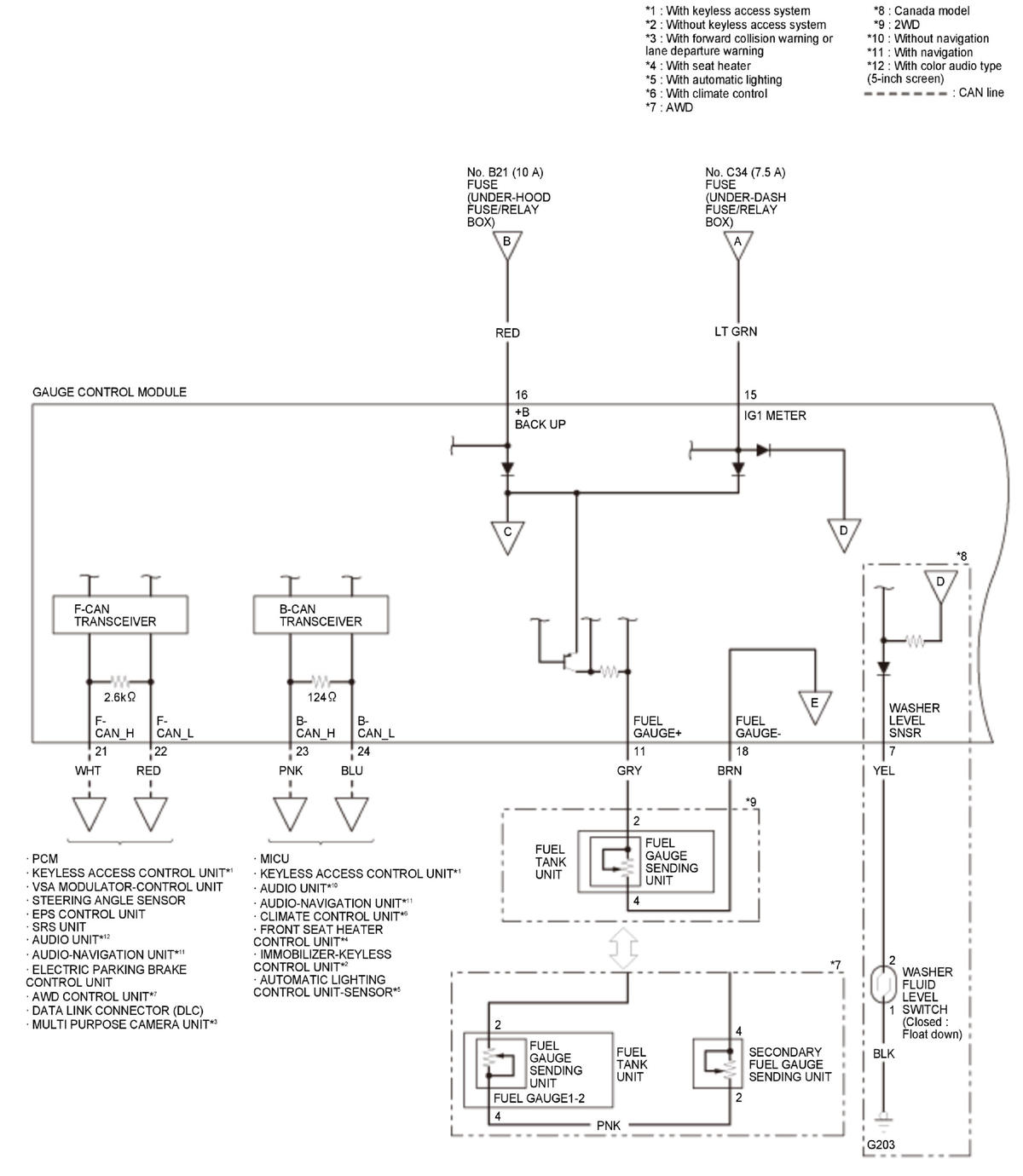

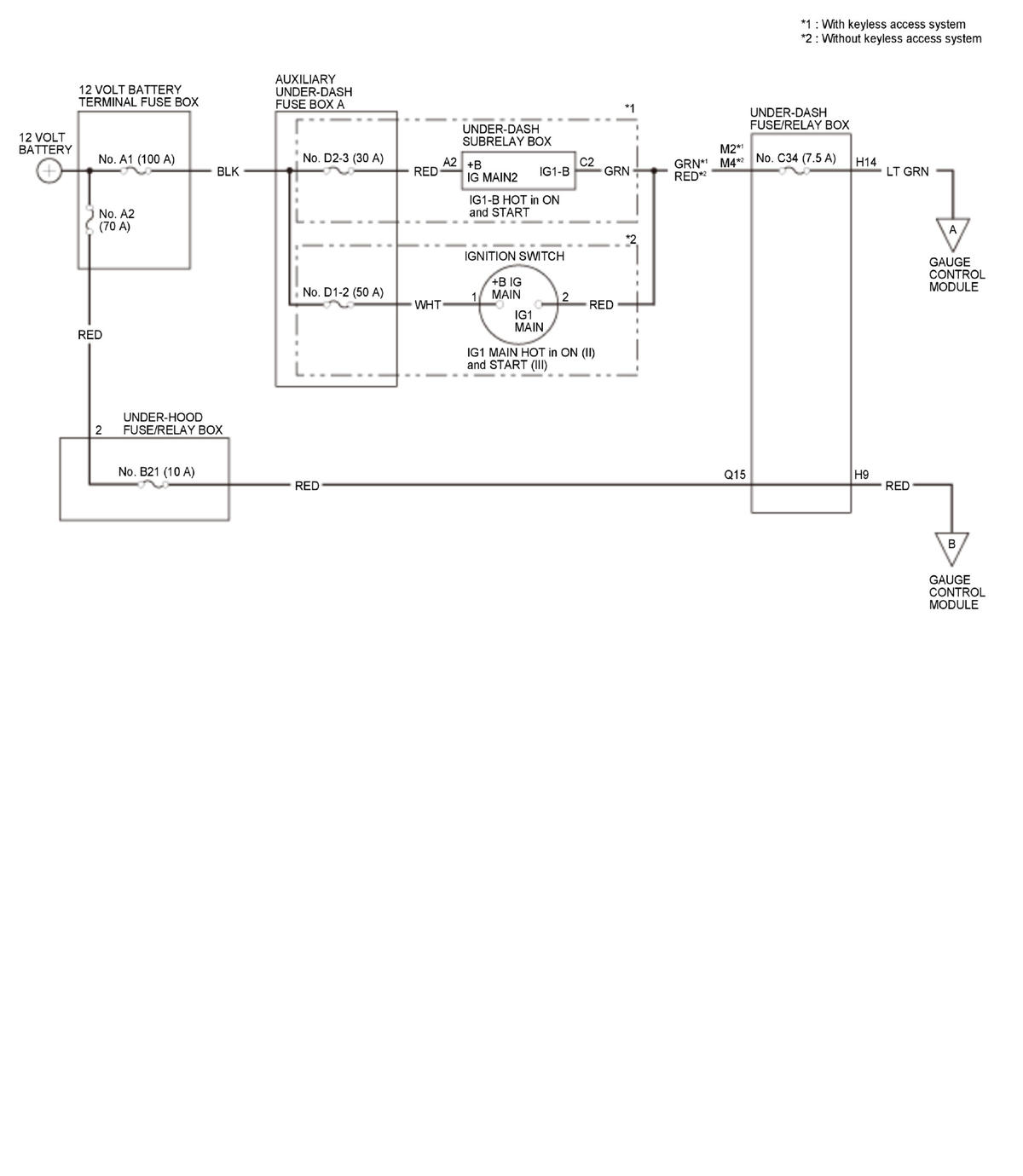

Gauges Circuit Diagram (2016)
Gauges Circuit Diagram (2016)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
