Secondary Fuel Gauge Sending Unit Removal and Installation(AWD): Removal

  1. Fuel Pressure - Relieve
  2. Front Seat (Passenger's Side) - Remove
  3. Rear Heater Duct (Right Side) - Remove

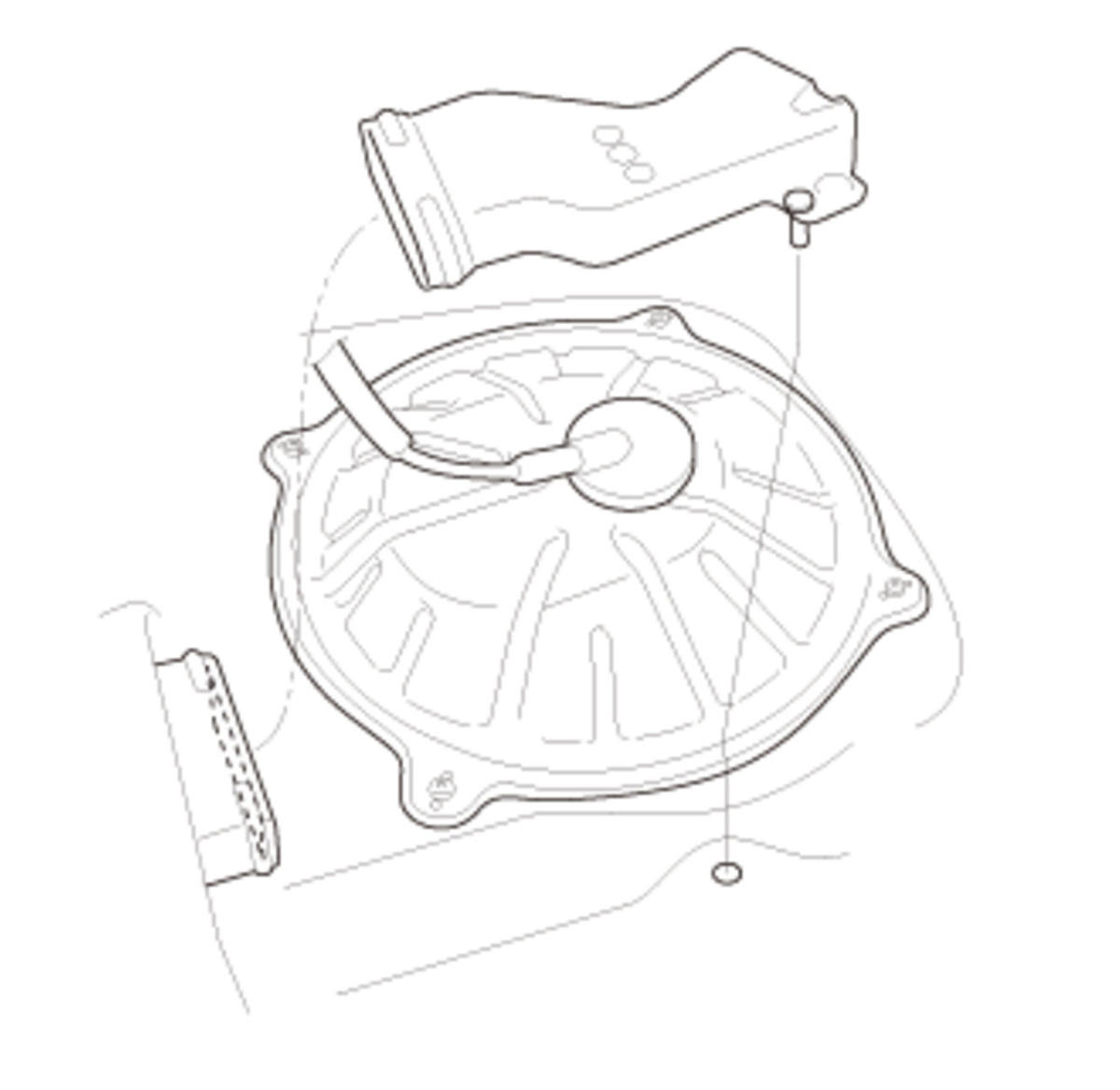

    GHH436335Courtesy of HONDA, U.S.A., INC.
  4. Access Panel - Remove

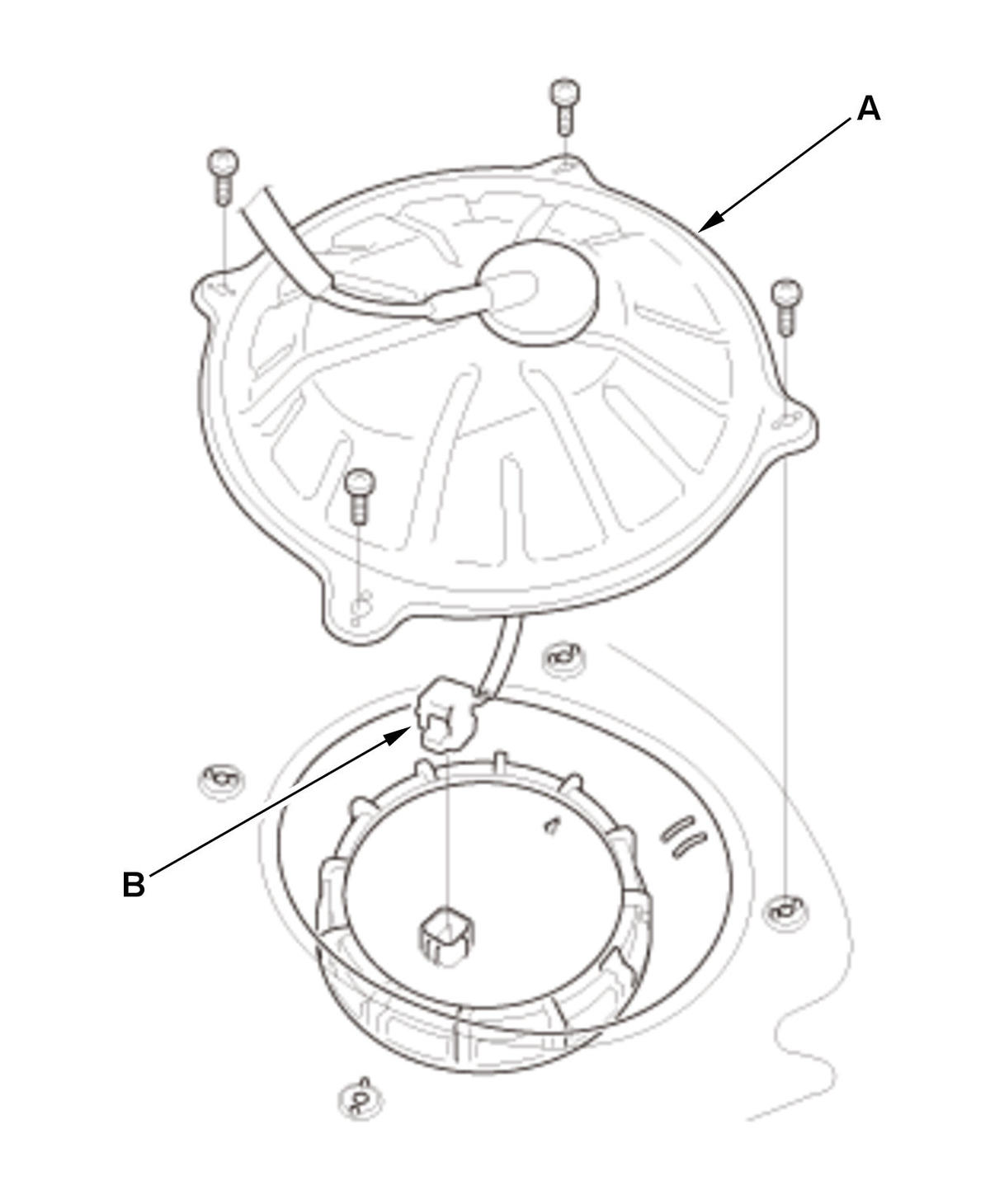

    GHH436336Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the access panel (A) from floor.

    2. Disconnect the connector (B)
  5. Secondary Fuel Gauge Sending Unit - Remove

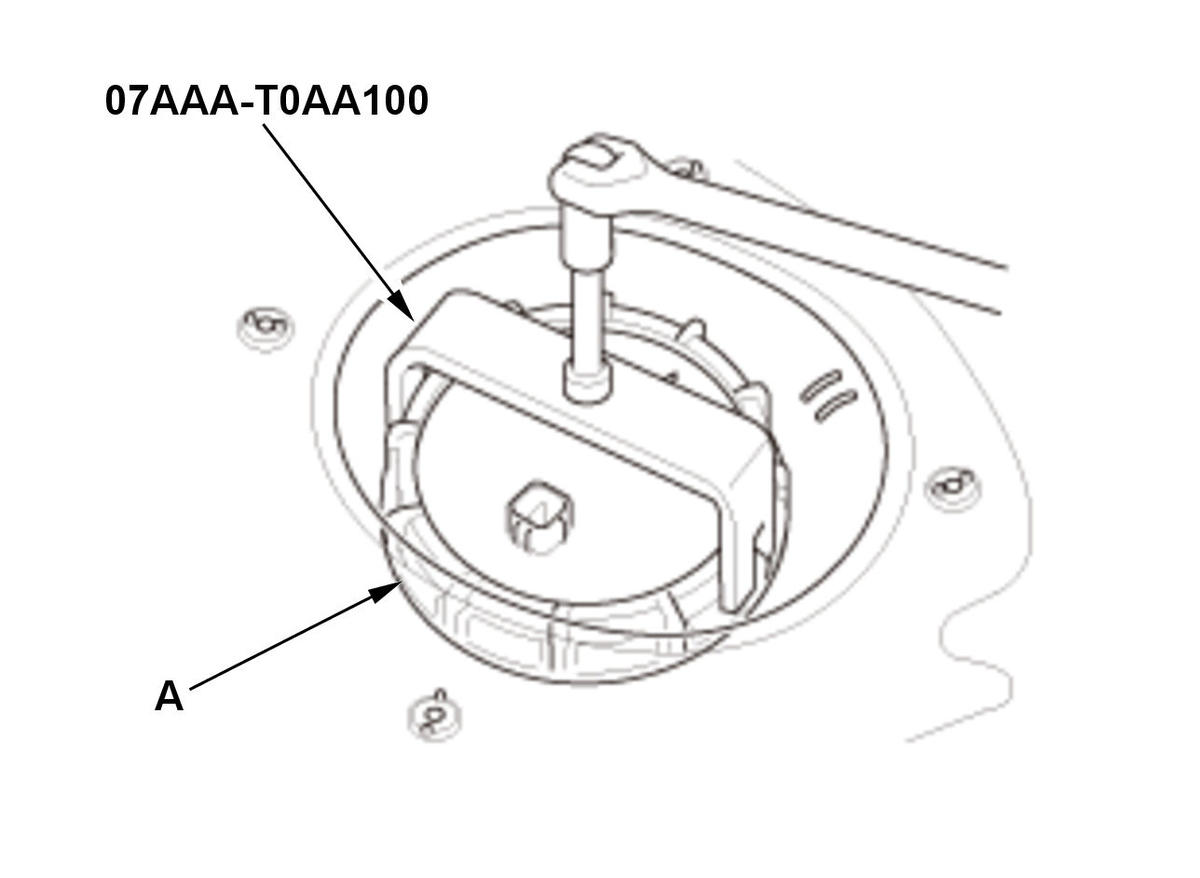

    GHH436337Courtesy of HONDA, U.S.A., INC.
    		 1. Using the fuel nut wrench, loosen the secondary fuel gauge sending unit lock nut (A).

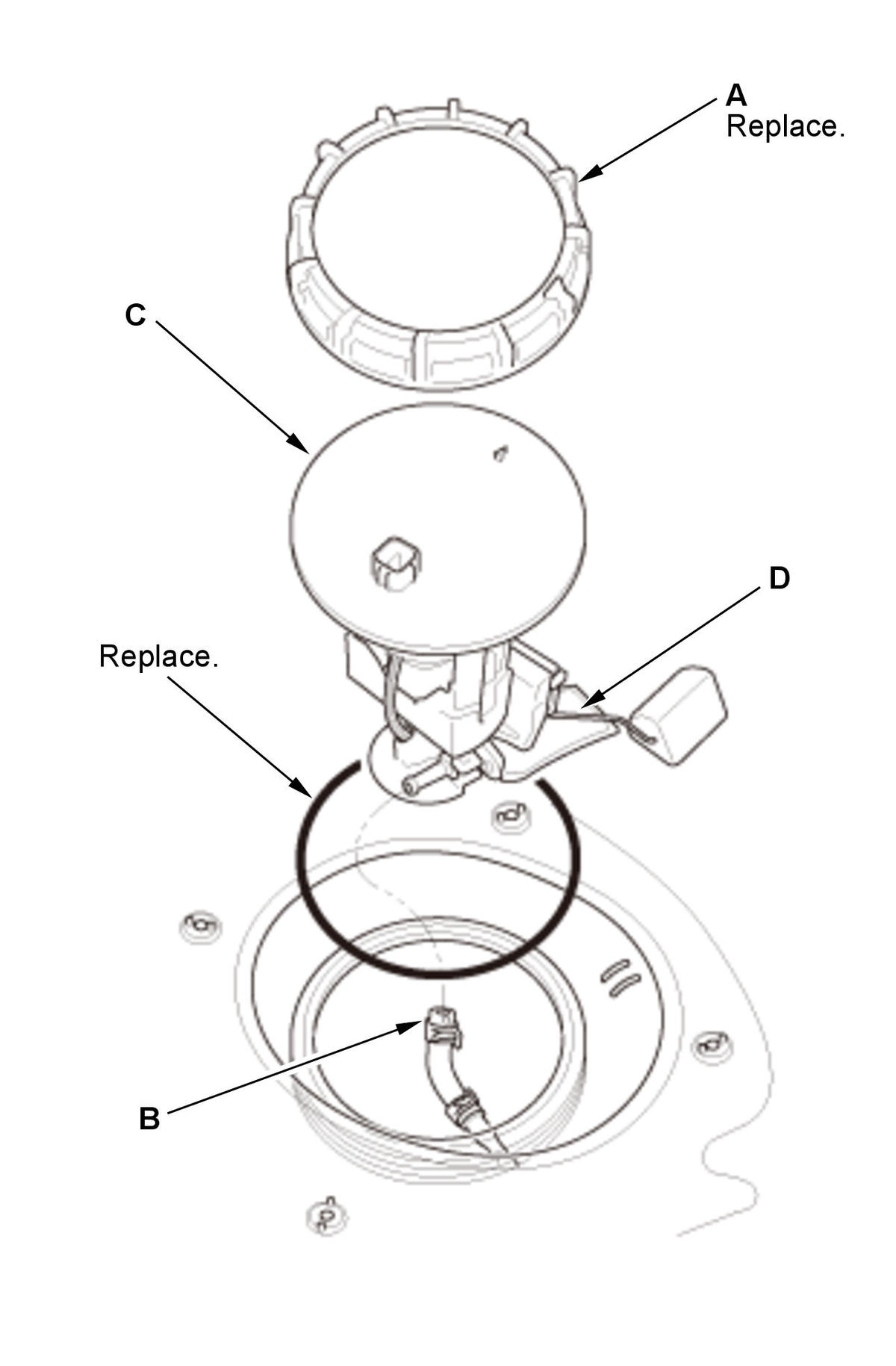

    GHH436338Courtesy of HONDA, U.S.A., INC.
    		 2. Remove the locknut (A).

    3. Disconnect the transfer tube (B), then remove the secondary fuel gauge sending unit (C).

    NOTE:

    Be careful not to bend or twist the fuel level sensor arm (D) excessively.
