Engine Oil Pressure Switch Removal and Installation: Removal

Oil Pressure Switch - Remove

Courtesy of HONDA, U.S.A., INC.

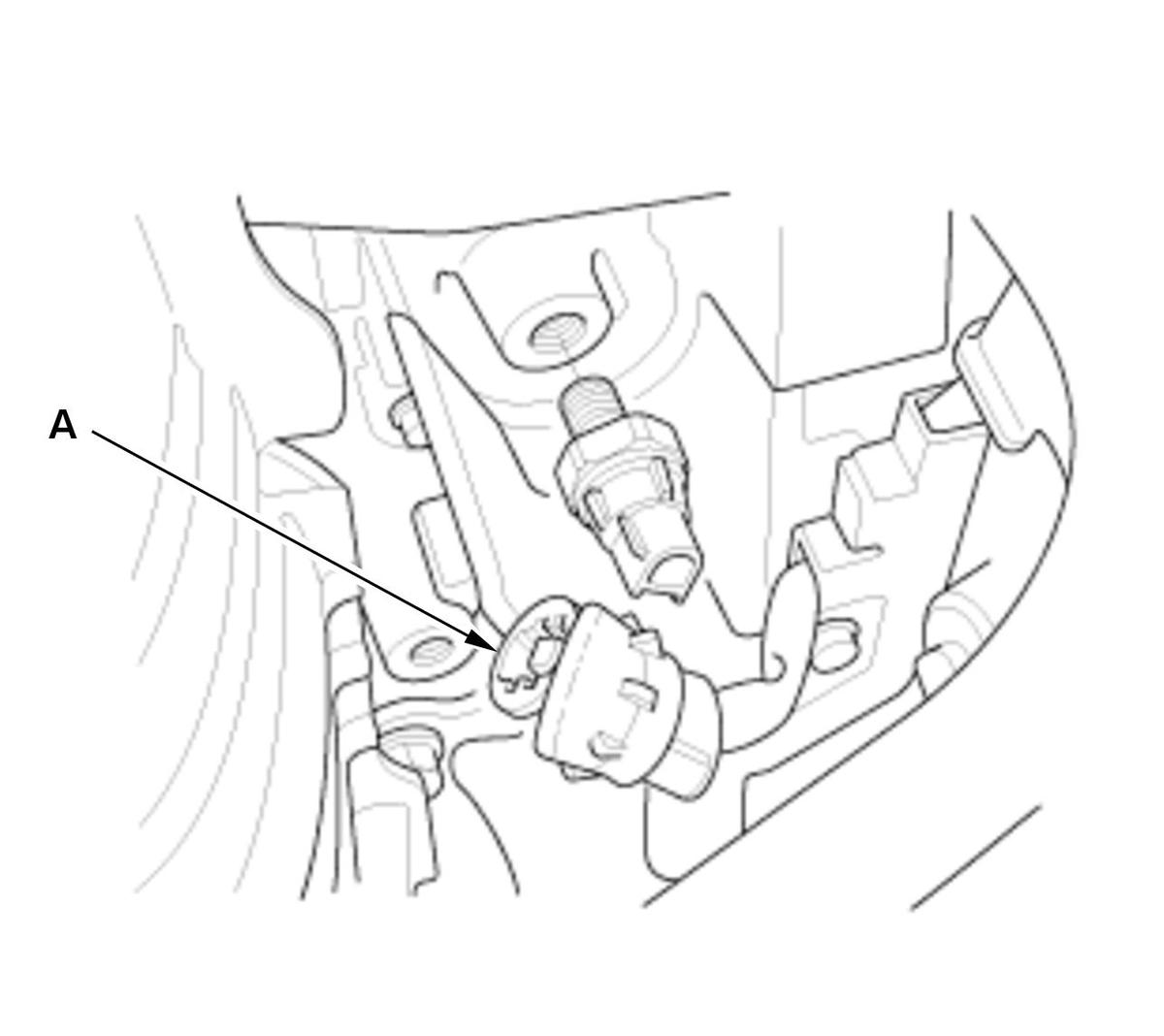

1. Disconnect the connector (A).

2. Remove the oil pressure switch.

3. Remove any old liquid gasket from the oil pressure switch and the oil pressure switch mounting hole.
