SRS Component Location Index (KA/KC)

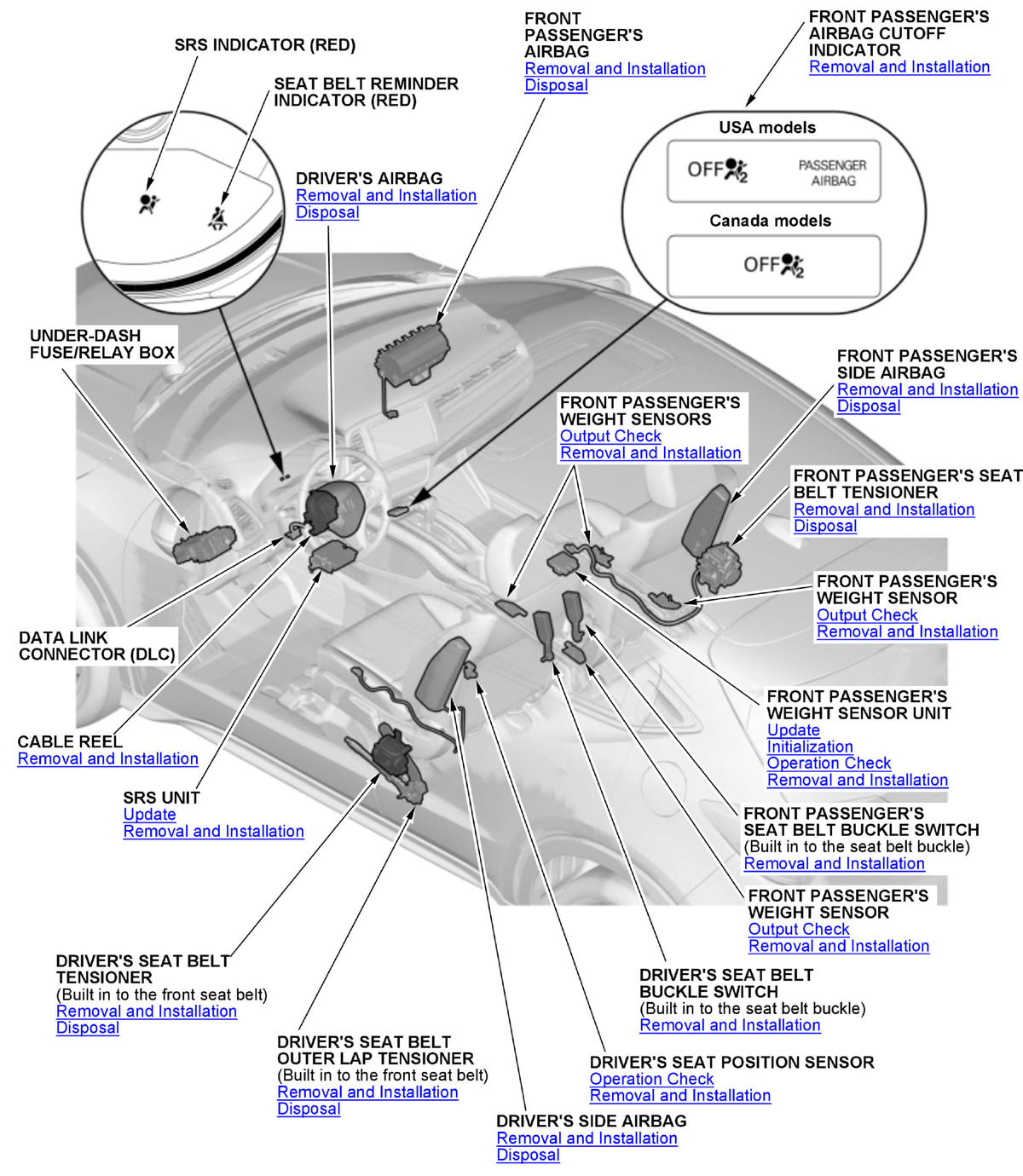

GHH438854Courtesy of HONDA, U.S.A., INC.
GHH438855Courtesy of HONDA, U.S.A., INC.

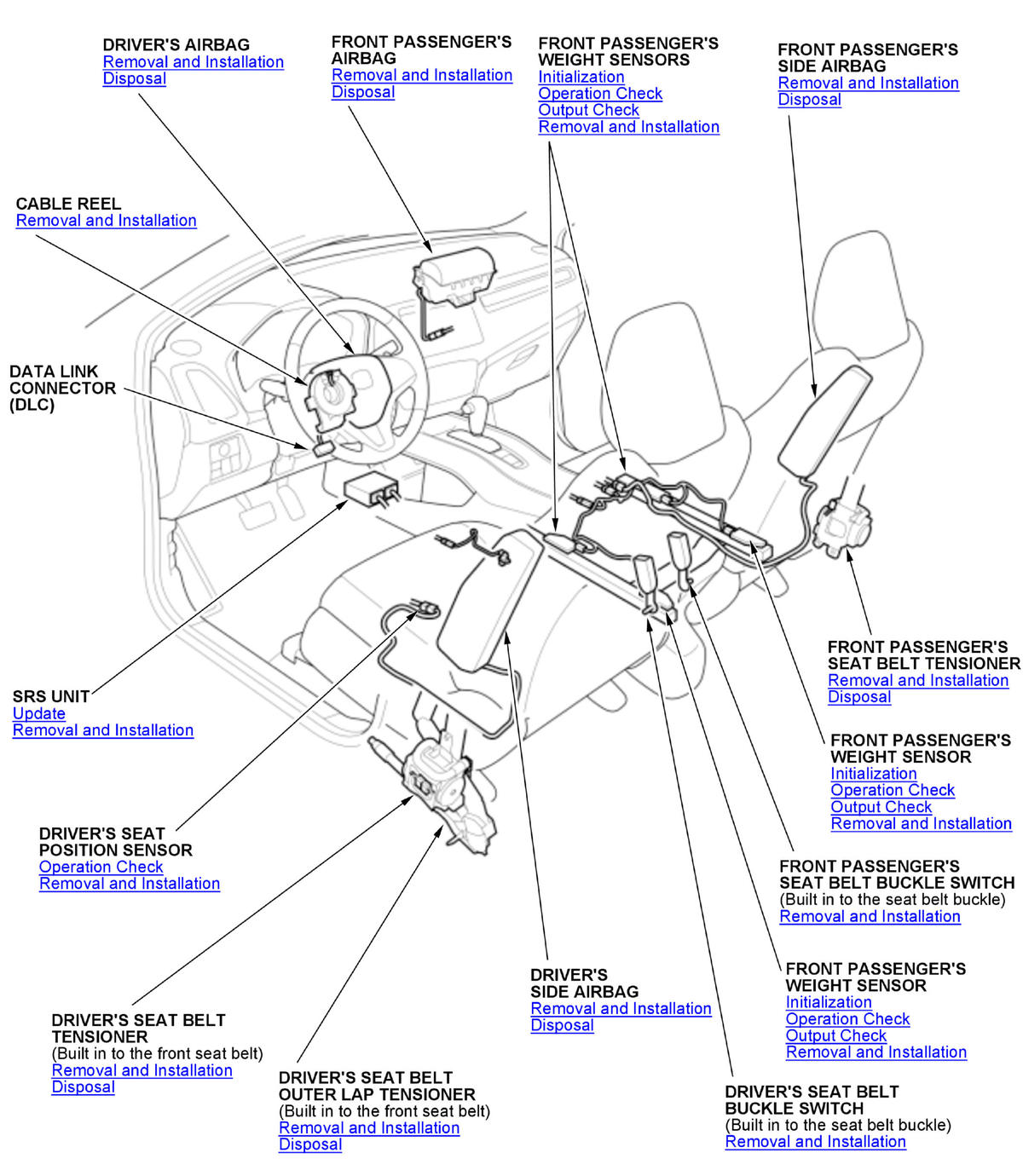

GHH438856Courtesy of HONDA, U.S.A., INC.

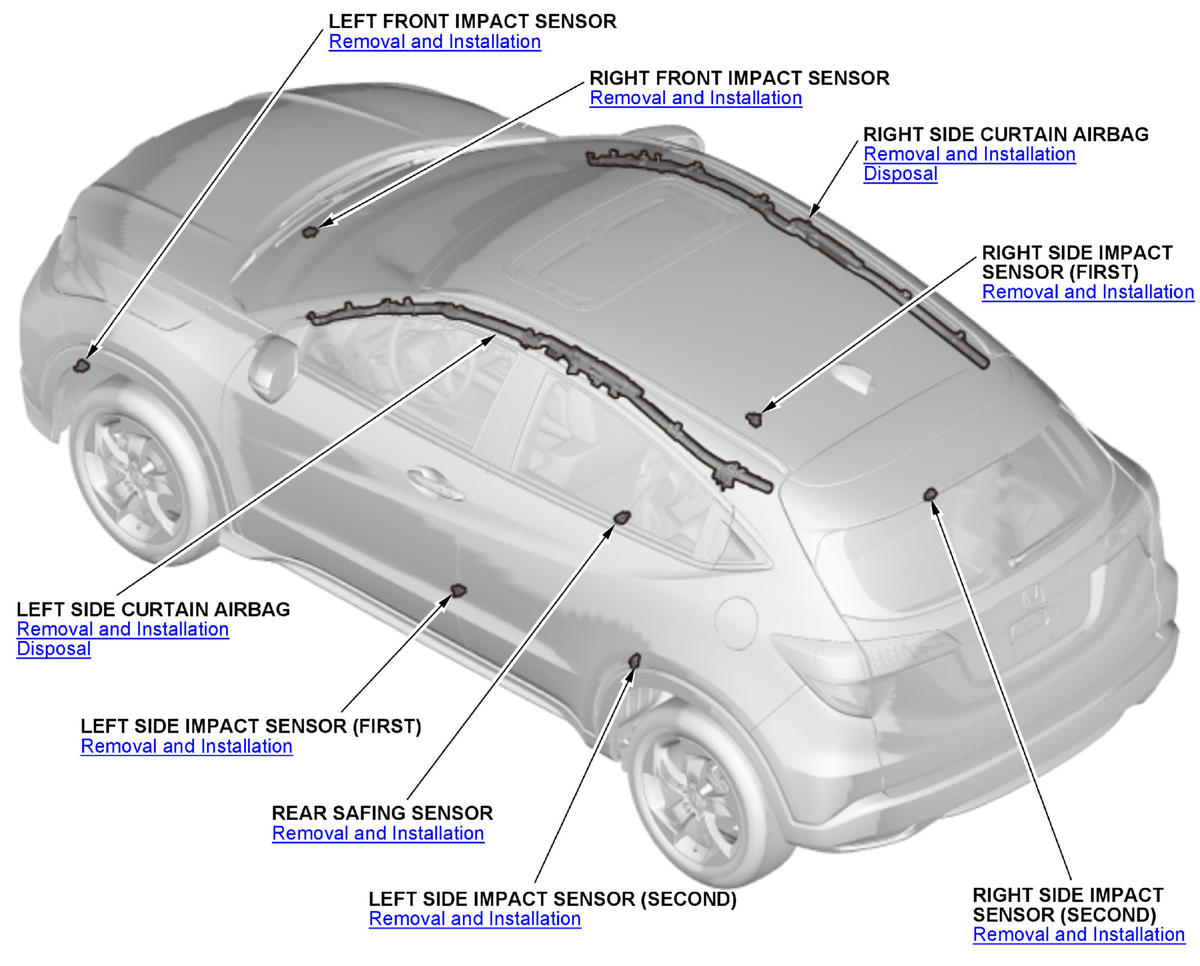

GHH438857Courtesy of HONDA, U.S.A., INC.

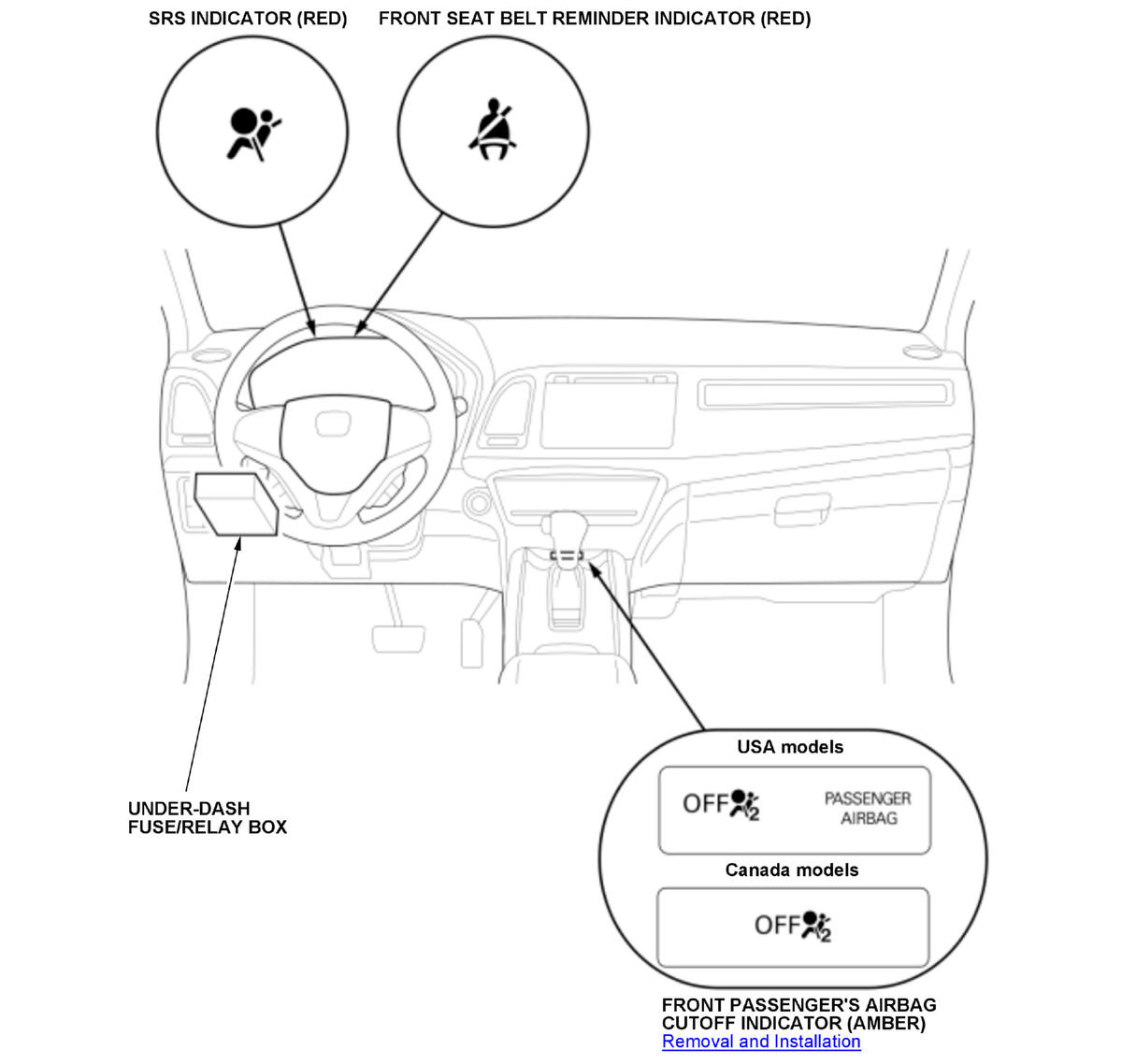

GHH438858Courtesy of HONDA, U.S.A., INC.

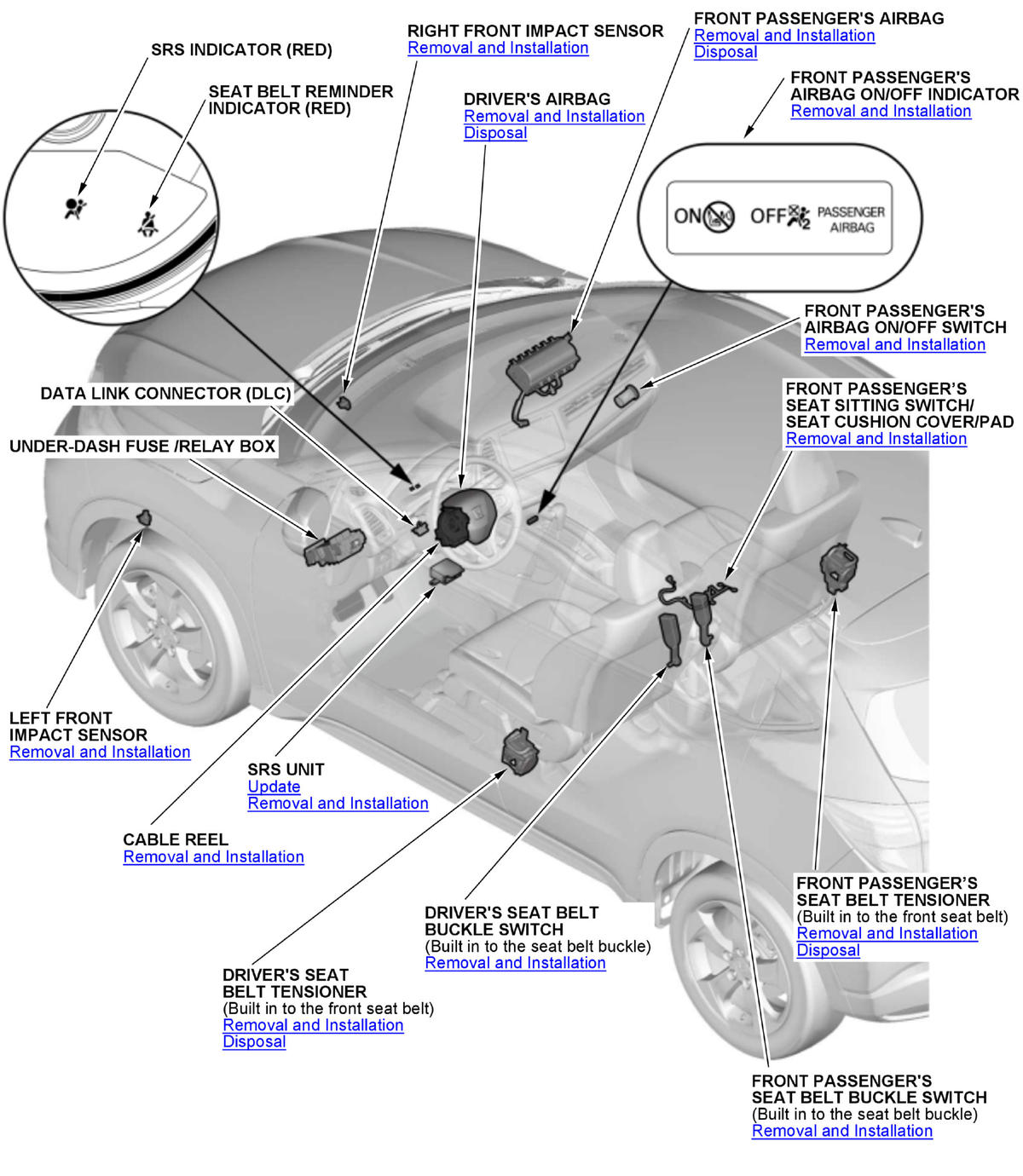

GHH438859Courtesy of HONDA, U.S.A., INC.
