Gauges System Description - Overview (2016 2017 2018)

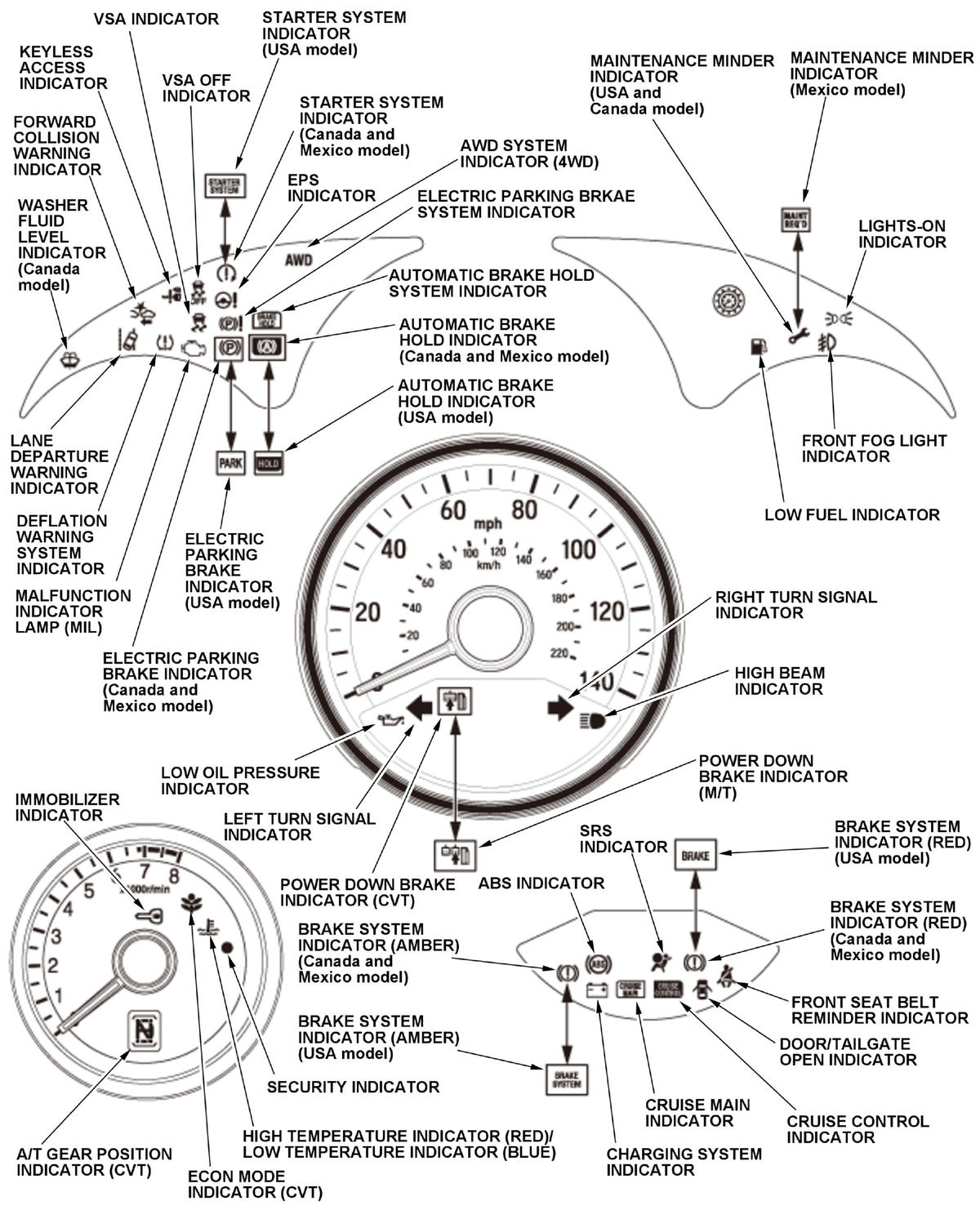

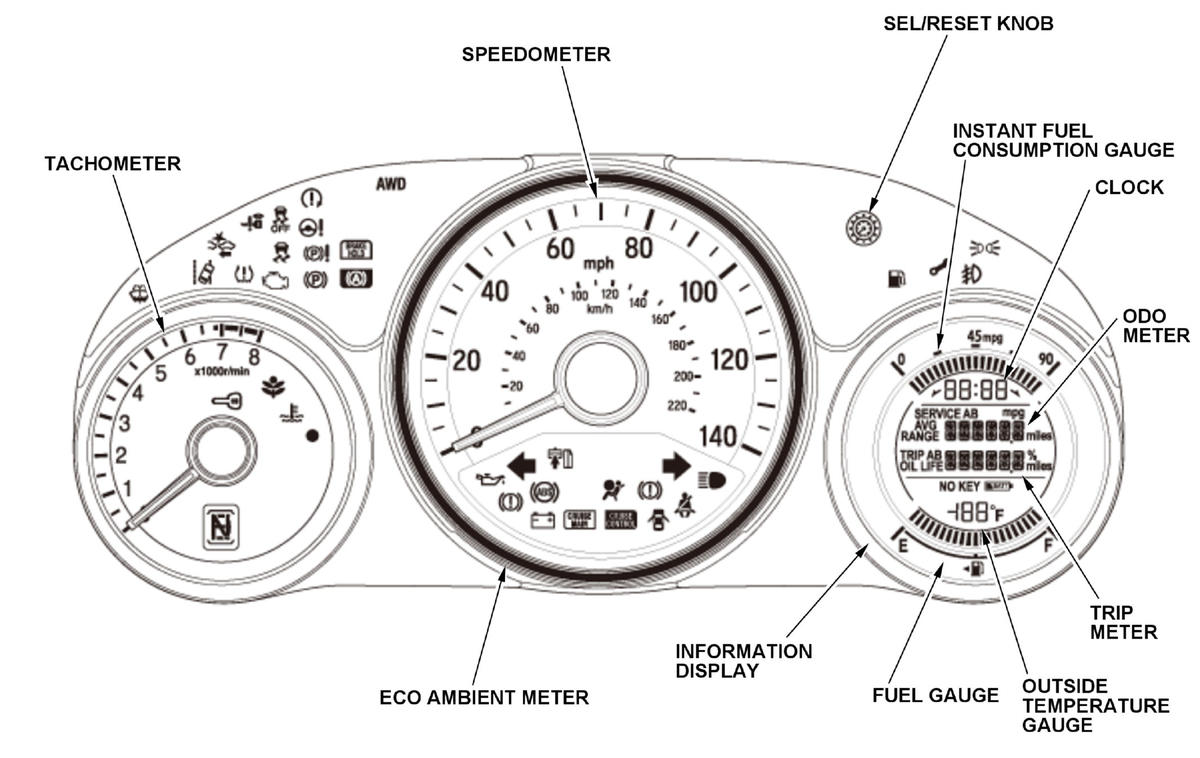

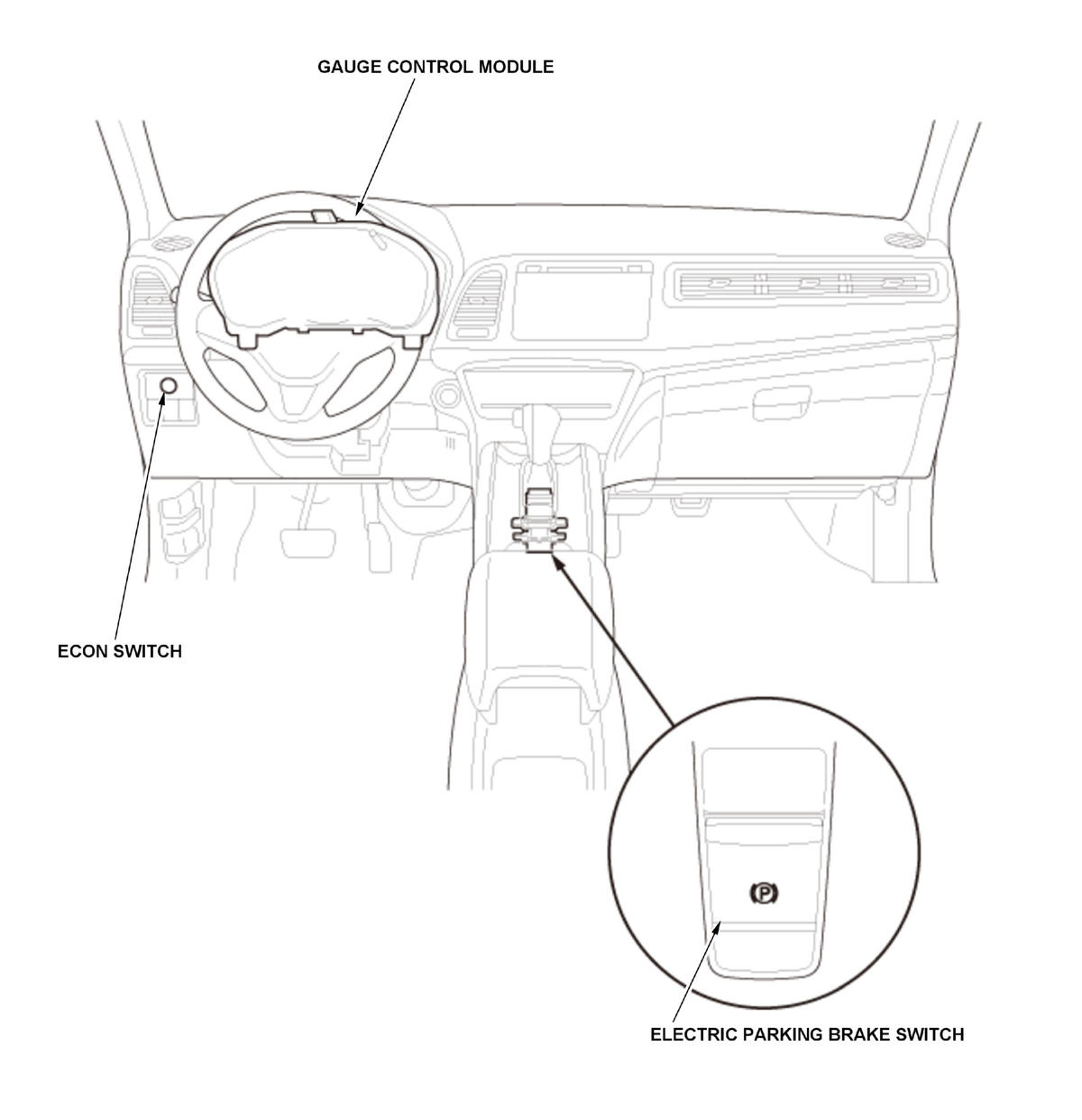

The gauge control module indicates the speedometer, the tachometer, the fuel gauge, and several other indicators. Also, the gauge control module has an information display which informs the driver of various vehicle conditions.
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
