Reminder Systems Circuit Diagram (2016 2017 2018)

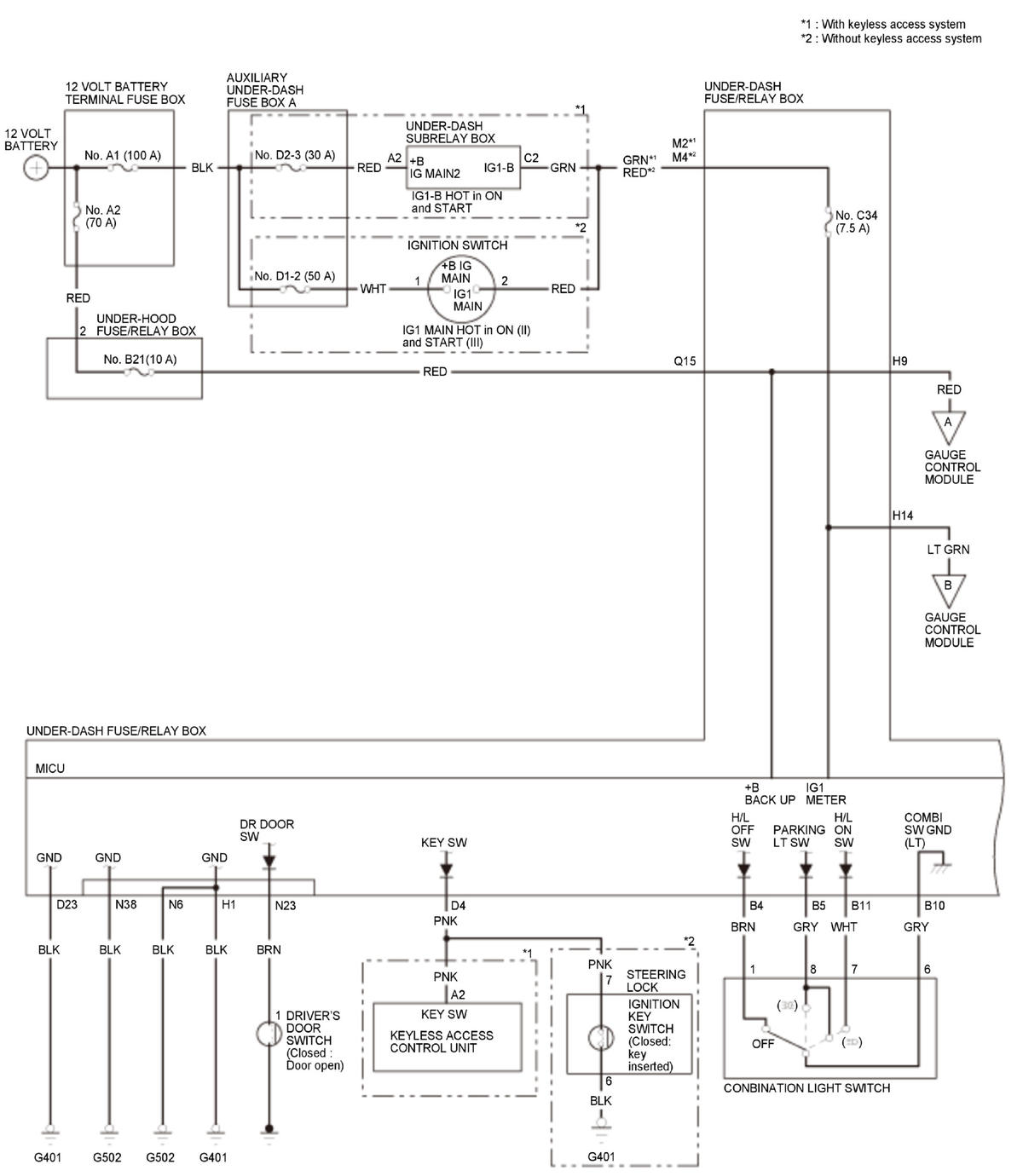

GHH436317

Courtesy of HONDA, U.S.A., INC.

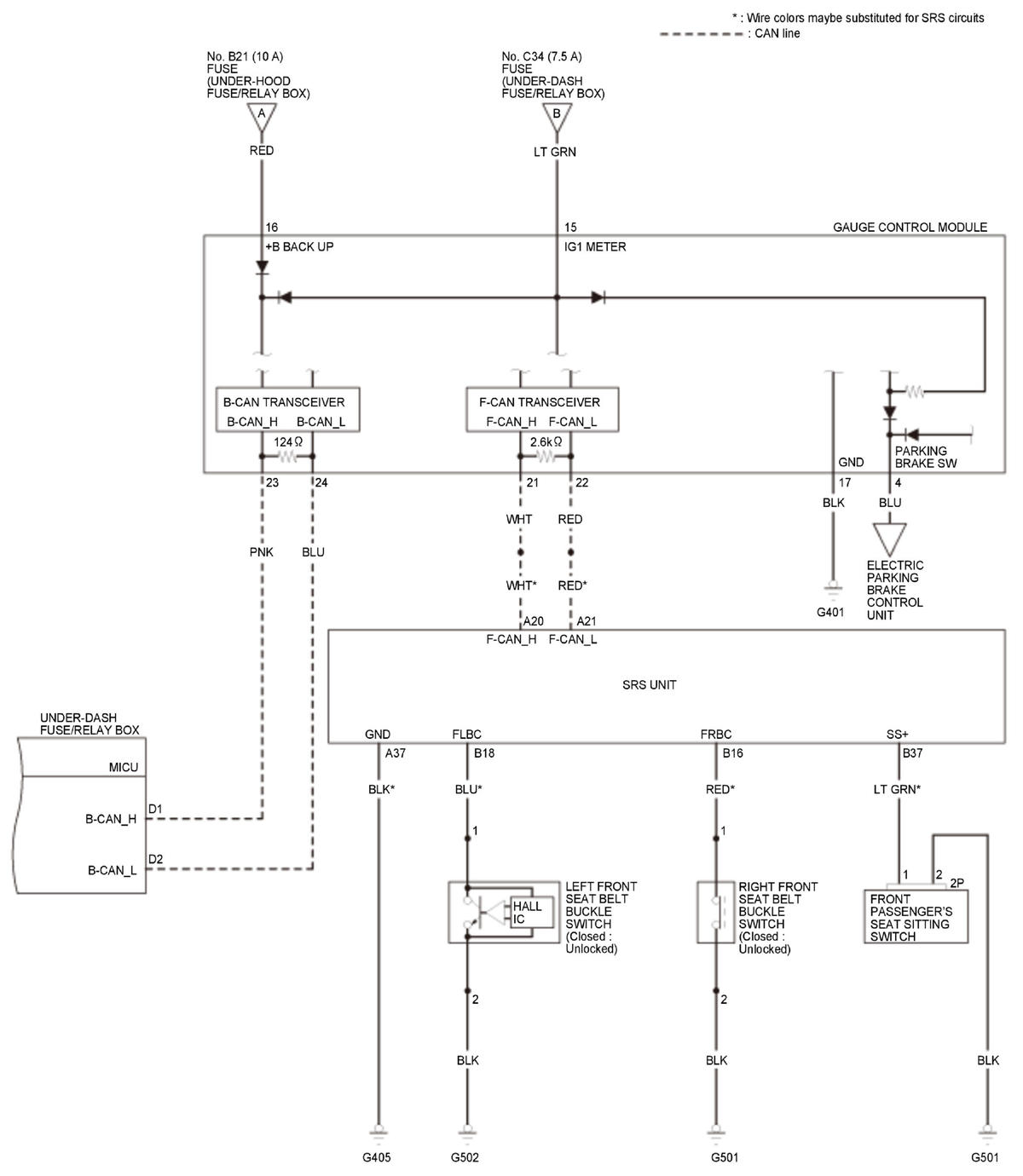

GHH436318

Courtesy of HONDA, U.S.A., INC.
