Transmission Range Switch Removal and Installation (CVT): Removal

Harness Cover - Remove

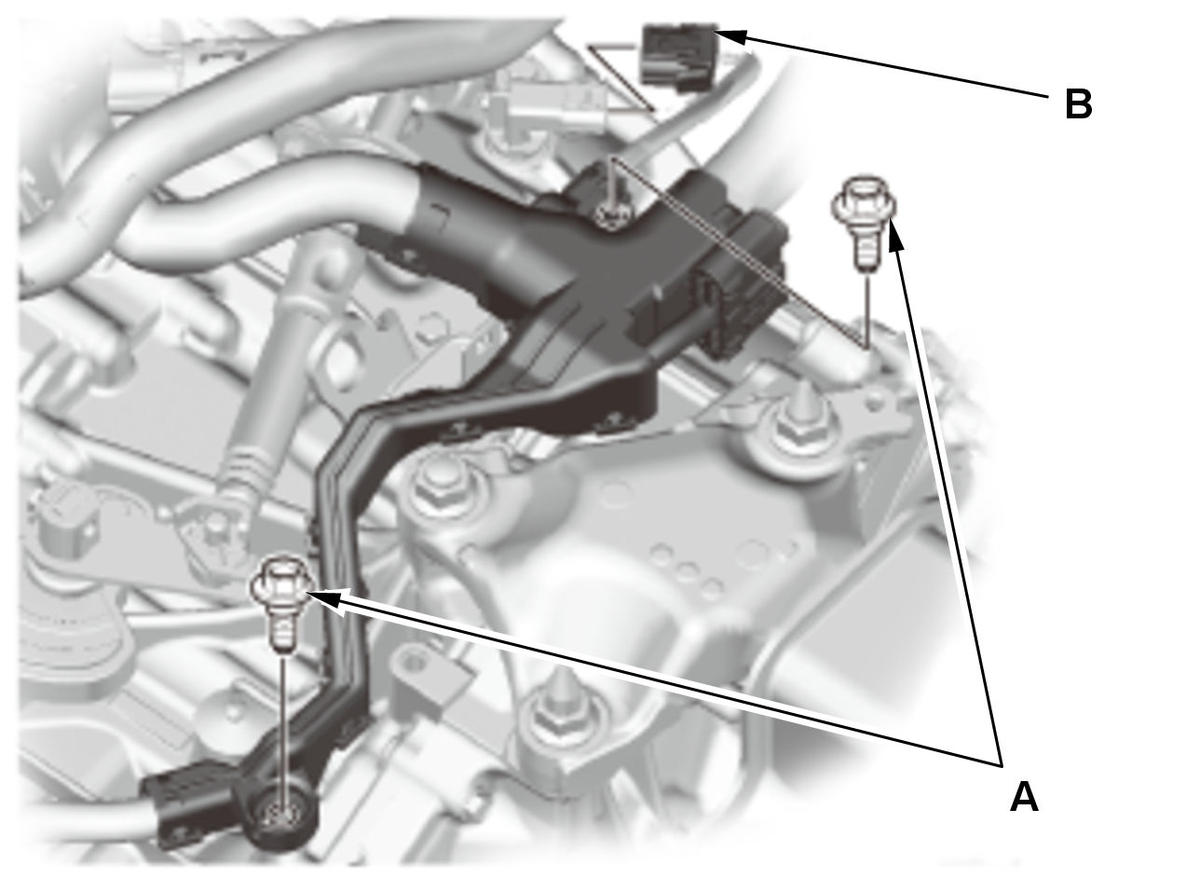

Courtesy of HONDA, U.S.A., INC.

1. Remove the bolts (A).

2. Disconnect the connector (B).

Shift Cable (Transmission Side) - Remove

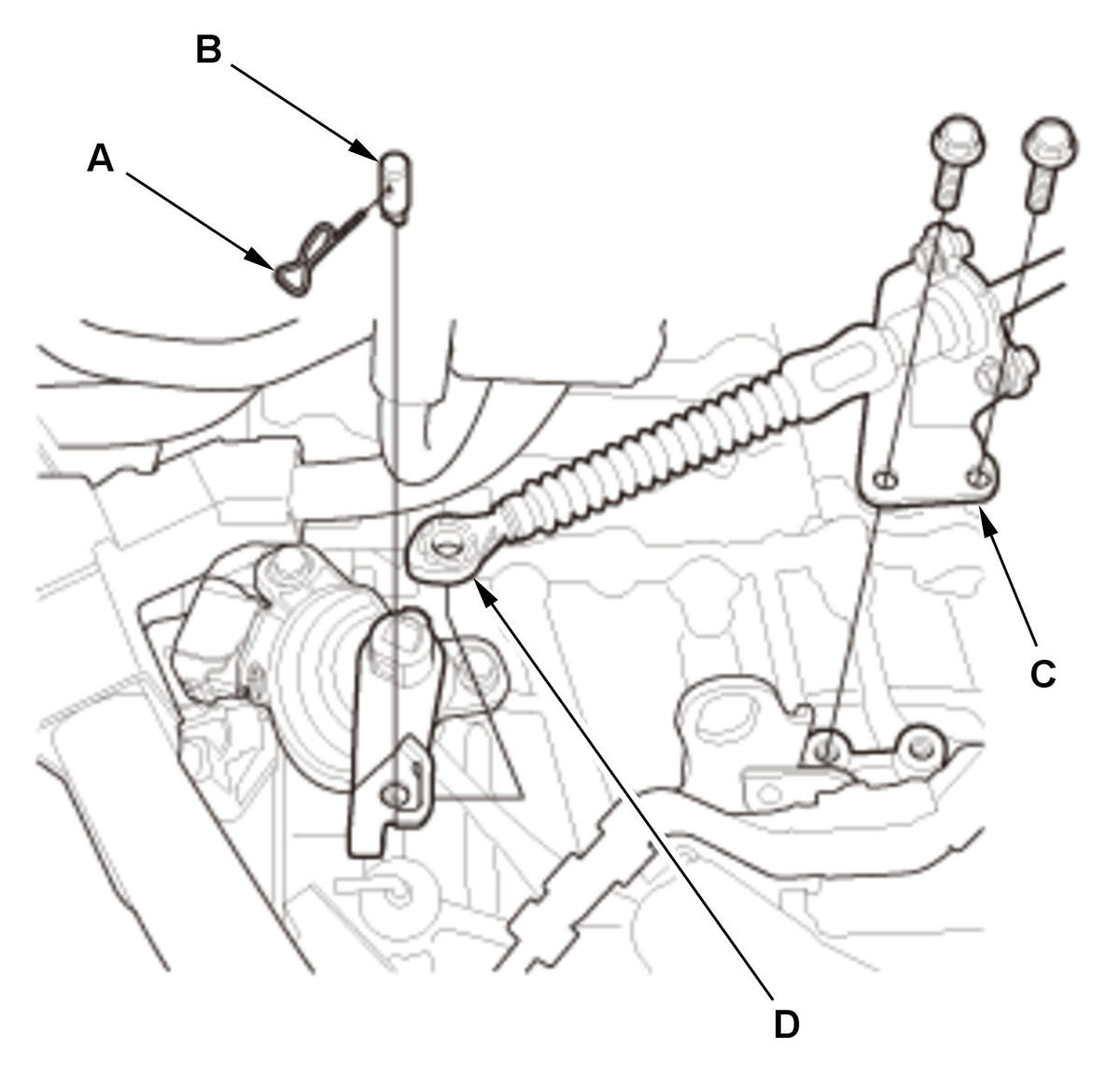

Courtesy of HONDA, U.S.A., INC.

1. Remove the lock pin (A) and the control pin (B).

2. Remove the shift cable bracket (C) and the shift cable end (D).

NOTE:

Do not bend the shift cable excessively.

Control Lever - Remove

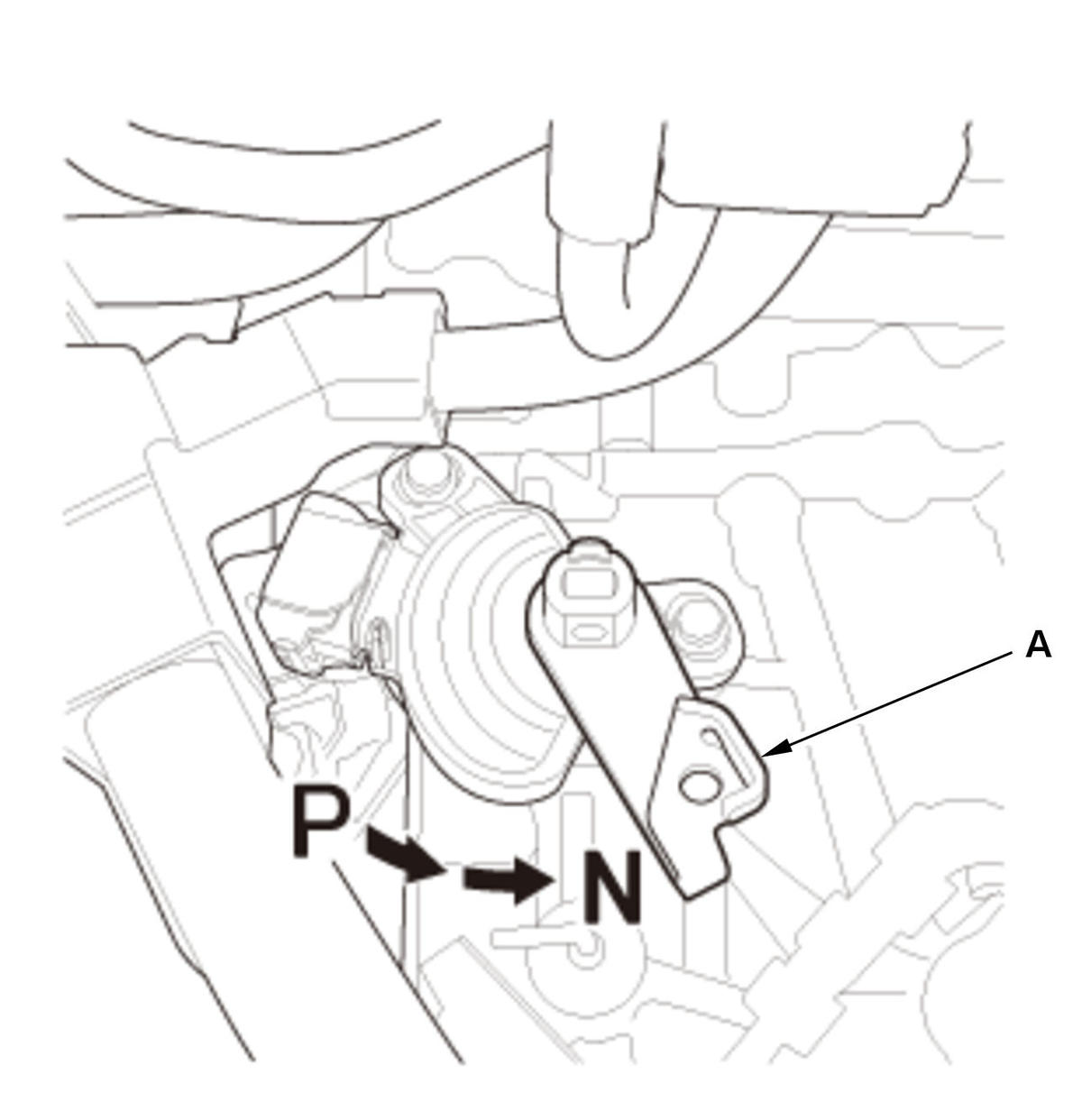

Courtesy of HONDA, U.S.A., INC.

1. Turn the control lever (A) to the P position, then turn it back two clicks to the N position.

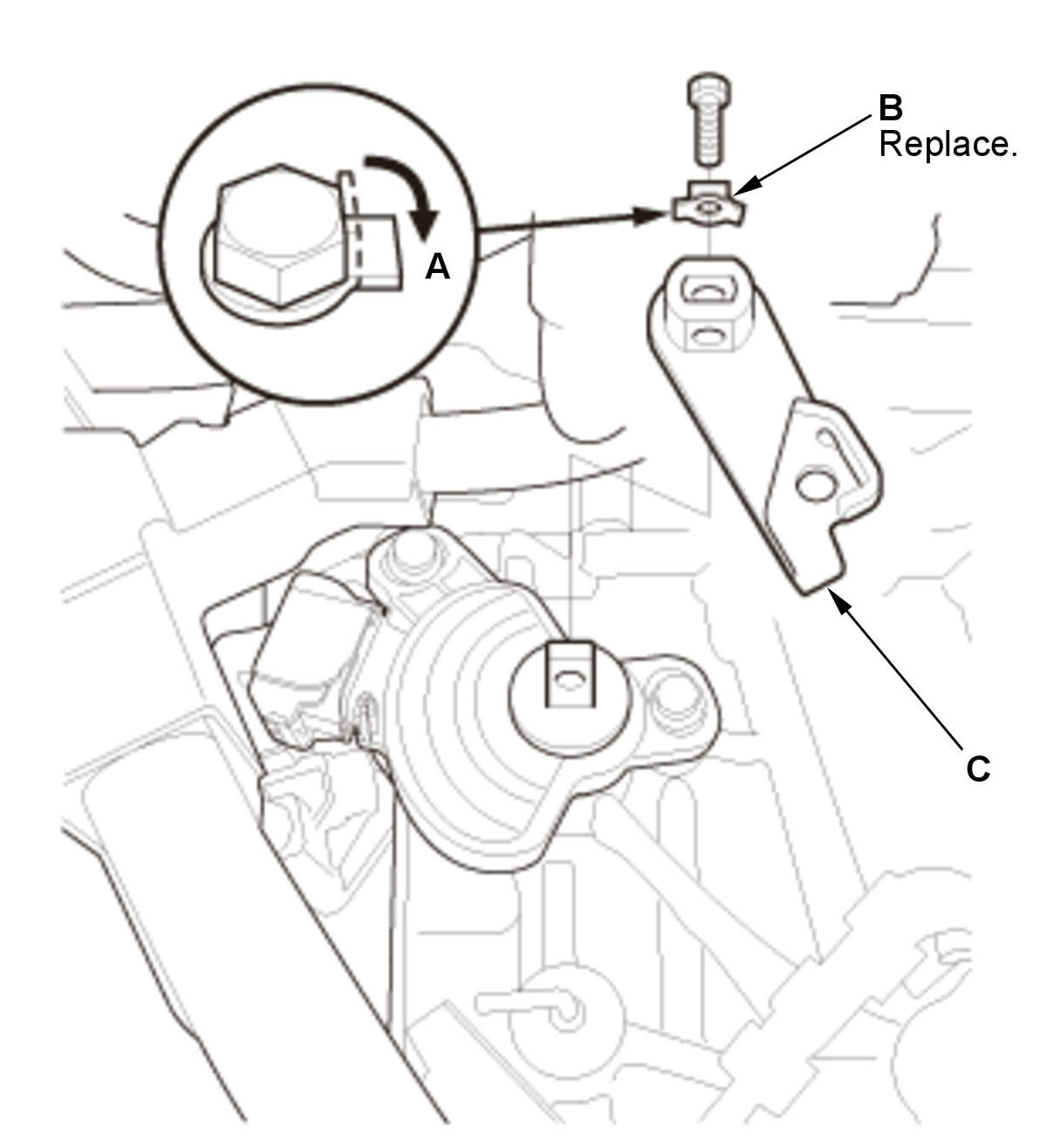

Courtesy of HONDA, U.S.A., INC.

2. Pry down the lock tab (A) of the lock washer (B).

3. Remove the control lever (C) and the lock washer.

Transmission Range Switch - Remove

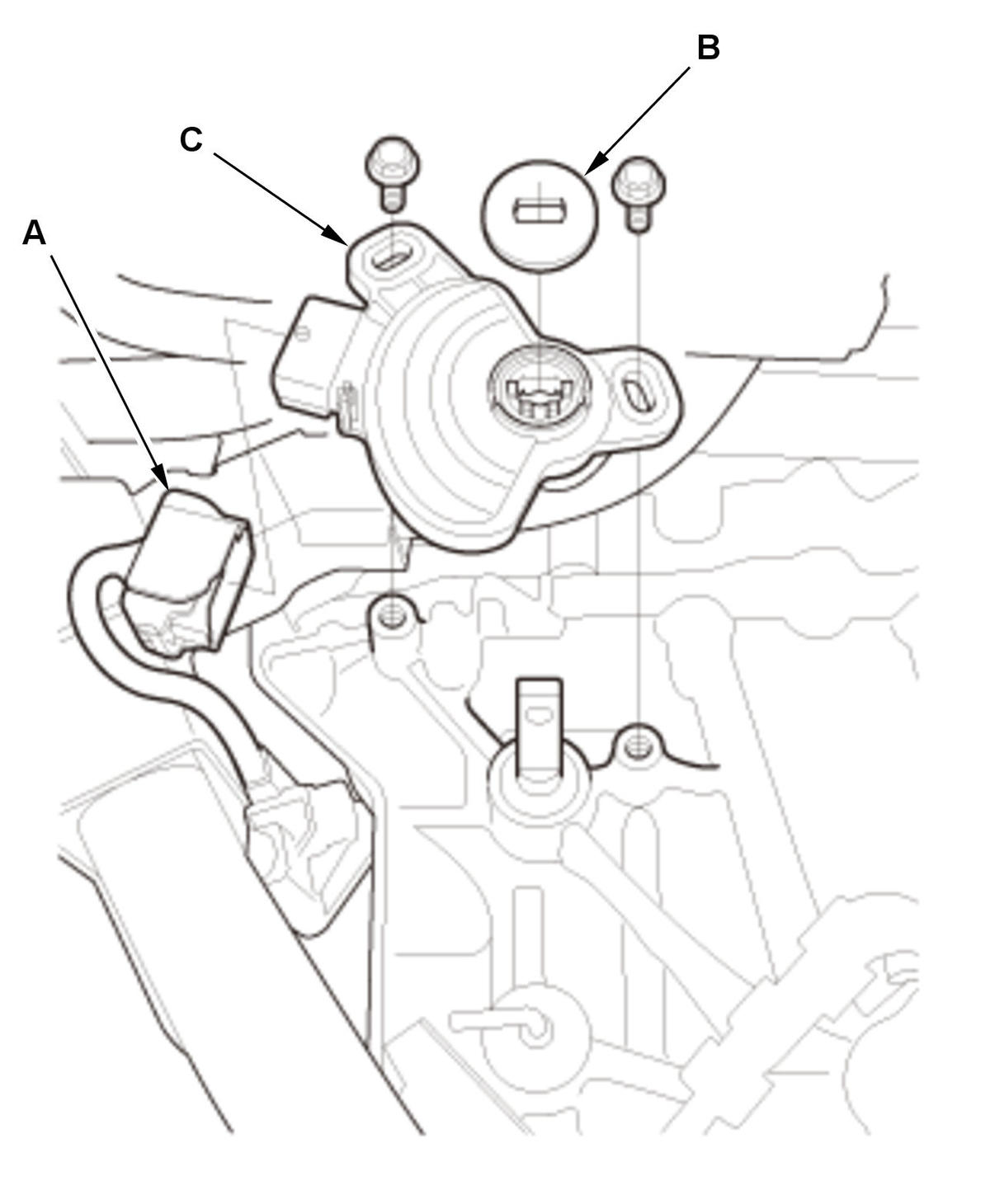

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connector (A).

2. Remove the control shaft cover (B).

3. Remove the transmission range switch (C).
