DTC P0480 (687):  Electric Powertrain RFC Circuit

General Description

Courtesy of HONDA, U.S.A., INC.

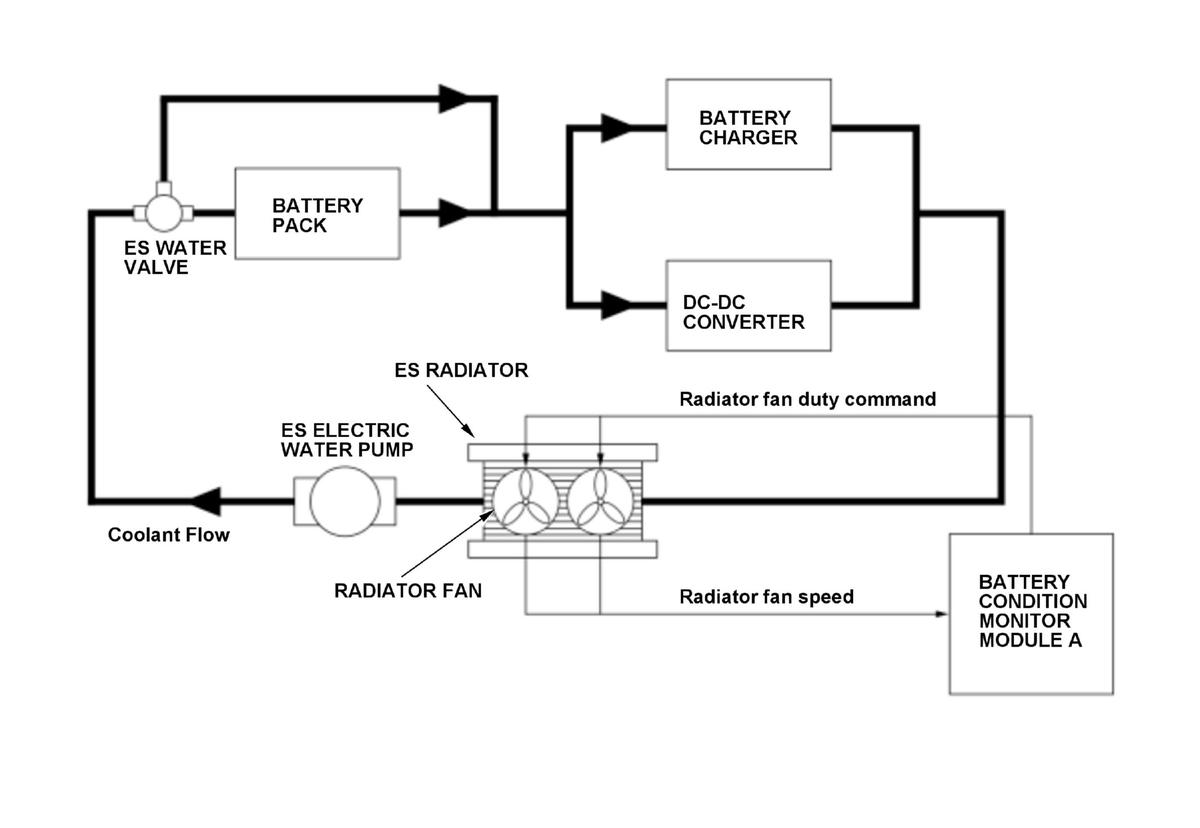

The electric powertrain system has a system to cool the battery pack, battery charger and DC-DC converter with coolant. The radiator fan receives duty command from the battery condition monitor module A and returns actual revolution speed to the battery condition monitor module A. The battery condition monitor module A compares the actual revolution speed with the duty command and when the revolution speed is lower than a specified value for a set time, the battery condition monitor module A detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	-
DTC Type	Two drive cycles, MIL off, POWER SYSTEM indicator on, 12 volt battery charging system indicator off

Enable Conditions

Condition	Minimum	Maximum
Battery condition monitor module A power-supply voltage	10 V	18 V
Radiator fan duty command	25 %	-
Vehicle condition	Vehicle ON mode, or Plug-in charge on, or Plug-in quick charge on

Malfunction Threshold

The radiator fan speed is less than 234 RPM at least 12 seconds.

Possible Cause

Confirmation Procedure

Operating condition

• Turn the vehicle to the ON mode.
• Turn the A/C switch on, and wait at least 30 seconds.

With the HDS

None.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the battery condition monitor module A memory. If the malfunction returns in the next (second) drive cycle, the POWER SYSTEM indicator comes on and a Confirmed DTC and the freeze data are stored.

Conditions for clearing the DTC

The POWER SYSTEM indicator are cleared if the malfunction does not return in the next trip in which the diagnostic runs. The POWER SYSTEM indicator the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
