Electric Servo Brake Control Unit Connector for Inputs and Outputs

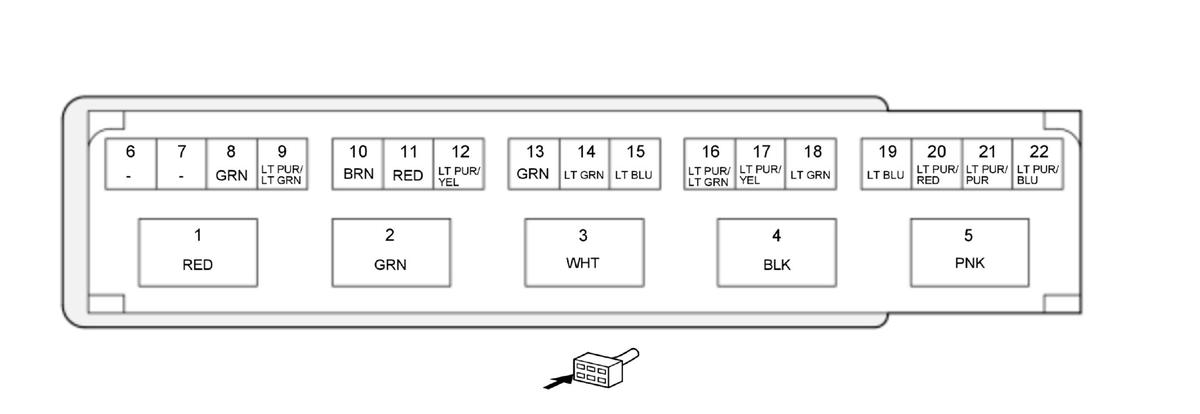

Electric Servo Brake Control Unit Inputs and Outputs for 22P Connector (female terminals) (Connector Disconnected)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | MV | Drive the motor |
| 2 | MU | Drive the motor |
| 3 | MW | Drive the motor |
| 4 | GND | Ground for the electric servo brake control unit |
| 5 | +B ESB | Power source for the electric servo brake control unit |
| 6 | Not used | --- |
| 7 | Not used | |
| 8 | BPS | Detects brake pedal stroke sensor signal |
| 9 | ESV SGND | Ground for the brake pedal stroke sensor and the tandem motor cylinder |
| 10 | FL DOOR SW | Detects driver's door switch signal |
| 11 | BPSR | Detects brake pedal stroke sensor redundant signal |
| 12 | ESB SVCC | Power source for the brake pedal stroke sensor and the tandem motor cylinder |
| 13 | BRK LAMP | Drive the brake light relay |
| 14 | F-CAN B_L | F-CAN communication circuit |
| 15 | F-CAN B_H | F-CAN communication circuit |
| 16 | STOP SW | Detects brake light relay signal |
| 17 | IG1 ESB | Power source for activating the system |
| 18 | F-CAN C_L | F-CAN communication circuit |
| 19 | F-CAN C_H | F-CAN communication circuit |
| 20 | HALL U | Detects motor angle sensor signal |
| 21 | HALL V | Detects motor angle sensor signal |
| 22 | HALL W | Detects motor angle sensor signal |
