Front Seat Heater Control Unit Connector For Inputs And Outputs

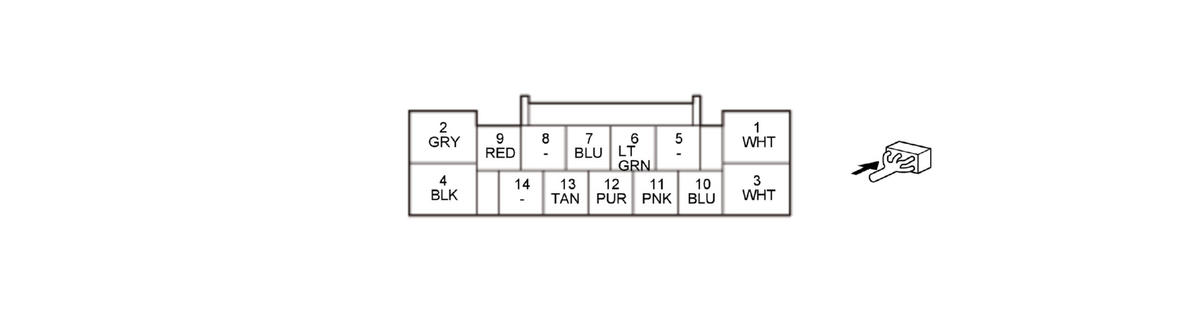

Front Seat Heater Control Unit 14P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | HEATER DR | Outputs HEATER DR signal | With front seat heater operation: about battery voltage If none of above conditions are met: less than 0.2 V |
| 2 | H/SEAT RLY OUT | Power source for front seat heater control unit | With vehicle in ON mode: about battery voltage |
| 3 | HEATER AS | Outputs HEATER AS signal | With front seat heater operation: about battery voltage If none of above conditions are met: less than 0.2 V |
| 4 | GND | Ground for front seat heater control unit | Less than 0.2 V at all times |
| 5 | Not used | --- | --- |
| 6 | TH- AS | TH- AS signal | Less than 0.2 V at all times |
| 7 | TH- DR | TH- DR signal | Less than 0.2 V at all times |
| 8 | Not used | --- | --- |
| 9 | IG1 OPTION | IG1 power source | With vehicle in ON or READY TO DRIVE mode: about battery voltage |
| 10 | B-CAN_L | Communication line | --- |
| 11 | B-CAN_H | Communication line | --- |
| 12 | TH+ AS | AS TH+ signal | --- |
| 13 | TH+ DR | DR TH+ signal | --- |
| 14 | Not used | --- | --- |
