Active Noise Cancellation Unit Connector For Inputs And Outputs

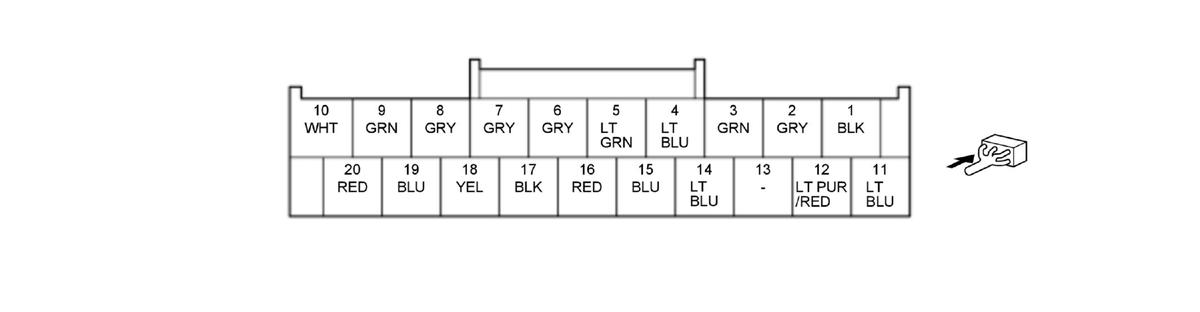

ACTIVE NOISE CANCELLATION UNIT 20P CONNECTOR (female terminals)
ACTIVE NOISE CANCELLATION UNIT 20P CONNECTOR (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | GND | Ground for active noise cancellation unit (G302) |
| 2 | AUD F MIX SH | Shield for terminals No. 15 and No. 16 |
| 3 | SWD+B | Inputs signal for active noise cancellation unit switching on/off |
| 4 | F-CAN B_H | F-CAN bus communication signal |
| 5 | F-CAN B_L | F-CAN bus communication signal |
| 6 | SH ANC F MIC | Shield for terminal No. 17 |
| 7 | SH ANC F MIC | Shield for terminal No. 18 |
| 8 | ANC SH | Shield for terminals No. 9, No. 10, No. 19, and No. 20 |
| 9 | ANC R- | Outputs sound signal for noise cancelling to audio-navigation unit or audio unit |
| 10 | ANC F- | Outputs sound signal for noise cancelling to audio-navigation unit or audio unit |
| 11 | +B AUDIO | Continuous power source |
| 12 | IG1 OPTION | IG1 power source |
| 13 | Not used | --- |
| 14 | K LINE | Detects scan tool signal (serial data) |
| 15 | AUD F MIX GND | Inputs audio sound signal for active noise cancellation unit |
| 16 | AUD F MIX | Inputs audio sound signal for active noise cancellation unit |
| 17 | ANC R MIC+8V | Inputs sound signal from rear active noise cancellation microphone |
| 18 | ANC F MIC+8V | Inputs sound signal from front active noise cancellation microphone |
| 19 | ANC R+ | Outputs sound signal for noise cancelling to audio-navigation unit or audio unit |
| 20 | ANC F+ | Outputs sound signal for noise cancelling to audio-navigation unit or audio unit |
