Sport Mode Switch Circuit

Sport Mode Switch Circuit Troubleshooting

1. Sport mode switch check

   -1. Test the sport mode switch .

   Is the sport mode switch OK?

   YES

   The sport mode switch is OK. Go to step 2.

   NO

   Replace the sport mode switch .

2. Open wire check (GND line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Sport mode switch 8P connector: disconnected

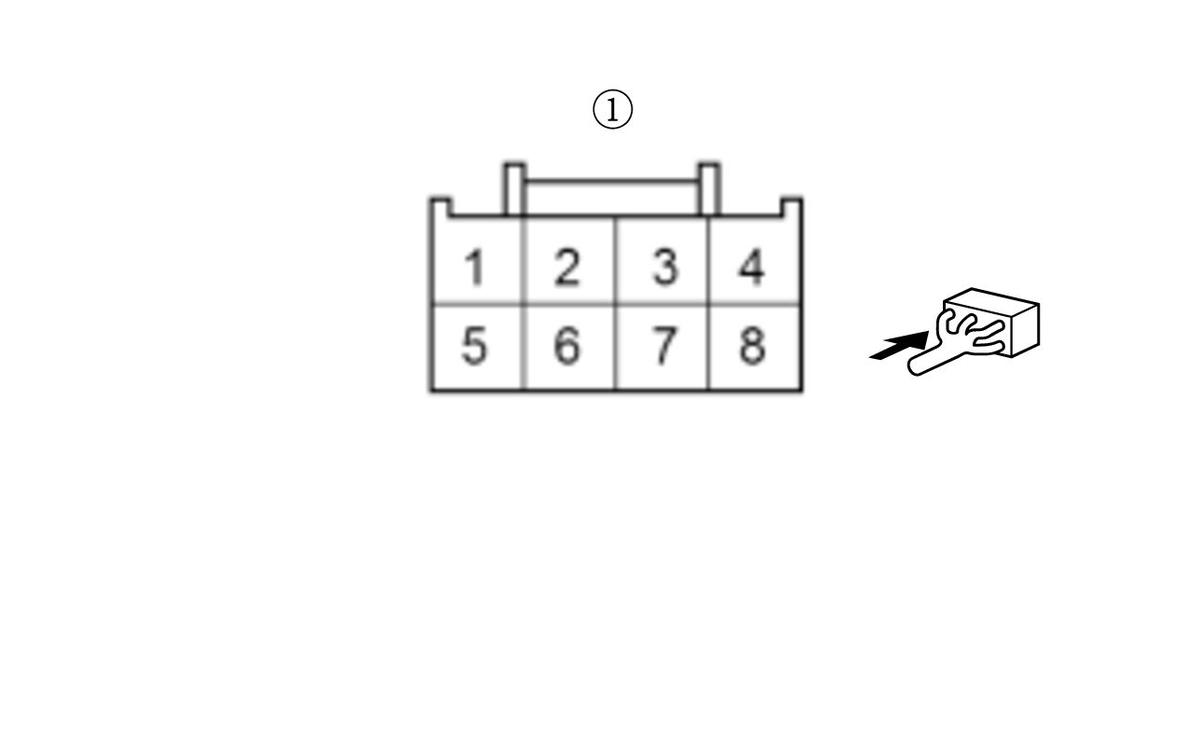

   Test point 1	Sport mode switch 8P connector (female terminals) No. 6:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The GND wire is OK. Go to step 3.

   NO

   Repair an open in the GND wire between the sport mode switch and ground (G303) or repair poor ground (G303).

3. Shorted wire check (SPORT MODE SW line)

   -1. Disconnect the following connector.

   Gauge control module connector A (32P)

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Sport mode switch 8P connector: disconnected
   	Gauge control module connector A (32P): disconnected

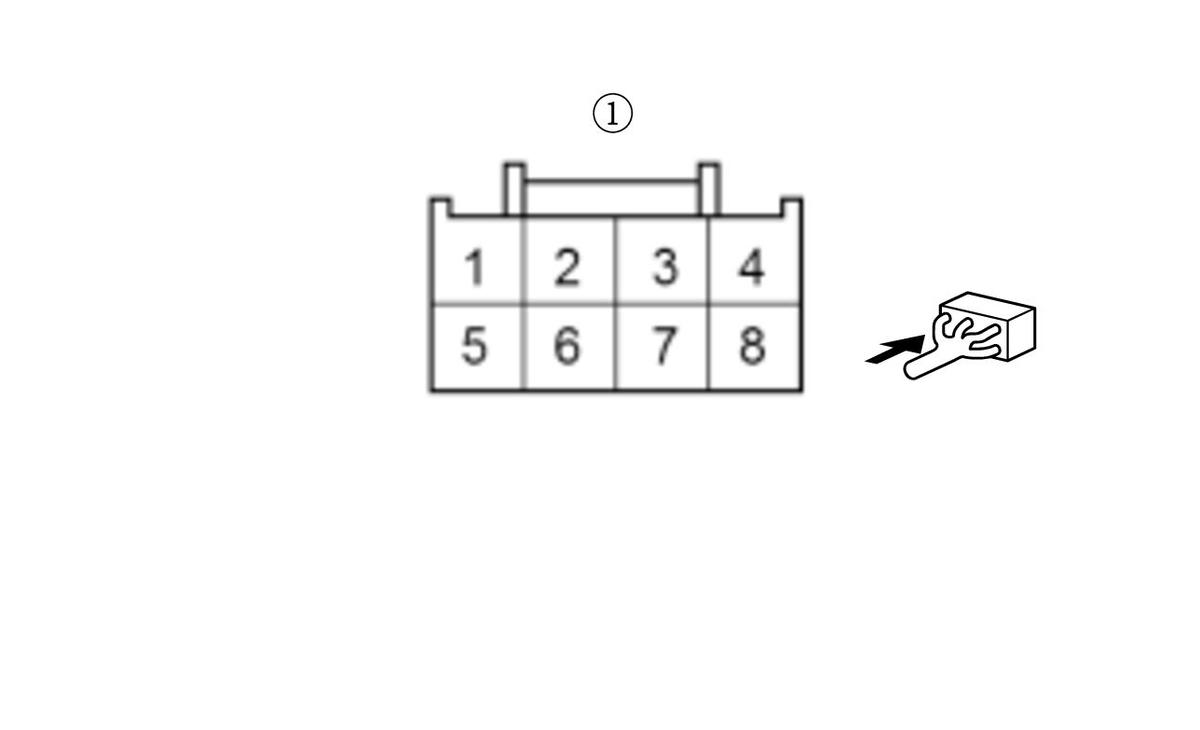

   Test point 1	Sport mode switch 8P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to body ground in the SPORT MODE SW wire between the sport mode switch and the gauge control module.

   NO

   The SPORT MODE SW wire is not shorted. Go to step 4.

4. Open wire check (SPORT MODE SW line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Sport mode switch 8P connector: disconnected
   	Gauge control module connector A (32P): disconnected

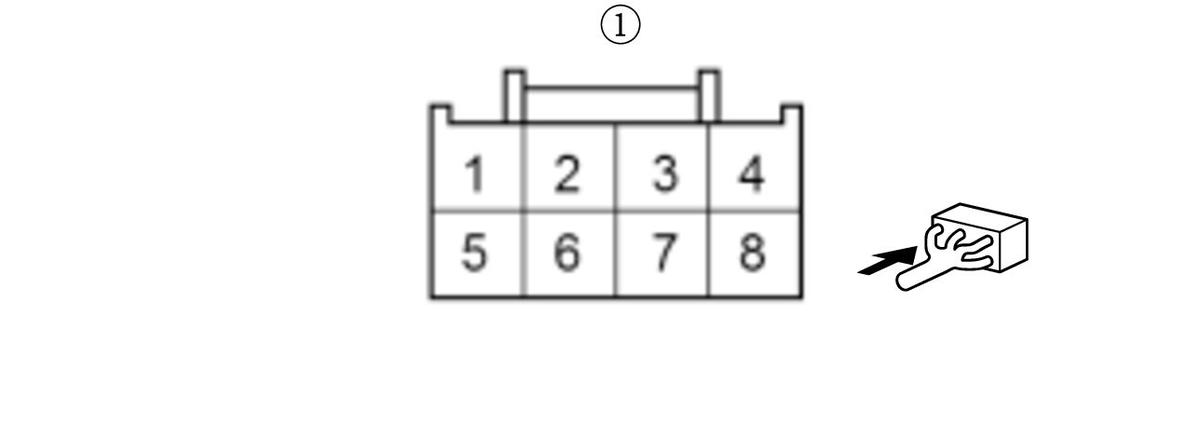

   Test point 1	Sport mode switch 8P connector (female terminals) No. 2:
   Test point 2	Gauge control module connector A (32P) No. 6

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The SPORT MODE SW wire is OK. Do the gauge control module self-diagnostic function .

   NO

   Repair an open in the SPORT MODE SW wire between the sport mode switch and the gauge control module.
