System Description
>>

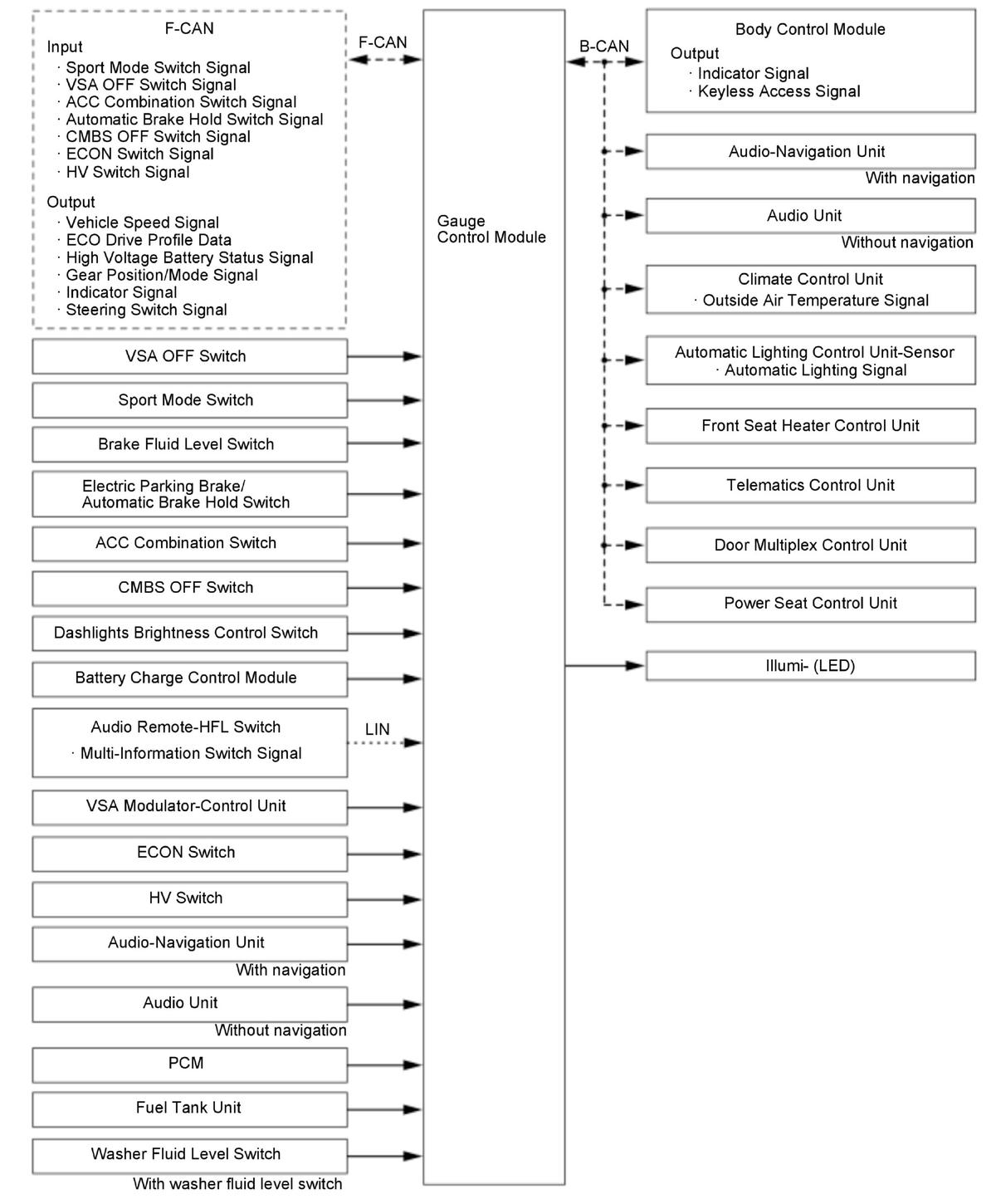

Gauges System - System Diagram
Gauges System - System Diagram
For locations of each component on the vehicle, refer to Component Location Index
Courtesy of HONDA, U.S.A., INC.
