Acoustic Vehicle Alerting Control Unit Connector for Inputs and Outputs

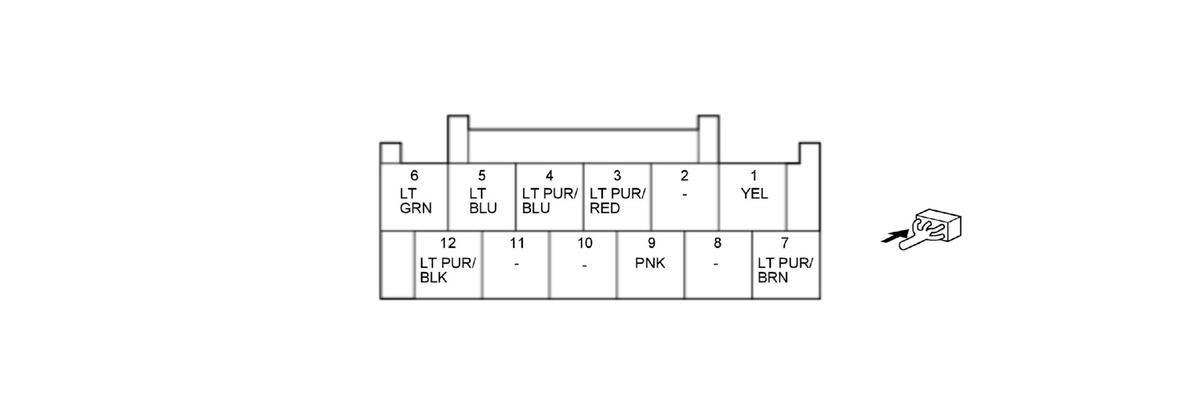

Acoustic Vehicle Alerting Control Unit 12P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1* | AUDIBLE OFF SW | Detects AUDIBLE OFF SW signal | With vehicle in ON mode and acoustic vehicle alerting system off switch ON: about battery voltageIf none of the above conditions are met: less than 0.2 V |
| 2 | Not used | --- | --- |
| 3 | AUDIBLE SPKR+ | Drives acoustic vehicle alerting speaker | --- |
| 4 | AUDIBLE SPKR- | Drives acoustic vehicle alerting speaker | --- |
| 5 | F-CAN B_H | Communication line | --- |
| 6 | F-CAN B_L | Communication line | --- |
| 7 | IG1 METER | IG1 power source | With vehicle in ON or READY TO DRIVE mode: about battery voltage |
| 8 | Not used | --- | --- |
| 9* | AUDIBLE IND | Outputs AUDIBLE IND signal | When indicator is ON: less than 0.2 VIf none of the above conditions are met: about battery voltage |
| 10 | Not used | --- | --- |
| 11 | Not used | --- | --- |
| 12 | GND | Ground for acoustic vehicle alerting control unit | Less than 0.2 V at all times |
*: With acoustic vehicle alerting system OFF switch
