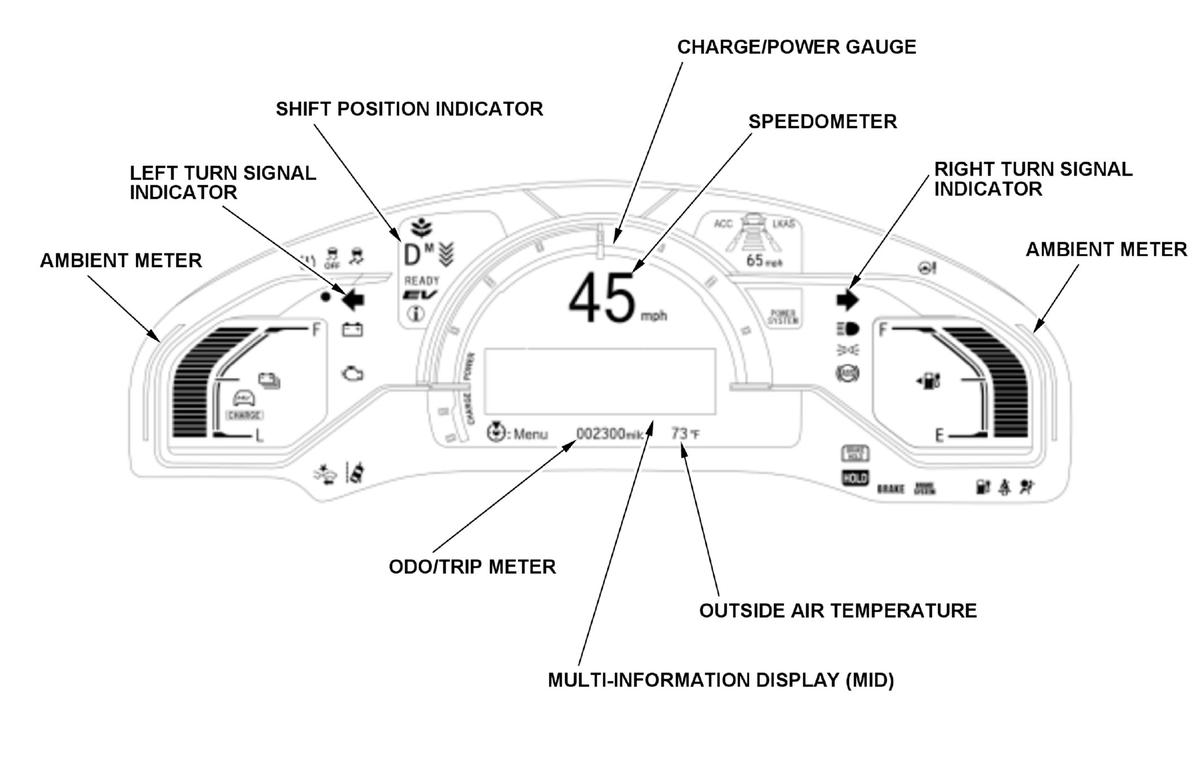

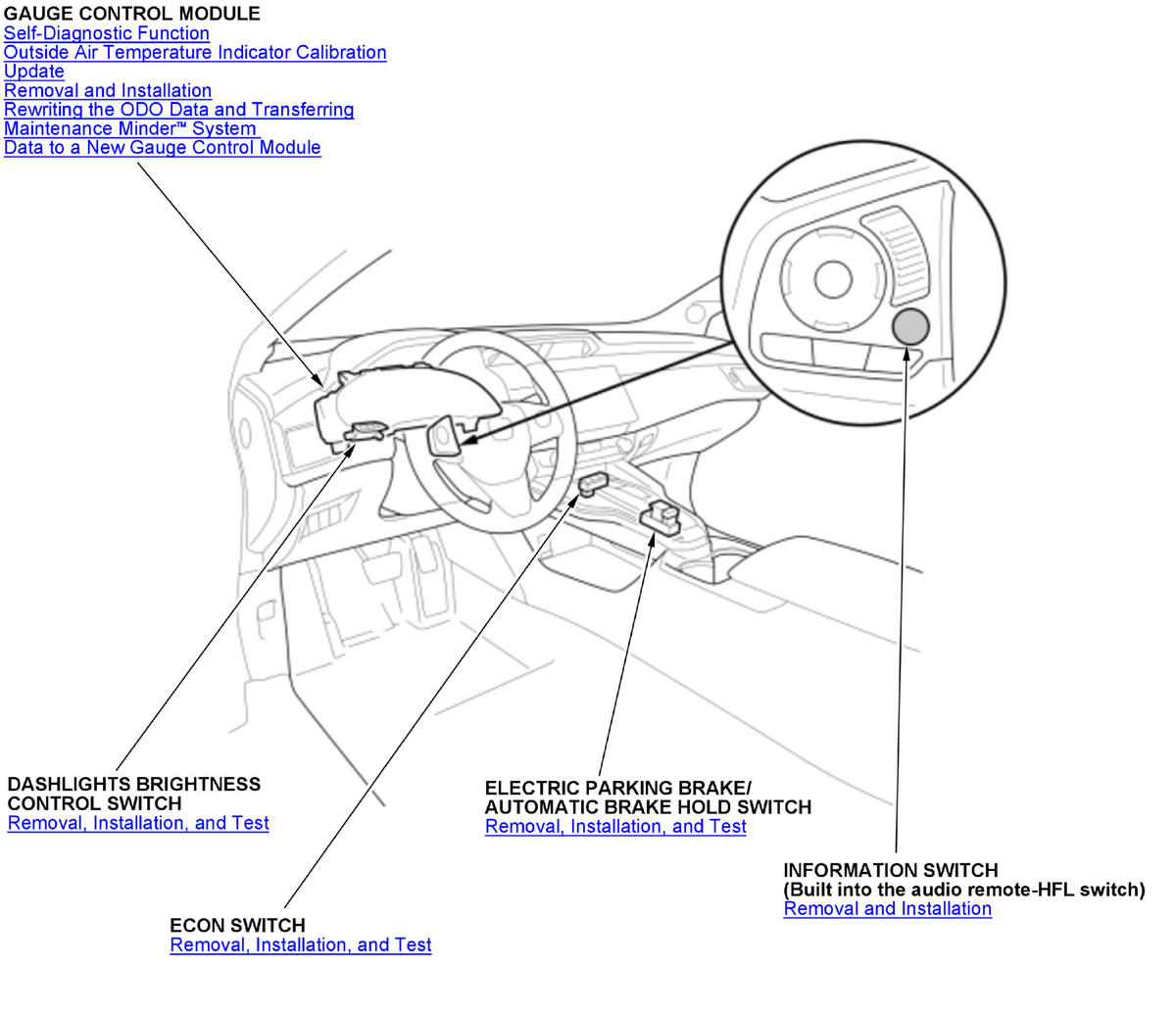

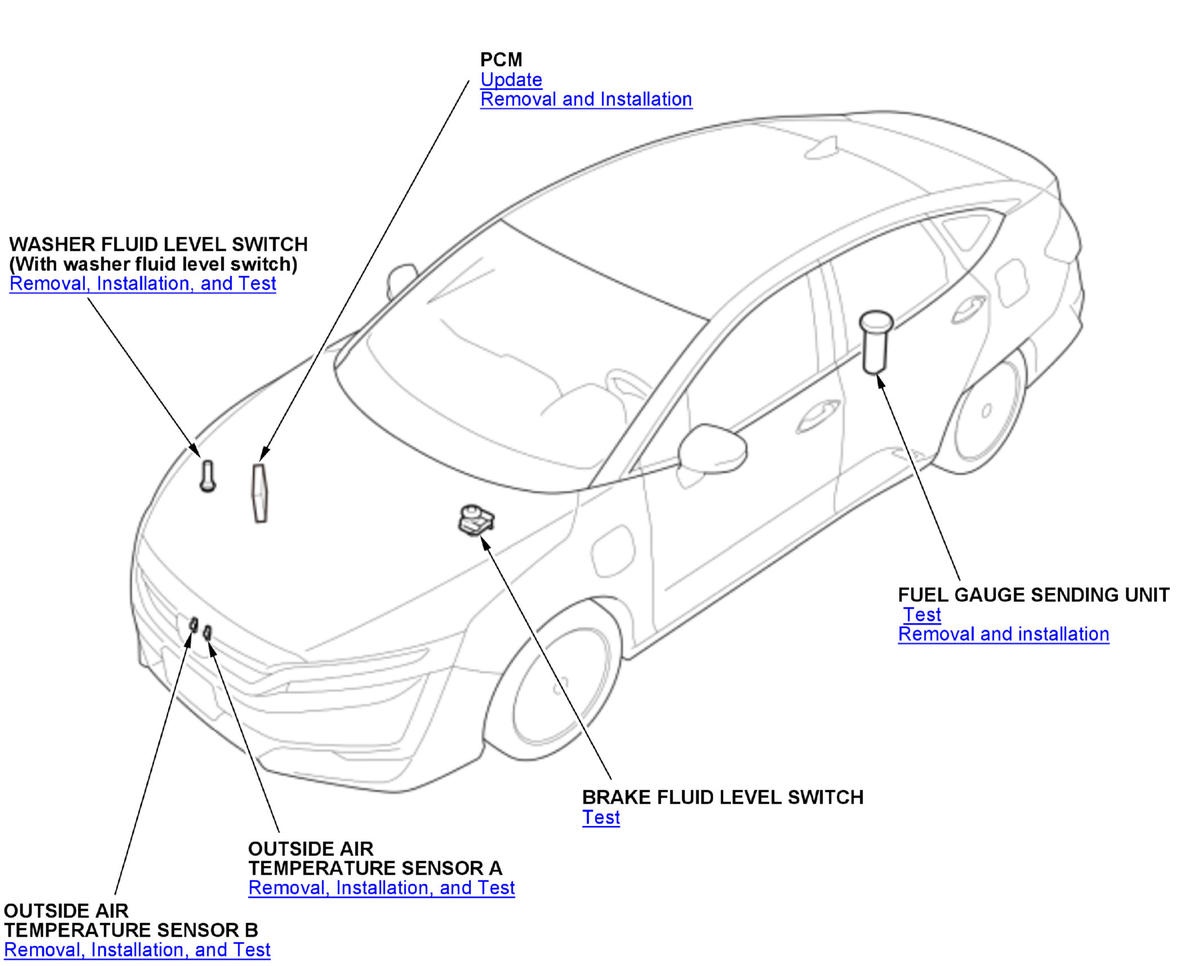

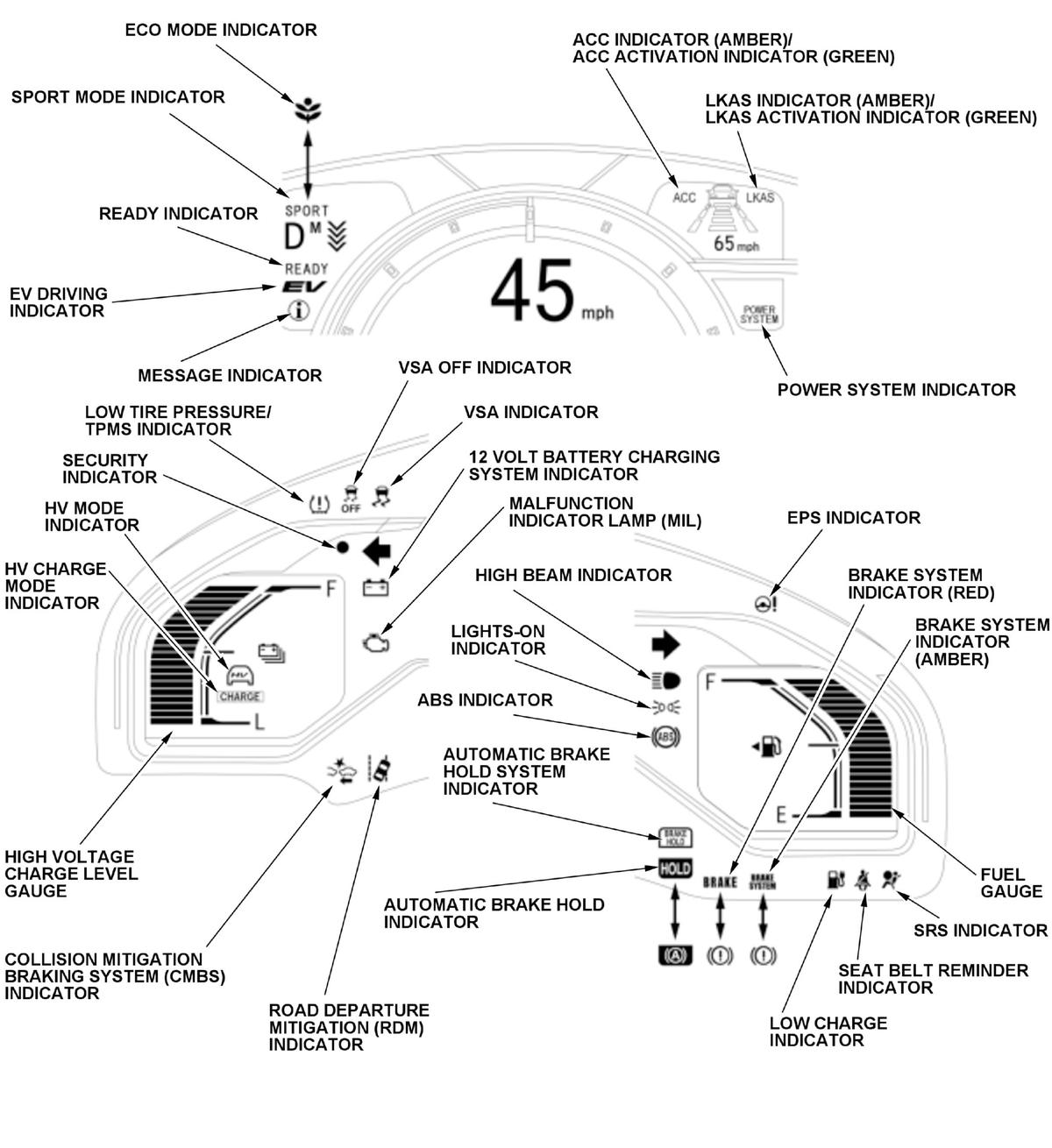

Component Location Index: Gauges

For relationships between signals in a system,

refer to System Diagram .

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
