ECON Switch: Test

  1. ECON Switch - Test
    GHH418896GHH418897Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH418896GHH418897Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

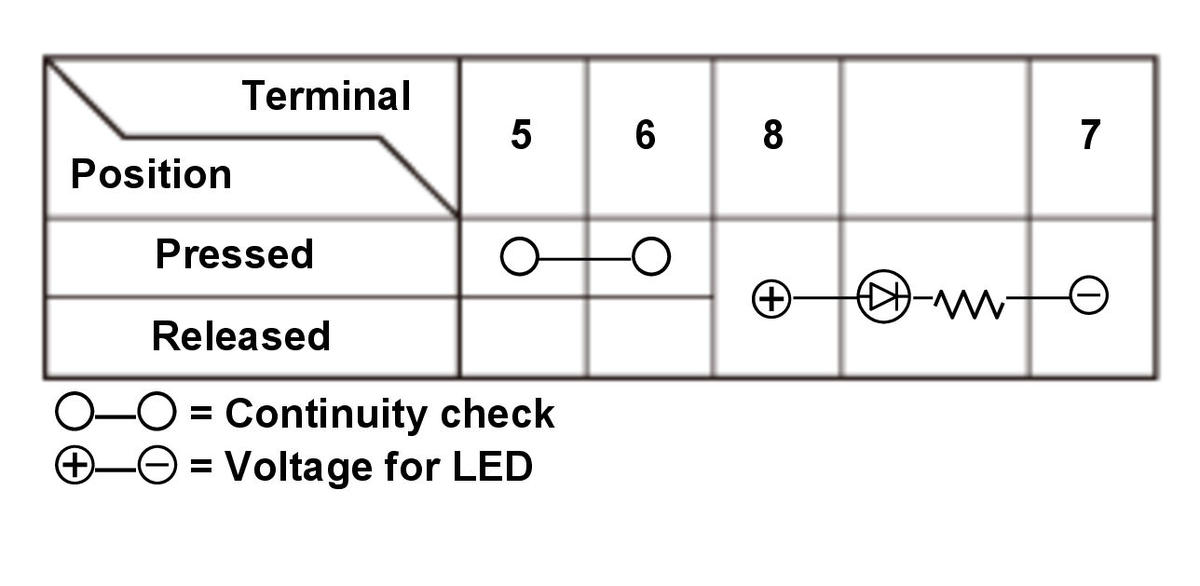

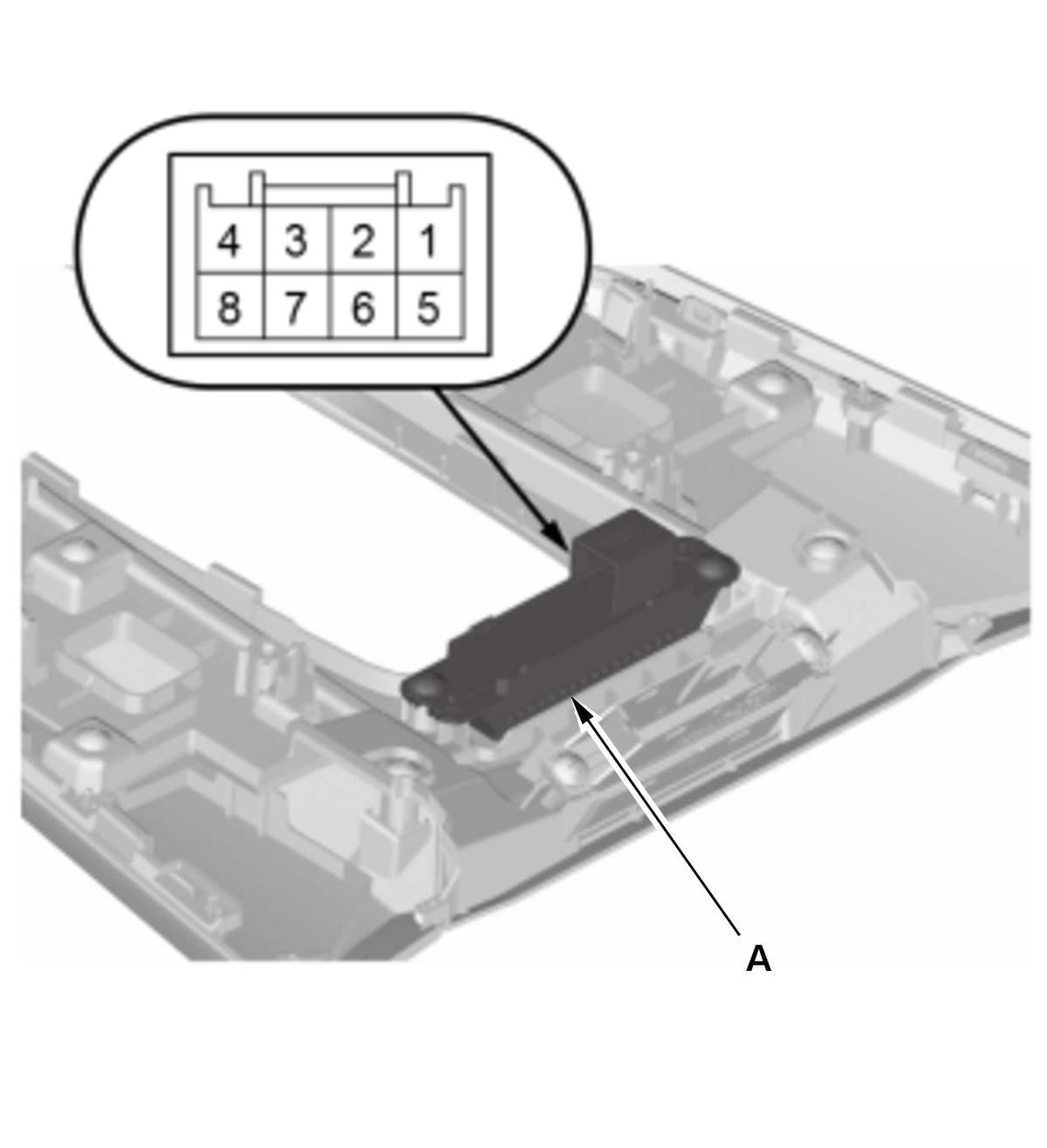

    		 1. Check the ECON switch (A) according to the table.
    • NOTE:  When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
    • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

    2. If the result is not as specified, replace the ECON switch.
