Acoustic Vehicle Alerting System Off Switch: Test

Acoustic Vehicle Alerting System Off Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

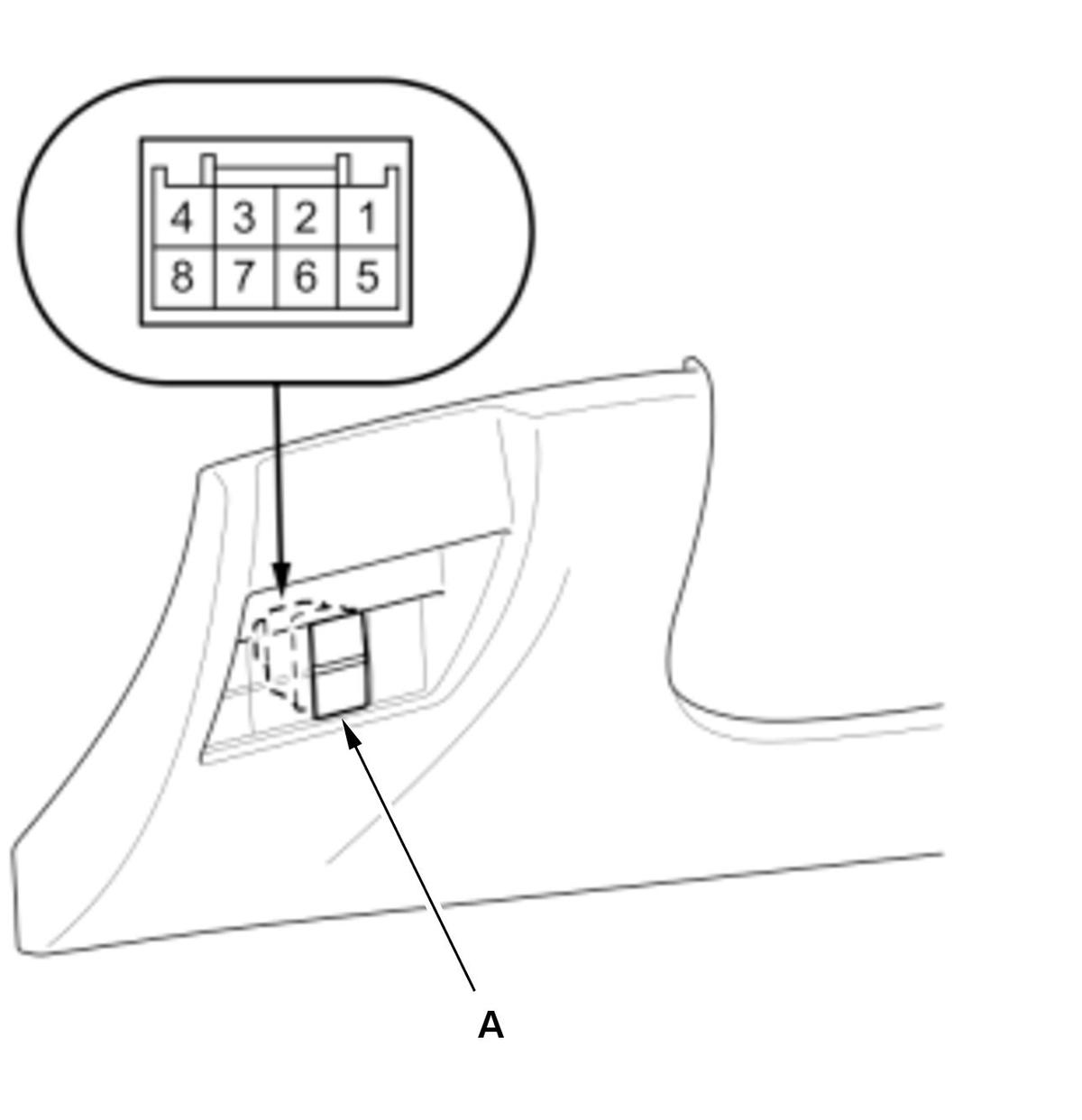

NOTE: Mounting position of the acoustic vehicle alerting system off switch (A) is different depending on this model.

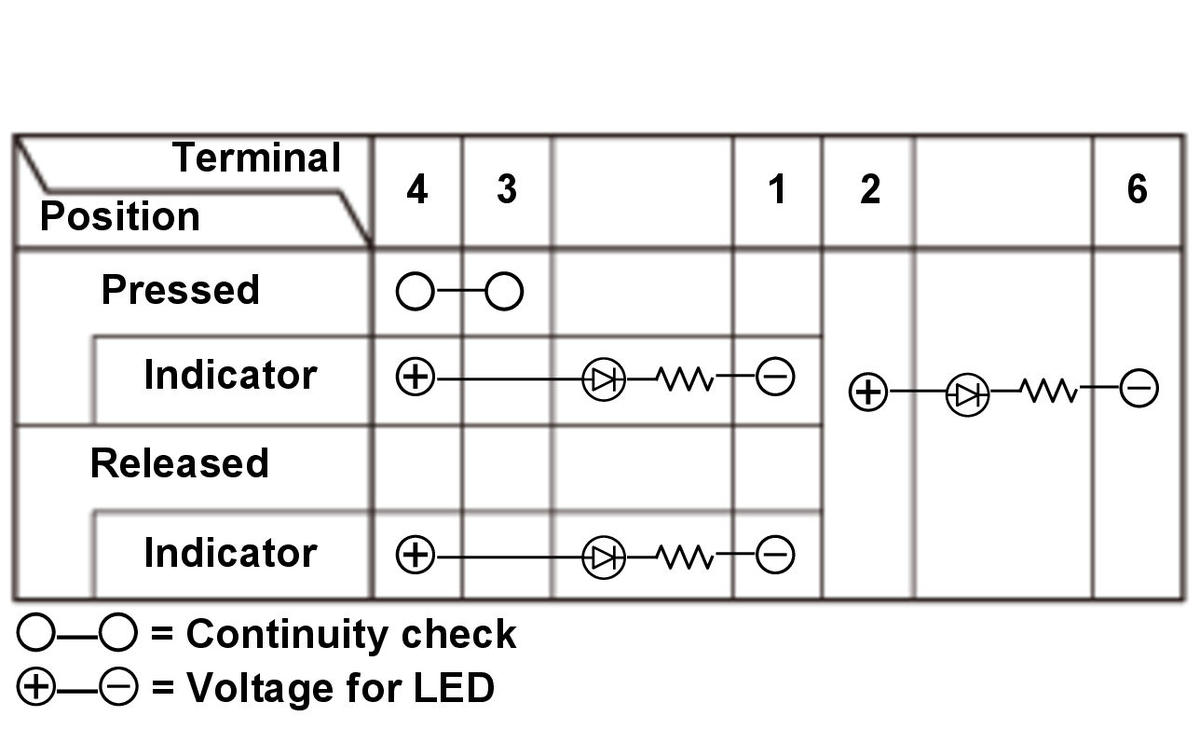

1. Check the acoustic vehicle alerting system off switch according to the table.

NOTE: When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the continuity is not as specified, replace the acoustic vehicle alerting system off switch.
