SRS Component Location Index (USA/Canada models)

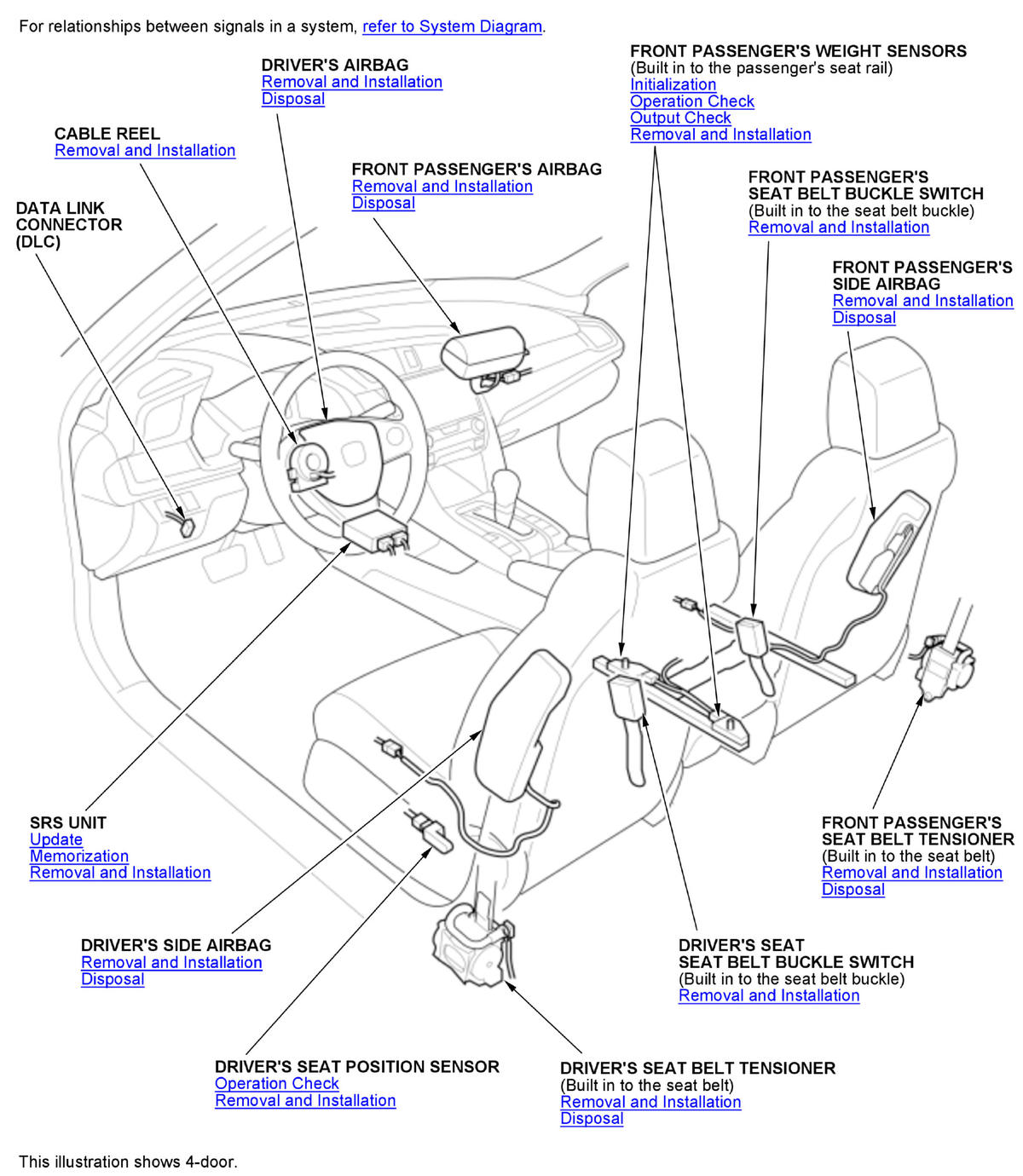

GHH412178

Courtesy of HONDA, U.S.A., INC.

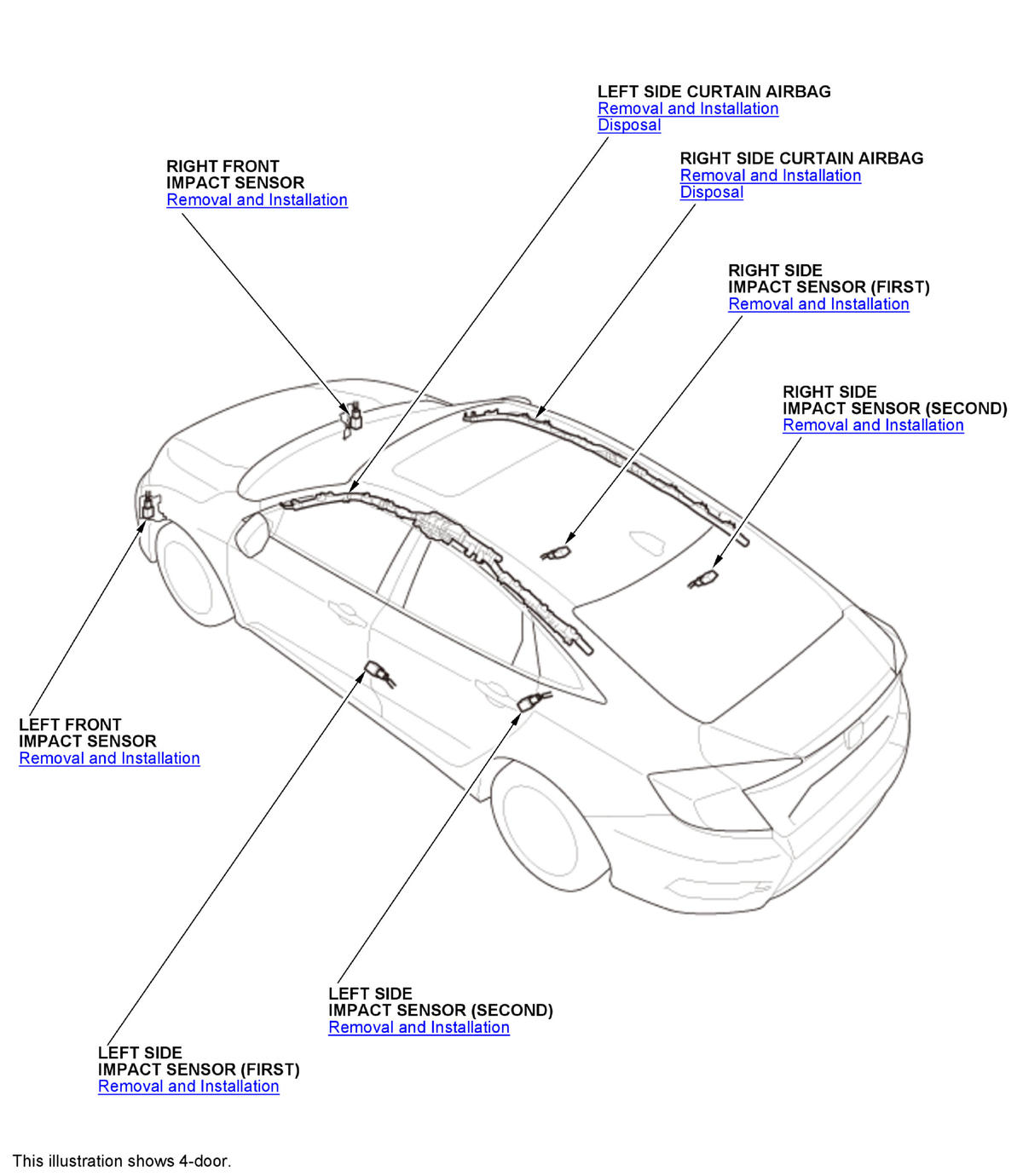

GHH412179

Courtesy of HONDA, U.S.A., INC.

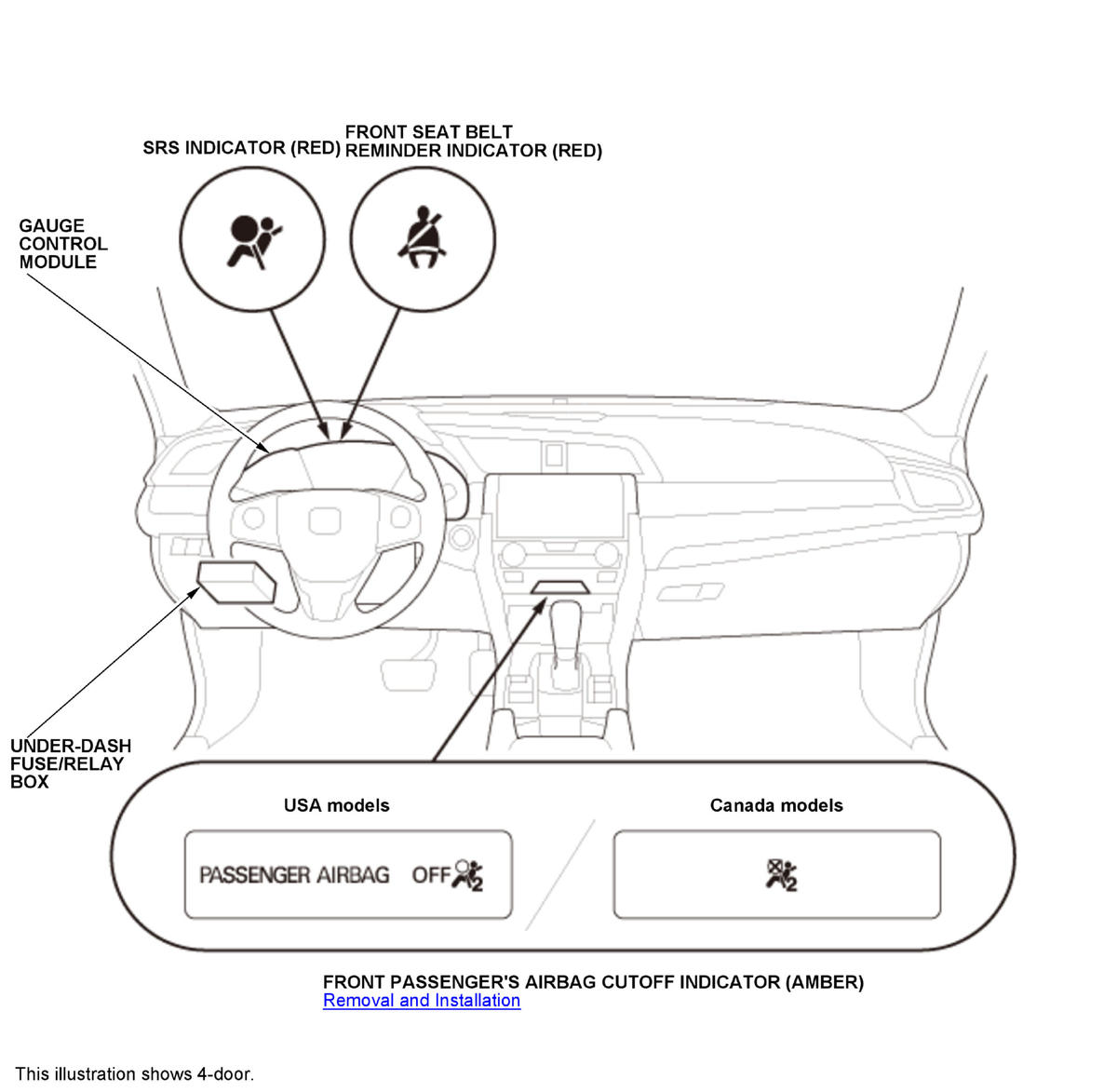

GHH412180

Courtesy of HONDA, U.S.A., INC.
