Wipers/Washers Component Location Index (2/4-door)

Courtesy of HONDA, U.S.A., INC.

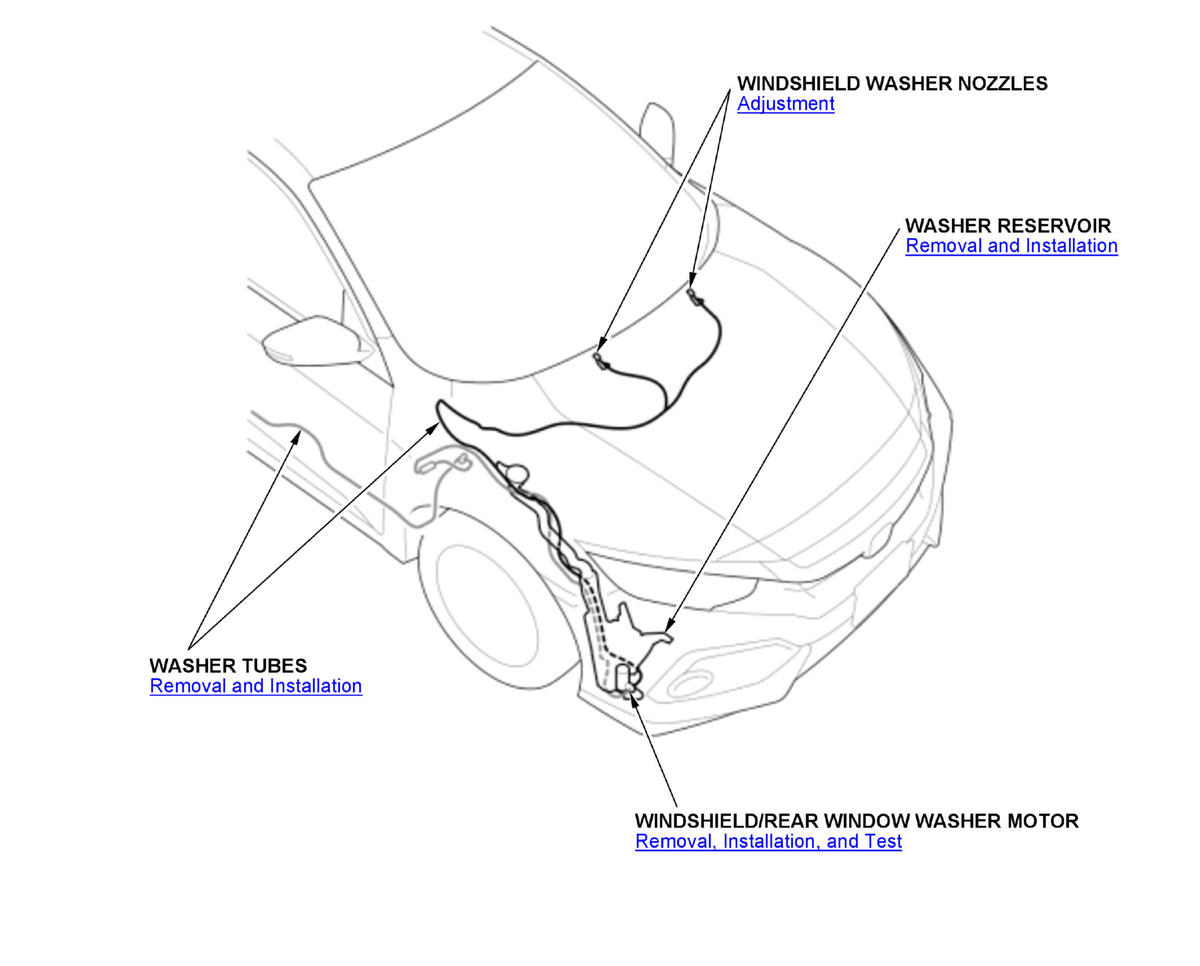

USA models Except Type-R

Courtesy of HONDA, U.S.A., INC.

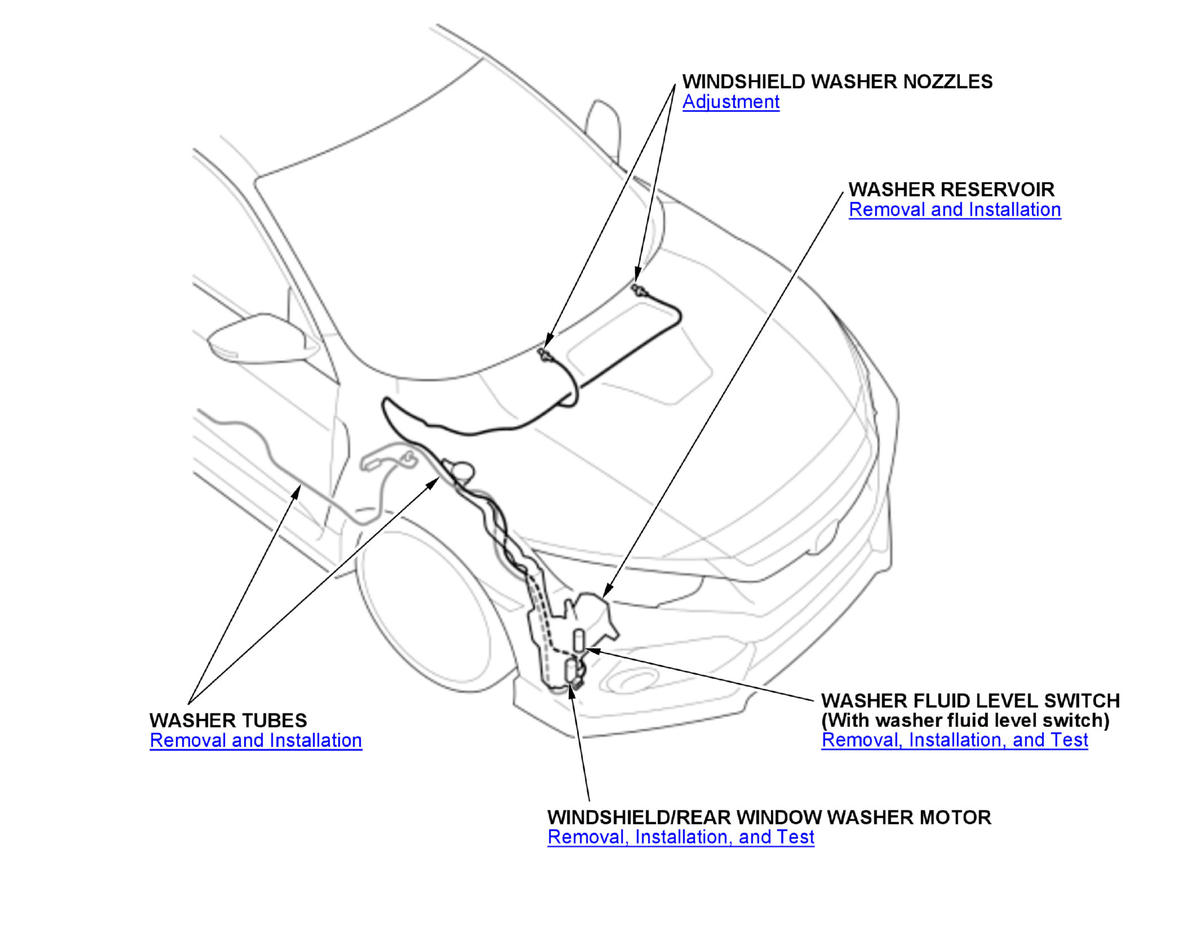

Canada models Except Type-R

Courtesy of HONDA, U.S.A., INC.

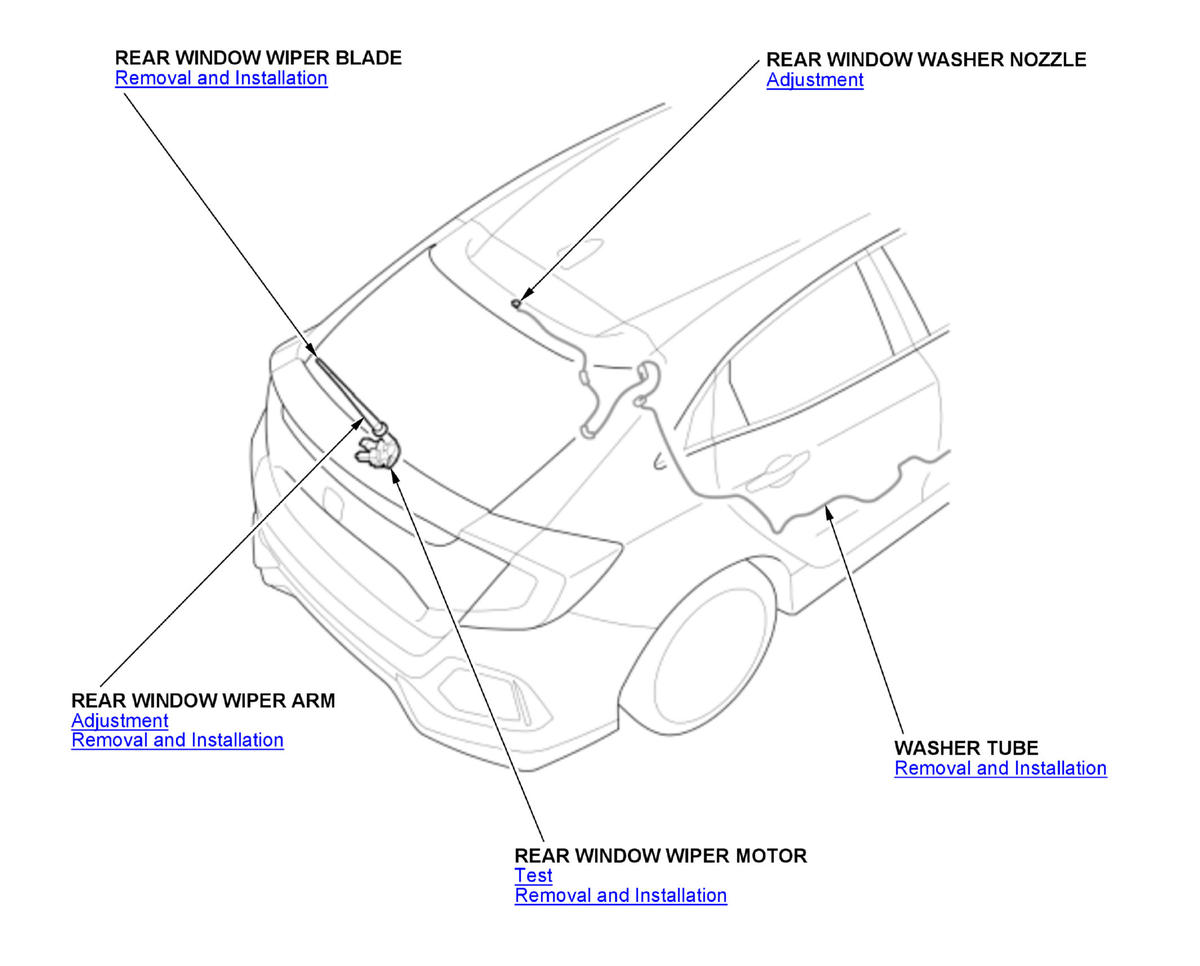

Type-R

Courtesy of HONDA, U.S.A., INC.

USA models Except Type-R

Courtesy of HONDA, U.S.A., INC.

Canada models Except Type-R

Courtesy of HONDA, U.S.A., INC.

Type-R

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
