Wipers/Washers Circuit Diagram (5-door without Keyless Access System) (2017 2018 2019 2020 2021)

Windshield

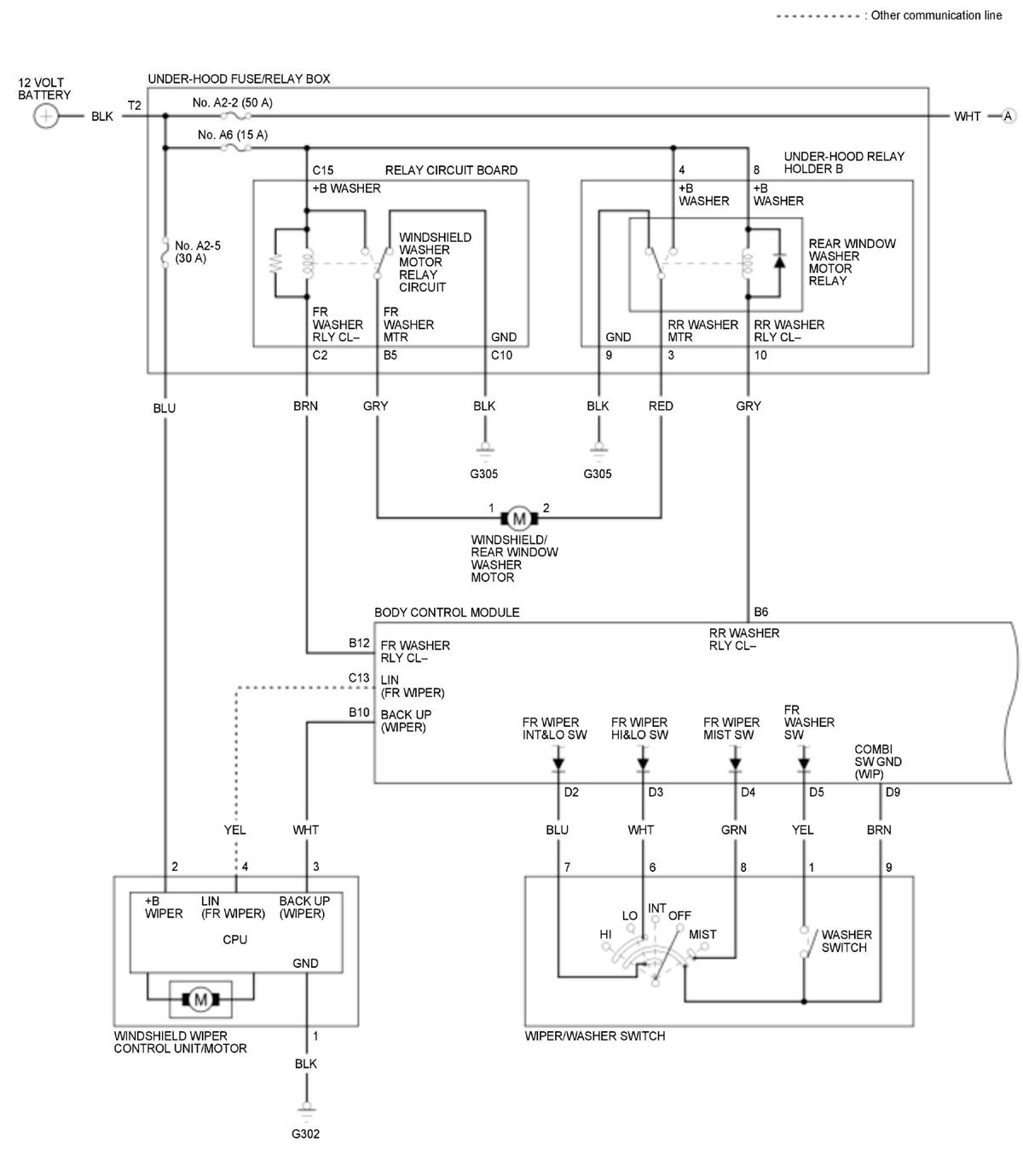

GHH407587Courtesy of HONDA, U.S.A., INC.

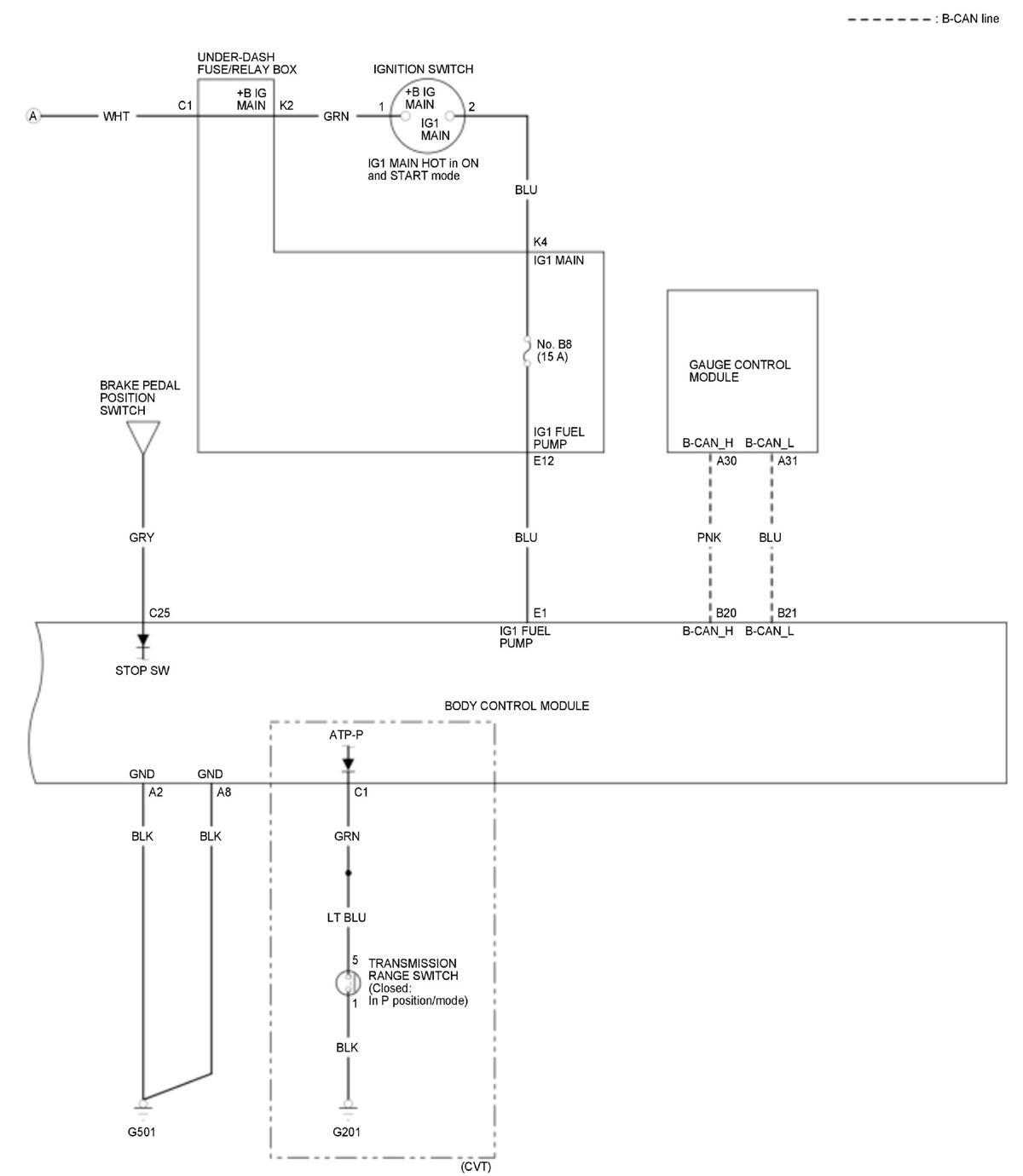

GHH407588Courtesy of HONDA, U.S.A., INC.

Rear Window

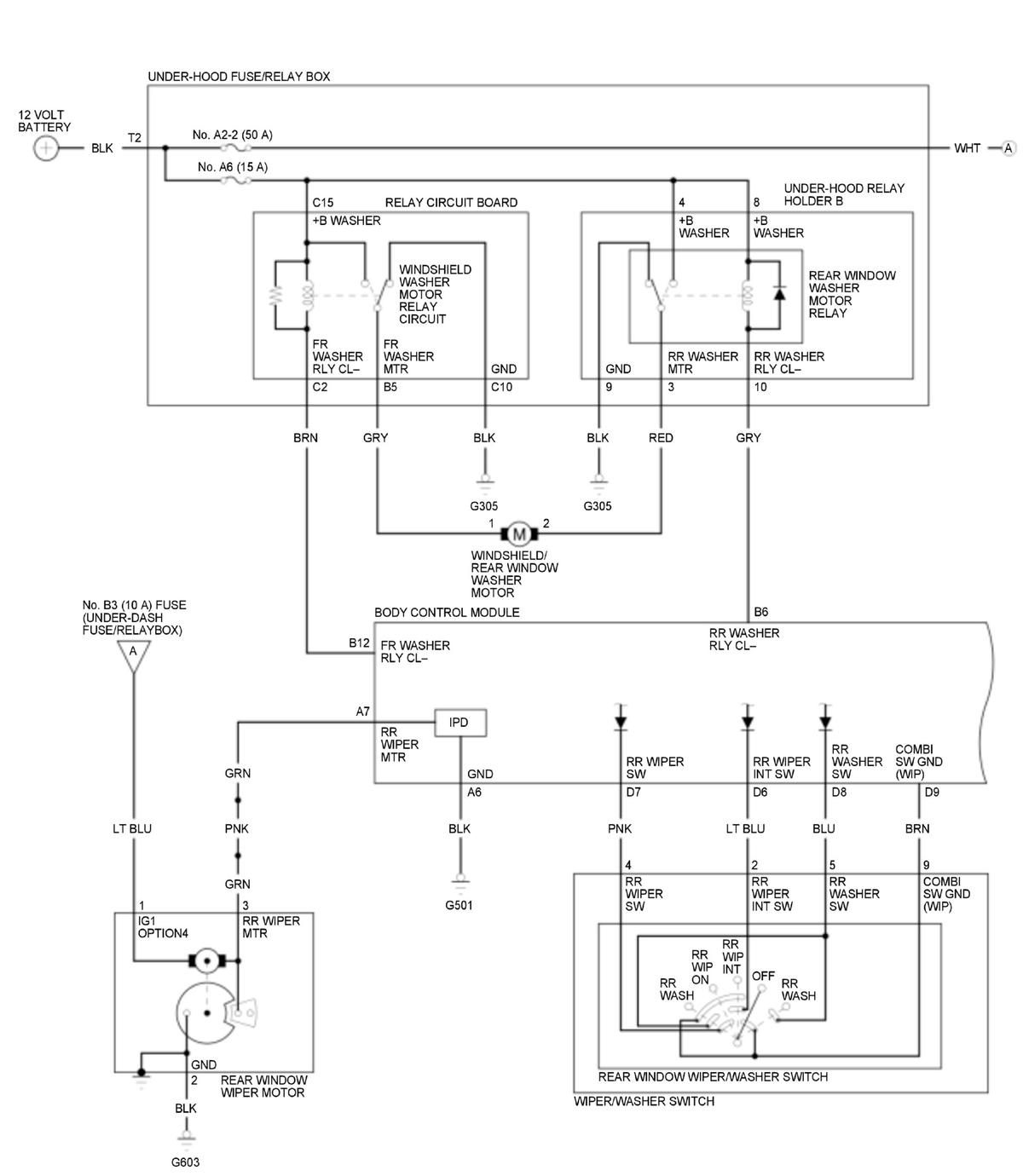

GHH407589Courtesy of HONDA, U.S.A., INC.

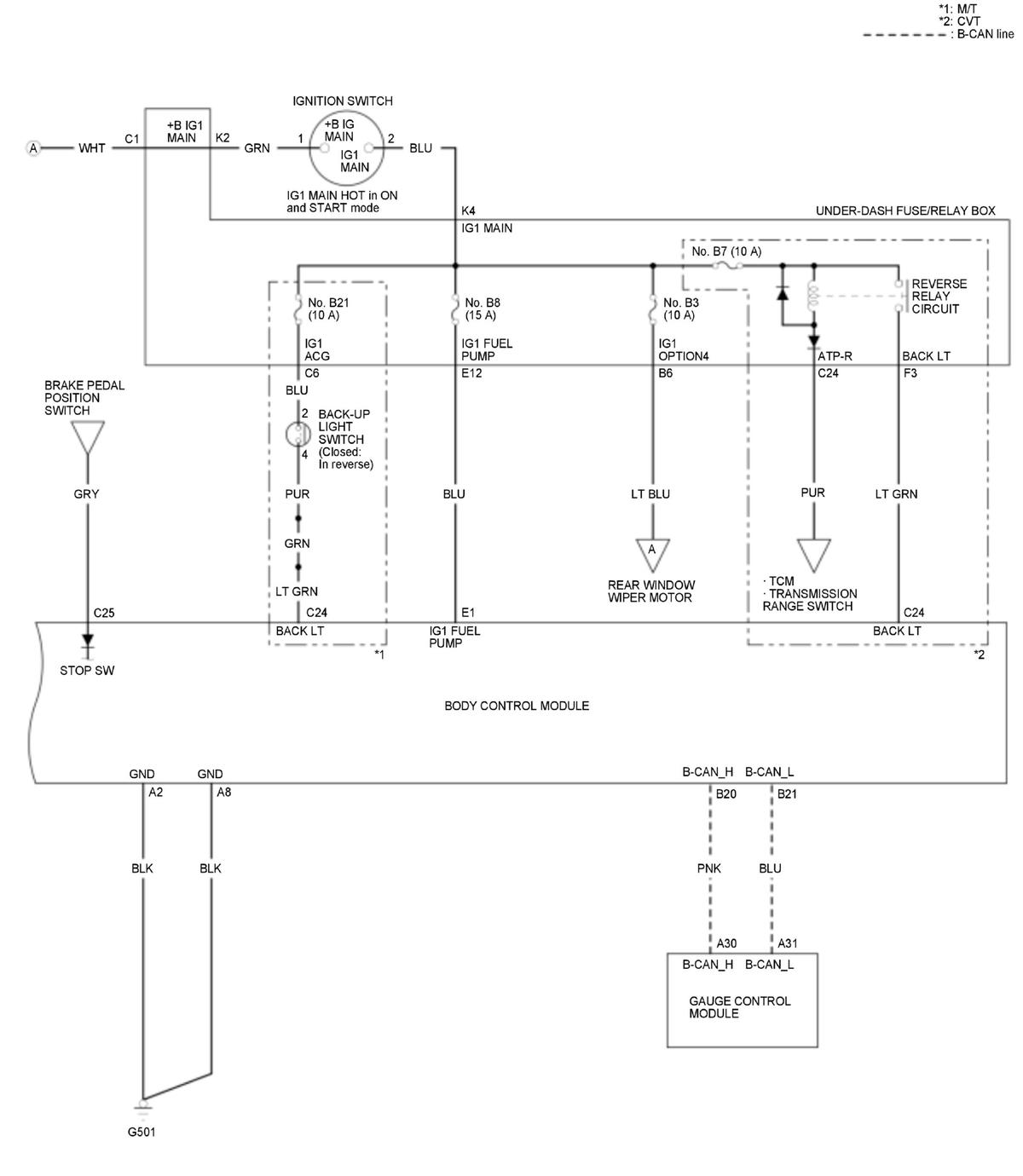

GHH407590Courtesy of HONDA, U.S.A., INC.
