Wipers/Washers Circuit Diagram (5-door with Keyless Access System) (2017 2018 2019 2020 2021)

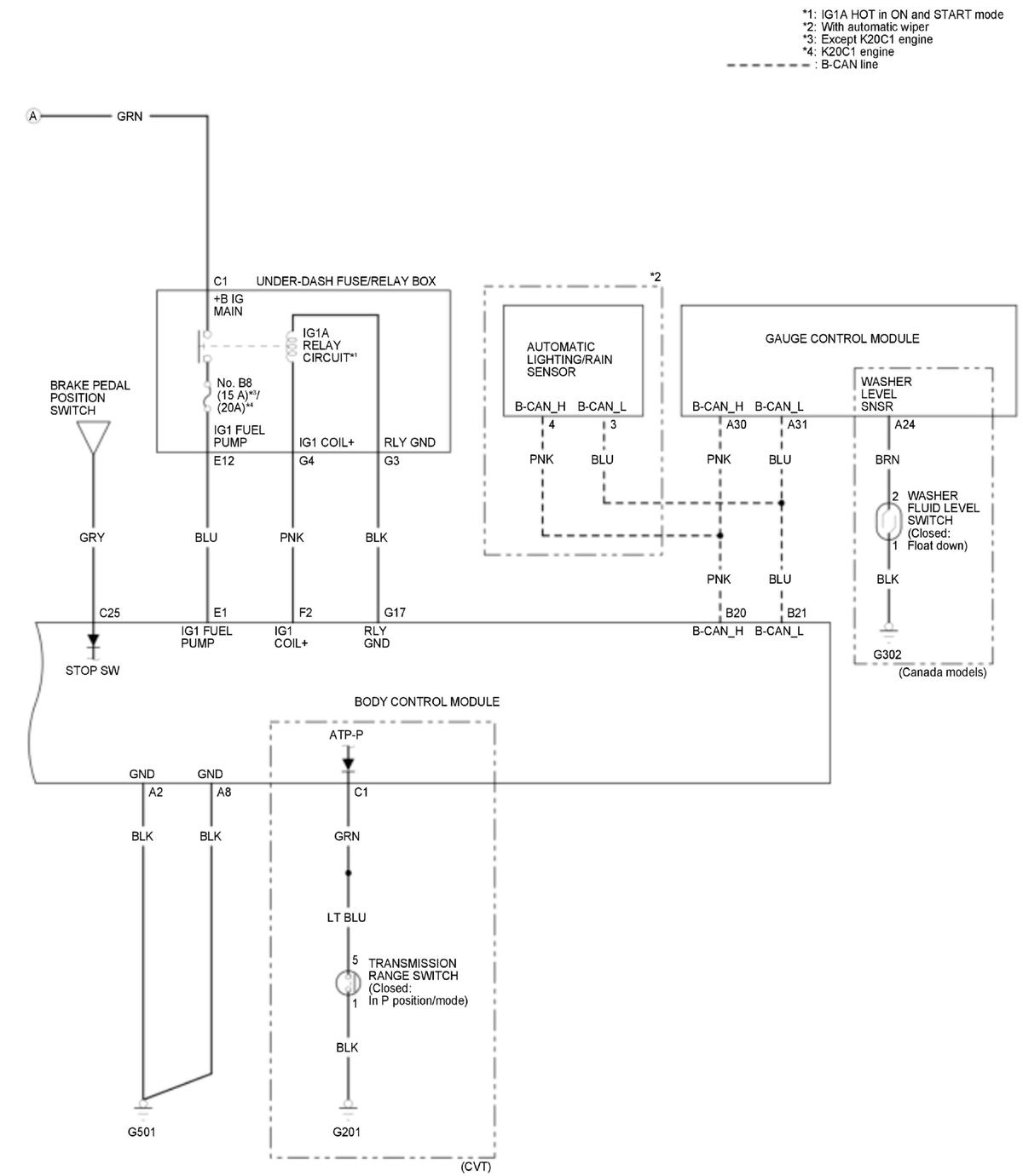

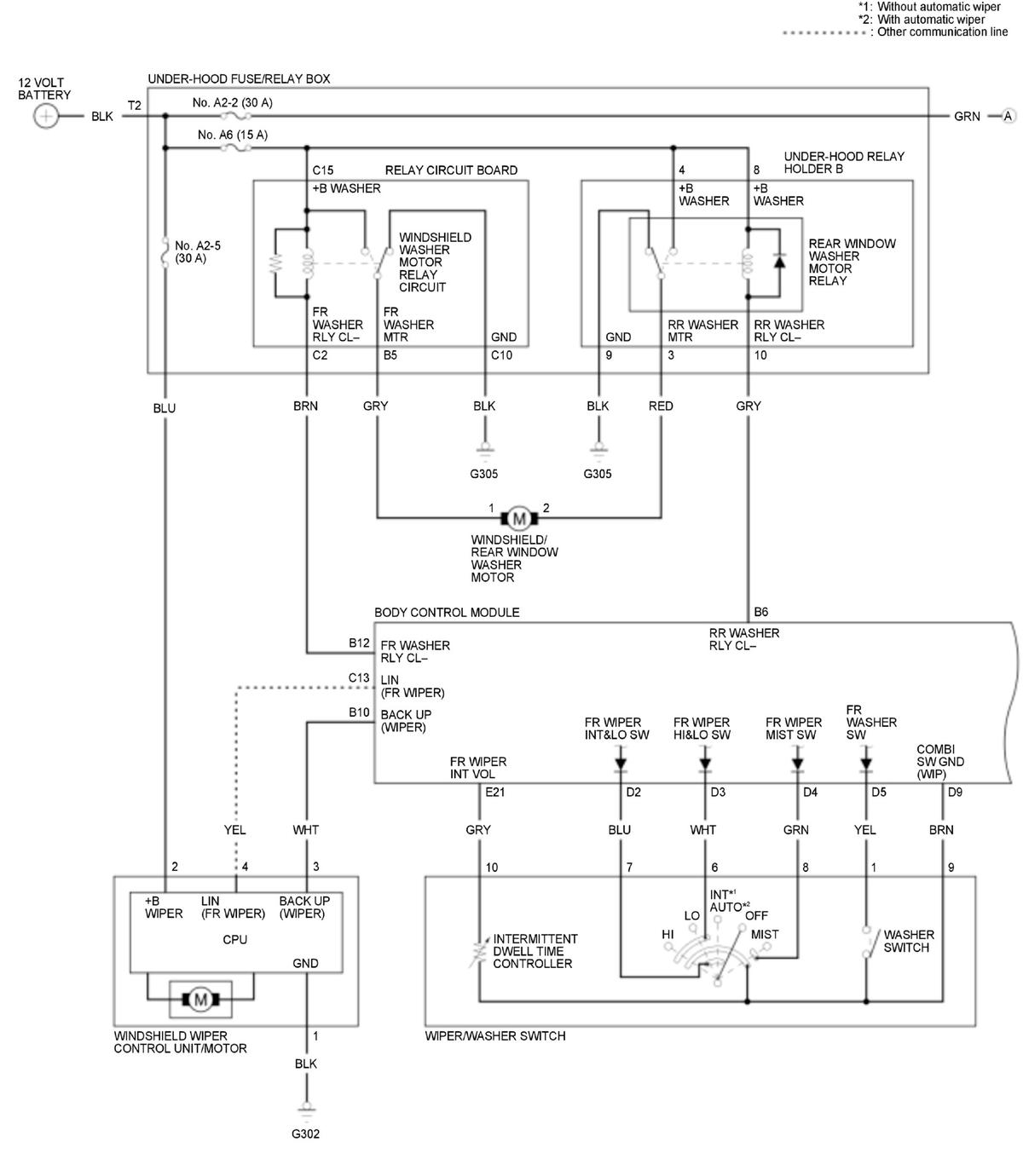

Windshield

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

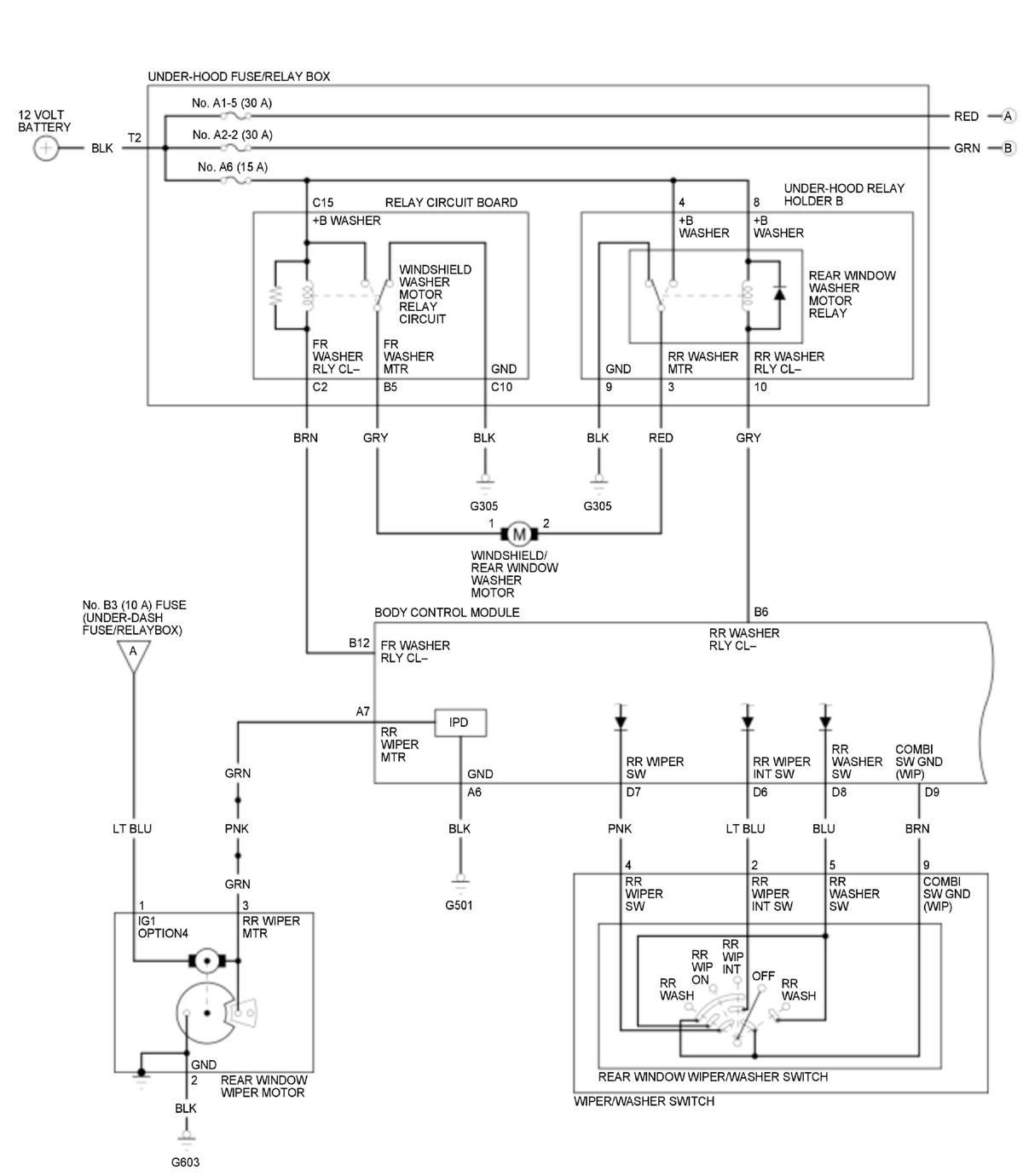

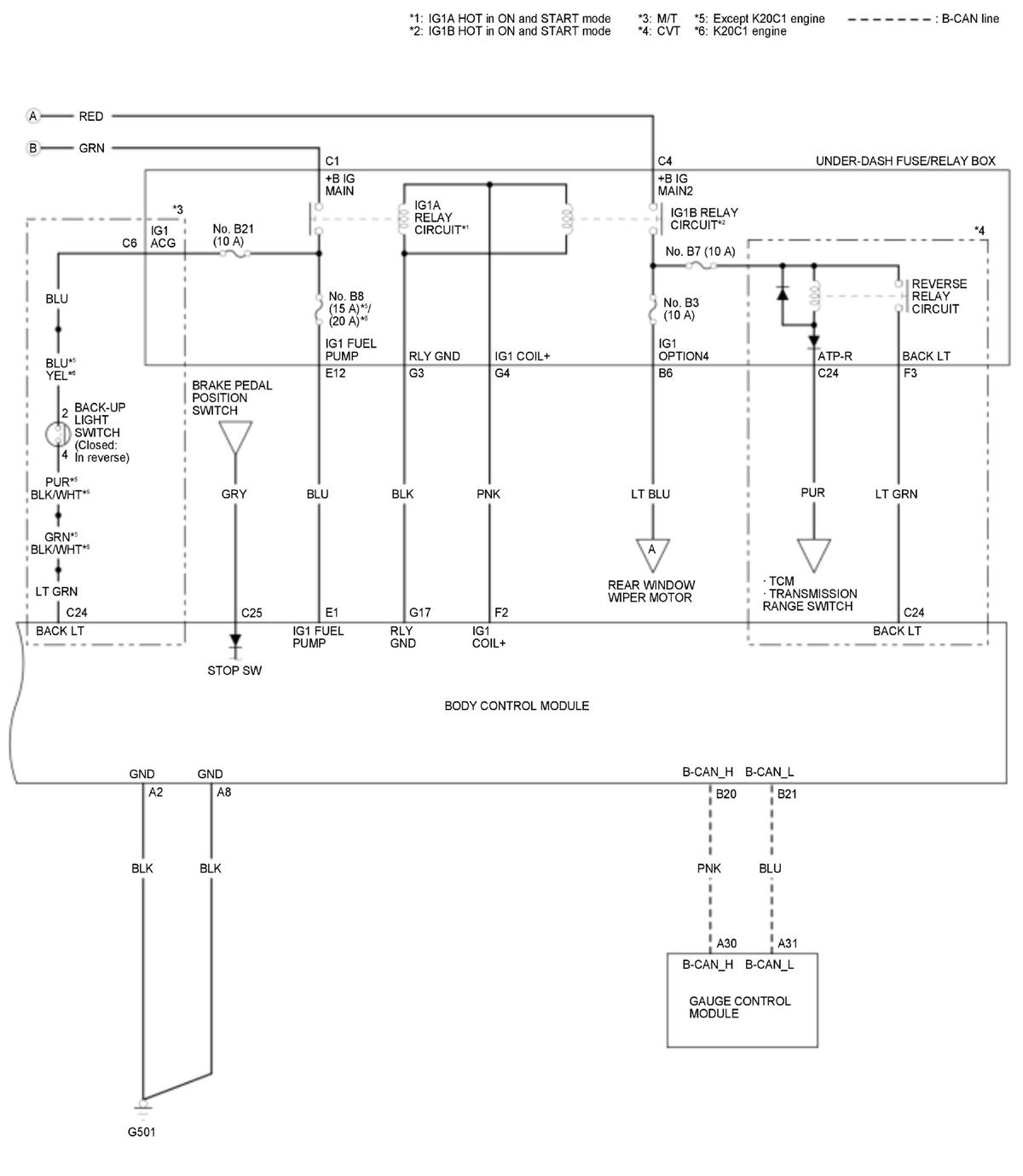

Rear Window

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
