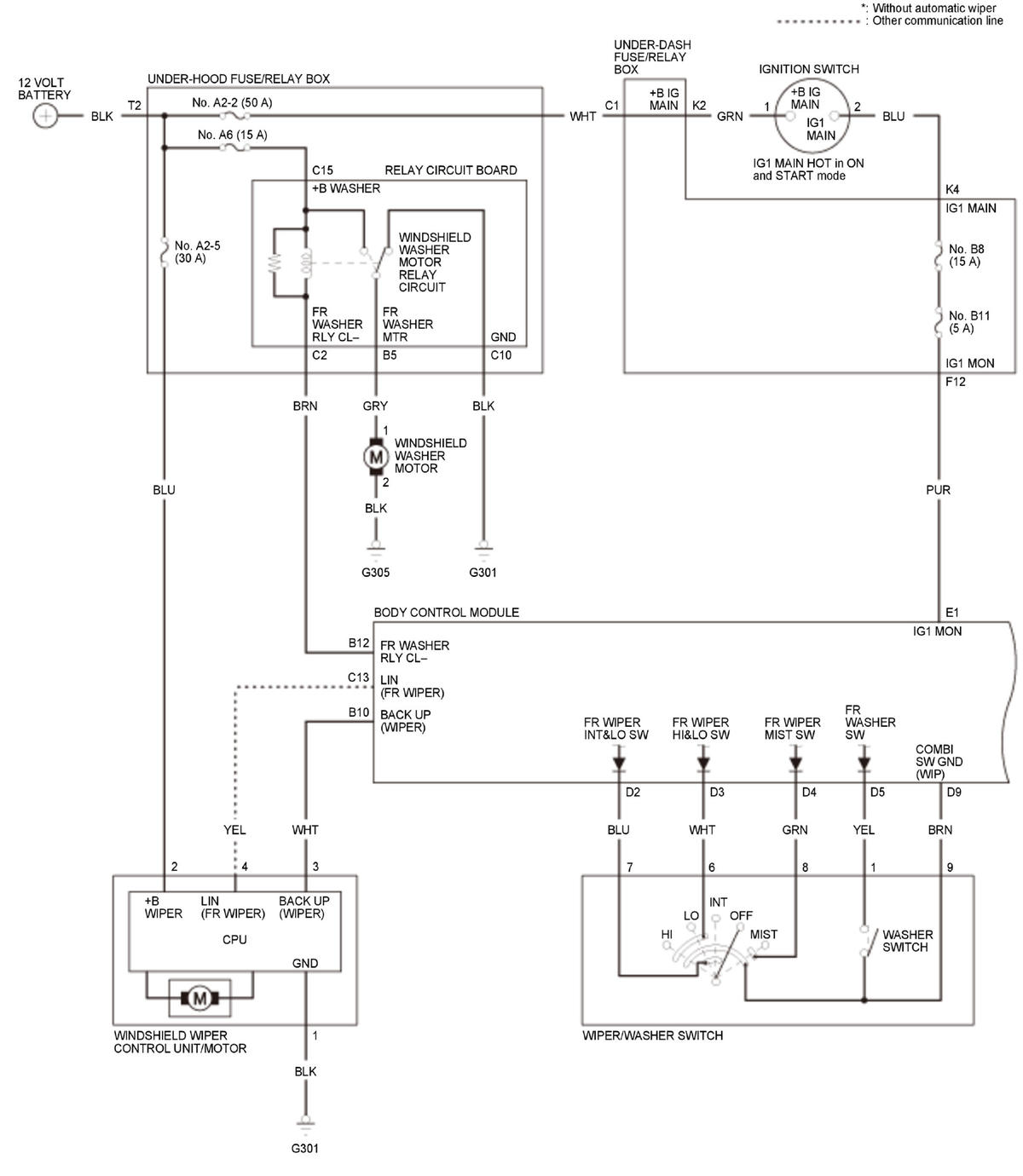

Wipers/Washers Circuit Diagram (2/4-door without Keyless Access System)
Wipers/Washers Circuit Diagram (2/4-door without Keyless Access System)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
