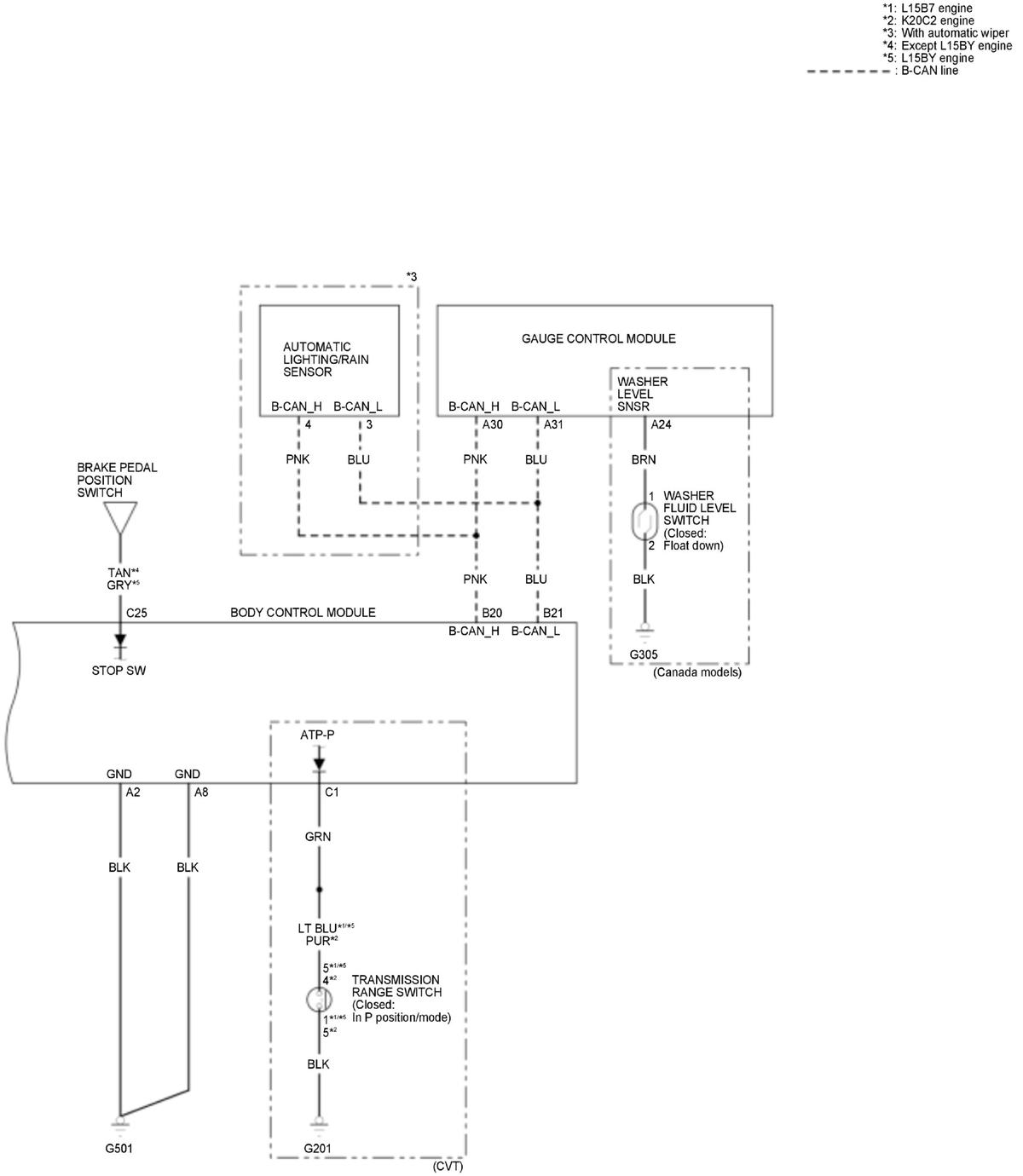

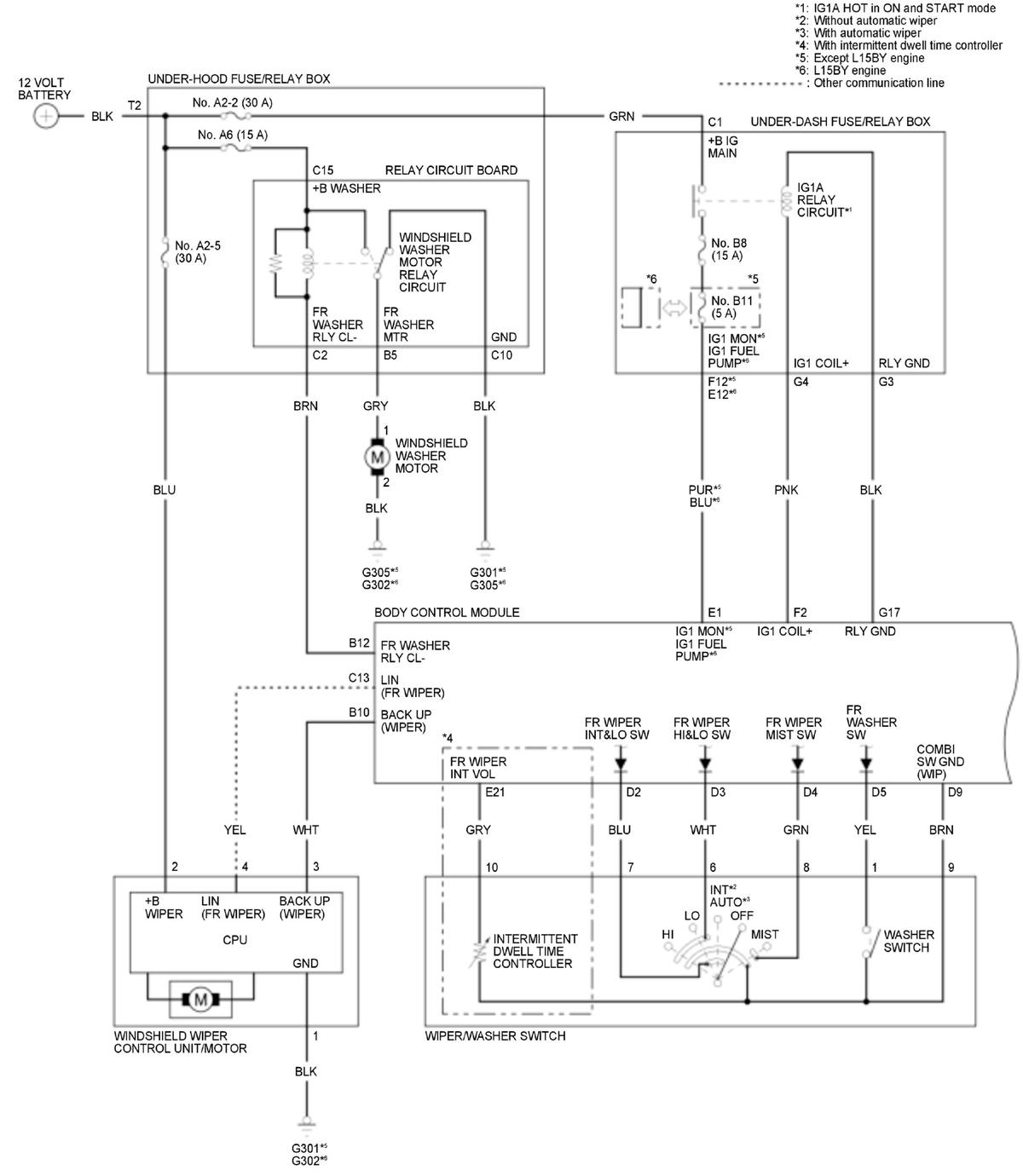

Wipers/Washers Circuit Diagram (2/4-door with Keyless Access System)
Wipers/Washers Circuit Diagram (2/4-door with Keyless Access System)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
