Audio Remote-HFL Switch Connector for Inputs and Outputs

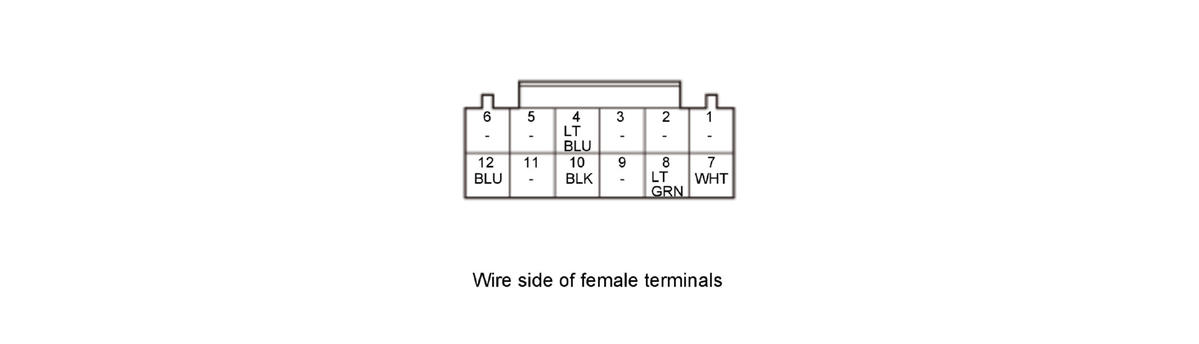

AUDIO REMOTE-HFL SWITCH 12P CONNECTOR
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | Not used | --- |
| 2 | Not used | --- |
| 3 | Not used | --- |
| 4 | ILL-(LED) | Outputs illumination control signal for cruise control combination switch |
| 5 | Not used | --- |
| 6 | Not used | --- |
| 7 | +B | Continuous power source |
| 8 | ILLUMI+ | Outputs illumination signal for cruise control combination switch |
| 9 | Not used | --- |
| 10 | STRG GND | Ground for audio remote-HFL switch (G502) |
| 11 | Not used | --- |
| 12 | STRG SW LIN | Communication signal for gauge control module |
