Gauges Circuit Diagram (2/4-door without Keyless Access System)

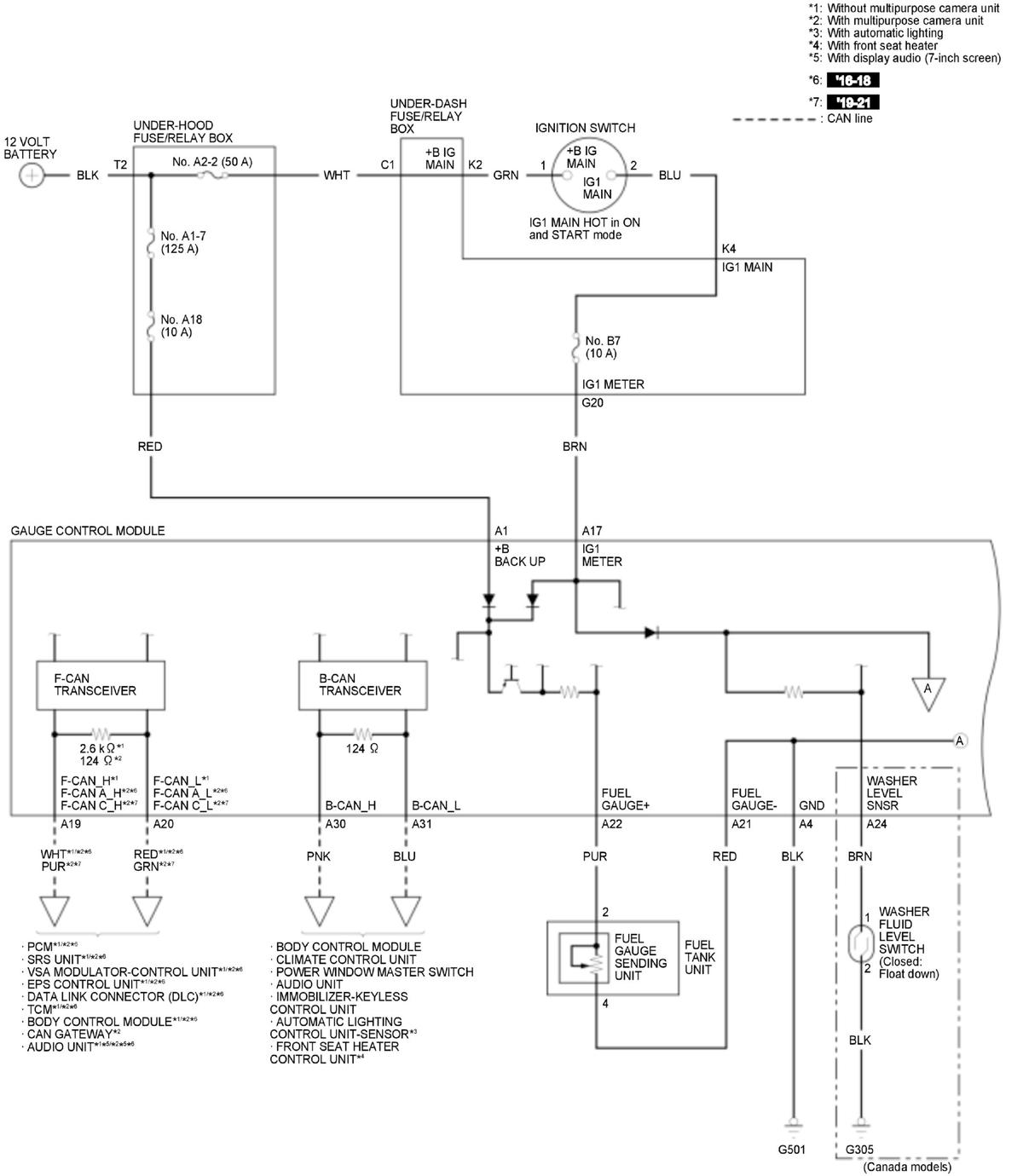

GHH408746

Courtesy of HONDA, U.S.A., INC.

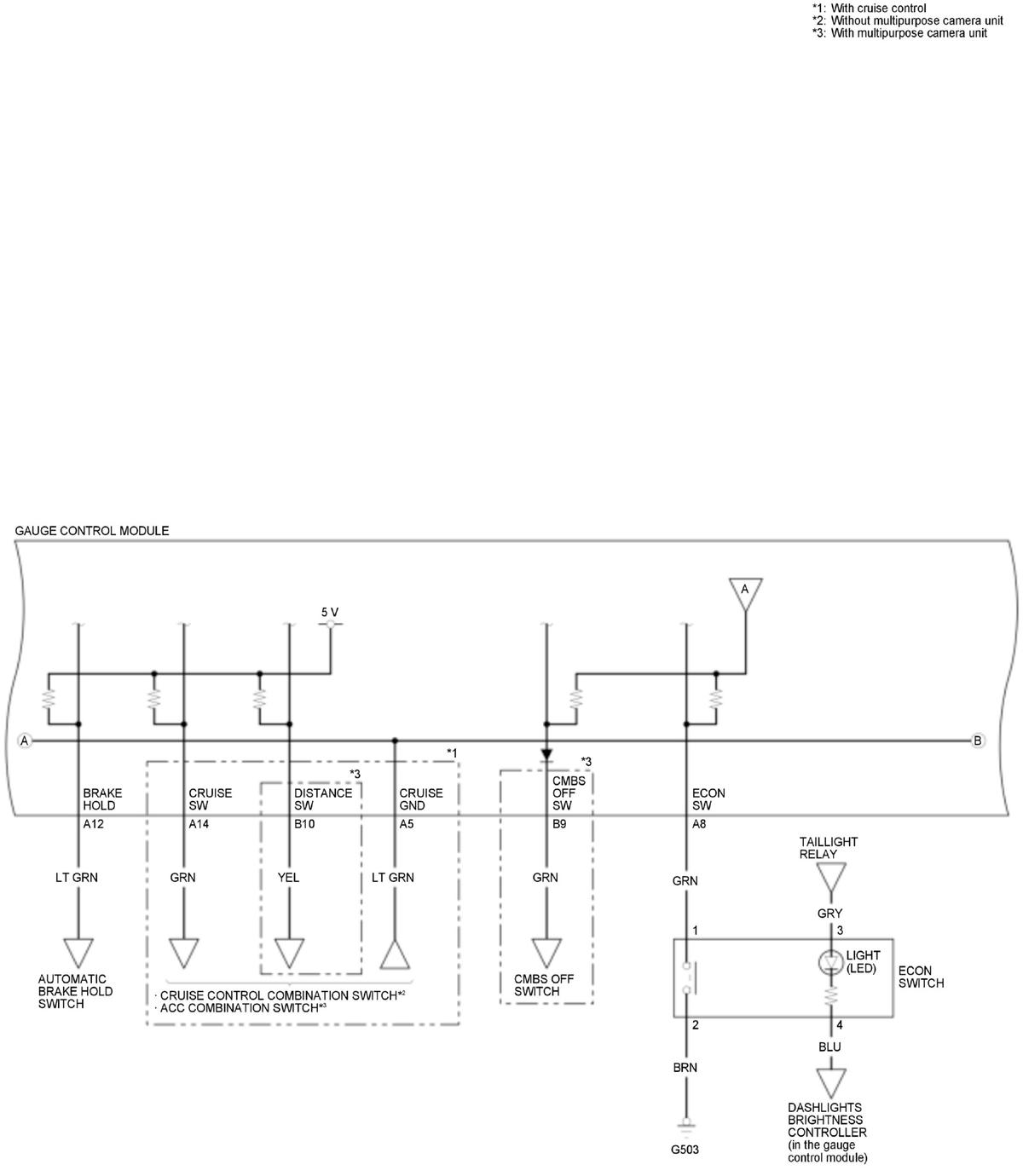

GHH408747

Courtesy of HONDA, U.S.A., INC.

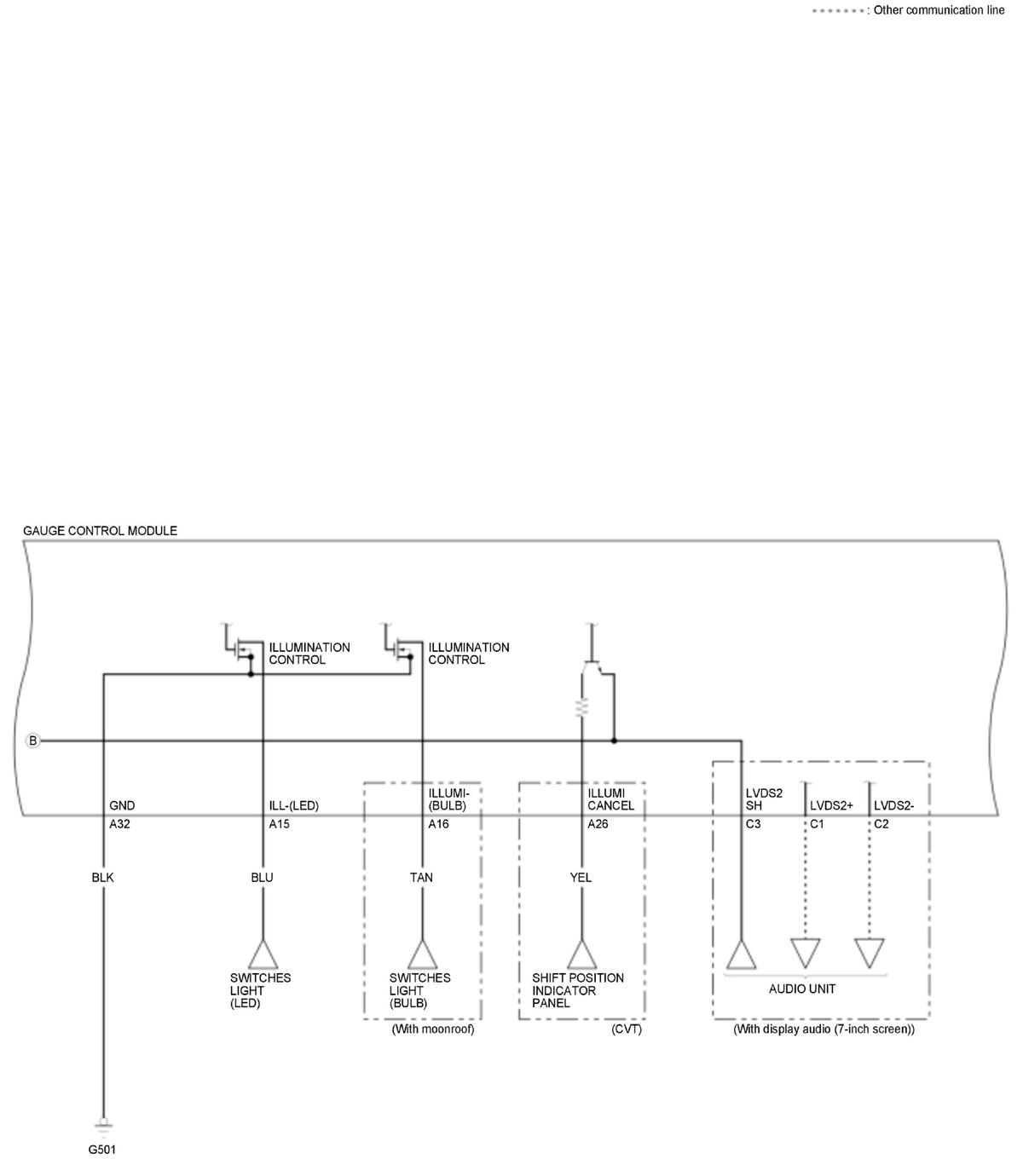

GHH408748

Courtesy of HONDA, U.S.A., INC.

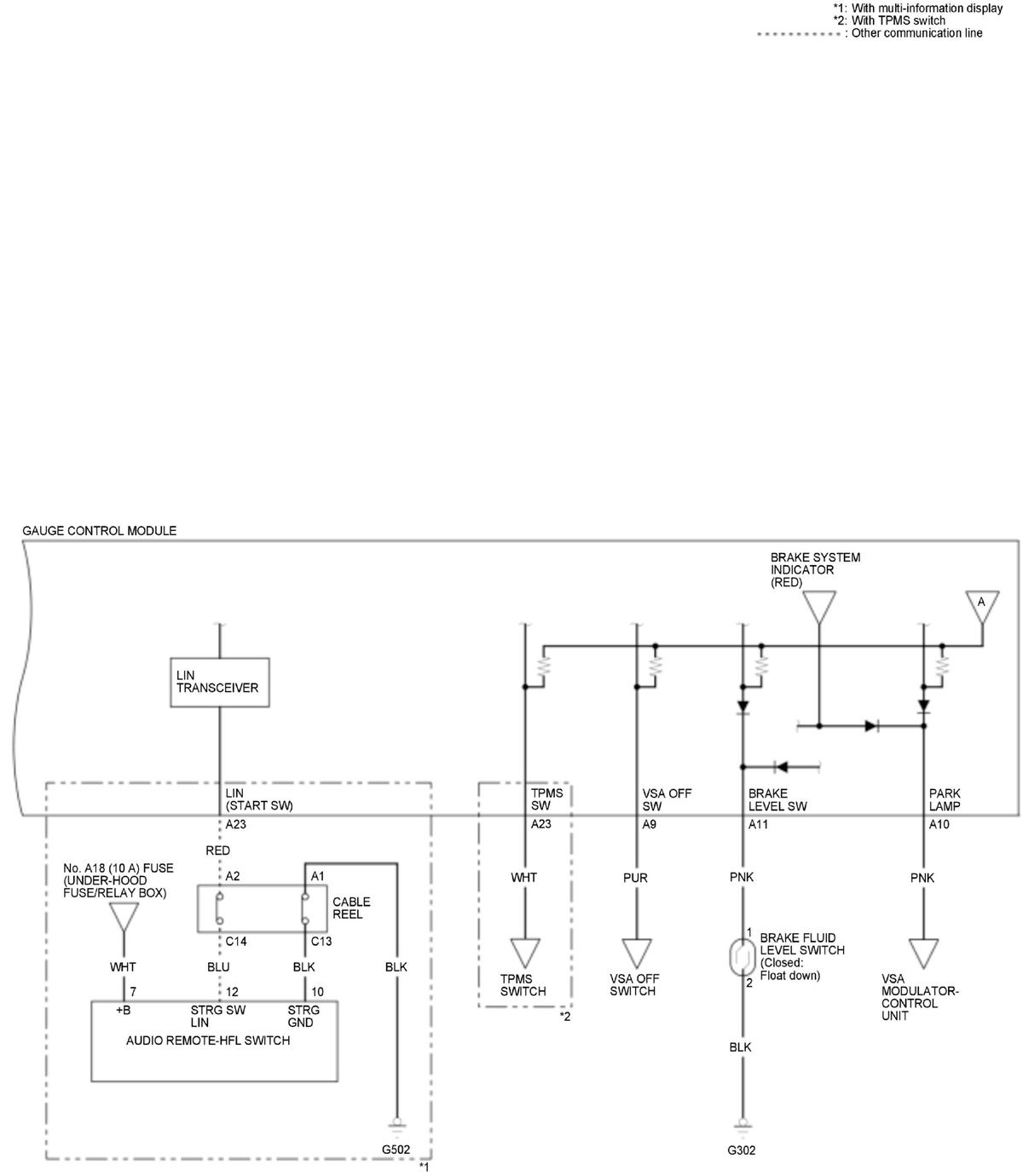

GHH408749

Courtesy of HONDA, U.S.A., INC.
