Millimeter Wave Radar Connector for Inputs and Outputs (2017 2018 2019 2020 2021)

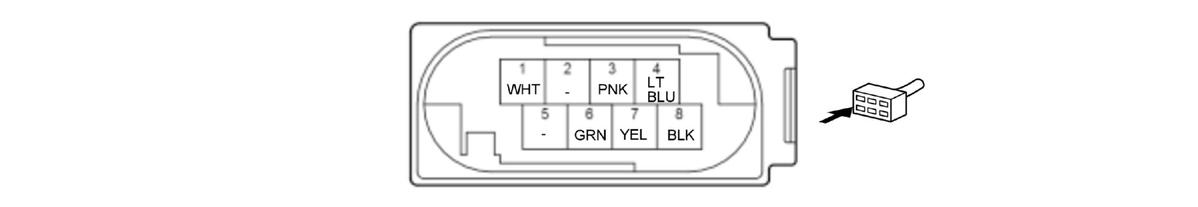

Millimeter Wave Radar 8P Connector Inputs and Outputs for 8P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	IG1 OPTION	Power source for the multipurpose camera unit	With vehicle in ON mode: Battery voltage With vehicle in OFF mode: About 0 V
2	Not used	Not used	---
3	ACC CAN-L	ACC CAN communication (low) circuit	---
4	ACC CAN-H	ACC CAN communication (high) circuit	---
5	Not used	Not used	---
6	F-CAN B_L	F-CAN B communication (low) circuit	---
7	F-CAN B_H	F-CAN B communication (high) circuit	---
8	GND	Ground circuit for the multipurpose camera unit	Less than 0.2 V at all times
