CVT System Component Location Index (K20C2, CVT model)

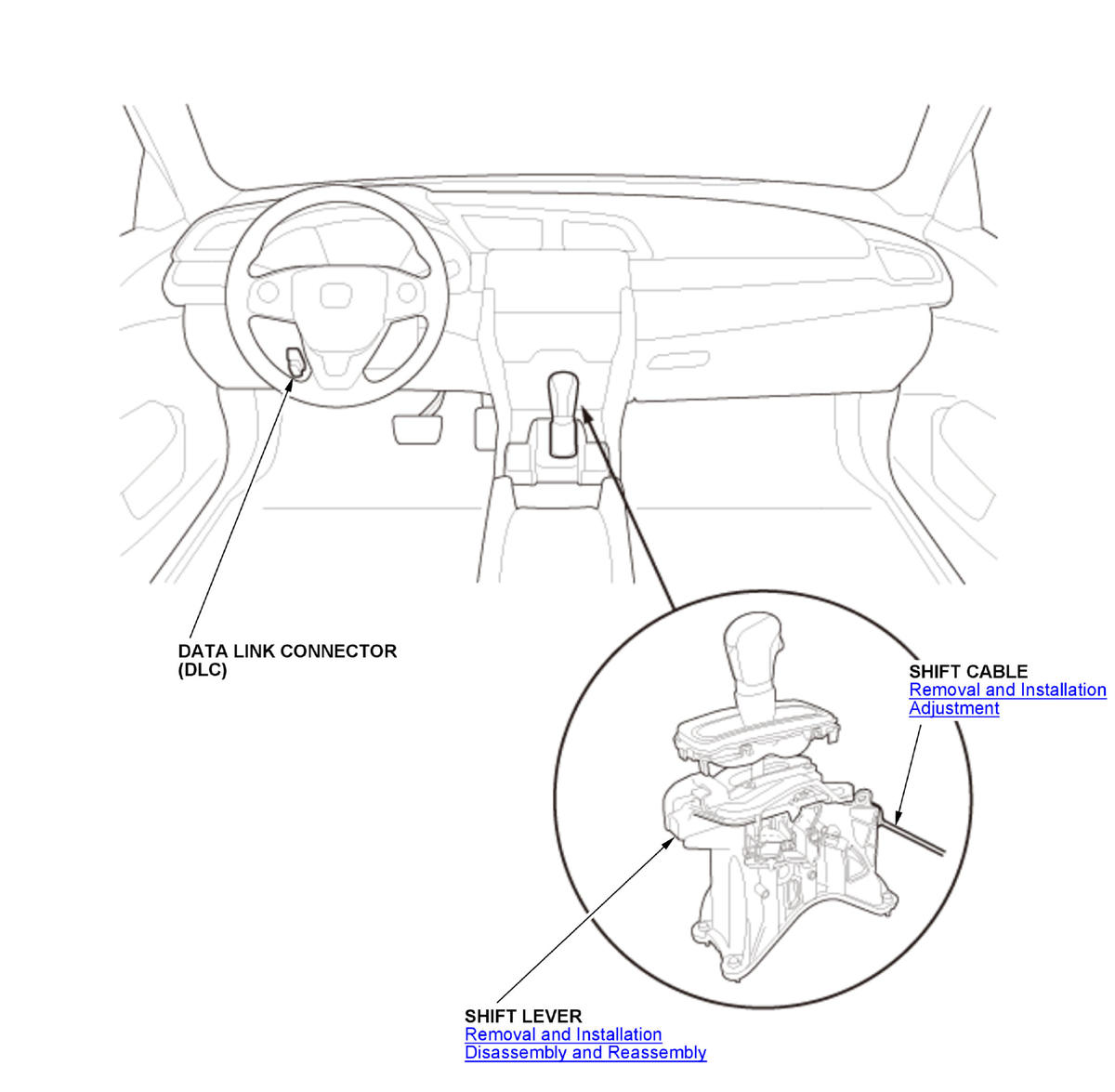

GHH401243Courtesy of HONDA, U.S.A., INC.

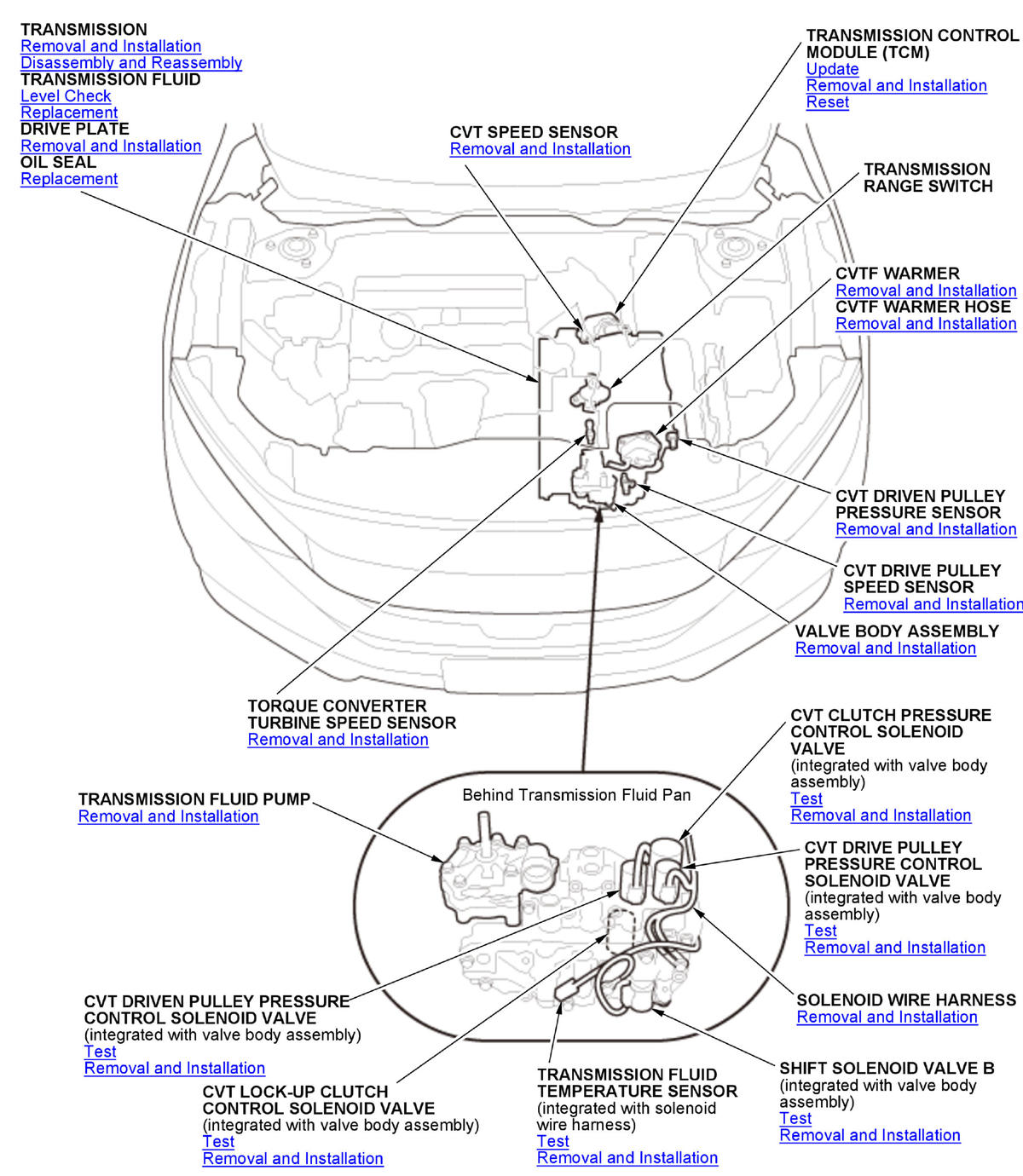

GHH401244Courtesy of HONDA, U.S.A., INC.
