A/T Interlock System Component Location Index (K20C2 (CVT))

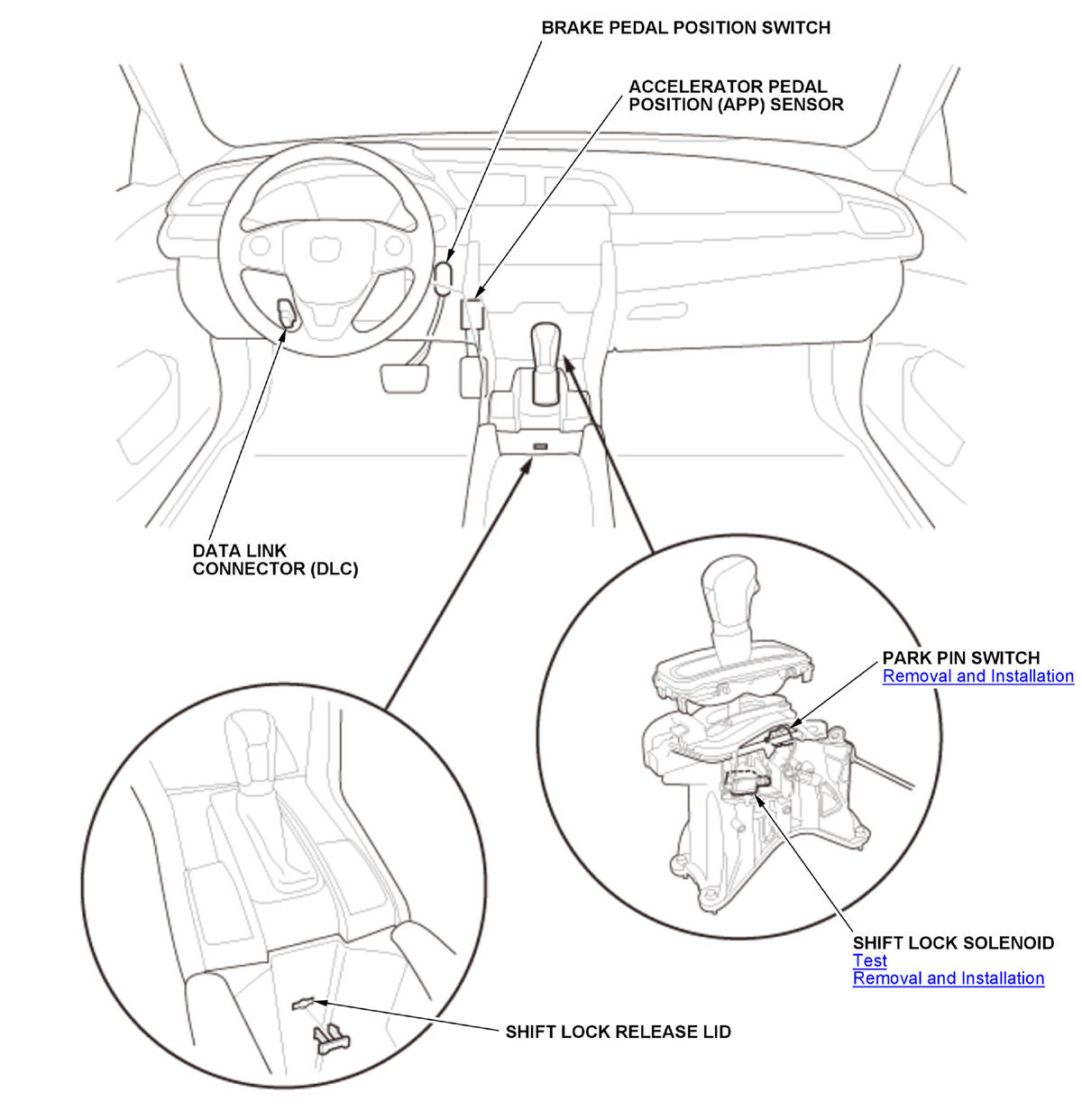

GHH401236

Courtesy of HONDA, U.S.A., INC.

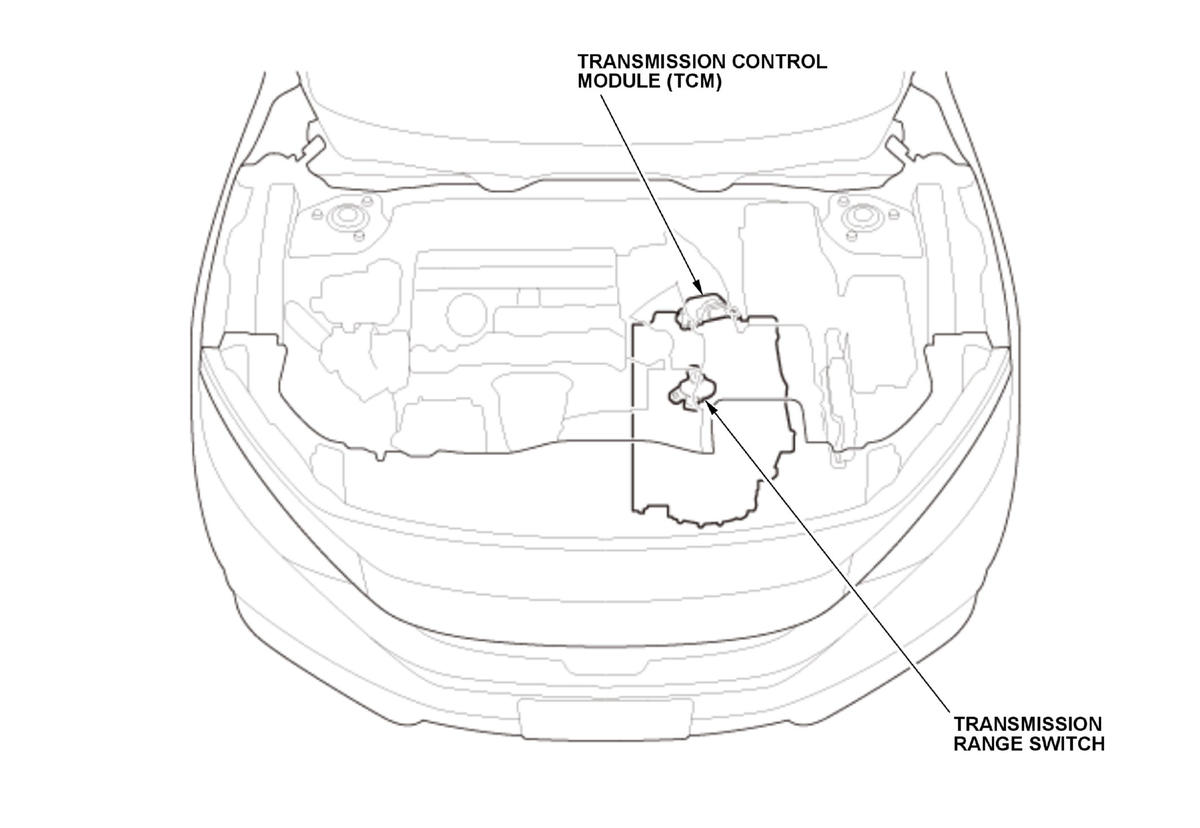

GHH401237

Courtesy of HONDA, U.S.A., INC.
