Parking and Back-Up Sensor System Component Location Index

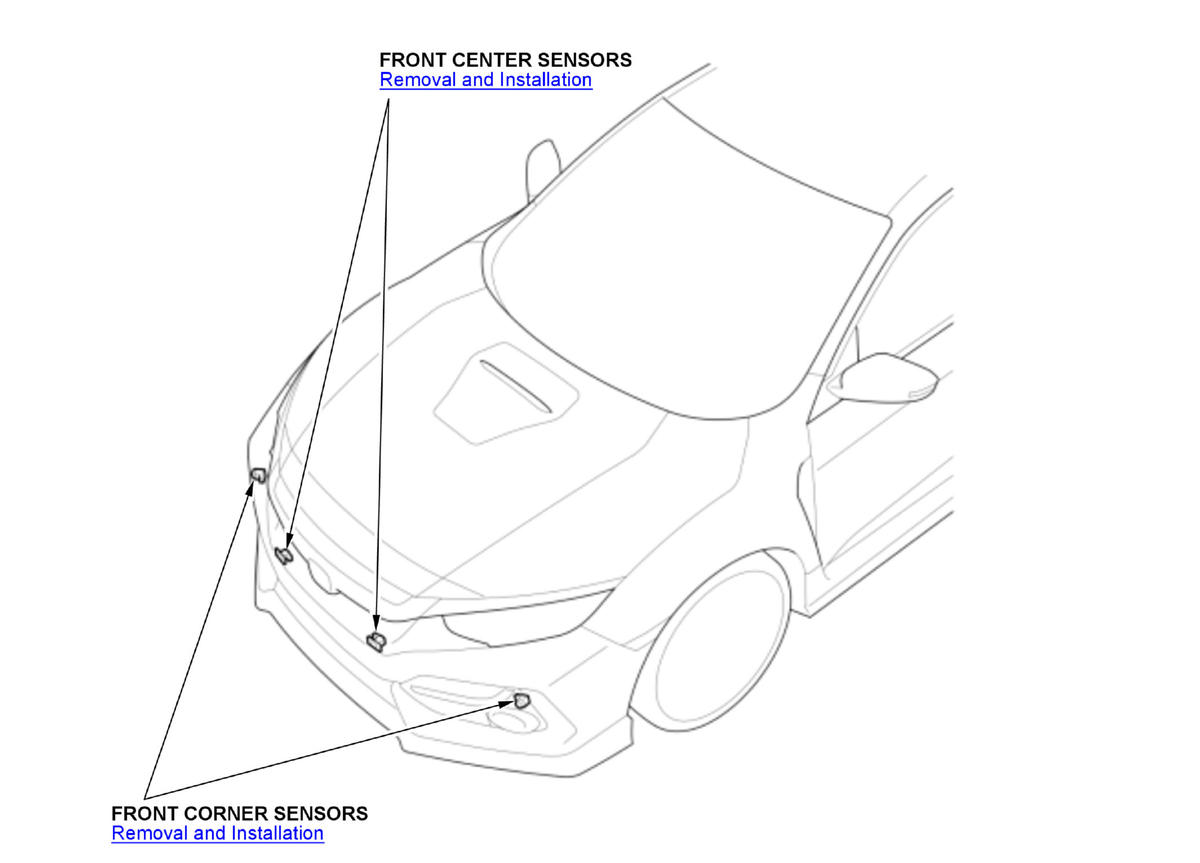

GHH408612

Courtesy of HONDA, U.S.A., INC.

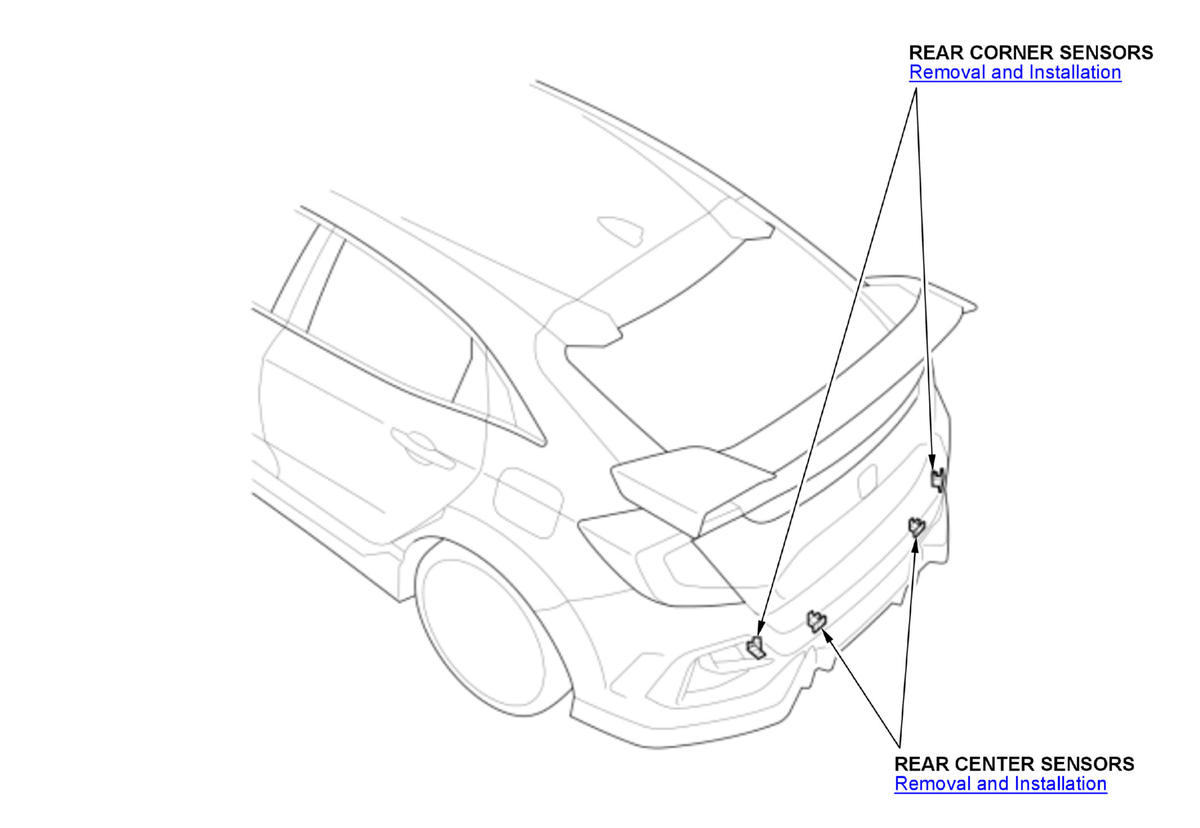

GHH408613

Courtesy of HONDA, U.S.A., INC.

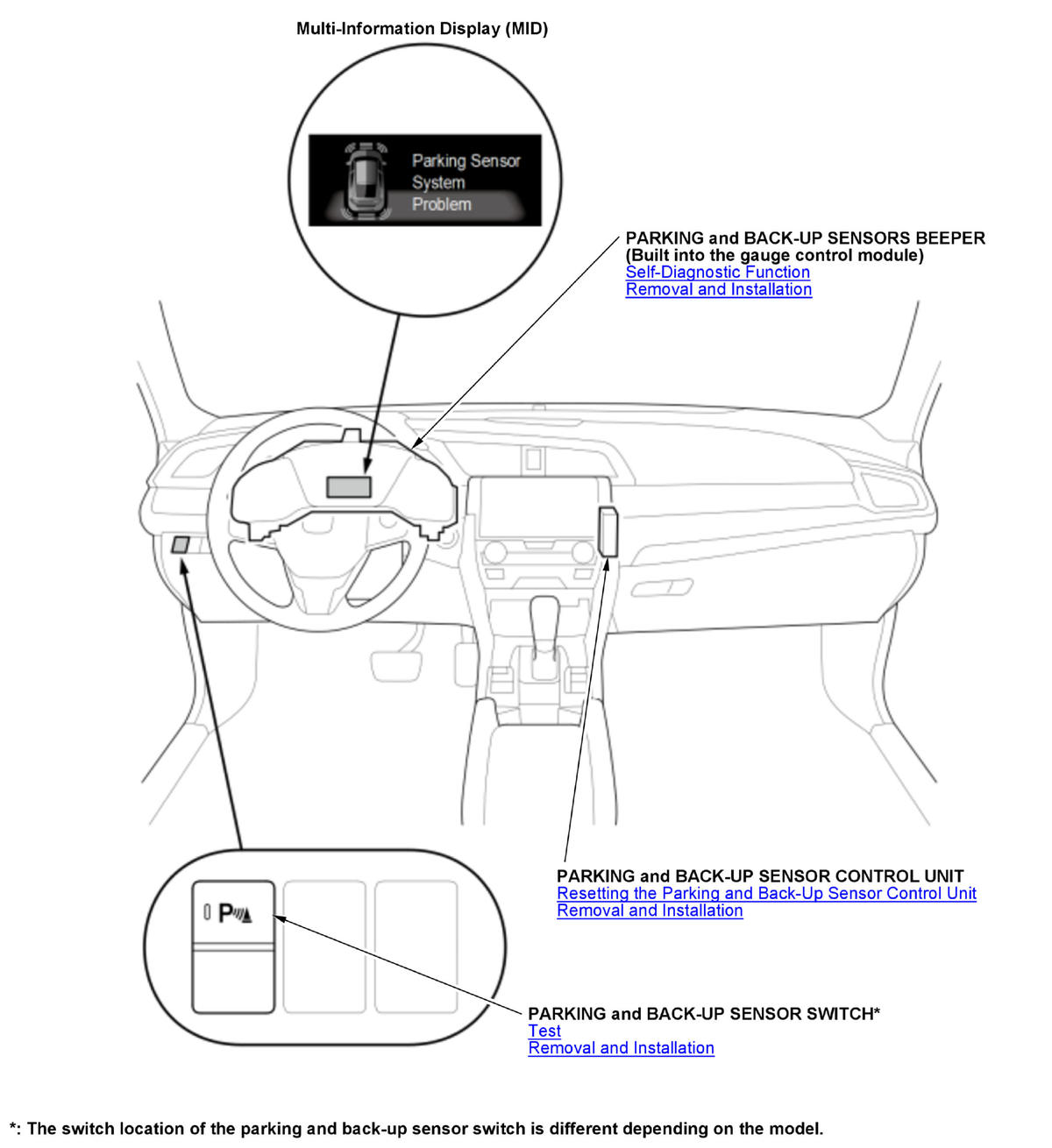

GHH408614

Courtesy of HONDA, U.S.A., INC.
