Gauges Component Location Index (Except L15BY)

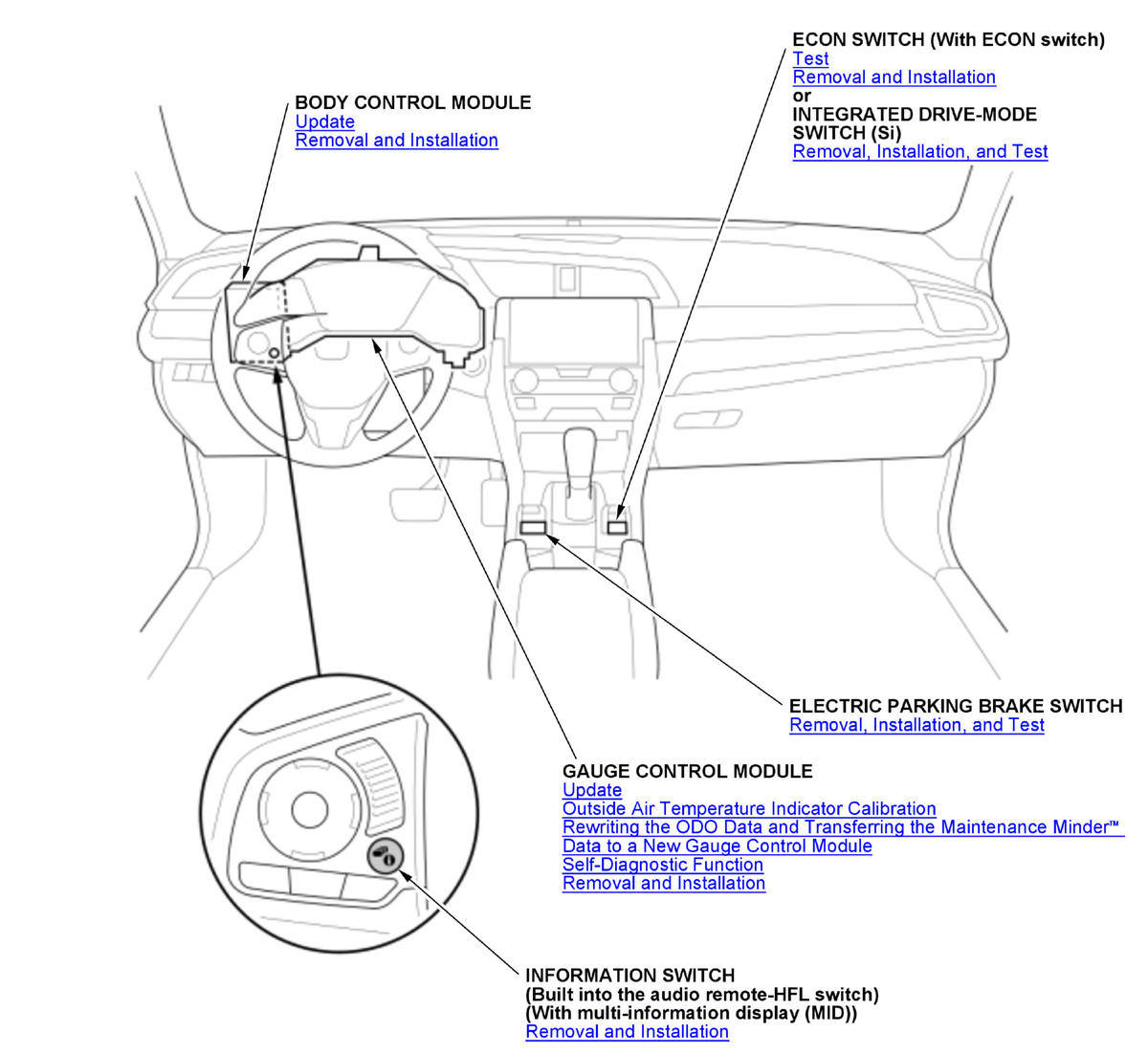

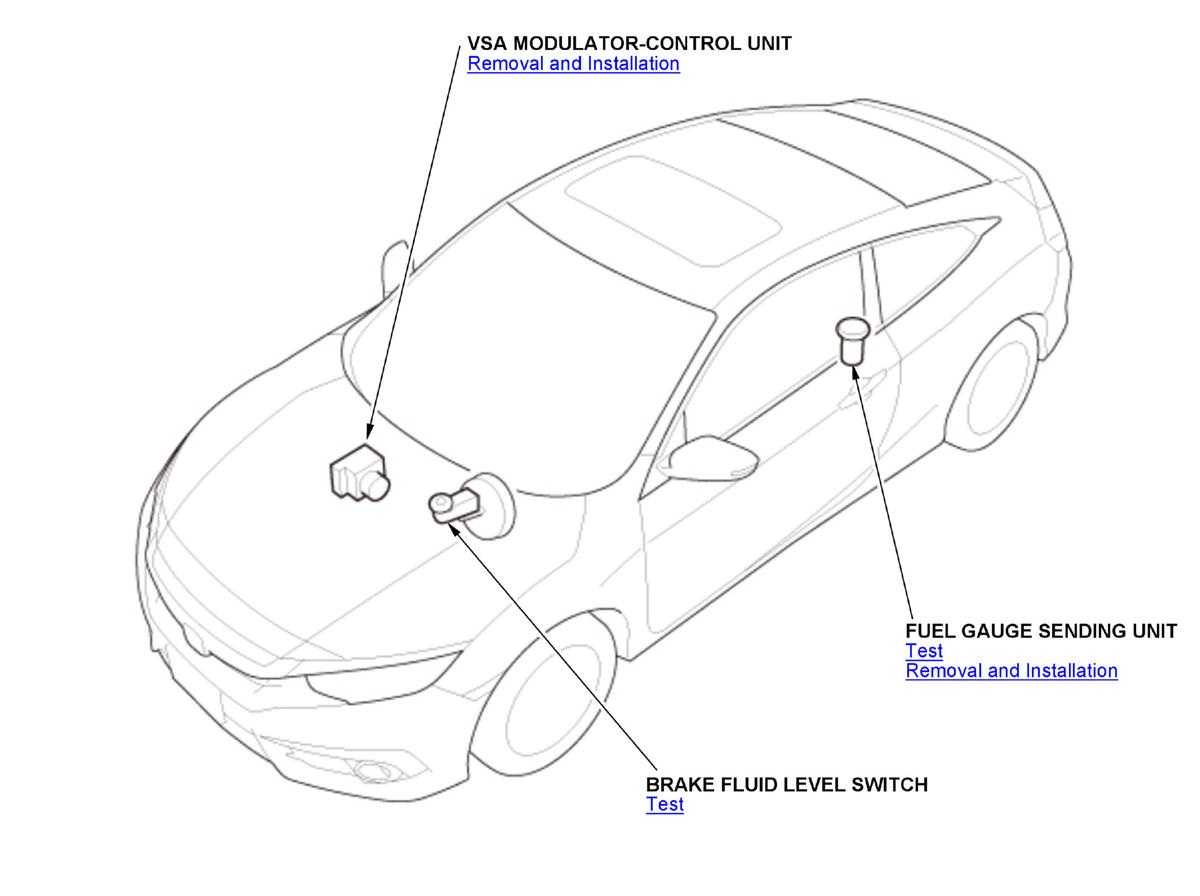

2-door

Courtesy of HONDA, U.S.A., INC.

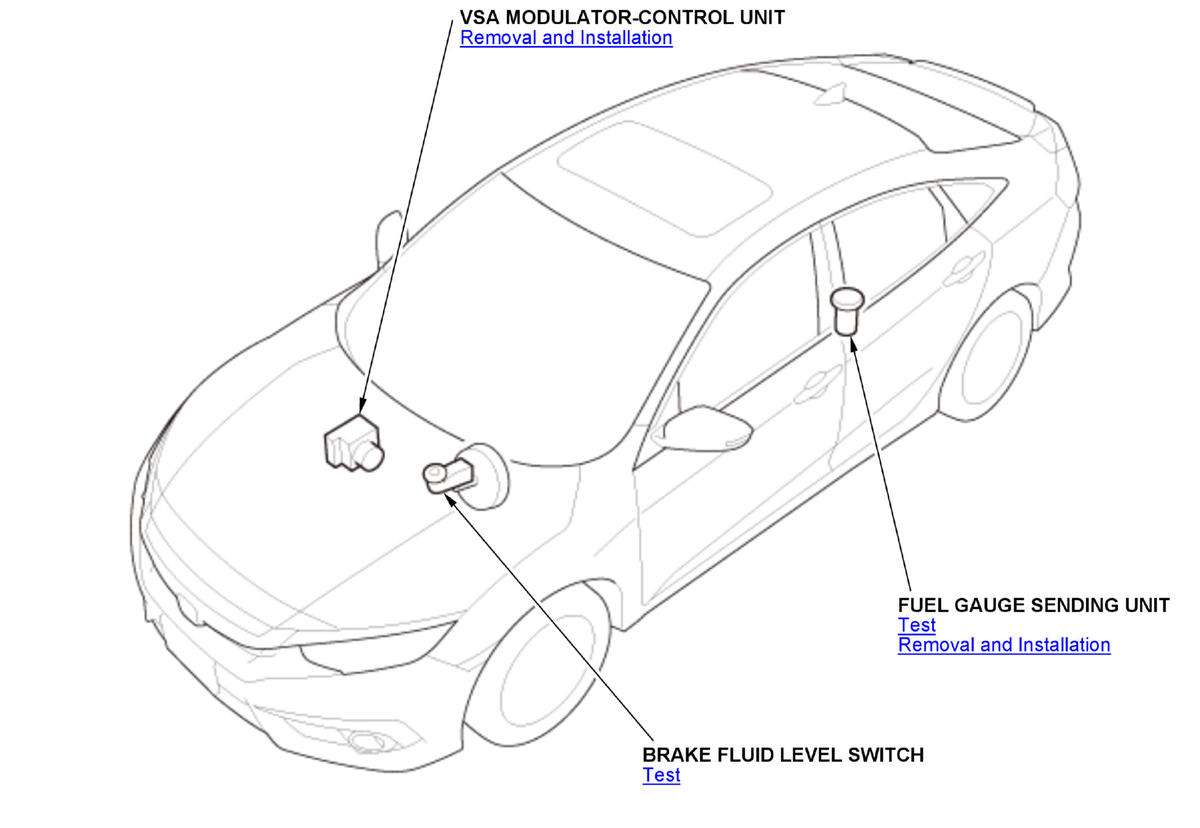

4-door

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

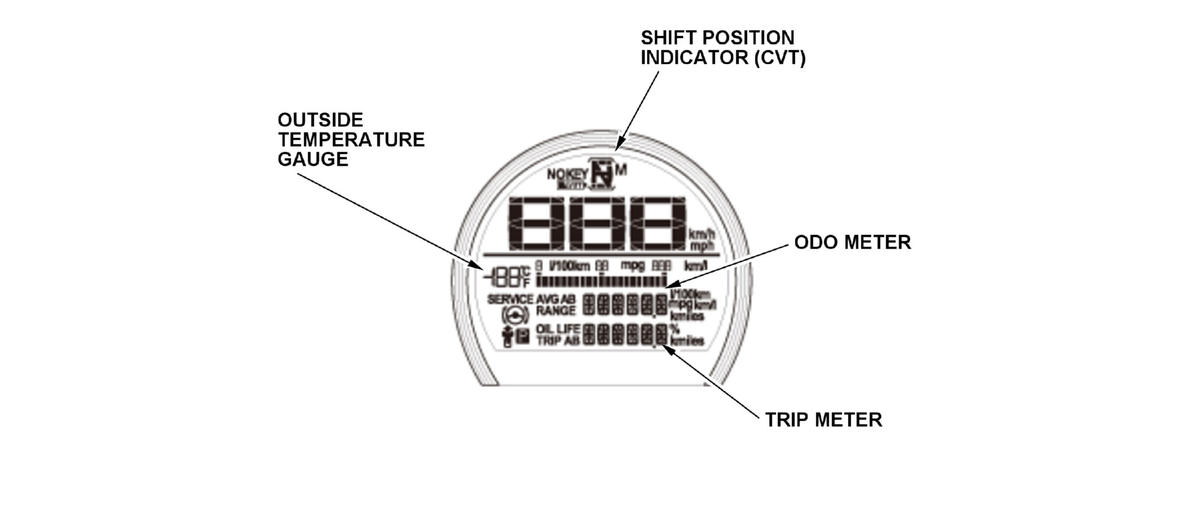

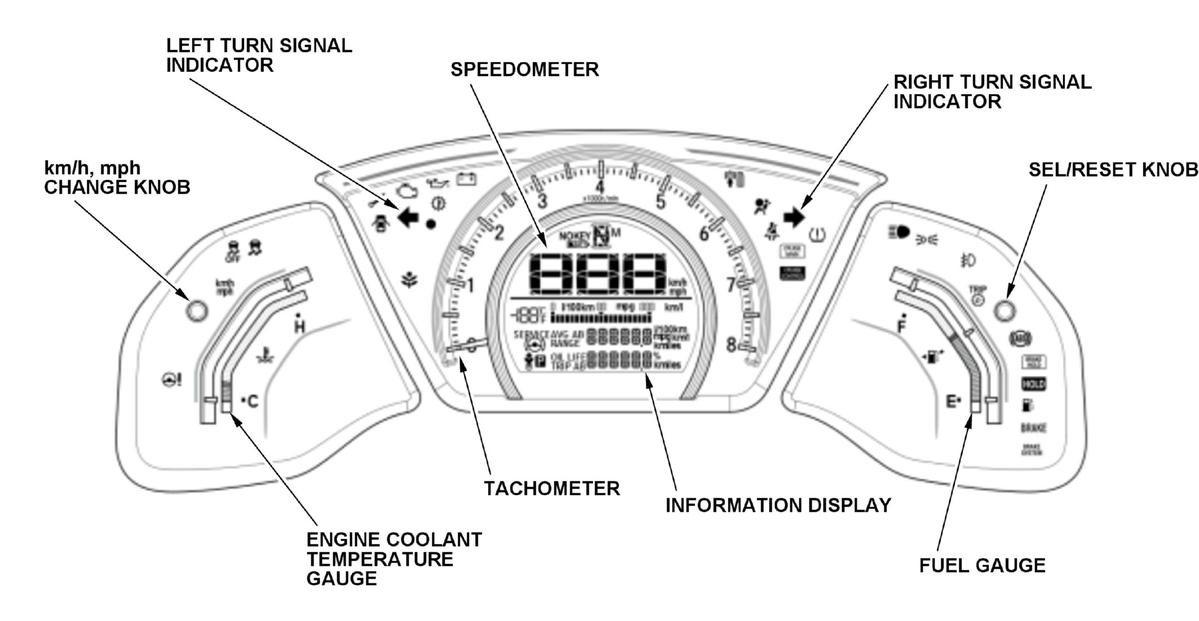

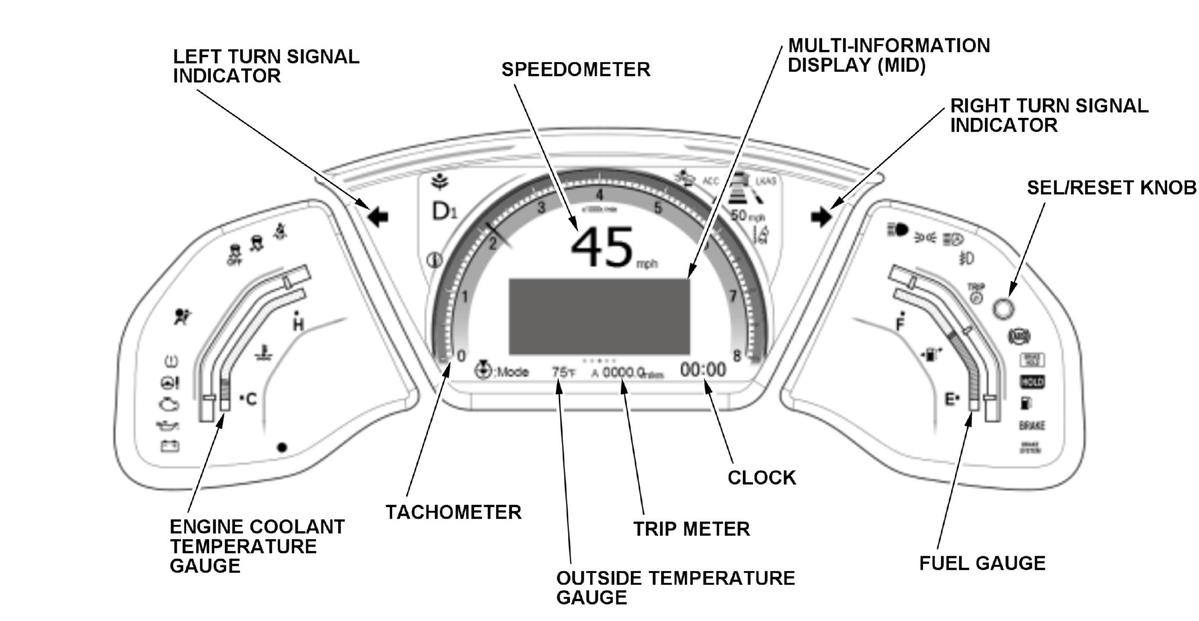

Without Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

Without Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

Without Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

With Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

With Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

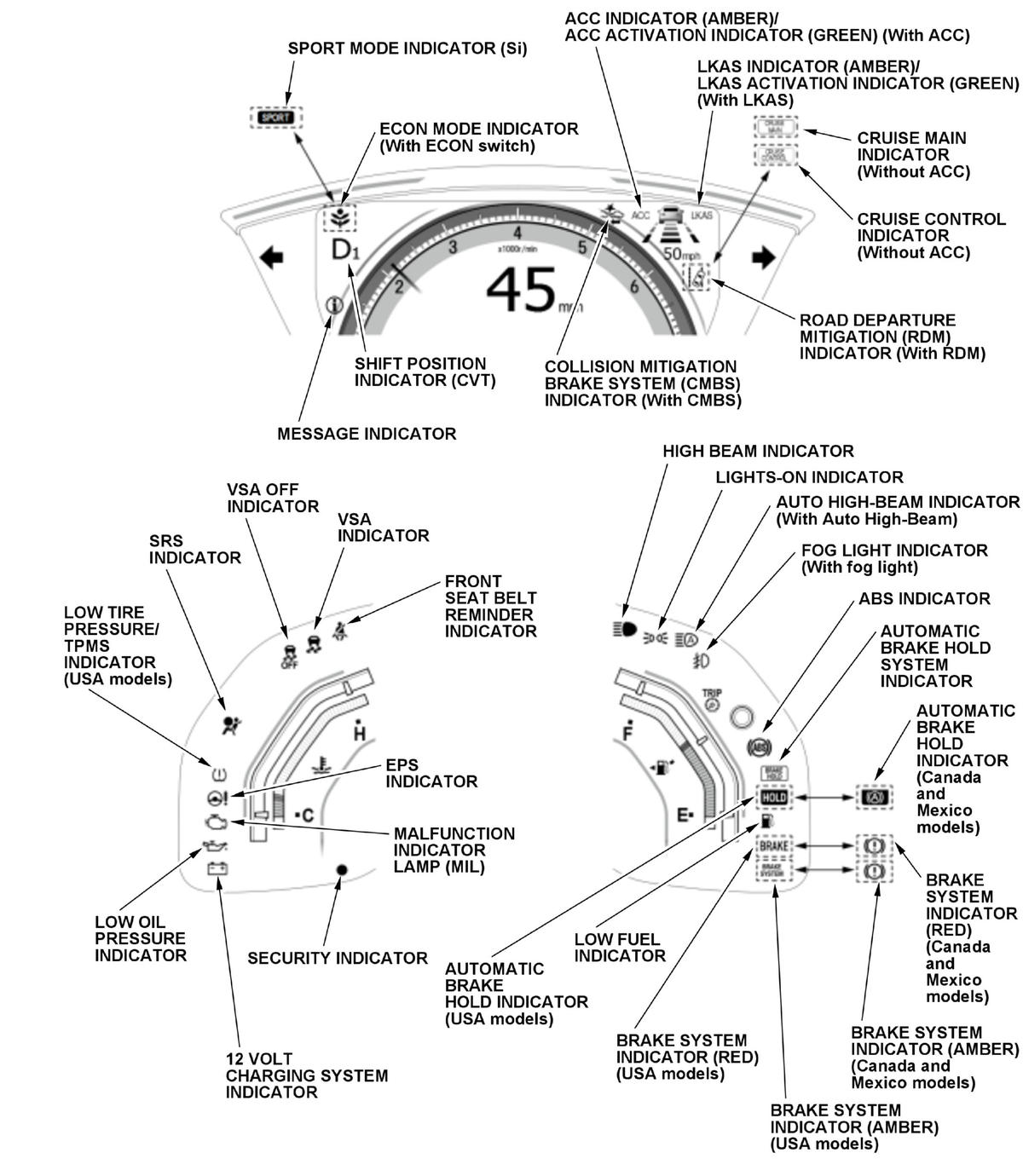

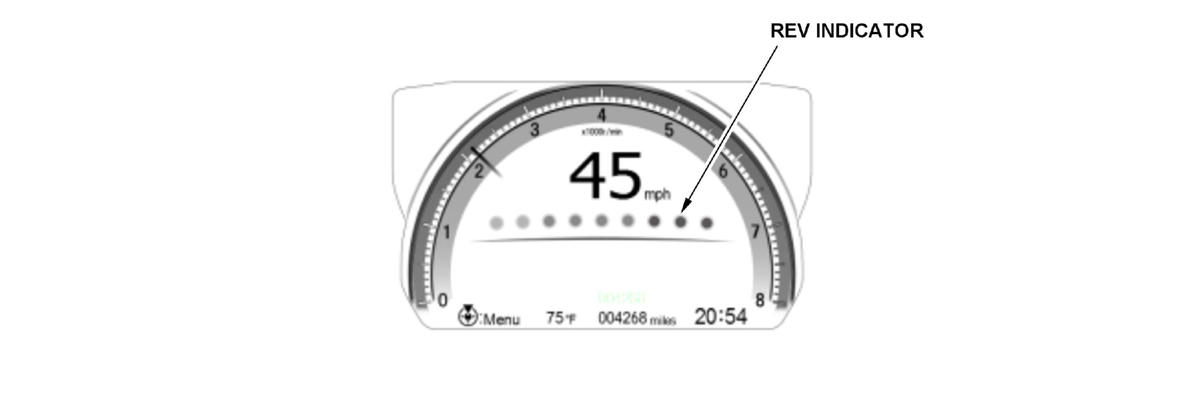

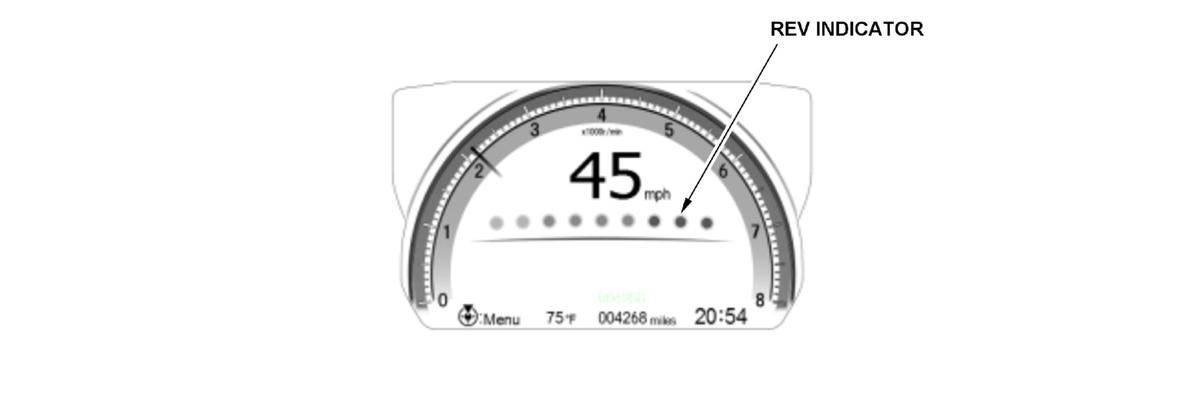

Si

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

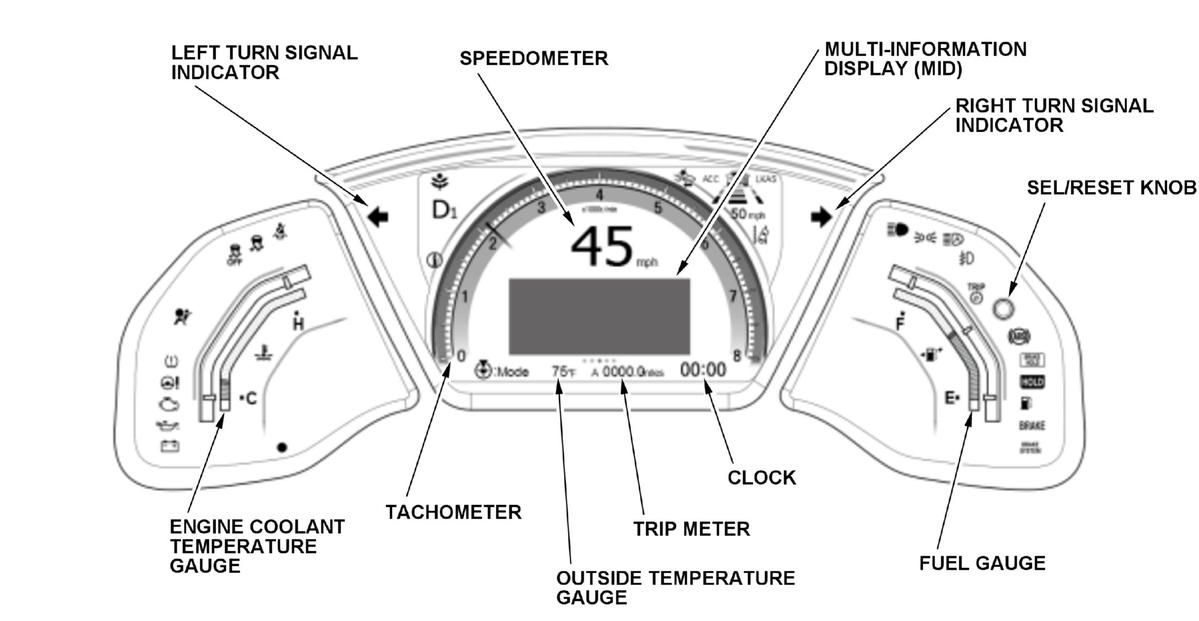

Without Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

Without Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

Without Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

With Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

With Multi-Information Display (MID)

Courtesy of HONDA, U.S.A., INC.

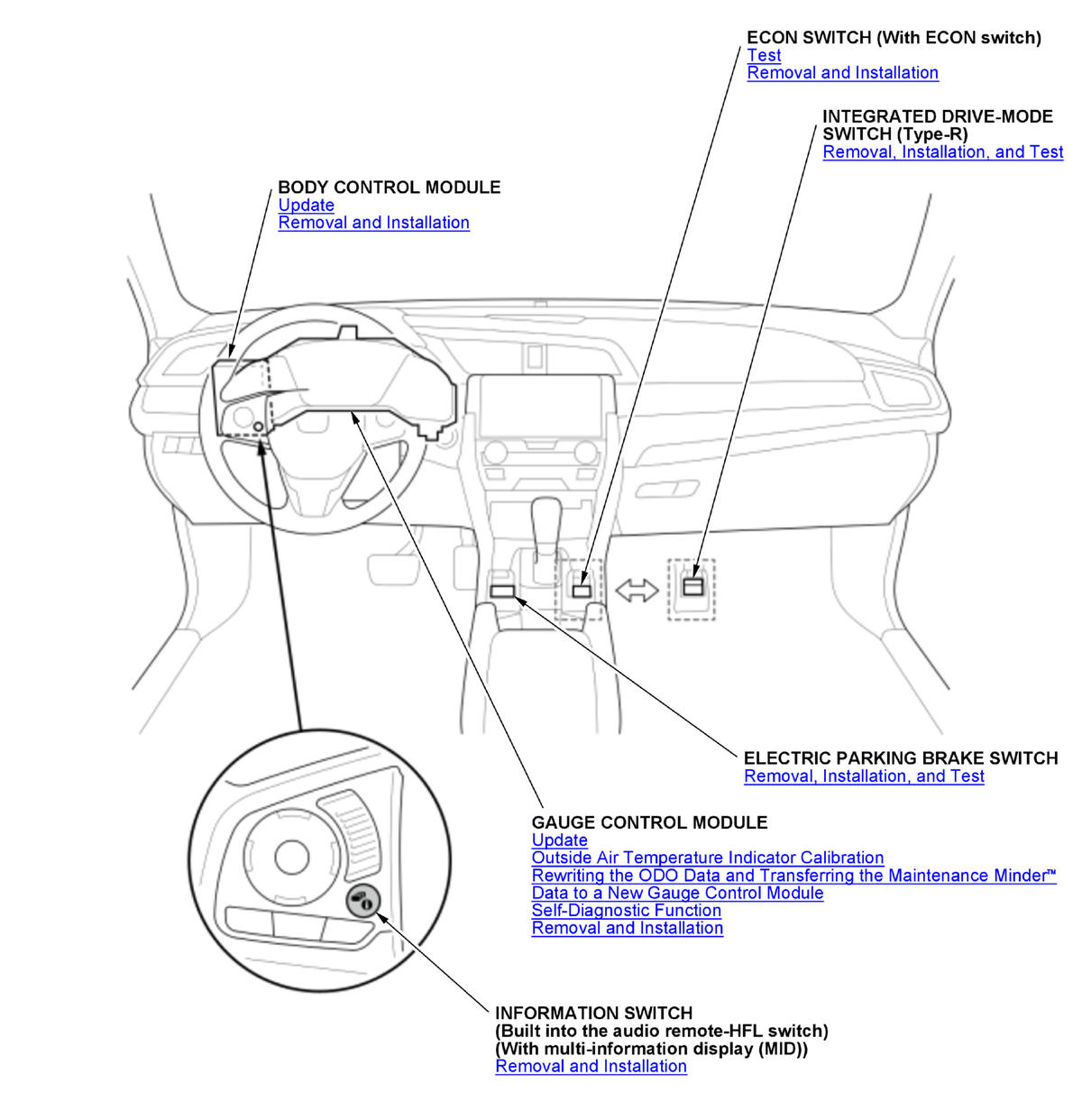

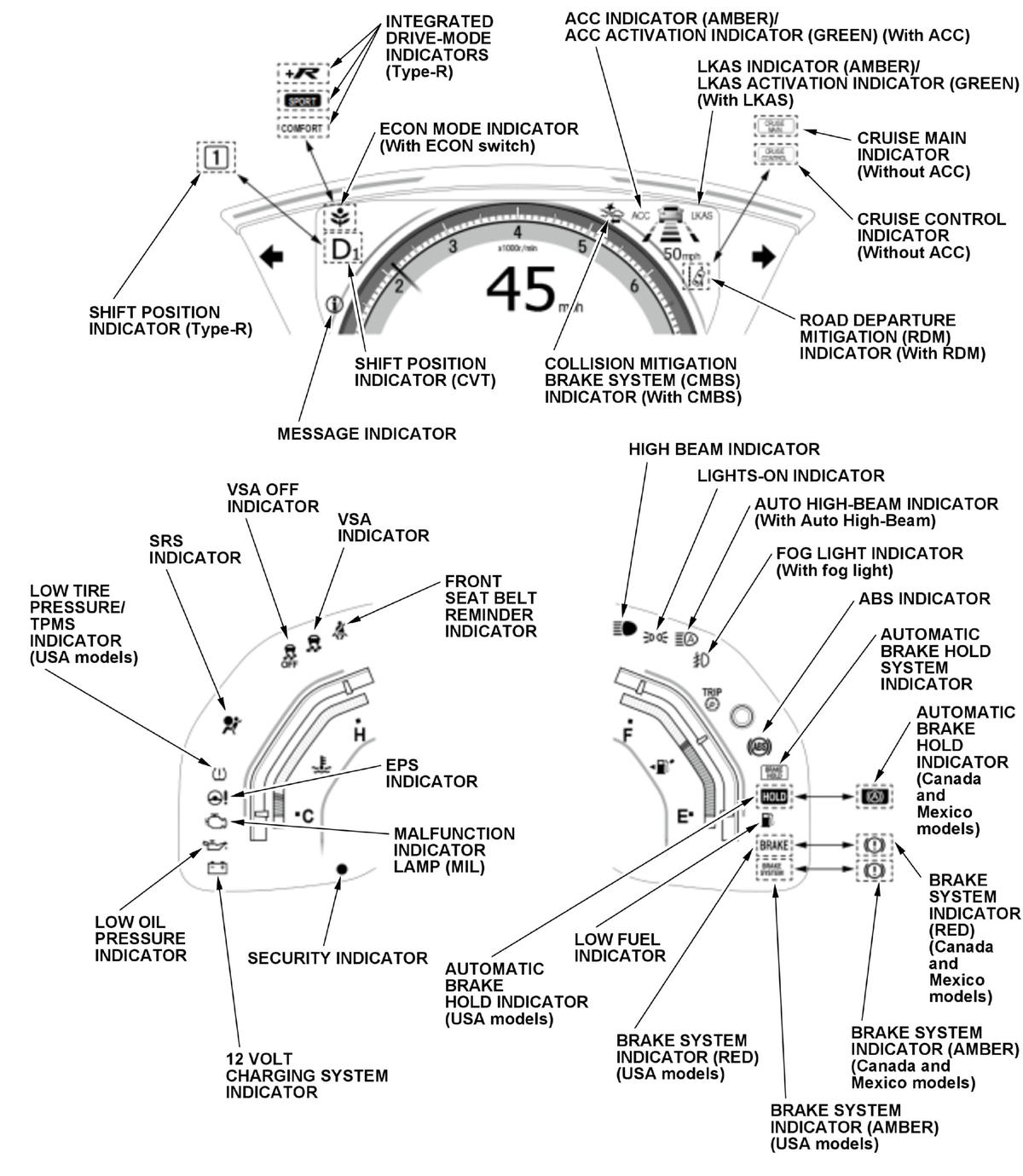

Type-R

Courtesy of HONDA, U.S.A., INC.
