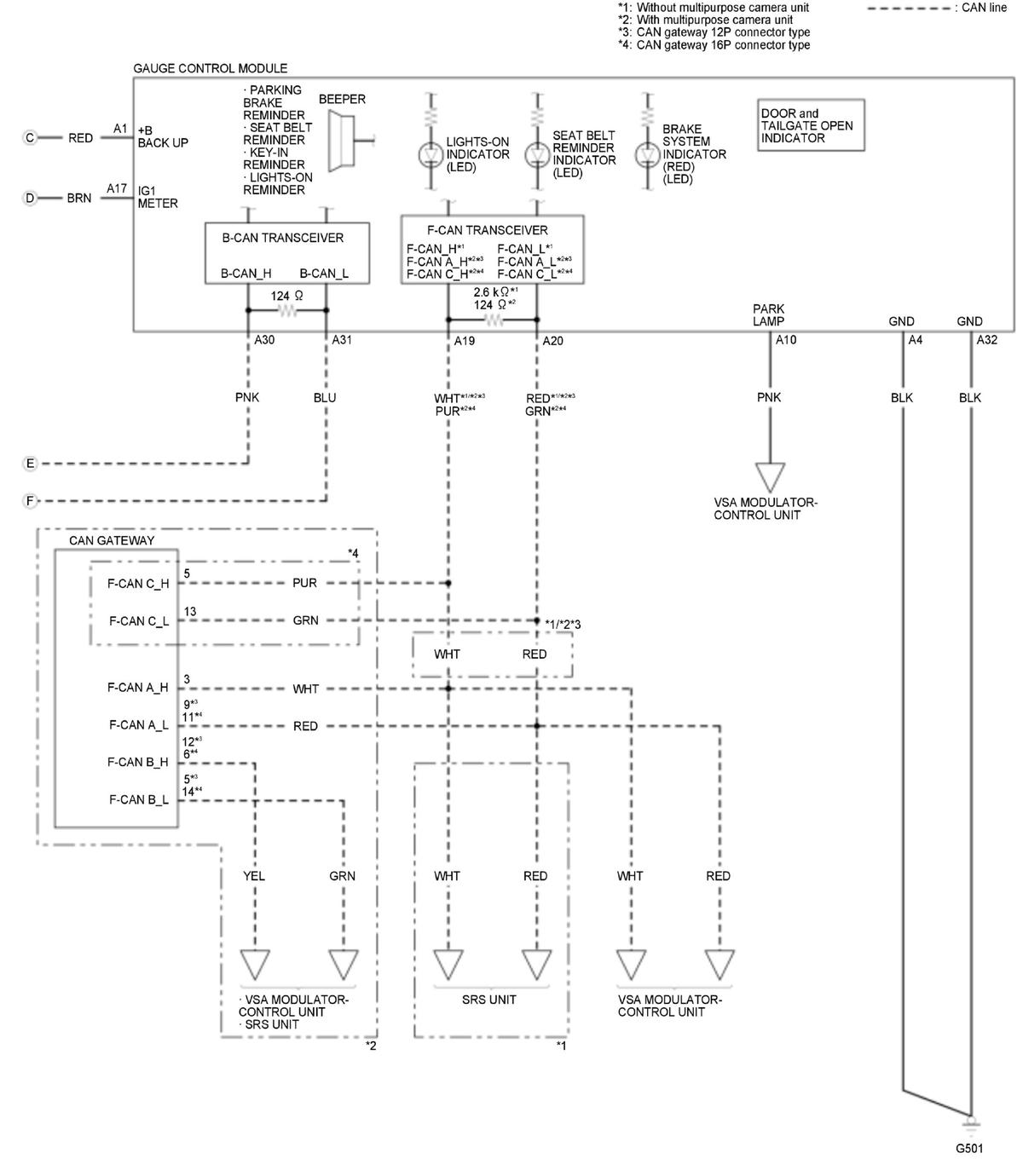

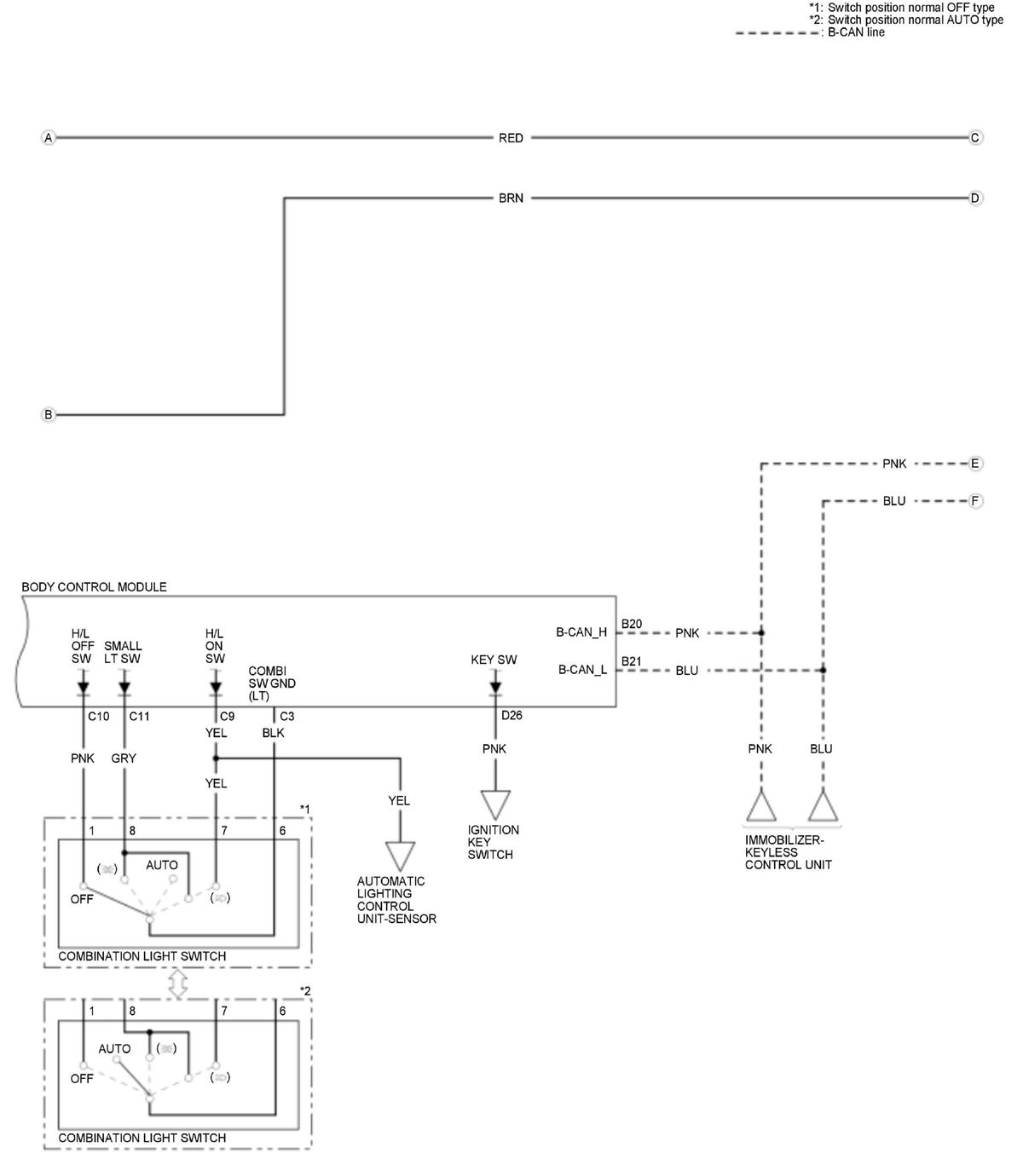

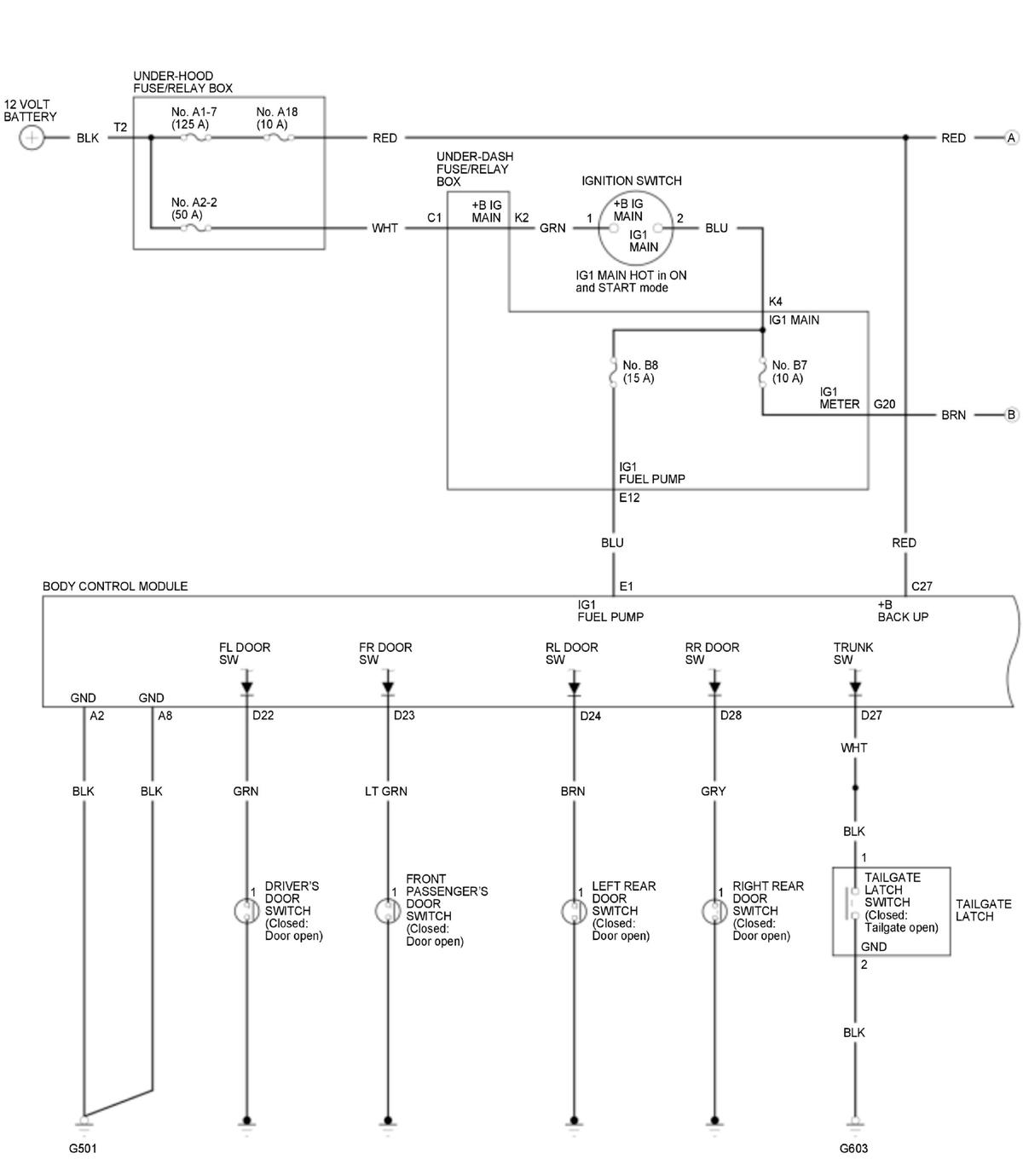

Reminder Systems Circuit Diagram (5-door without Keyless Access System) (2017 2018 2019 2020 2021)
Reminder Systems Circuit Diagram (5-door without Keyless Access System) (2017 2018 2019 2020 2021)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
