Reminder Systems Circuit Diagram (2/4-door with Keyless Access System)

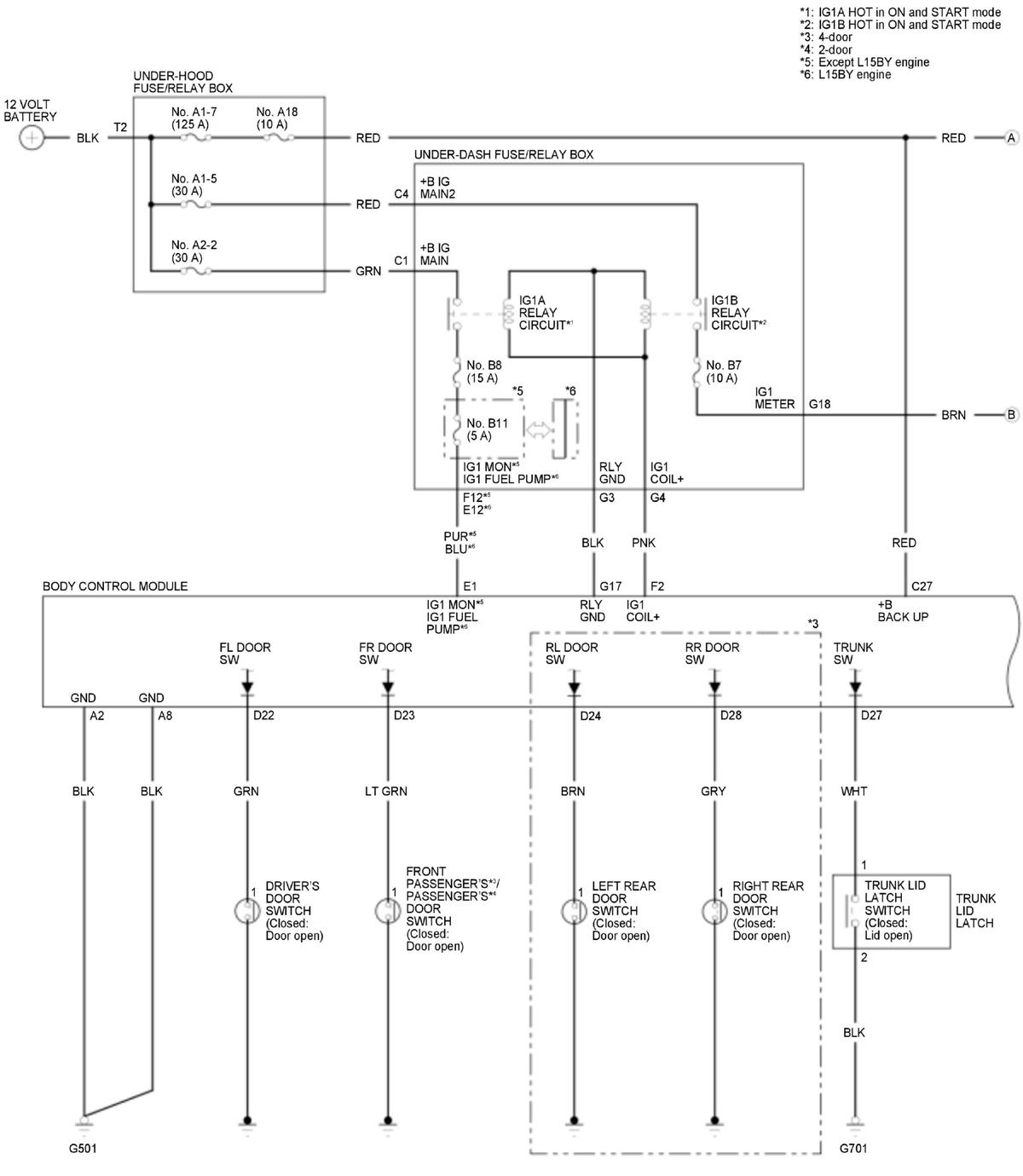

GHH408761

Courtesy of HONDA, U.S.A., INC.

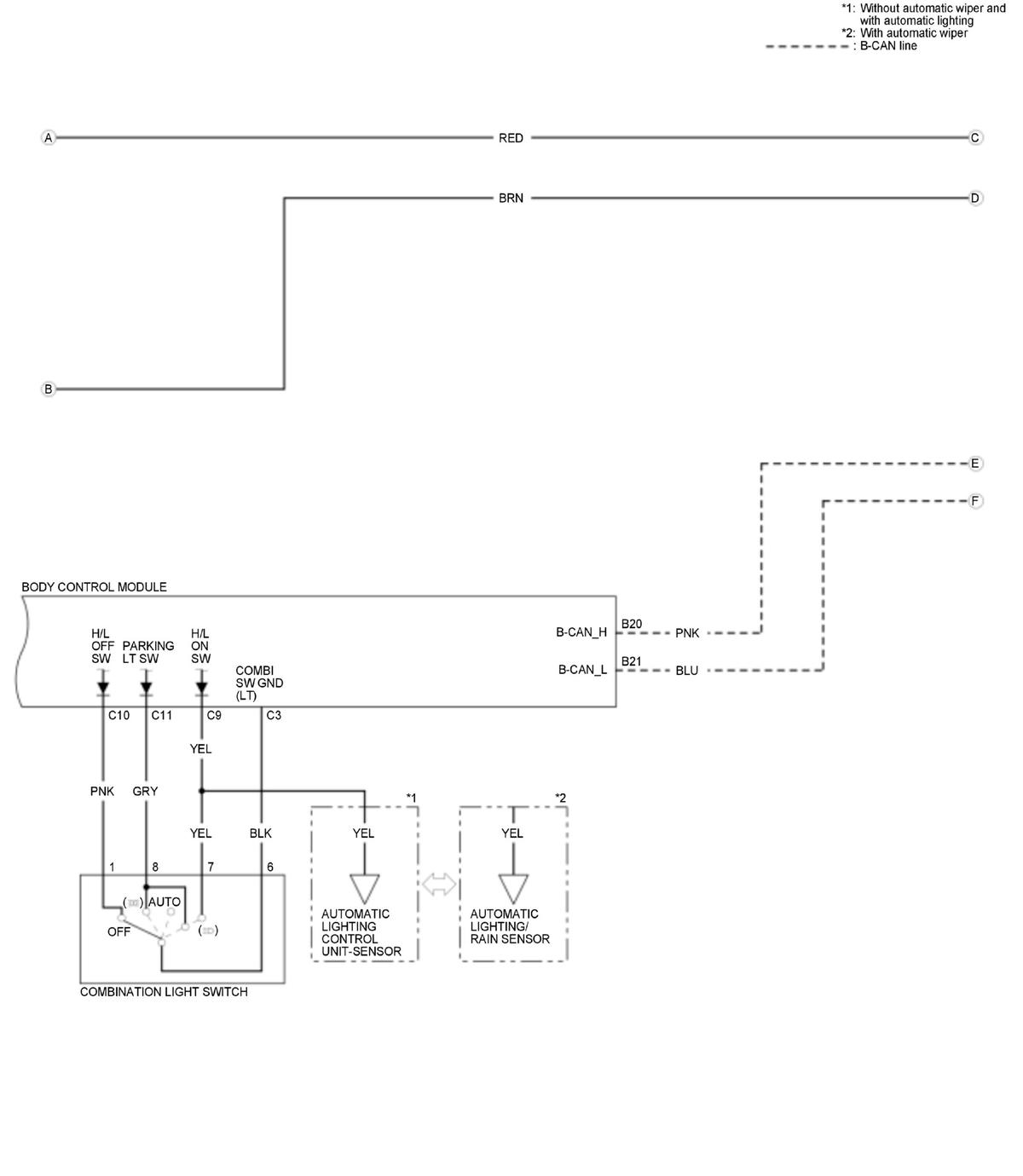

GHH408762

Courtesy of HONDA, U.S.A., INC.

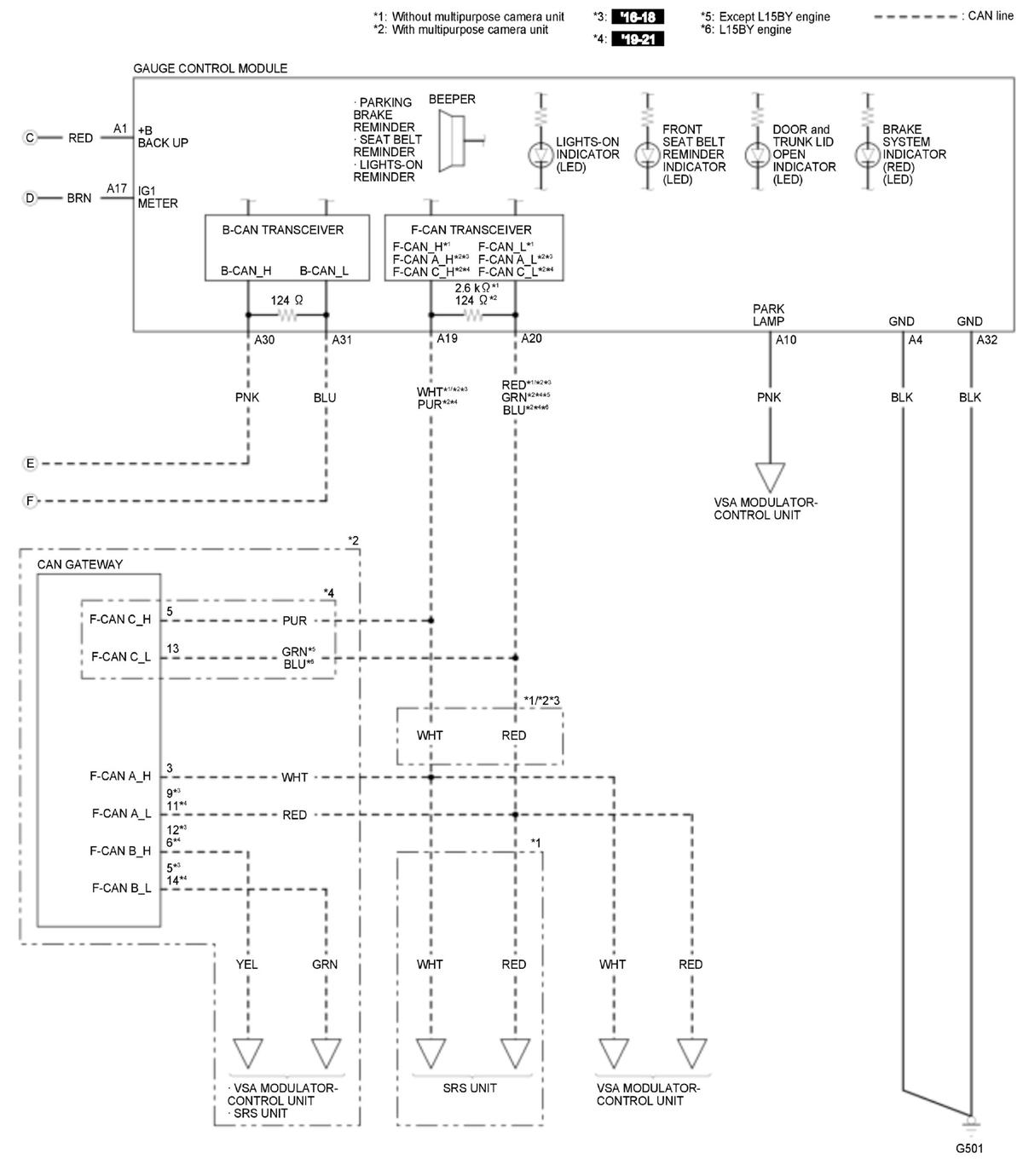

GHH408763

Courtesy of HONDA, U.S.A., INC.
