Parking and Back-Up Sensor System Circuit Diagram

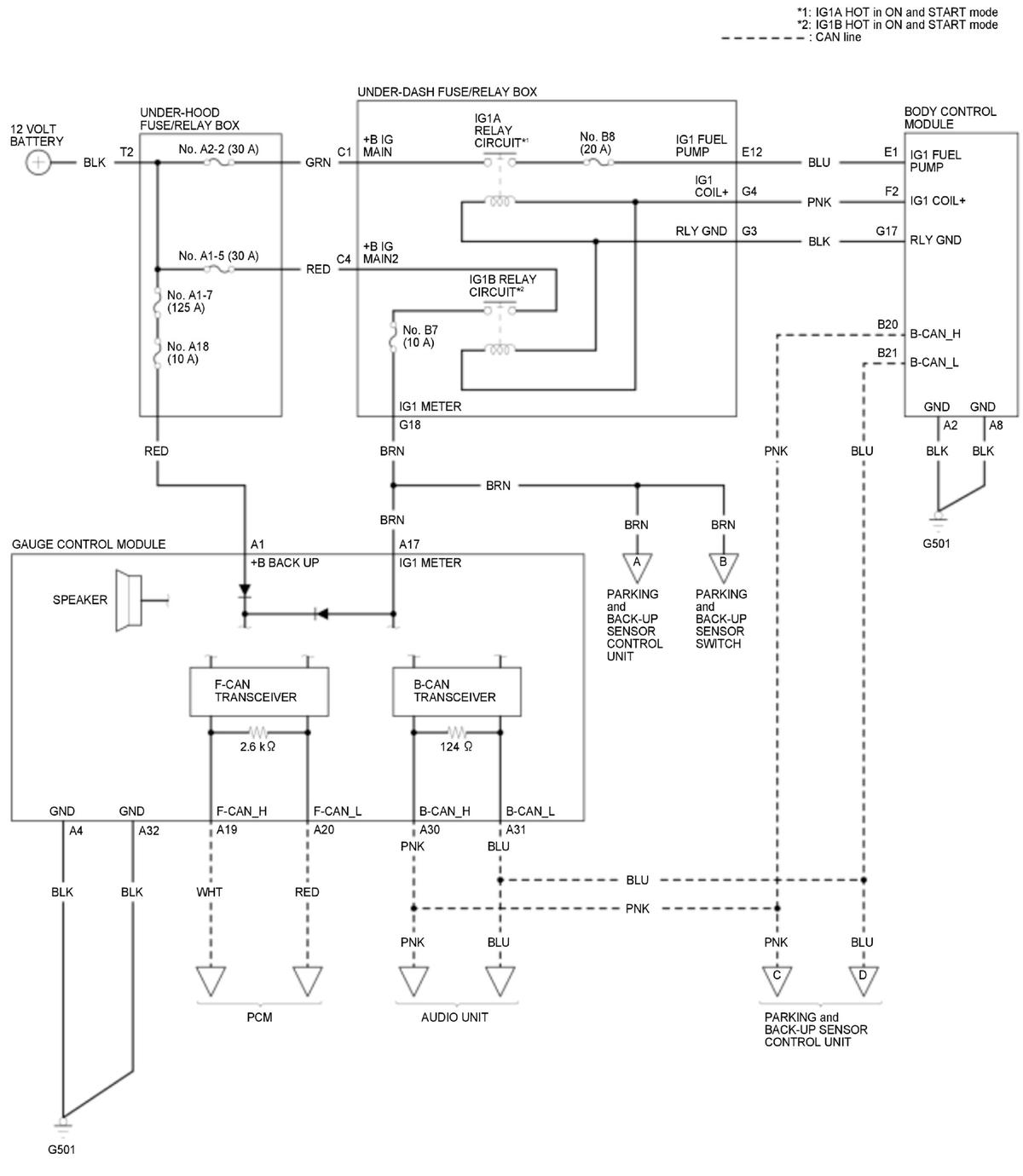

GHH408758

Courtesy of HONDA, U.S.A., INC.

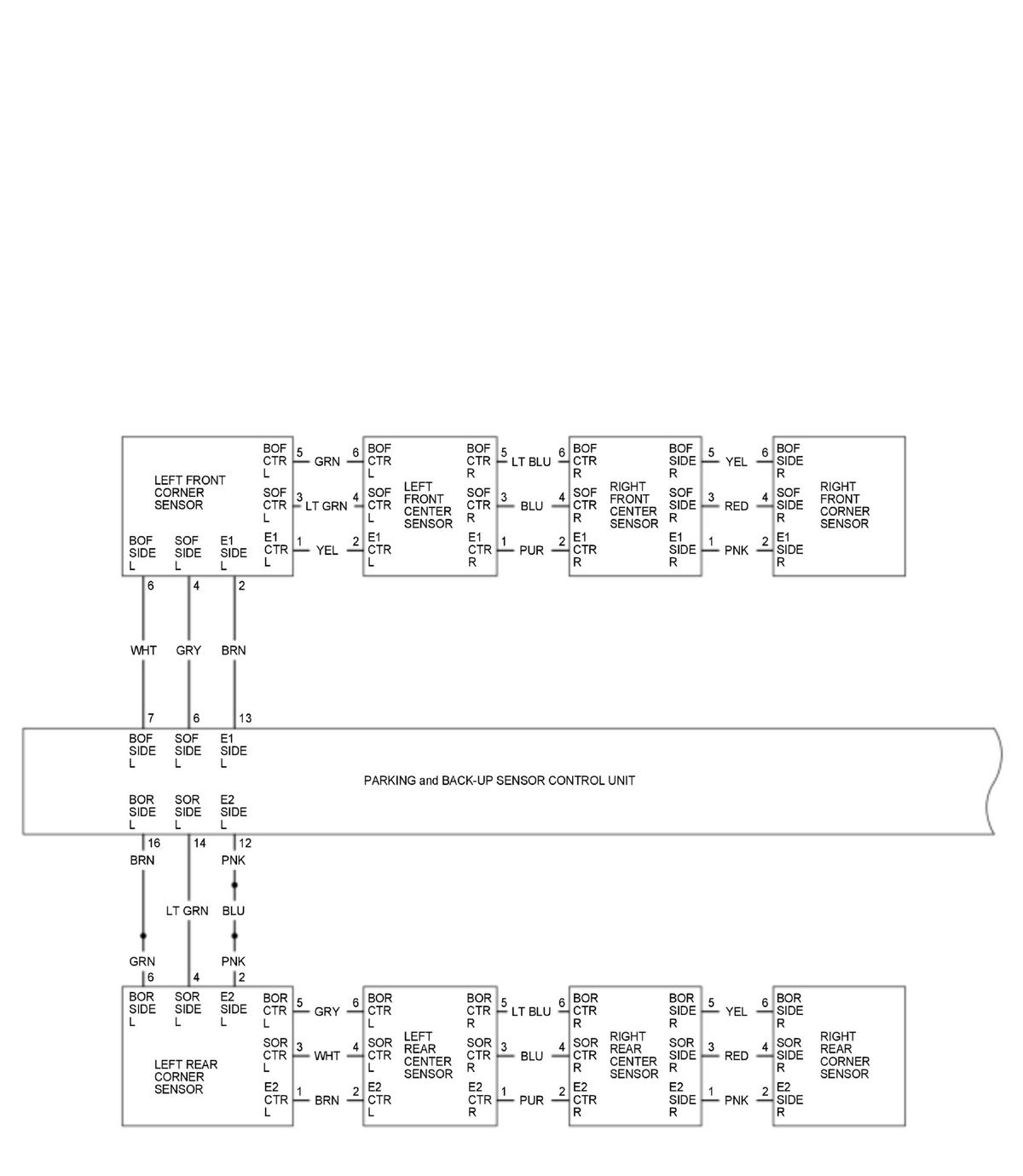

GHH408759

Courtesy of HONDA, U.S.A., INC.

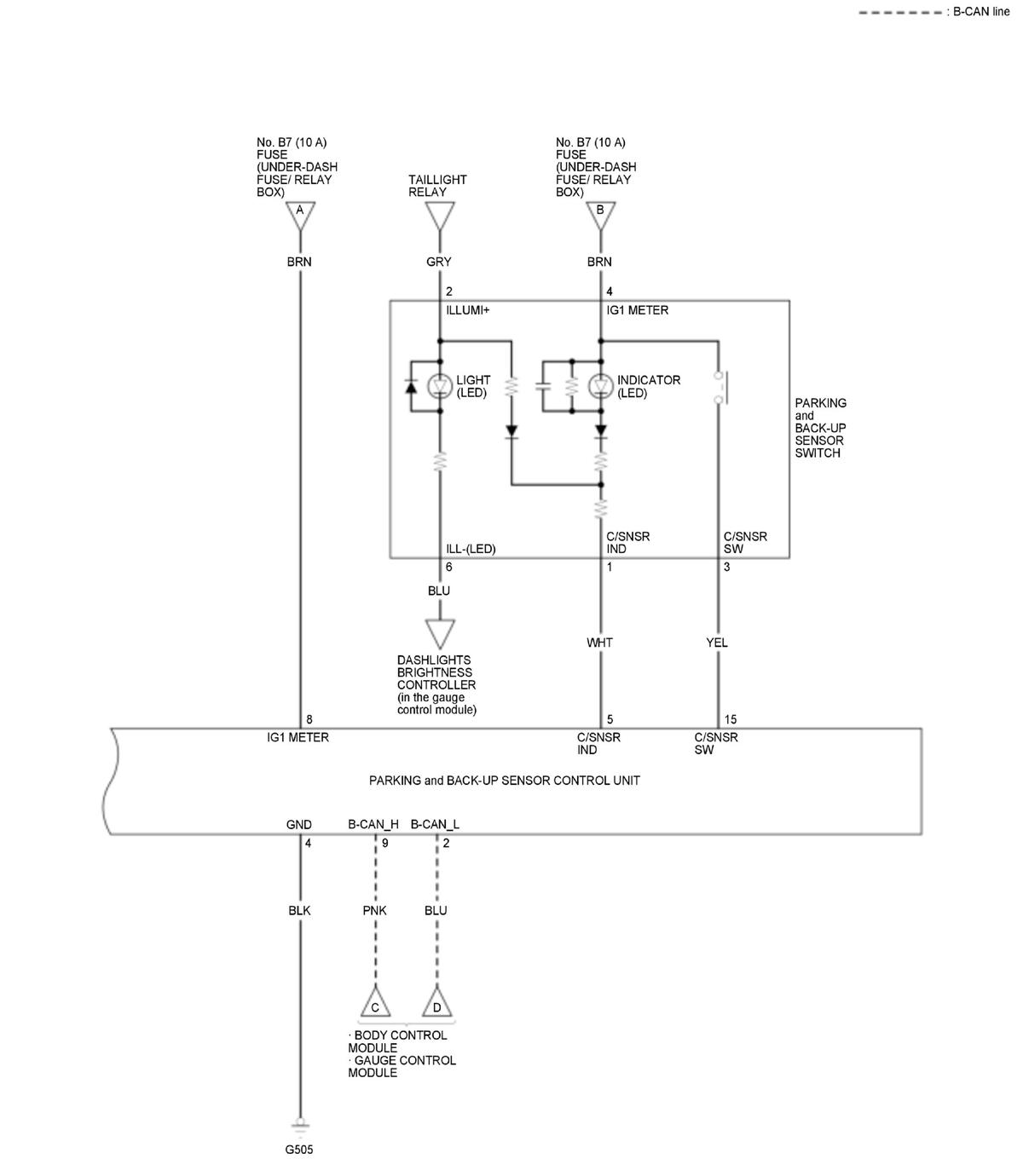

GHH408760

Courtesy of HONDA, U.S.A., INC.
