Gauges Circuit Diagram (5-door without Keyless Access System) (2017 2018 2019 2020 2021)

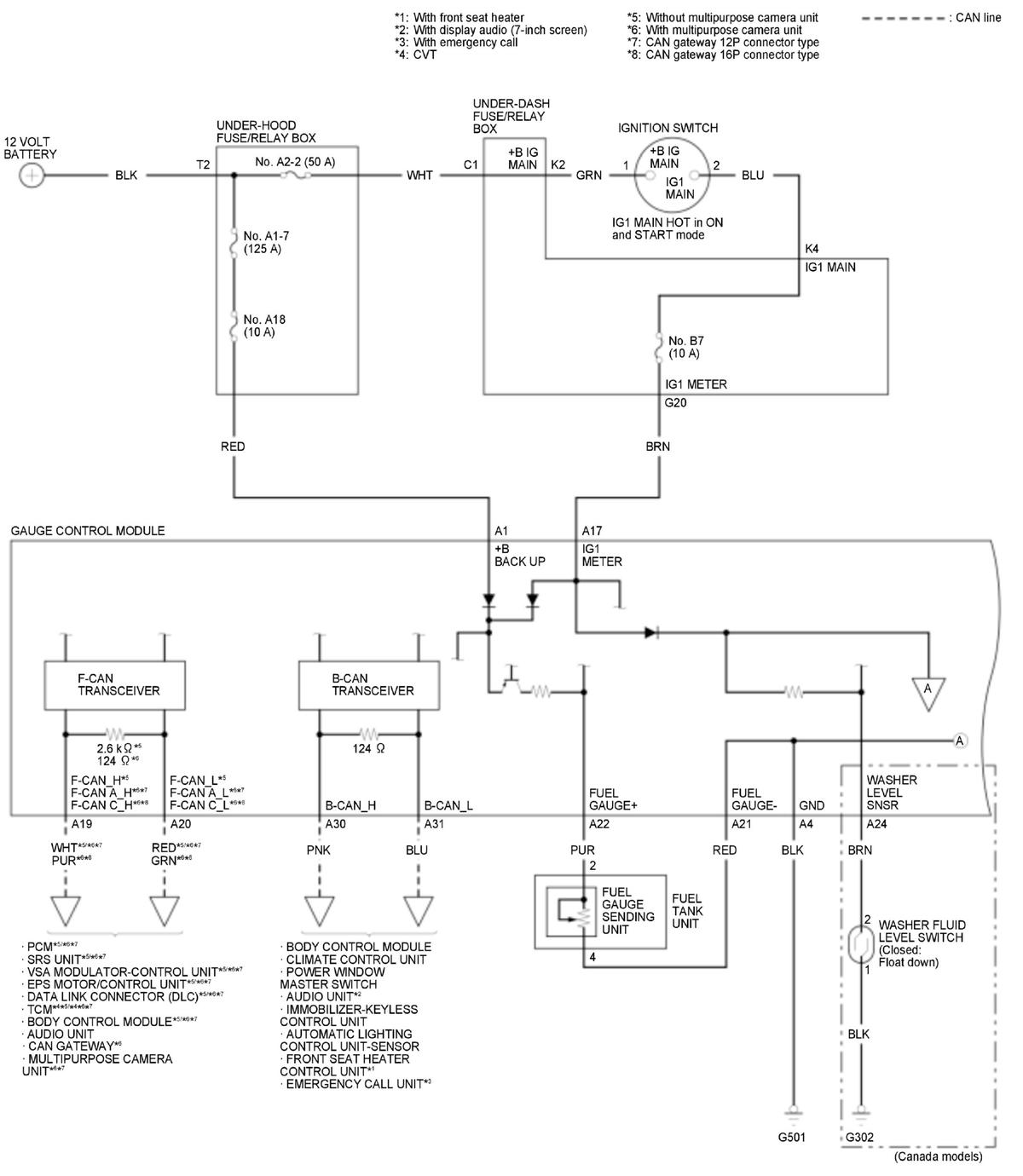

GHH408754Courtesy of HONDA, U.S.A., INC.

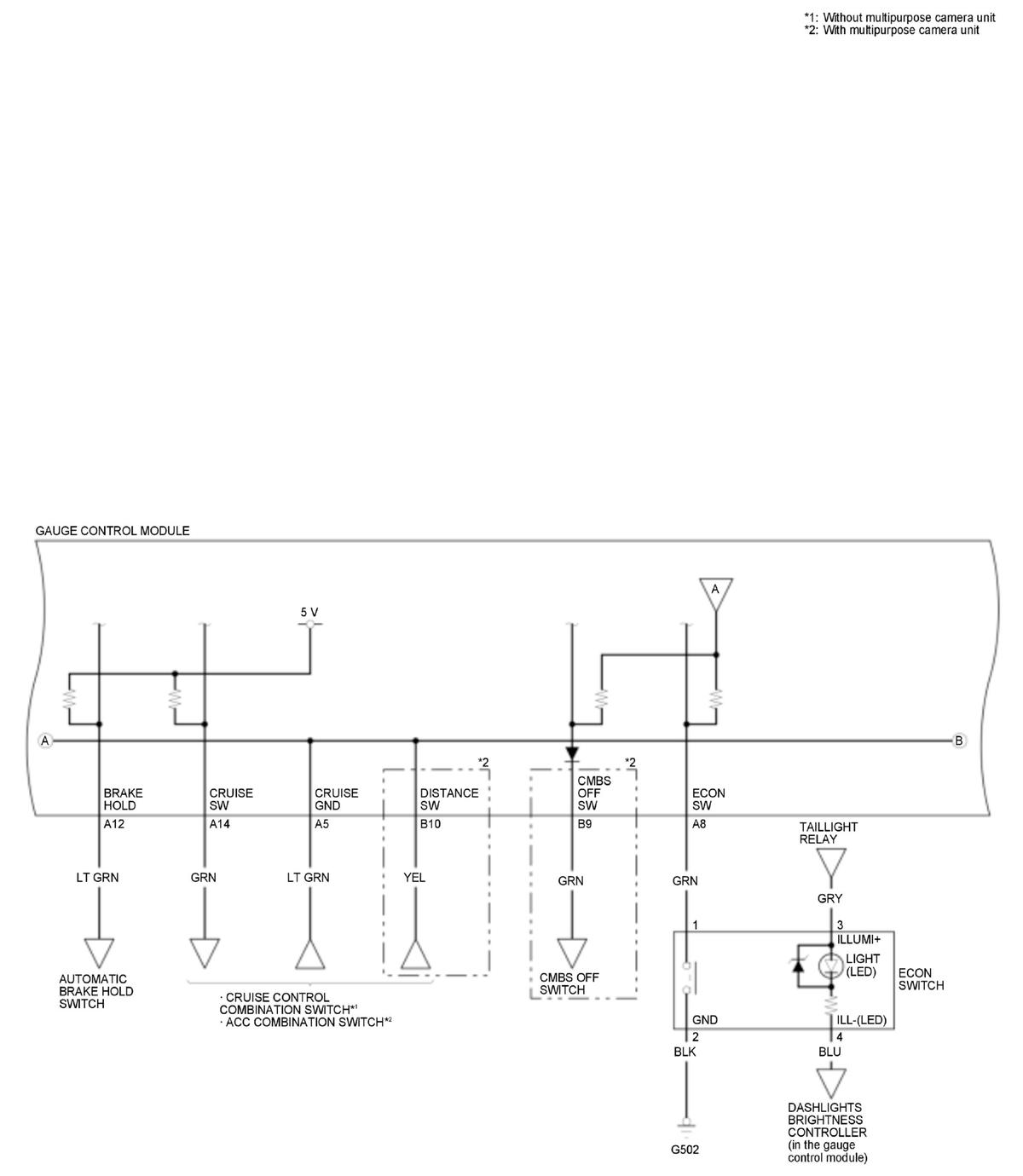

GHH408755Courtesy of HONDA, U.S.A., INC.

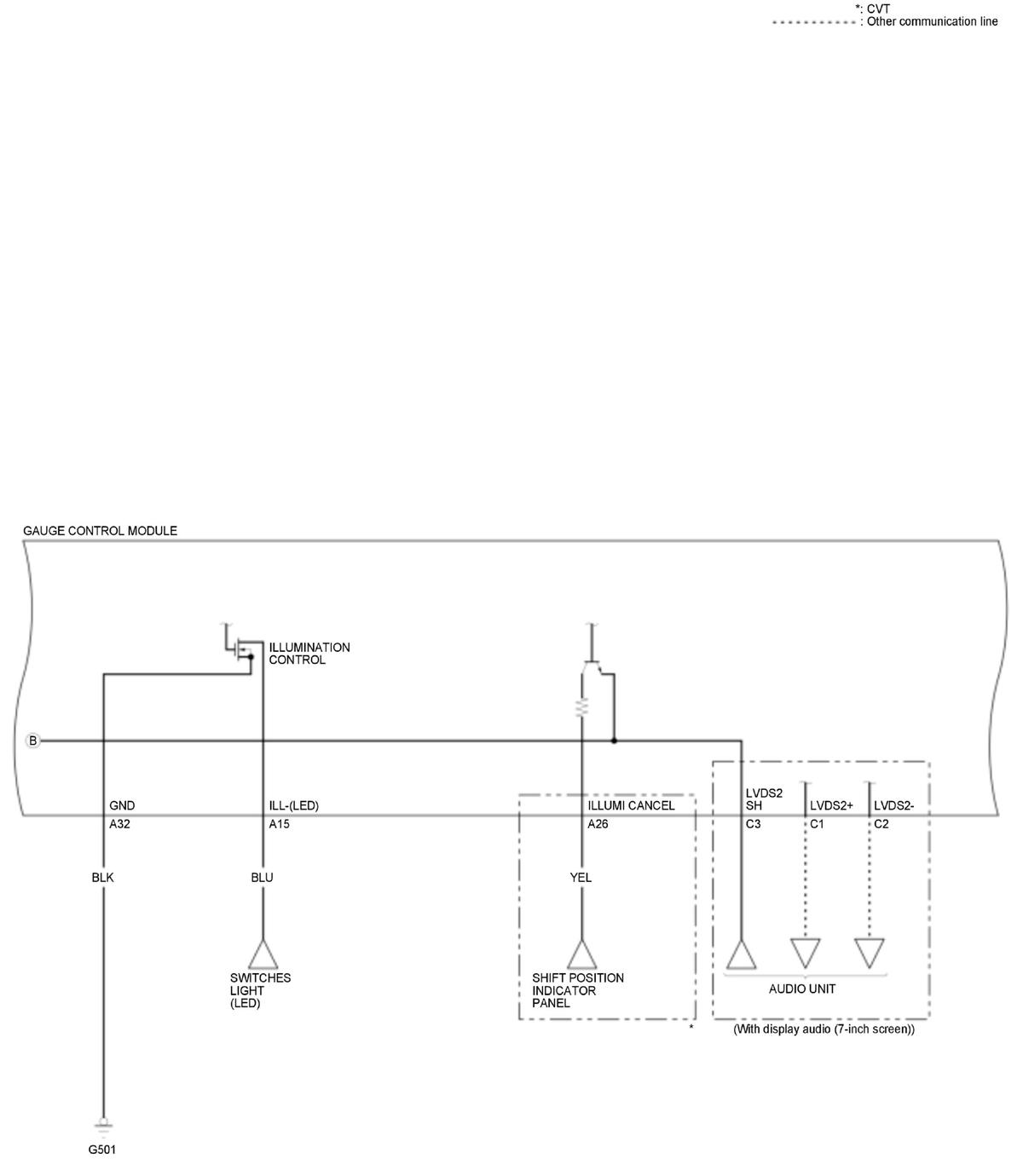

GHH408756Courtesy of HONDA, U.S.A., INC.

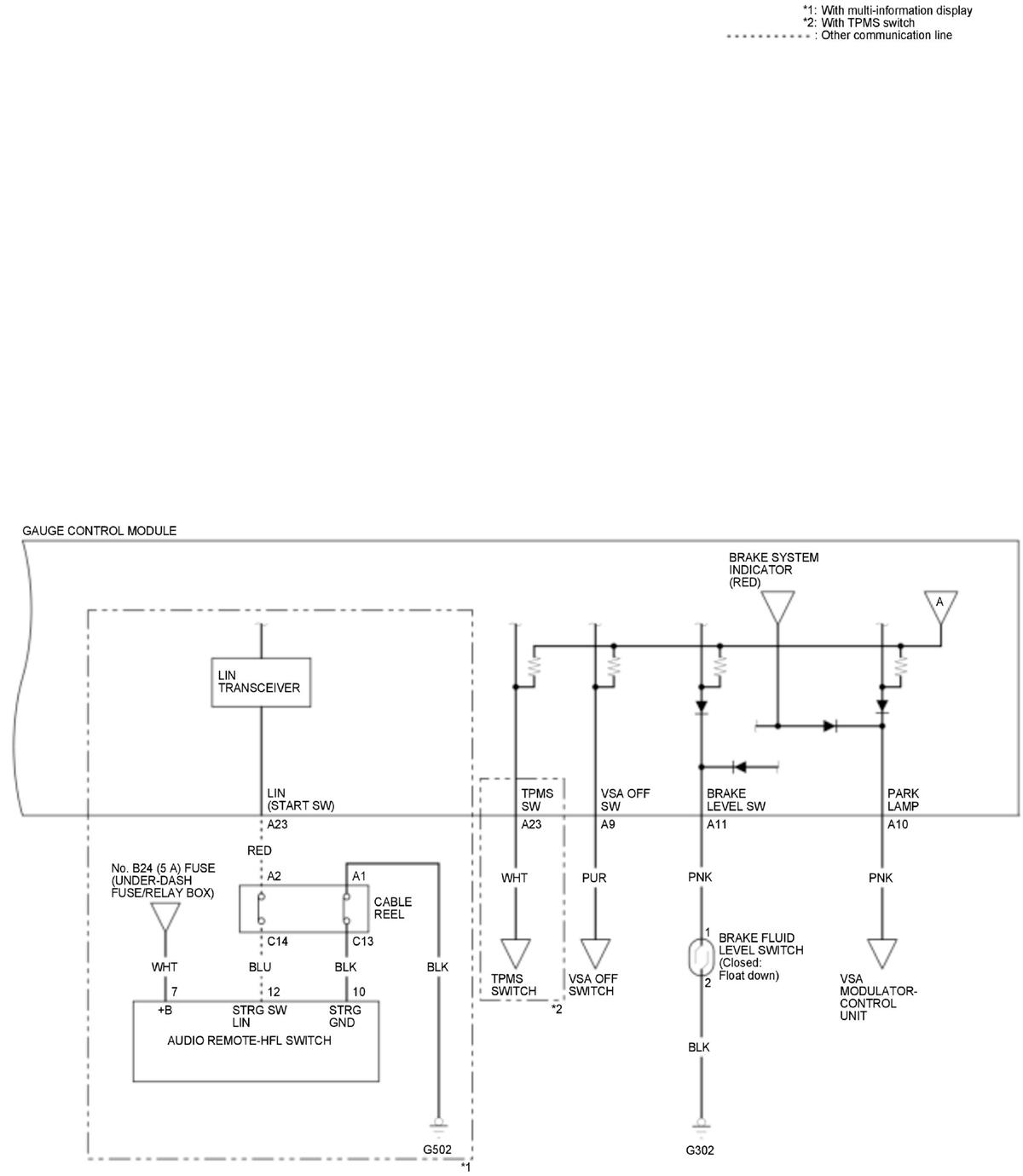

GHH408757Courtesy of HONDA, U.S.A., INC.
