Gauges Circuit Diagram (5-door with Keyless Access System) (2017 2018 2019 2020 2021)

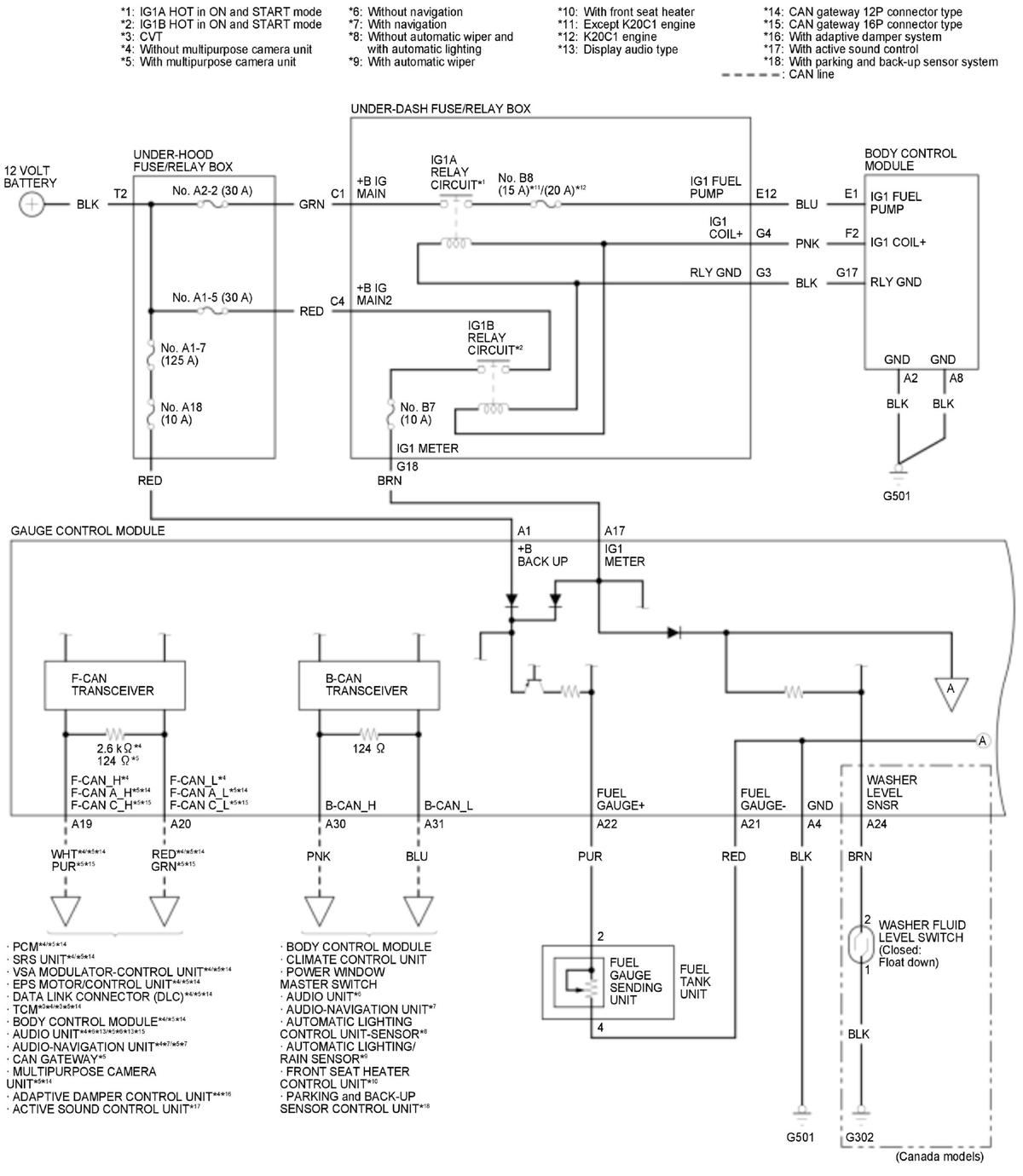

GHH408750Courtesy of HONDA, U.S.A., INC.

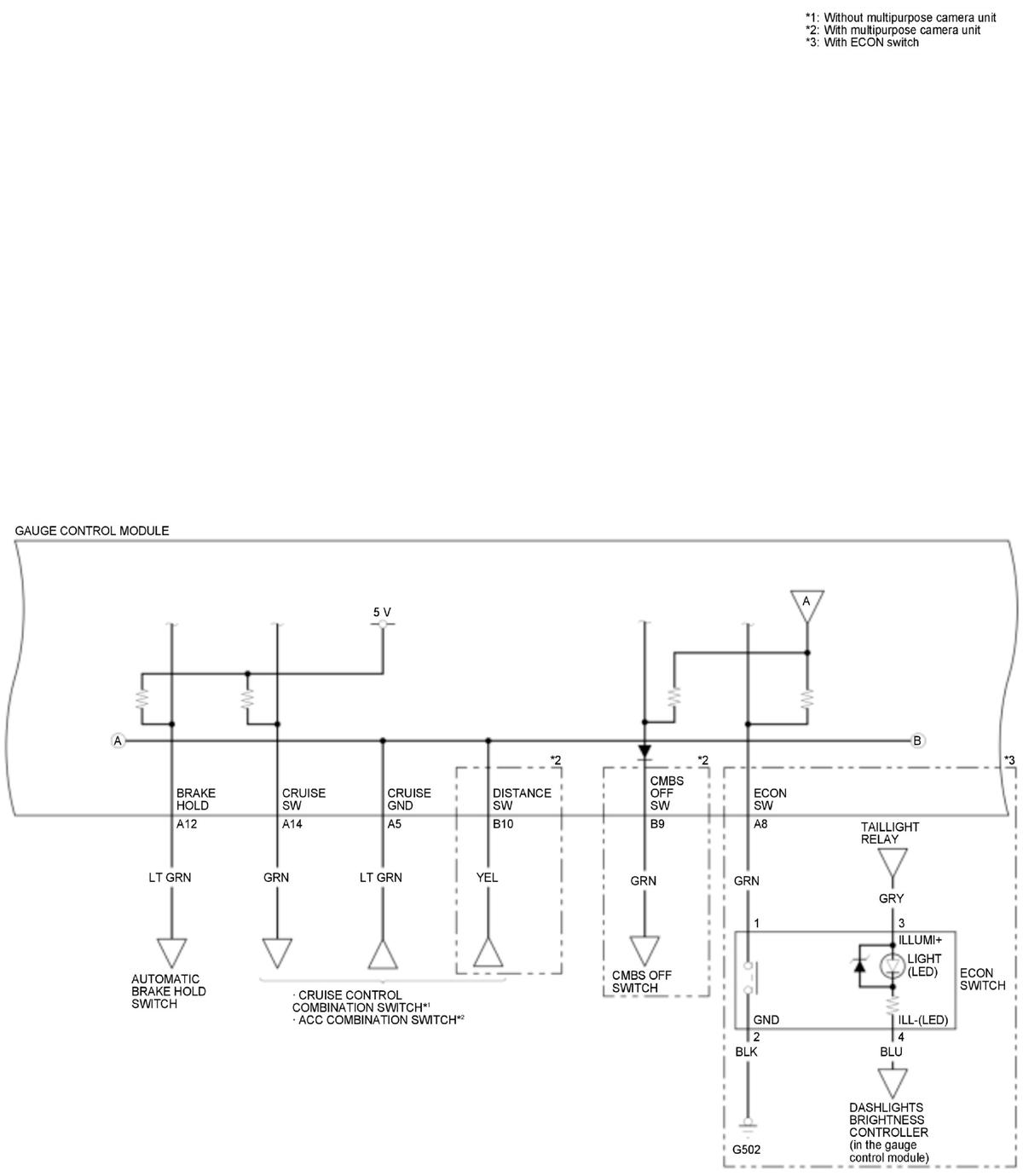

GHH408751Courtesy of HONDA, U.S.A., INC.

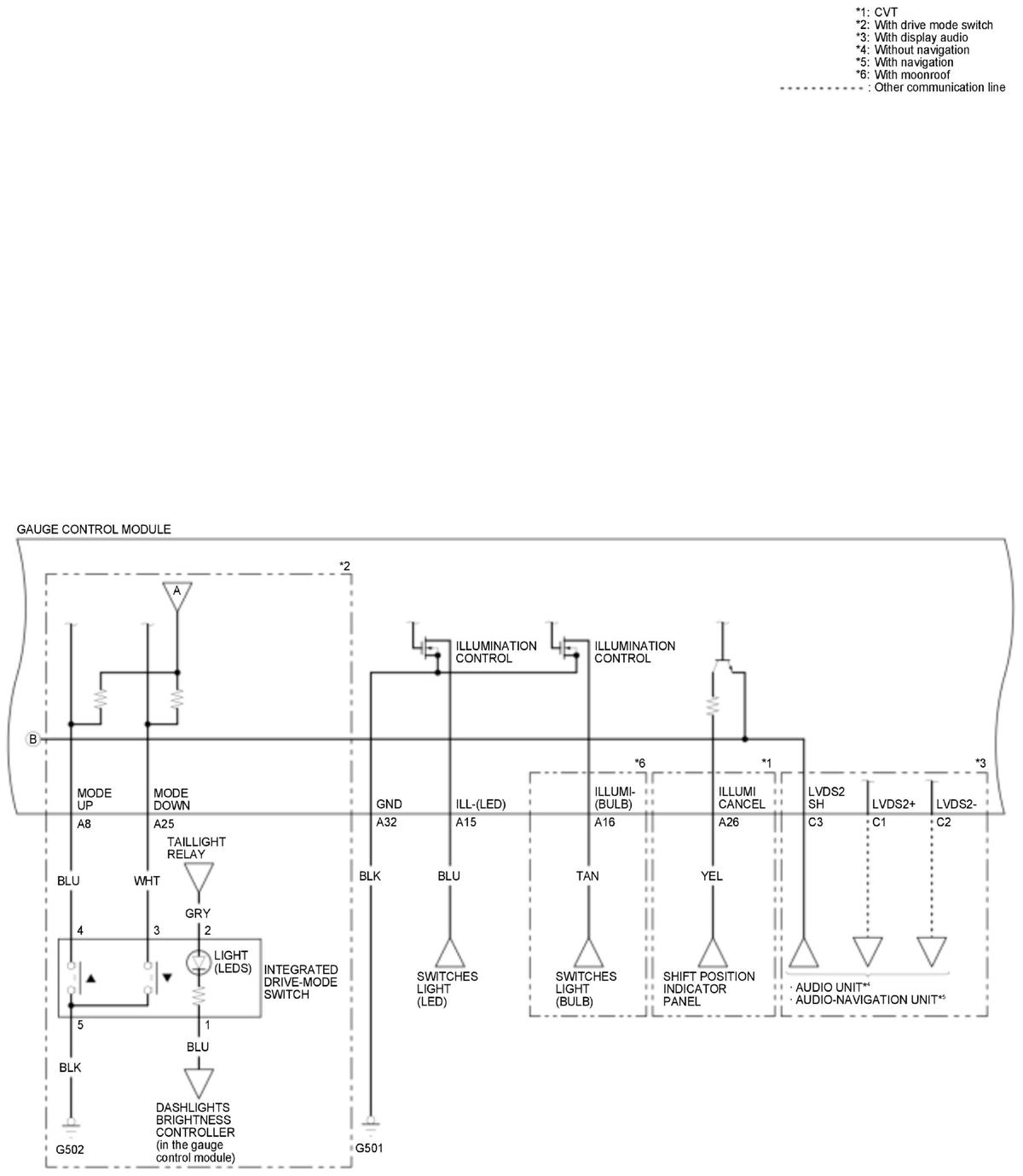

GHH408752Courtesy of HONDA, U.S.A., INC.

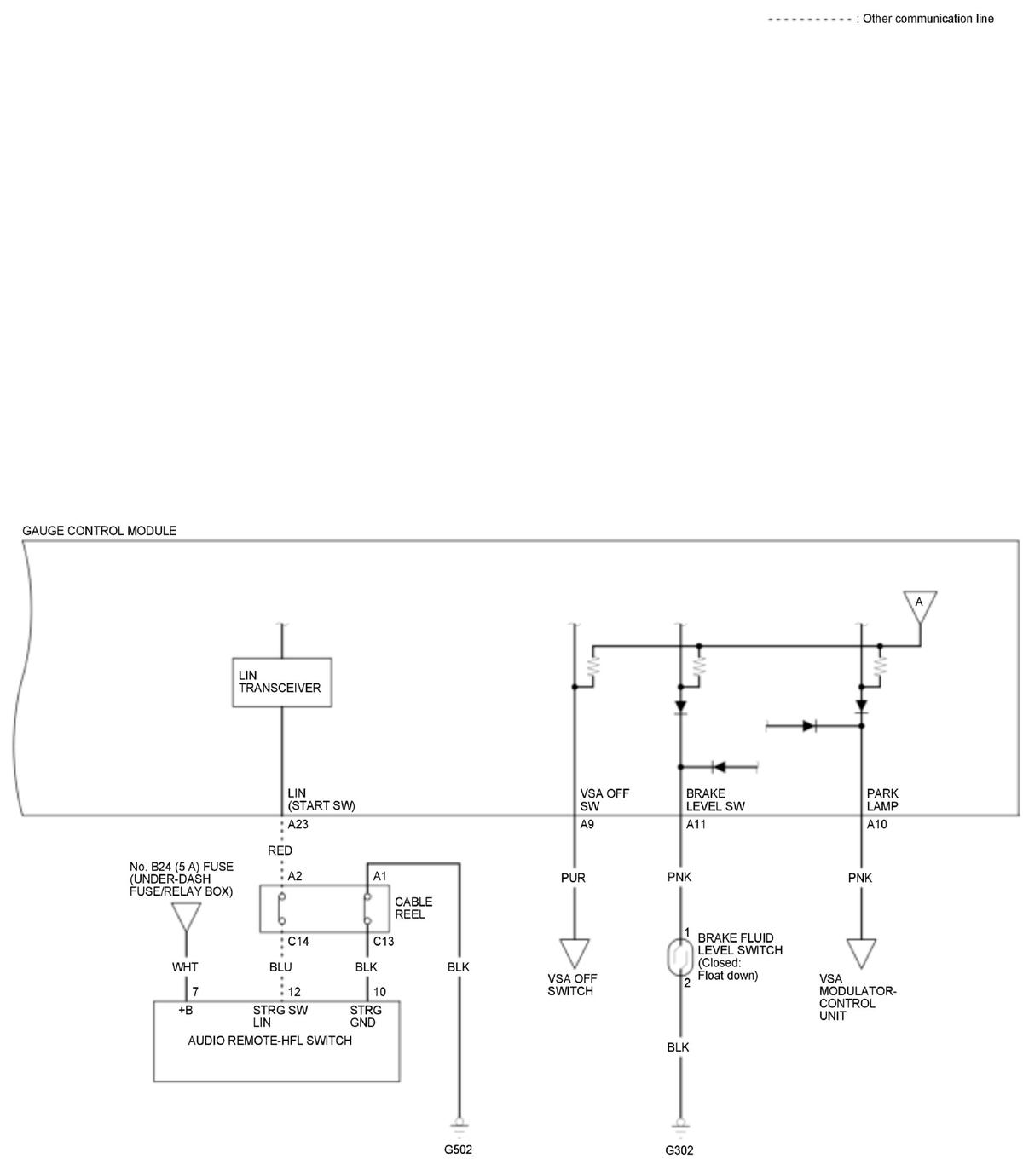

GHH408753Courtesy of HONDA, U.S.A., INC.
