Gauges Circuit Diagram (2/4-door with Keyless Access System)

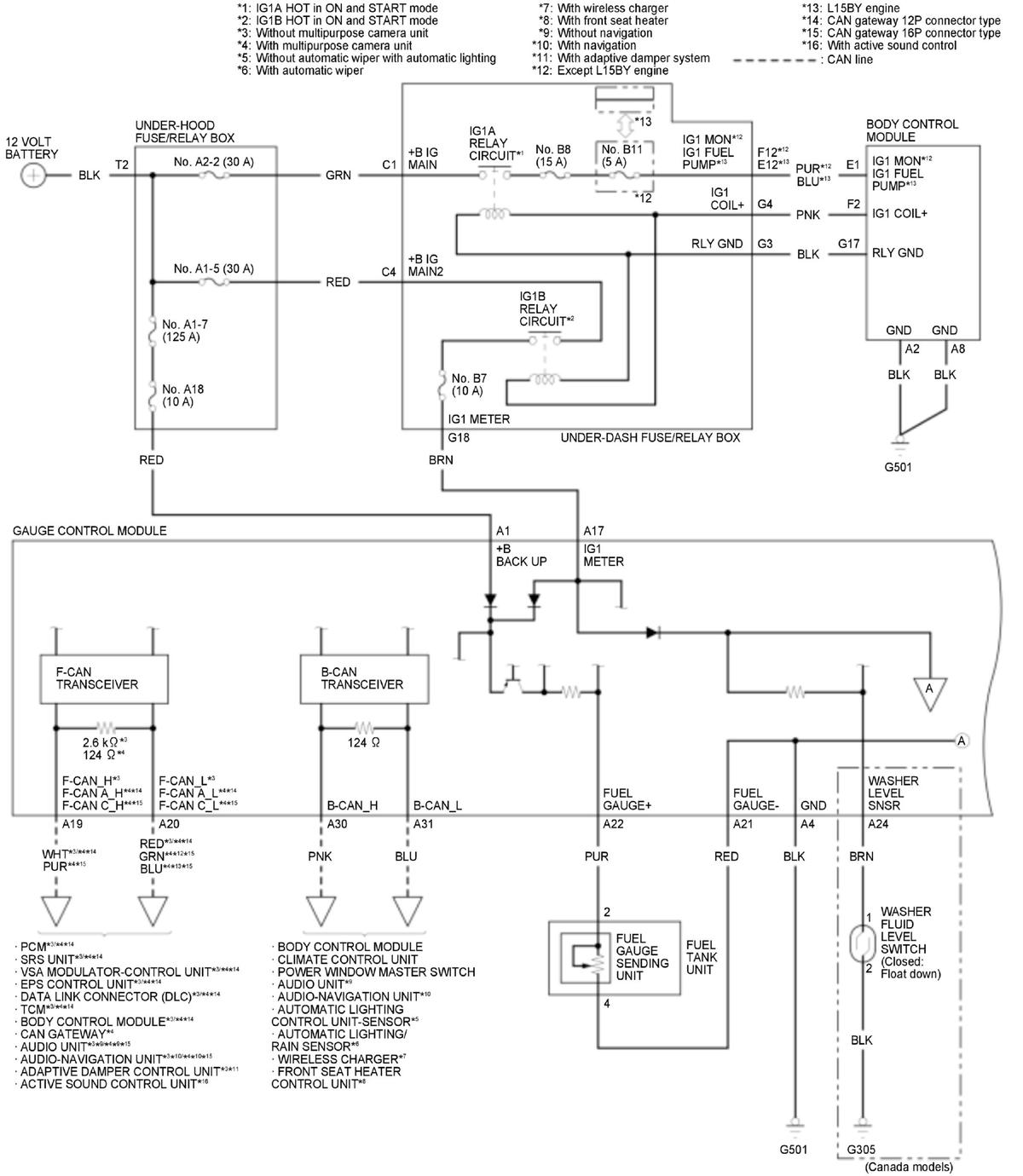

GHH408742

Courtesy of HONDA, U.S.A., INC.

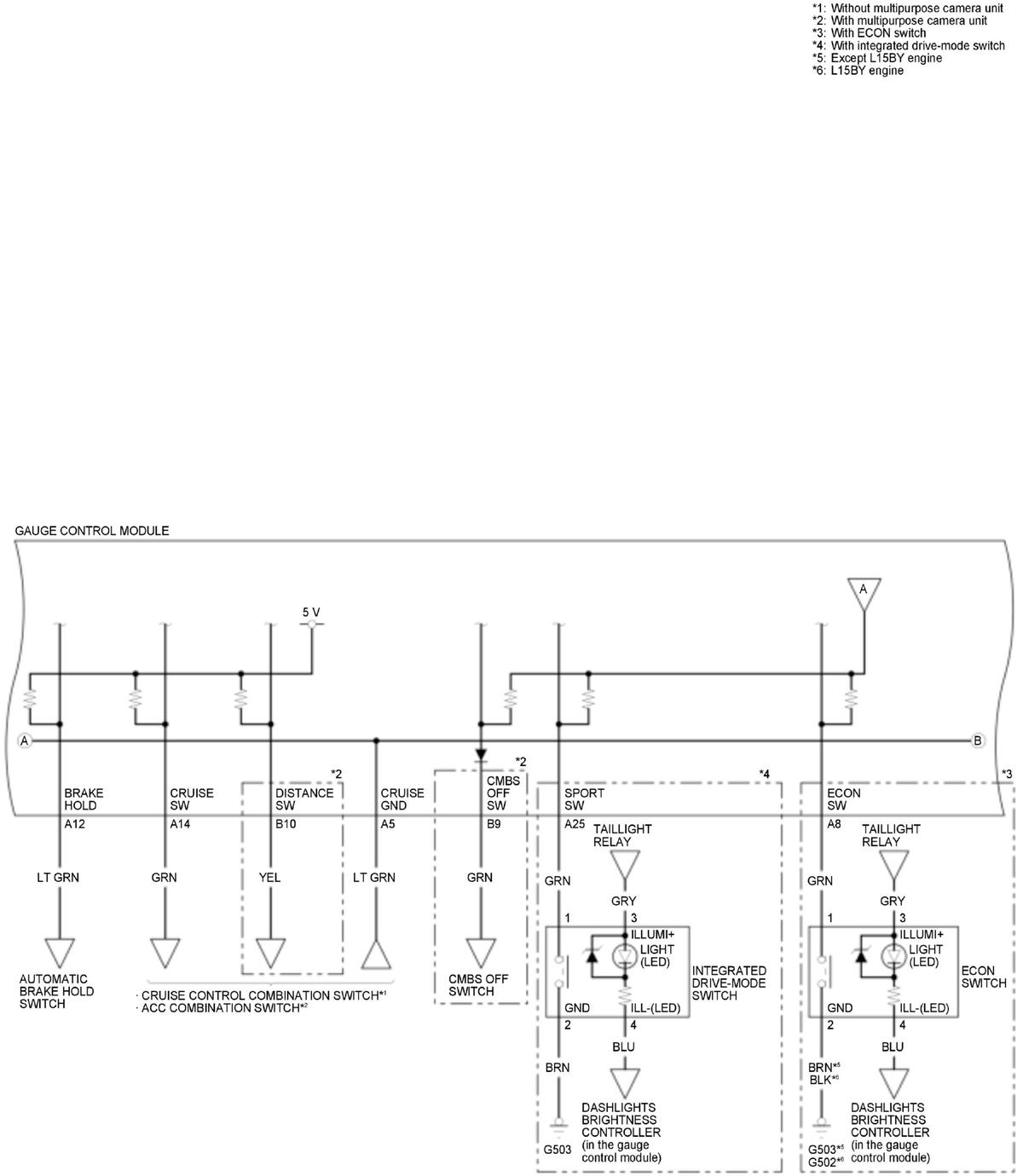

GHH408743

Courtesy of HONDA, U.S.A., INC.

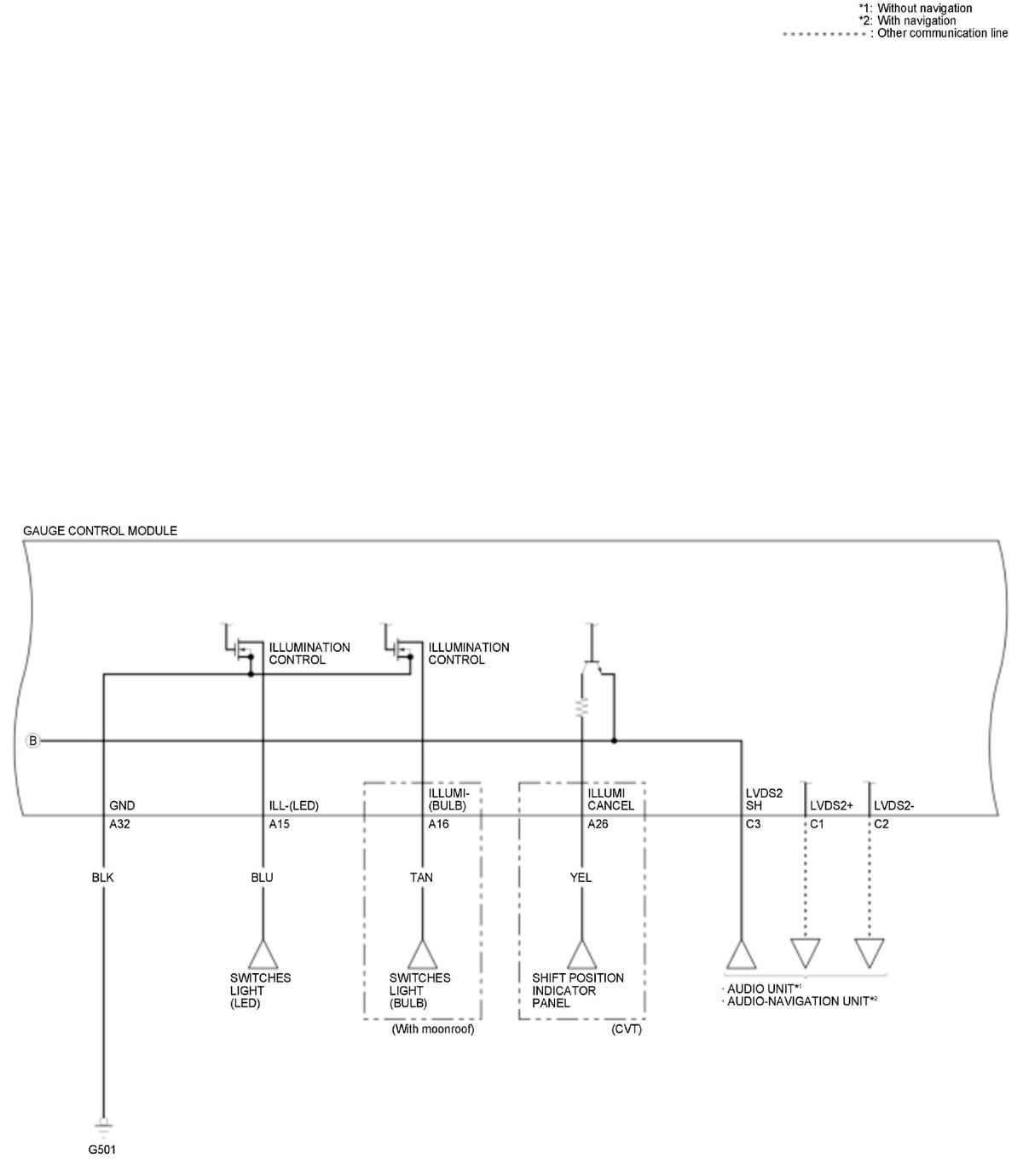

GHH408744

Courtesy of HONDA, U.S.A., INC.

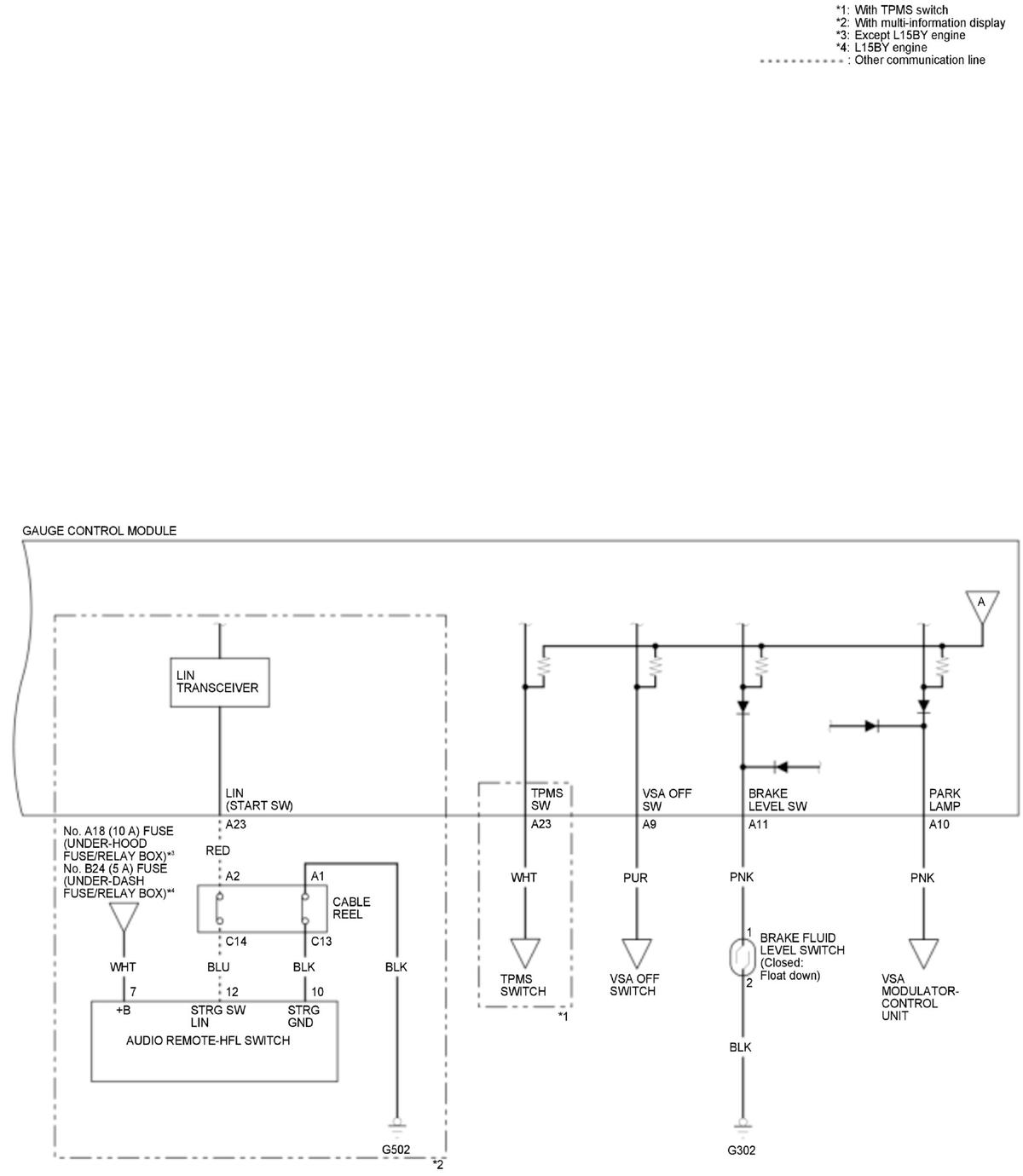

GHH408745

Courtesy of HONDA, U.S.A., INC.
