Removal and Installation

NOTE:  Keep all foreign particles out of the transmission.

1

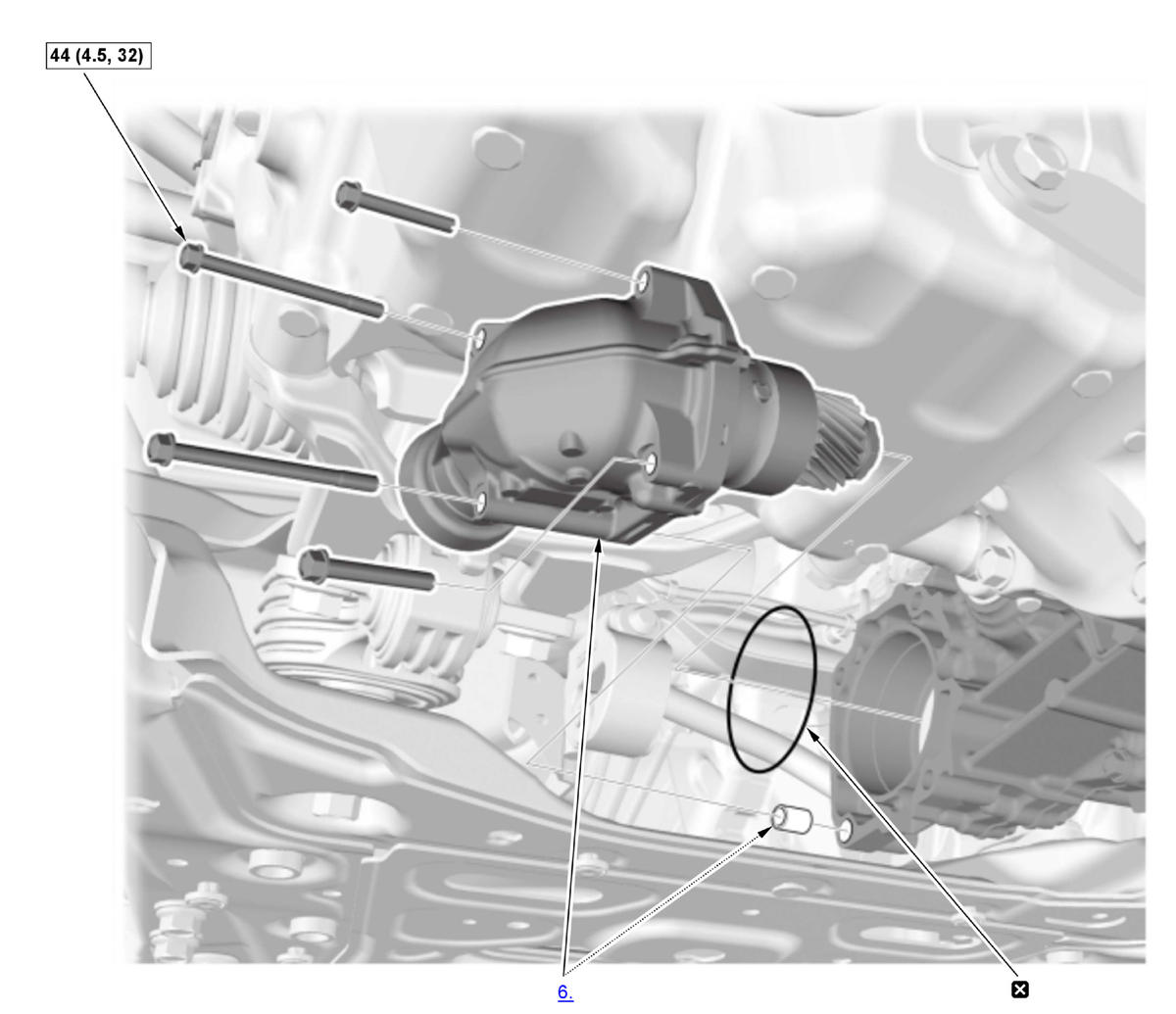

Fig 1: Transfer Assembly Bolts Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

1. Vehicle - Lift
2. Engine Undercover - Remove
3. Transmission Fluid (HCF-2) - Drain
4. Exhaust Pipe A - Remove
5. Propeller Shaft (Transfer Side) - Disconnect
6. Transfer Assembly - Remove
7. All Removed Parts - Install

   1. Clean the areas where the transfer assembly contacts the transmission with solvent, and dry with compressed air. 2. Install the parts in the reverse order of removal.

8. Transmission Fluid - Refill
9. Transmission Fluid Level - Check
