CVT Electronic Control System Circuit Diagram (2.4 L Engine) (2017 2018 2019)

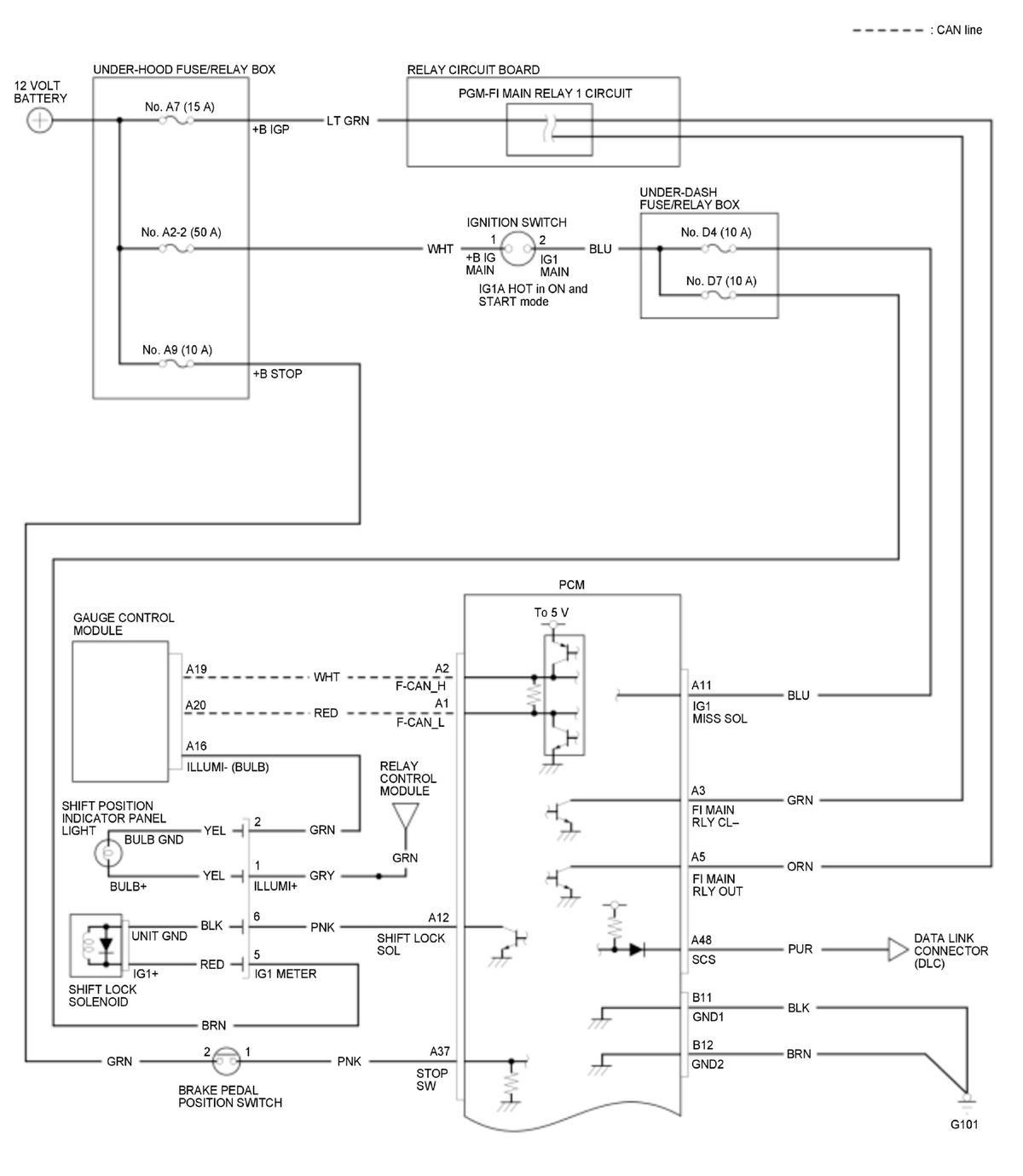

GHH423312

Courtesy of HONDA, U.S.A., INC.

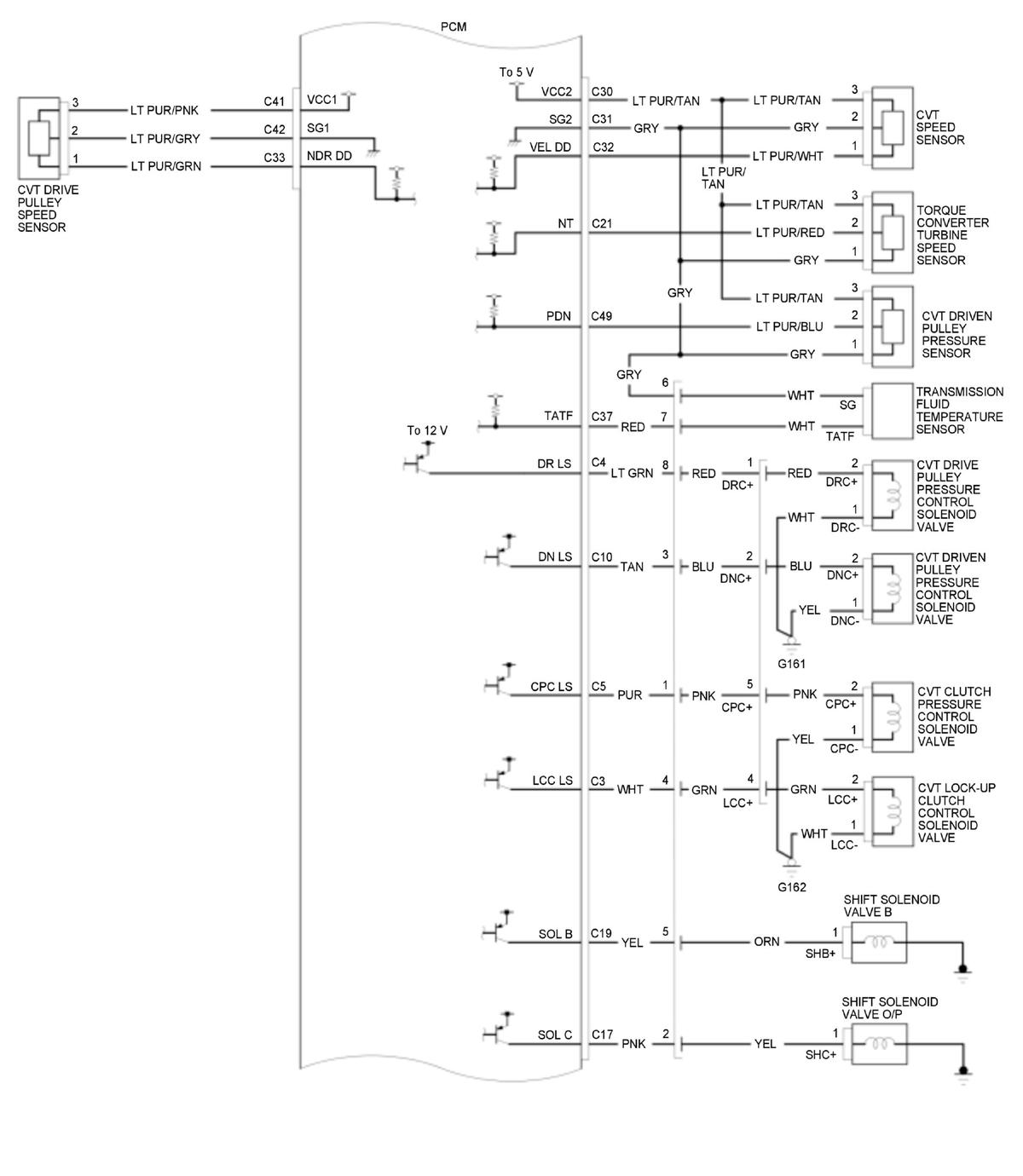

GHH423313

Courtesy of HONDA, U.S.A., INC.

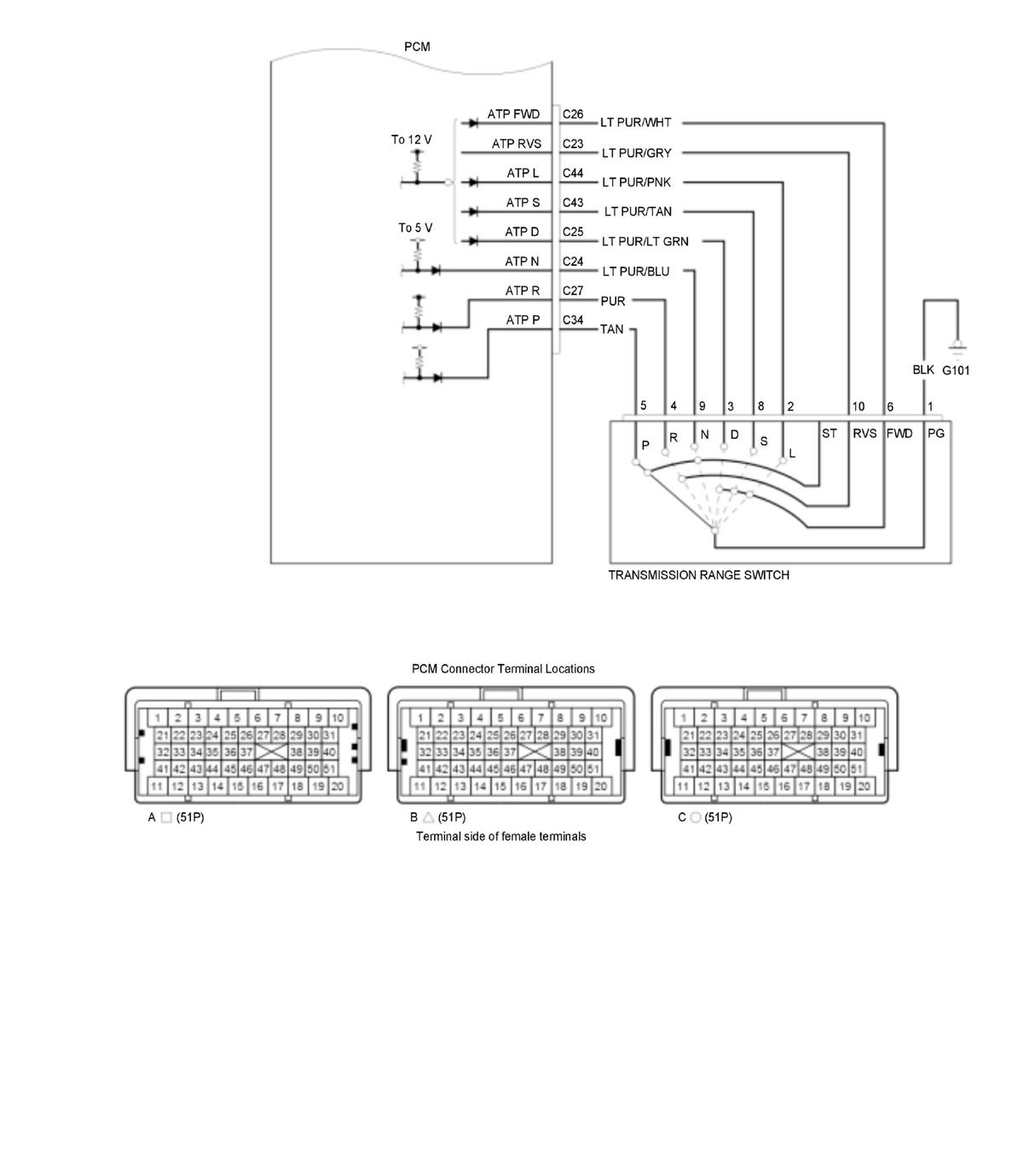

GHH423314

Courtesy of HONDA, U.S.A., INC.
