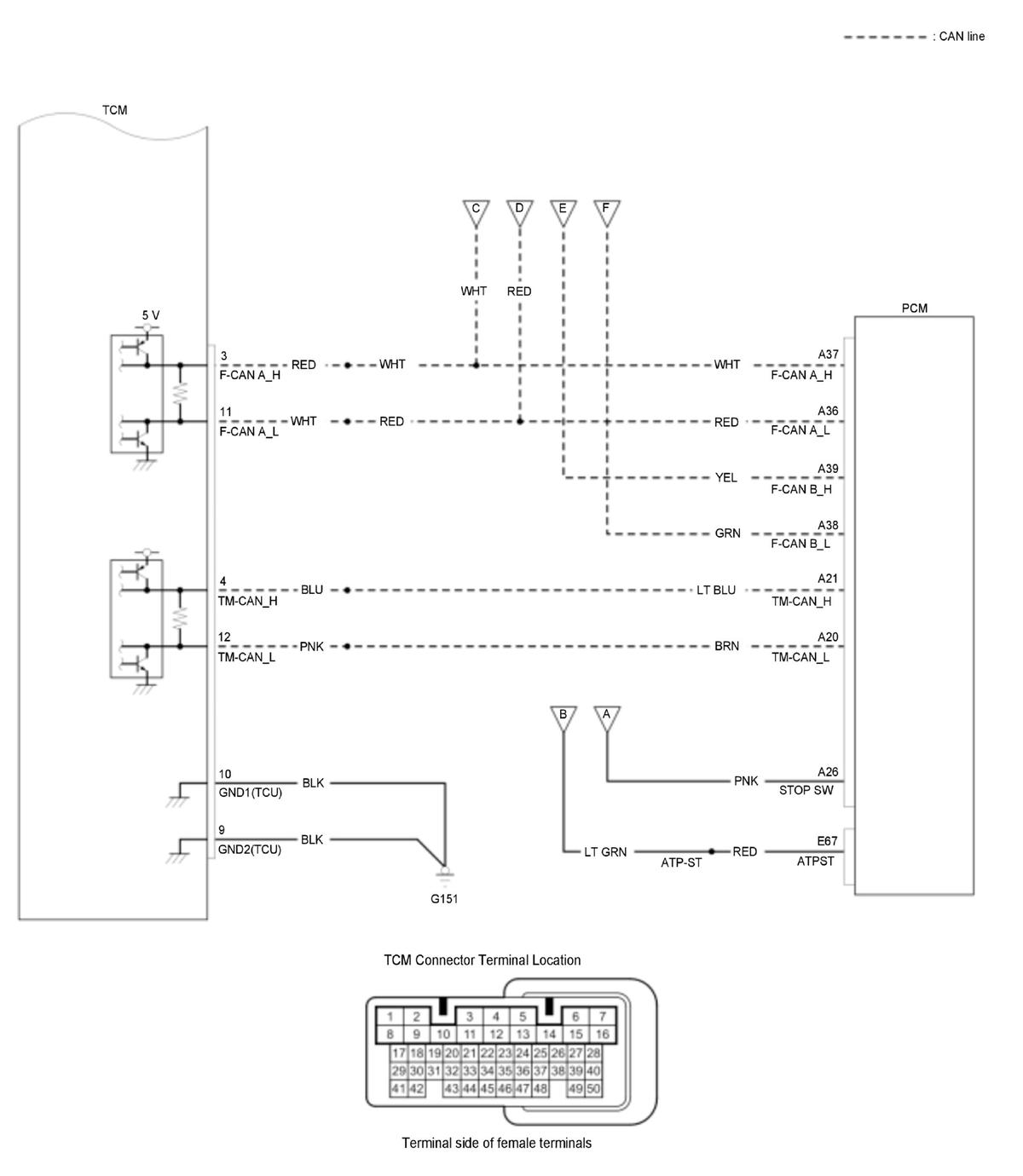

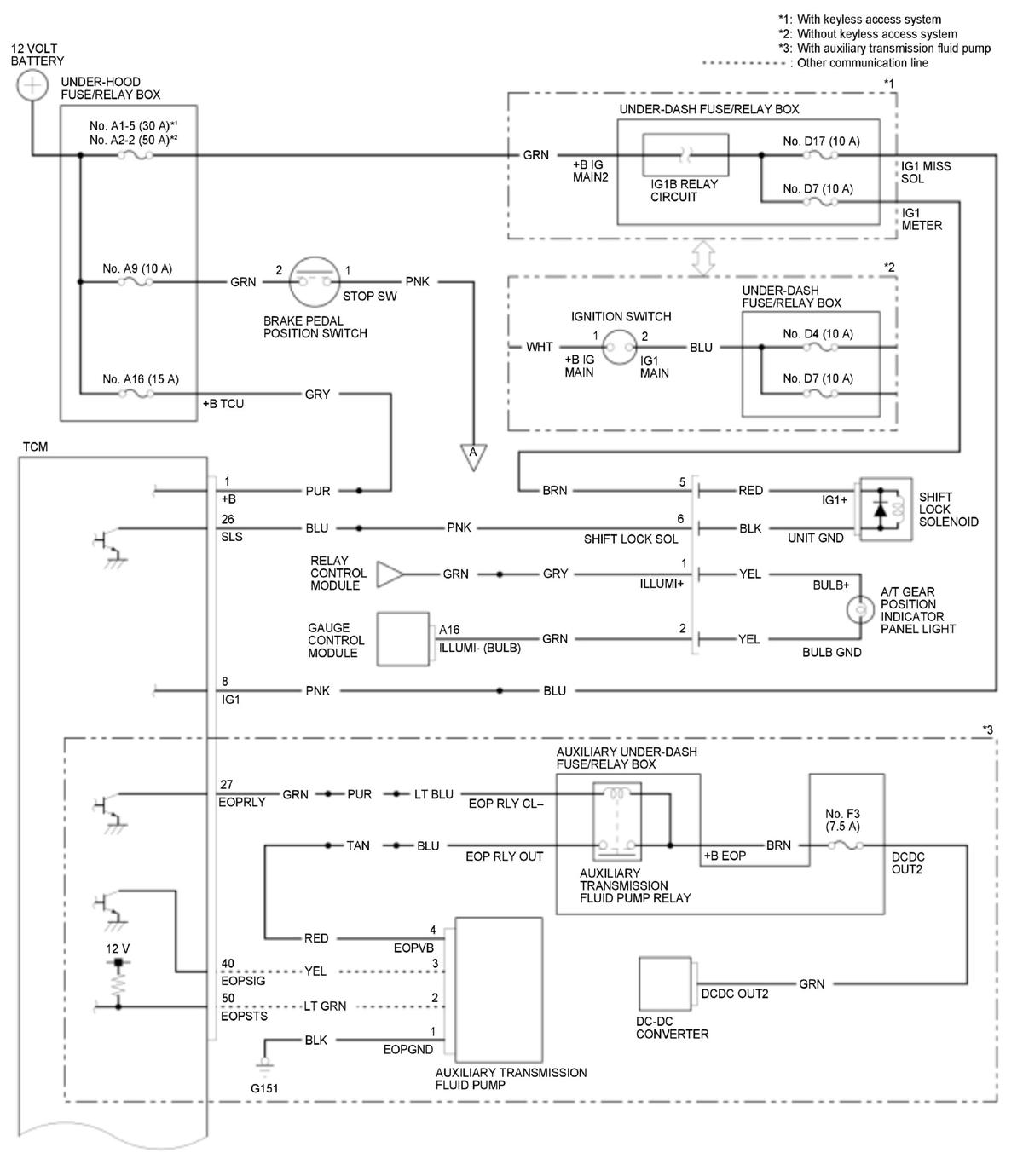

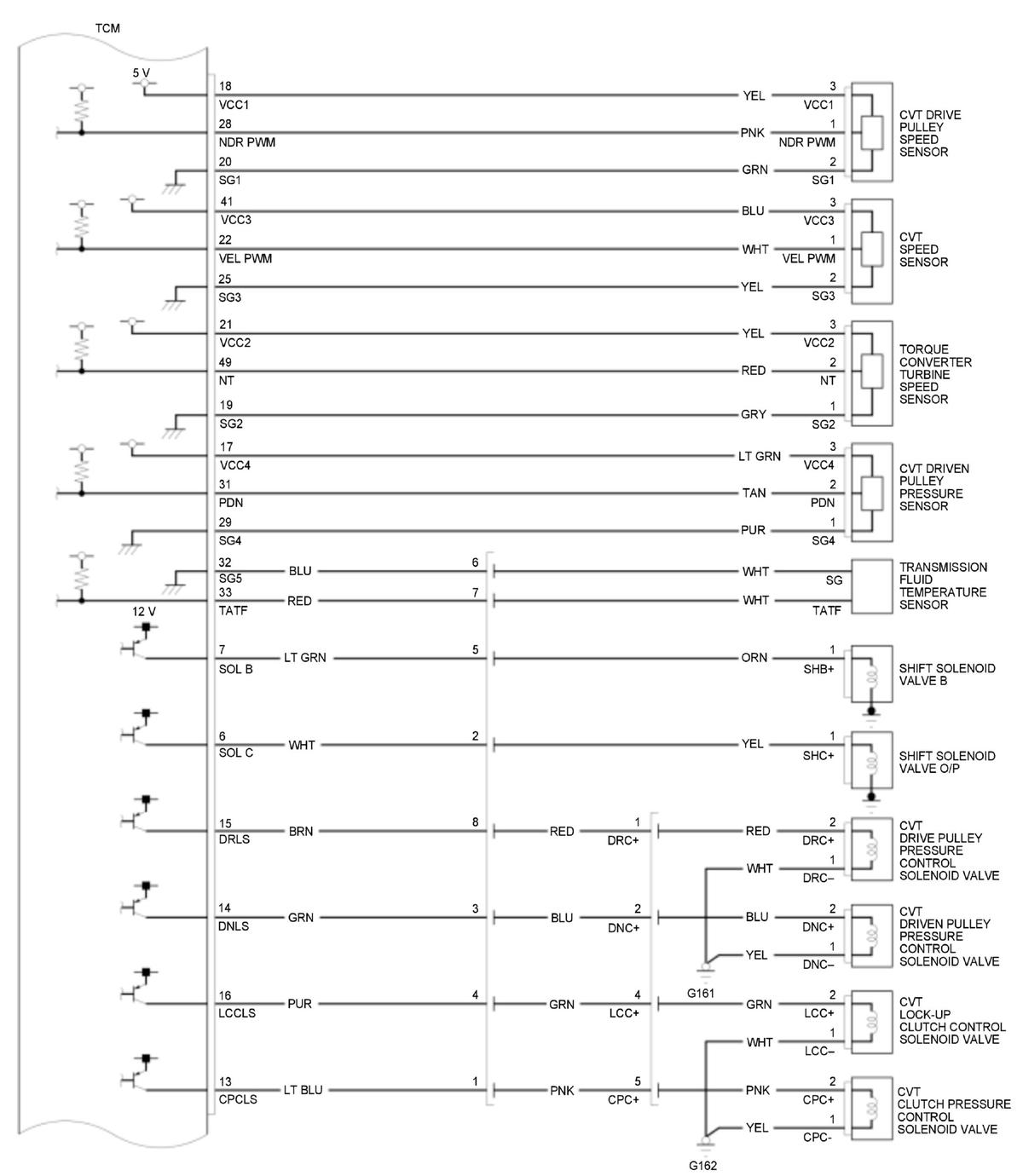

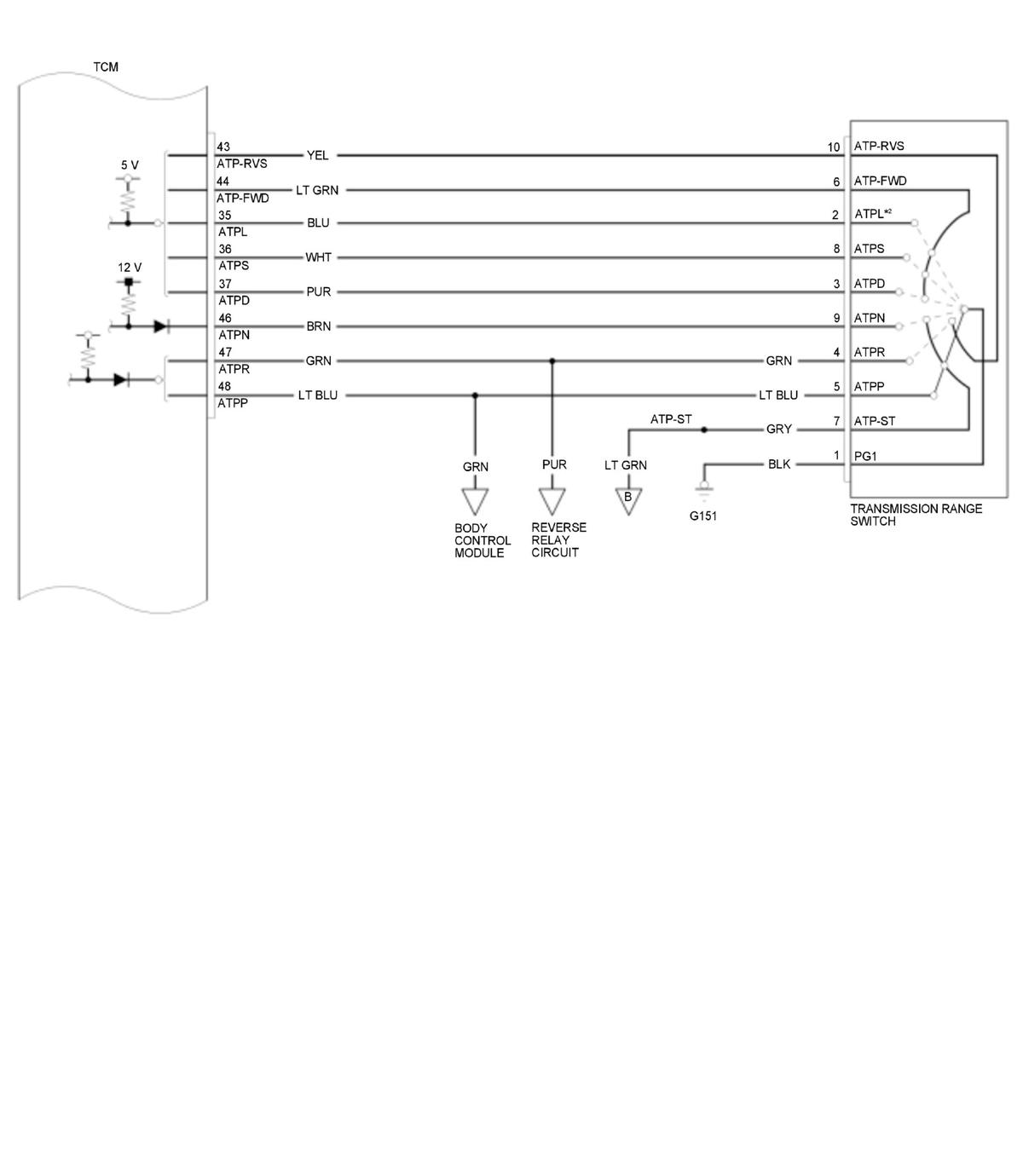

CVT Electronic Control System Circuit Diagram (1.5 L Engine)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

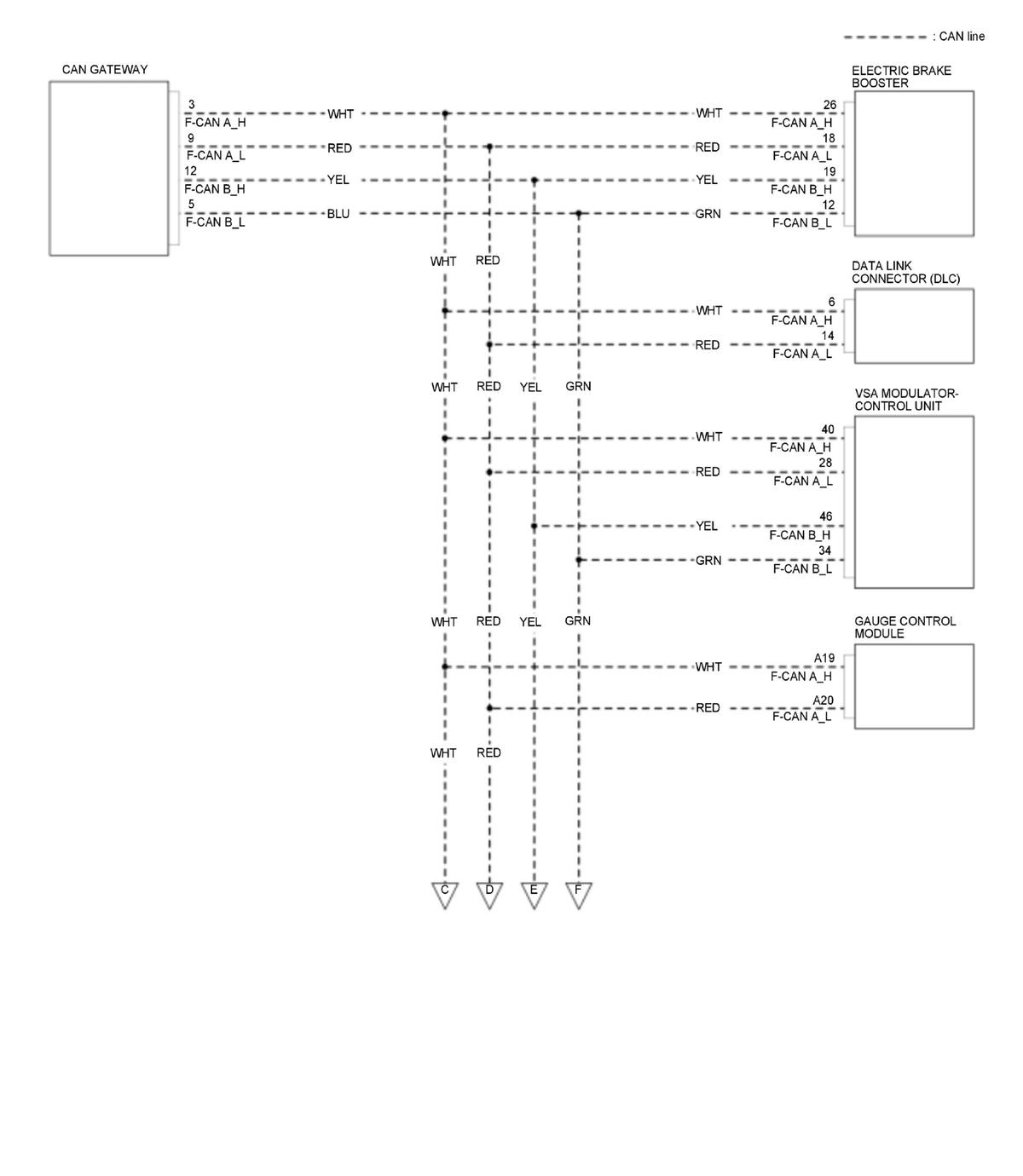

CAN gateway 12P connector type

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

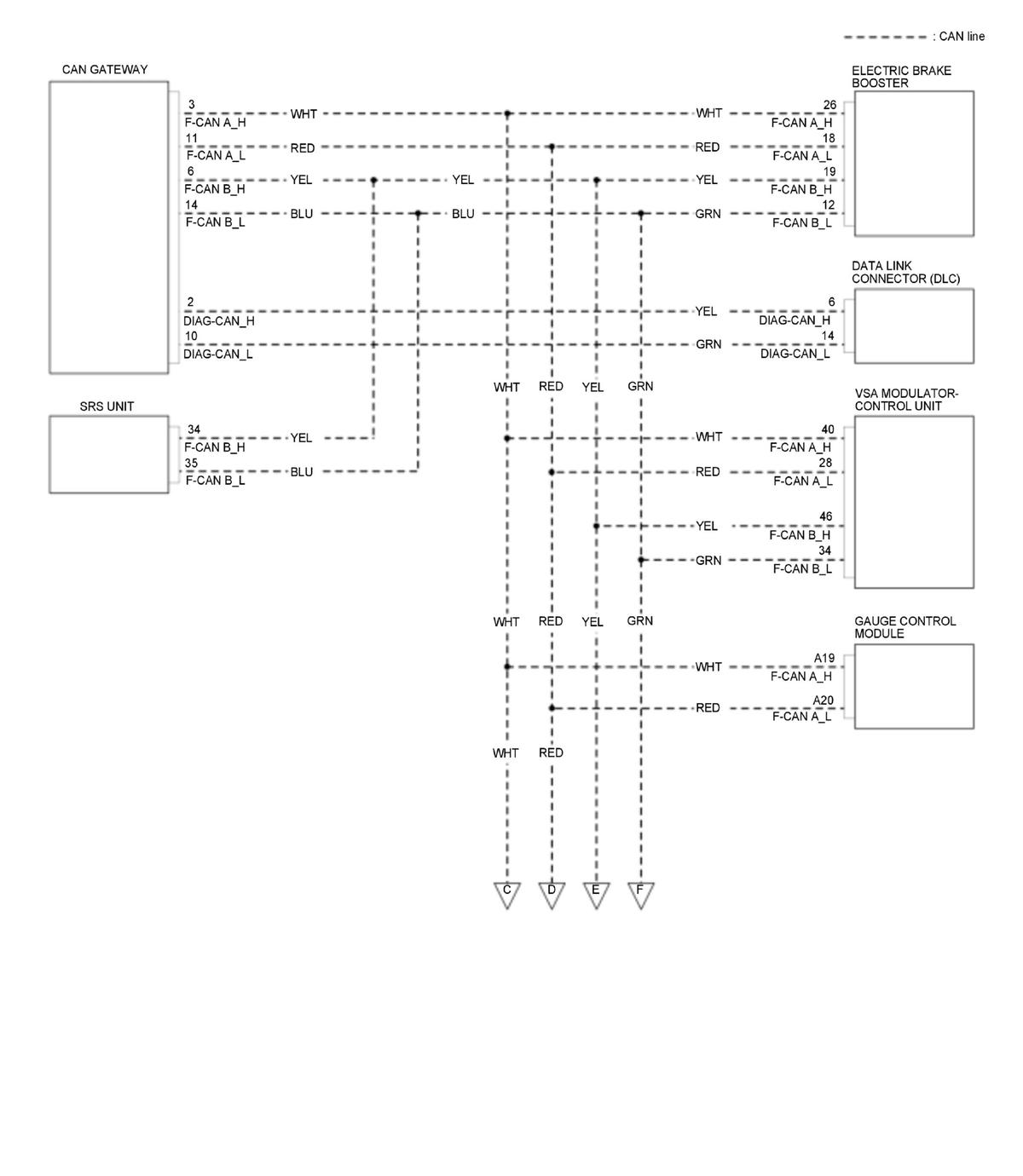

CAN gateway 16P connector type

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
