Valve Body Assembly Removal and Installation: Installation

NOTE:

• Where icon is shown, further information shown below.
• Keep all foreign particles out of the transmission.
• Apply a light coat of clean transmission fluid on all O-rings before installation.
• Be careful not to damage the O-rings.
• Unless otherwise indicated, illustrations used in the procedure are for the 1.5 L engine model.
• Solenoid wire harness A and the transmission fluid temperature sensor are not available separately. Replace them as a set if necessary.
• The valve body assembly and the following parts are not available separately. Replace them as a set.
• • -

    CVT clutch pressure control solenoid valve

  • -

    CVT drive pulley pressure control solenoid valve

  • -

    CVT driven pulley pressure control solenoid valve

  • -

    CVT lock-up clutch control solenoid valve

  • -

    Shift solenoid valve B

  • -

    Solenoid wire harness B

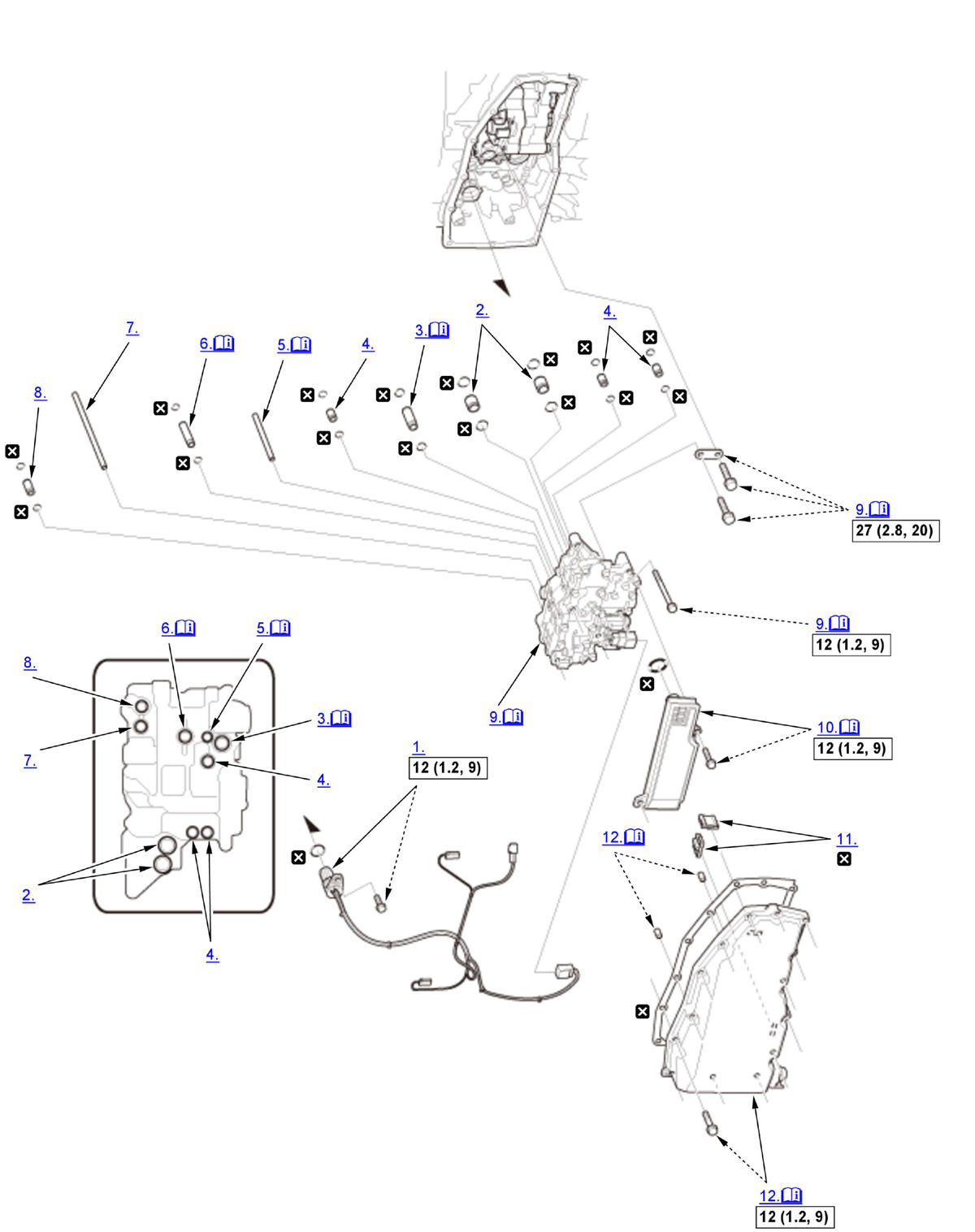

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

1. Solenoid Wire Harness A - Install
2. 18 x 18 mm Pipe - Install
3. 14.3 x 36.2 mm Pipe - Install

   NOTE:  You can install the pipe regardless of its direction.

4. 10.9 x 18.5 mm Pipe - Install
5. Joint Pipe - Install

   Courtesy of HONDA, U.S.A., INC.

   NOTE:

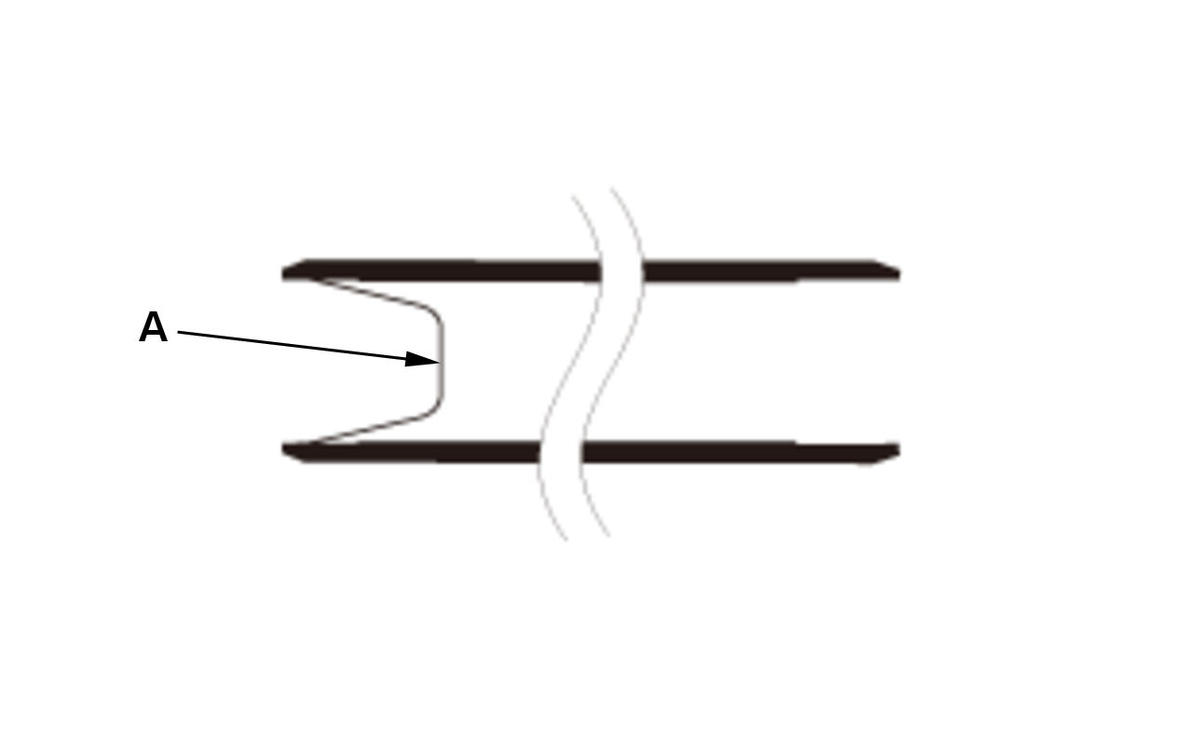

   • The joint pipe has the filter (A). The filter end should face the valve body assembly side.
   • Be careful not to drop the filter.
6. 12 x 56.7 mm Pipe - Install

   NOTE:  You can install the pipe regardless of its direction.

7. 8 x 133.5 mm Pipe - Install
8. 10.9 x 26 mm Pipe - Install
9. Valve Body Assembly - Install

   Courtesy of HONDA, U.S.A., INC.

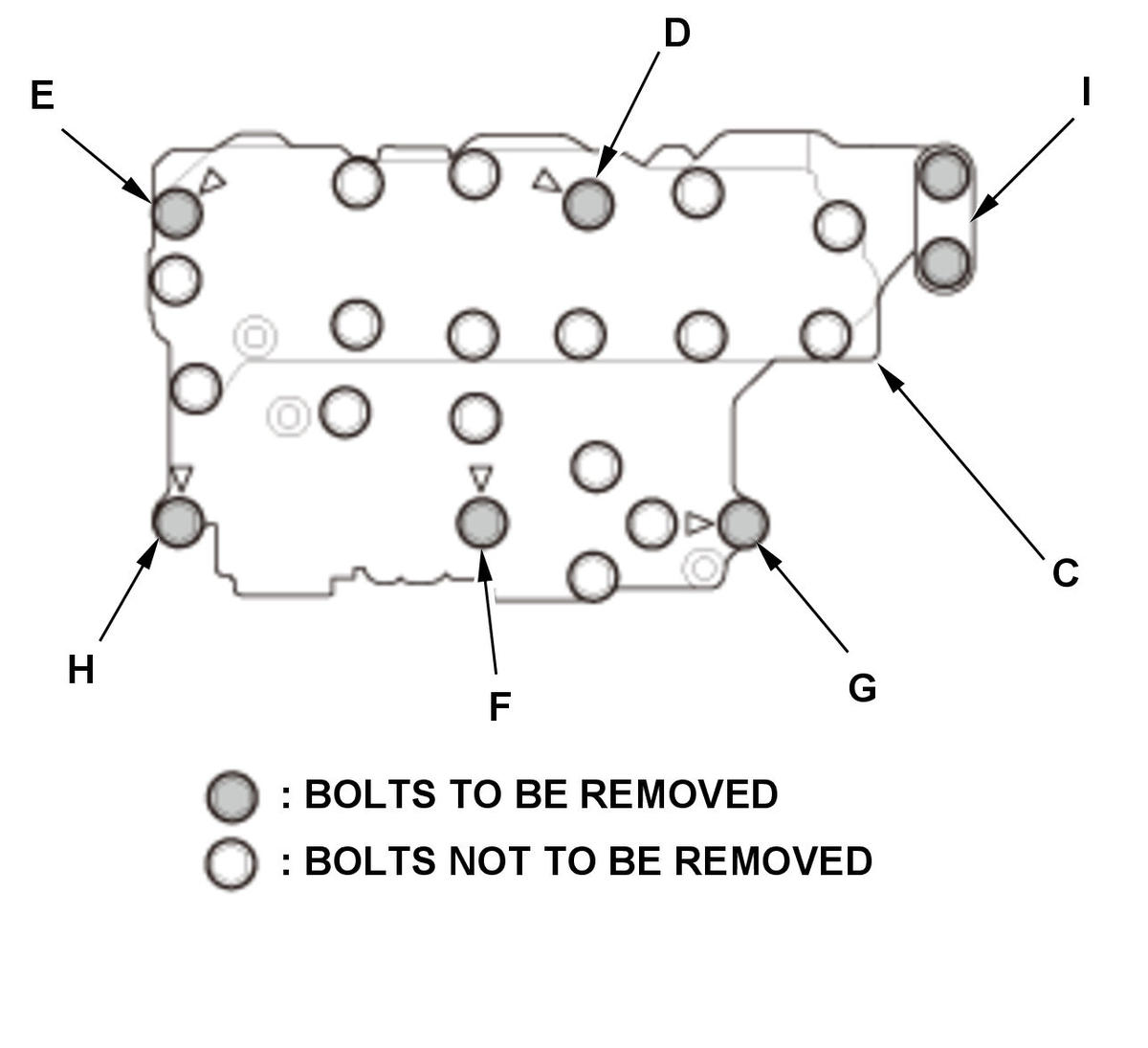

   1. Install the valve body assembly (C). NOTE: Do not pinch solenoid wire harnesses A and B. 2. Install the guide plate (I).

   Bolt	Length
   D	90 mm (3.54 in)
   E	80 mm (3.15 in)
   F	65 mm (2.56 in)
   G	55 mm (2.17 in)
   H	40 mm (1.57 in)

   Courtesy of HONDA, U.S.A., INC.

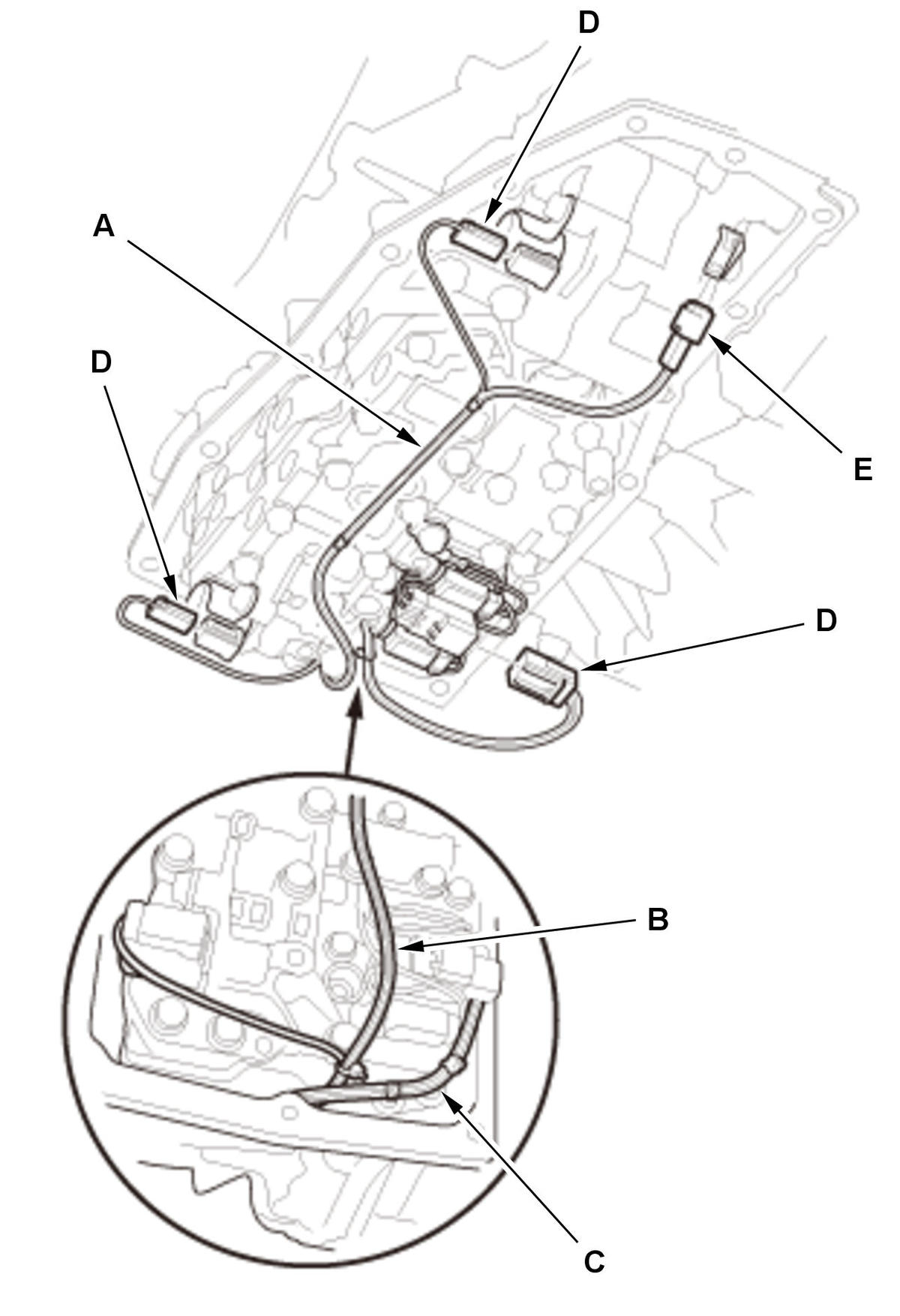

   3. Make sure each branch of solenoid wire harness A is routed to the correction locations as shown, especially areas (B) and (C). 4. Connect the connectors (D). 5. Install the transmission fluid temperature sensor (E).

10. Transmission Fluid Strainer - Install

    NOTE:  Do not pinch solenoid wire harnesses A and B.

11. Magnet - Install
12. Transmission Fluid Pan - Install

    NOTE:

    • Tighten the transmission fluid pan mounting bolts in a crisscross pattern in two steps.
    • Do not pinch solenoid wire harnesses A and B.

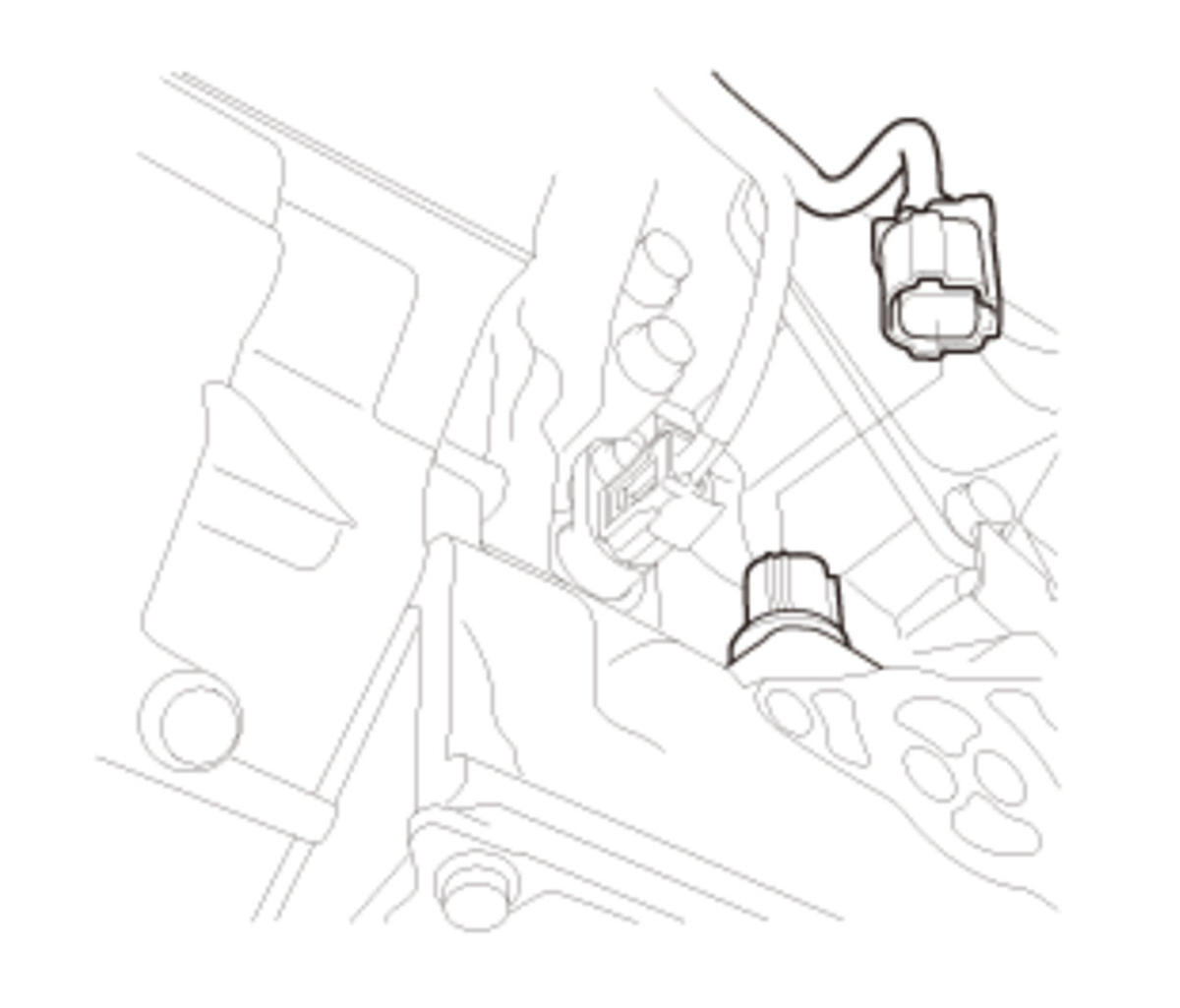

13. Connector (Solenoid Wire Harness A) - Connect

    Courtesy of HONDA, U.S.A., INC.

    NOTE:  Check the connector for corrosion, dirt, or oil, and clean or repair it if necessary.

14. 10.9 x 31.5 mm Pipe - Install  (With auto idle stop system)
15. Delivery Pipe - Install  (With auto idle stop system)
16. Auxiliary Transmission Fluid Pump - Install  (With auto idle stop system)
17. Transmission Fluid - Refill
18. 12 Volt Battery Terminals - Reconnect (2.4 L engine)
19. Auxiliary Transmission Fluid Pump - Air Bleed (With auto idle stop system)
20. Transmission Fluid Level - Check
21. Engine Undercover - Install
22. TCM - Reset (1.5 L engine)

    NOTE:

    • Make sure to reset the learned value of CVT system when replacing hydraulically-controlled to prevent damage to the transmission.
    • This procedure is not required if the valve body assembly and the TCM are replaced together.
