Transmission Fluid Pump Removal and Installation: Removal

NOTE:

• Where icon is shown, further information shown below.
• Keep all foreign particles out of the transmission.

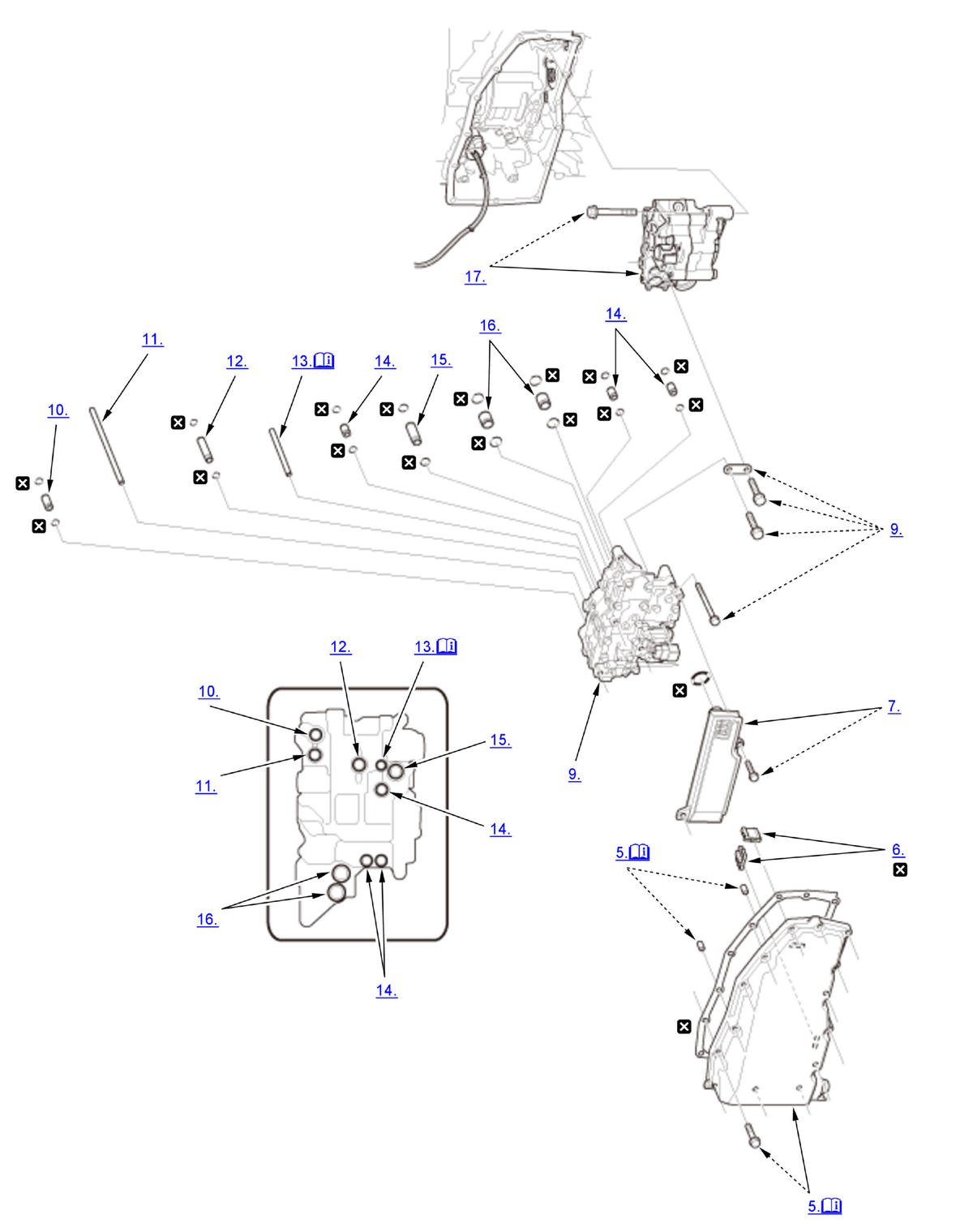

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Replace

1. Vehicle - Lift
2. Engine Undercover - Remove
3. 12 Volt Battery Terminals - Disconnect (2.4 L engine)

   NOTE:  The learned values of the CVT system is reset when the negative battery terminal is disconnected to prevent damage to the transmission.

4. Transmission Fluid - Drain
5. Transmission Fluid Pan - Remove

   NOTE:  The actual transmission fluid (HCF-2) capacity will vary from the specified capacity based on the length of time the transmission fluid pan is off the transmission. Avoid leaving the transmission fluid pan off for extend periods of time.

6. Magnet - Remove
7. Transmission Fluid Strainer - Remove
8. Transmission Fluid Strainer - Check

   Courtesy of HONDA, U.S.A., INC.

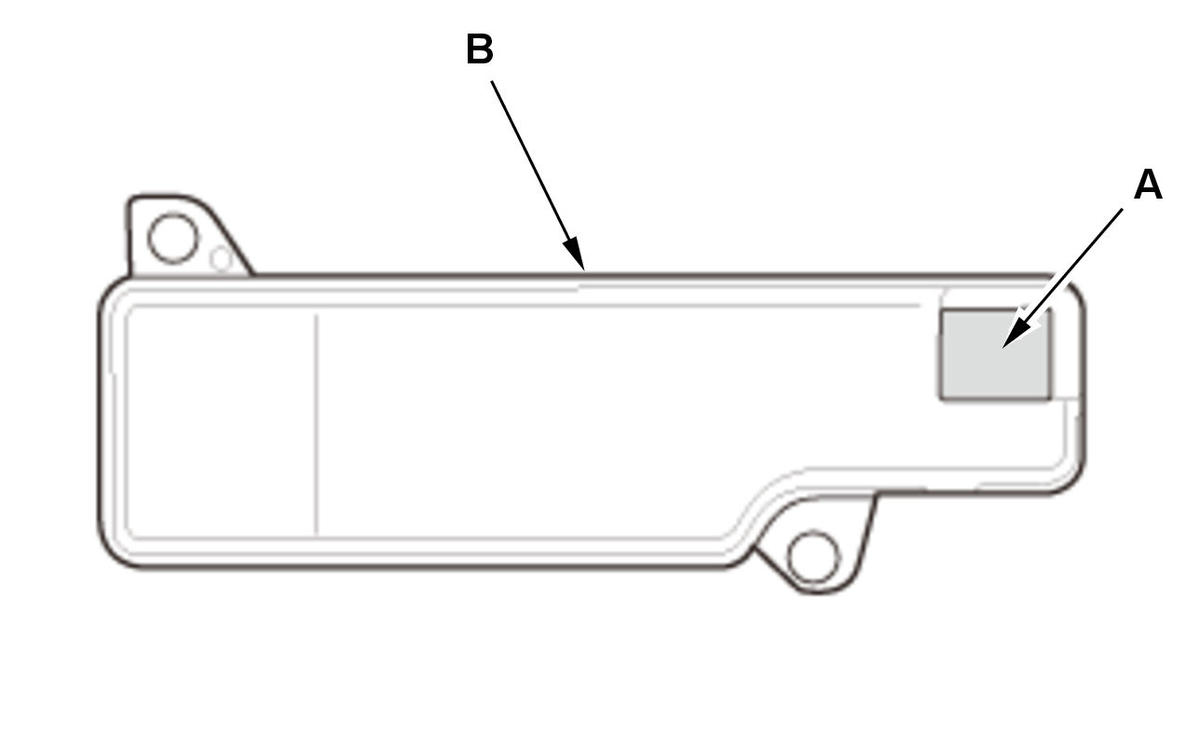

   1. Clean the inlet opening (A) of the transmission fluid strainer (B) thoroughly with compressed air. 2. Check that it is in good condition and that the inlet opening is not clogged. 3. Test the strainer by pouring clean transmission fluid through the inlet opening, and replace it if it is clogged or damaged.

9. Valve Body Assembly - Remove
10. 10.9 x 26 mm Pipe - Remove
11. 8 x 133.5 mm Pipe - Remove
12. 12 x 56.7 mm Pipe - Remove
13. Joint Pipe - Remove

    Courtesy of HONDA, U.S.A., INC.

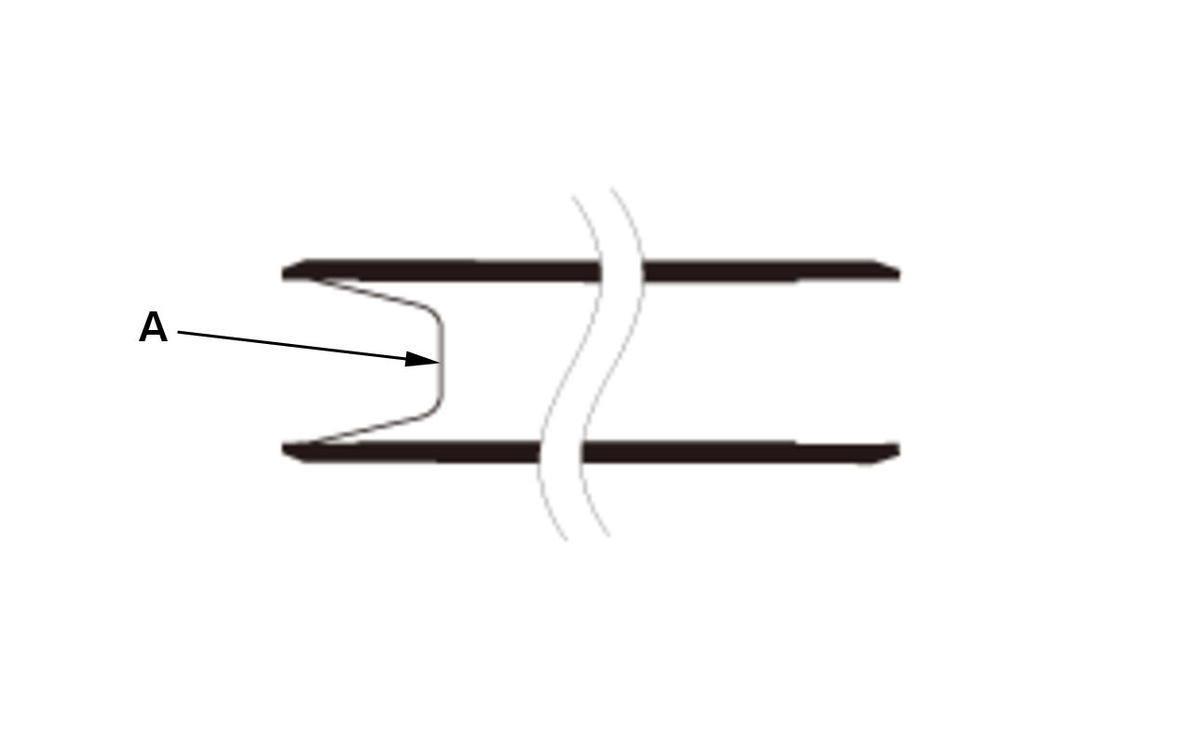

    NOTE:  Be careful not to drop the filter (A).

14. 10.9 x 18.5 mm Pipe - Remove
15. 14.3 x 36.2 mm Pipe - Remove
16. 18 x 18 mm Pipe - Remove
17. Transmission Fluid Pump - Remove
