CVT Transmission Removal and Installation (2.4 L Engine) (2017 2018 2019)
>>
Exploded View
Exploded View
Transmission Assembly Mounting Bolt

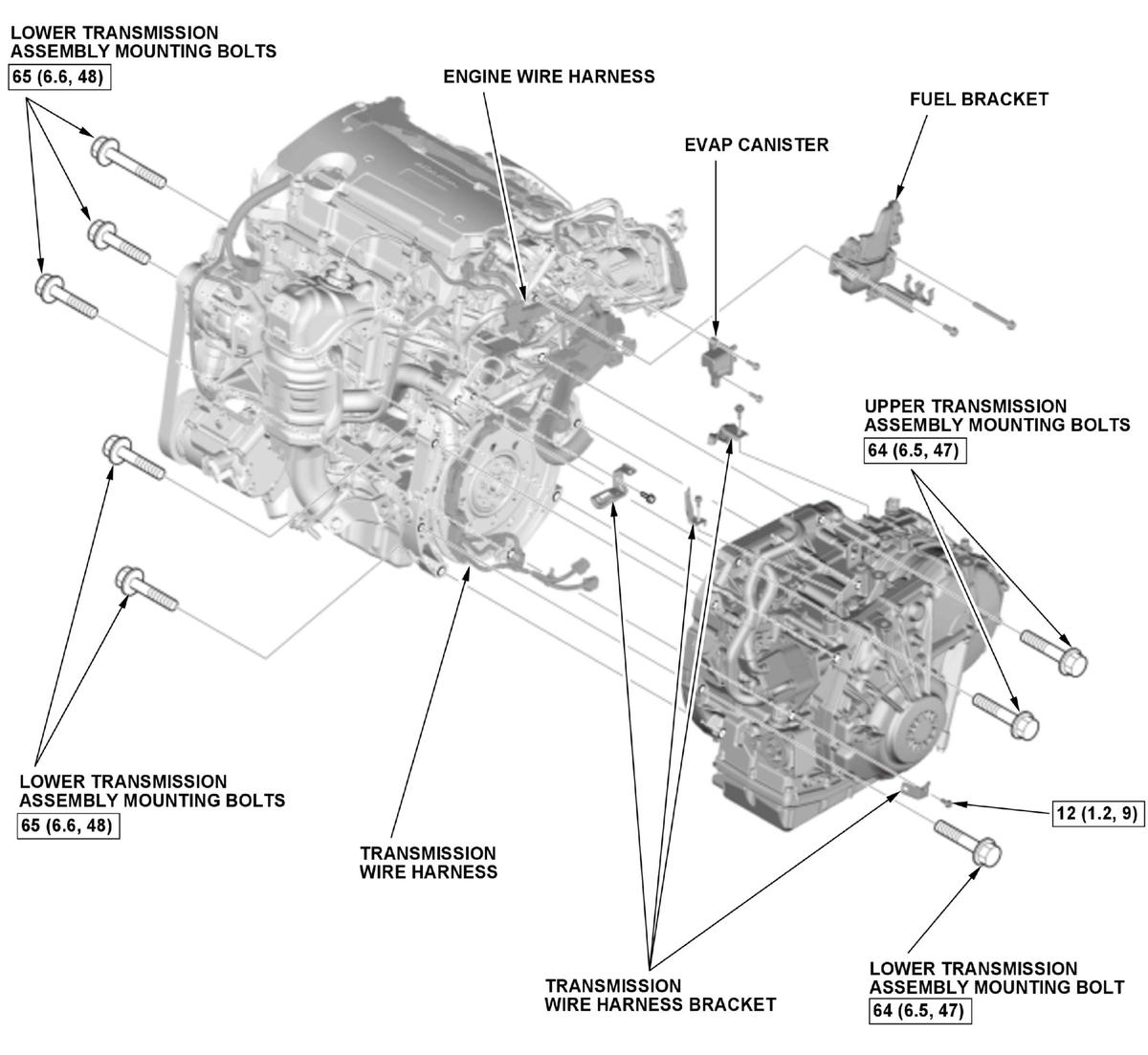

Transmission Assembly Mounting Bolt - Exploded View
Courtesy of HONDA, U.S.A., INC.
