Exploded View

  1. Transmission Assembly Mounting Bolt

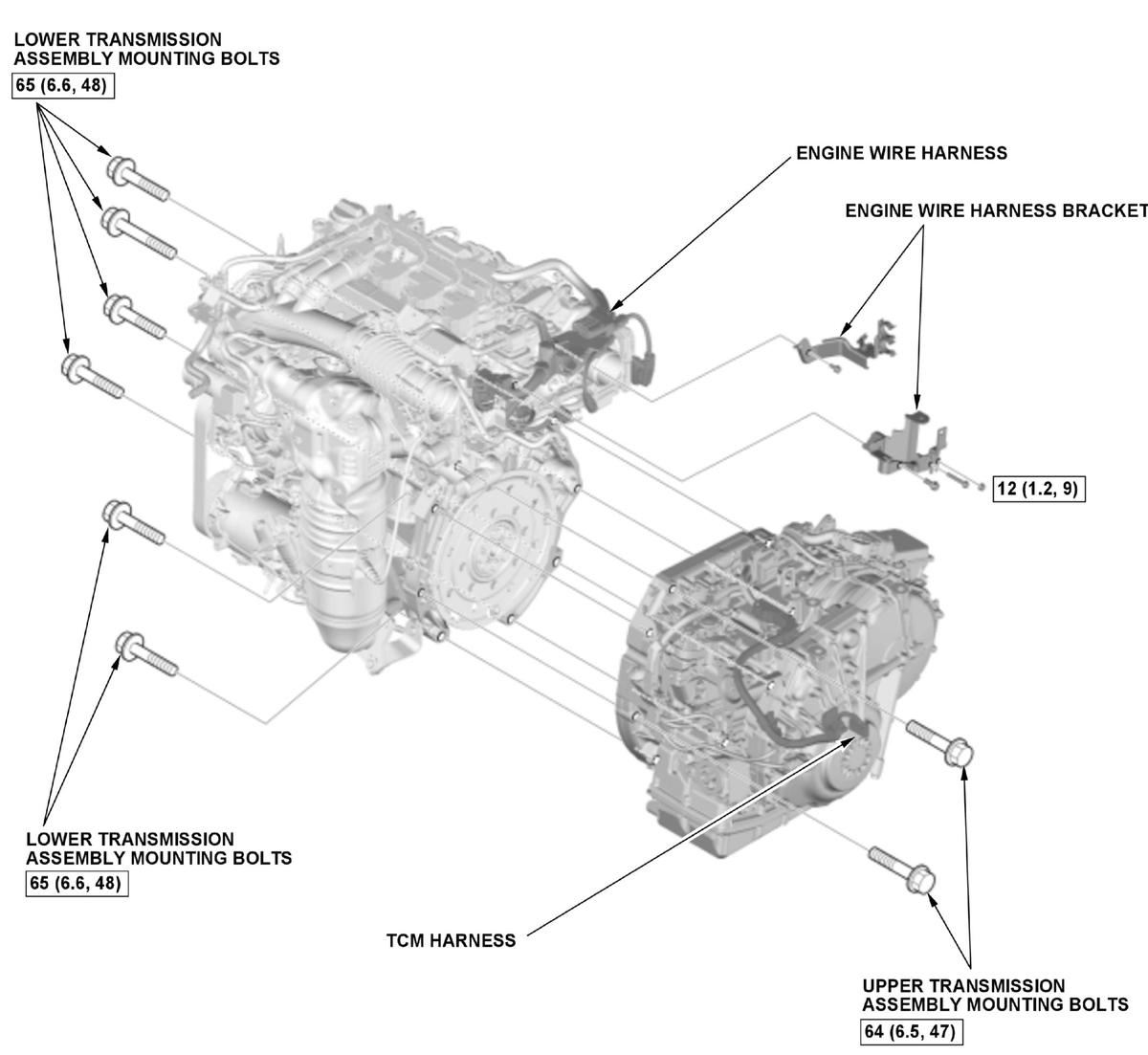

    Transmission Assembly Mounting Bolt - Exploded View

    GHH423466Courtesy of HONDA, U.S.A., INC.
    Torque: N.m (kgf.m, lbf.ft)
