Transmission Range Switch Removal, Installation, and Test: Test
- Air Cleaner - Remove
- Throttle Body Inlet Pipe - Remove (1.5 L engine)
- Transmission Range Switch - Test

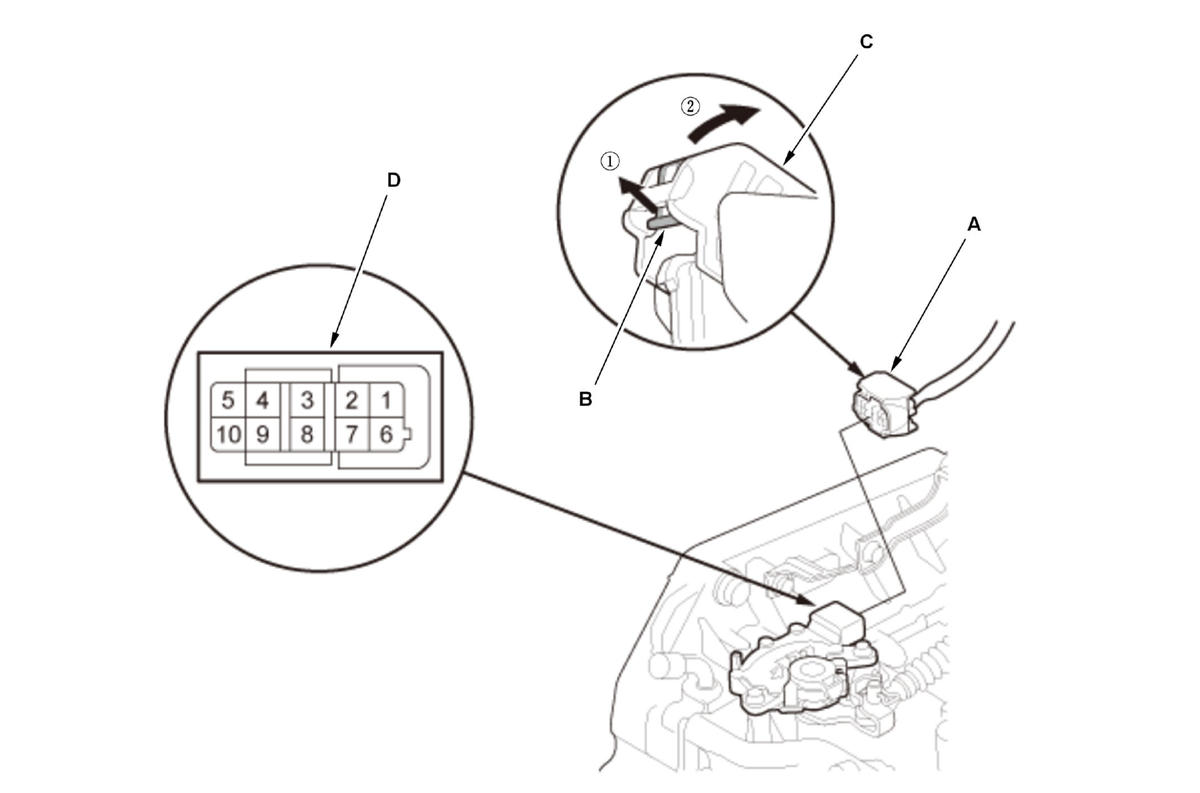

1. Disconnect the connector (A) by pulling the lock (B) and the lever (C) in the numbered sequence shown in illustration.

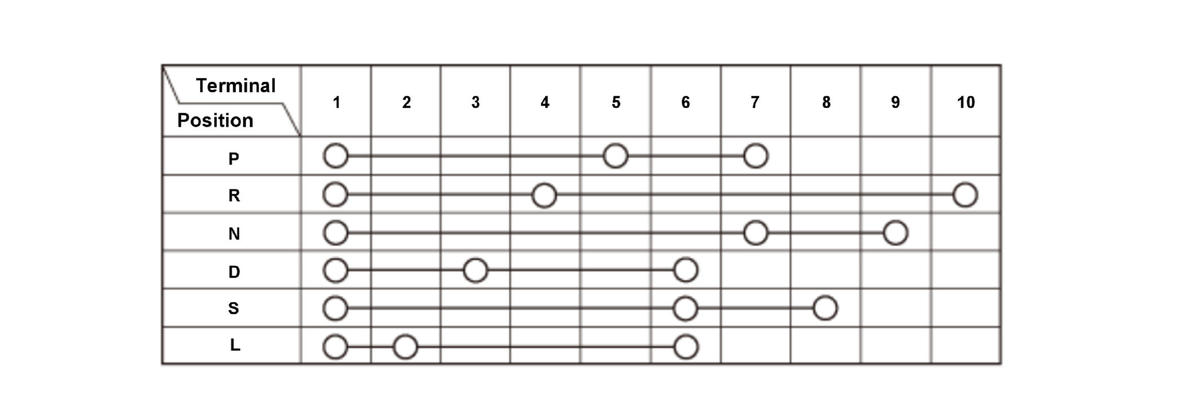

2. Check for continuity between the terminals at the connector (male terminals) (D). There should be continuity between the terminals in the table for each transmission range switch position.
- If the test results are OK, the transmission range switch test is finished, and install all removed parts.
- If there is no continuity between any terminals, check the transmission range switch installation. If the switch installation is OK, go to step 5.
- Transmission Range Switch - Remove
- Control Shaft End Clearance - Check

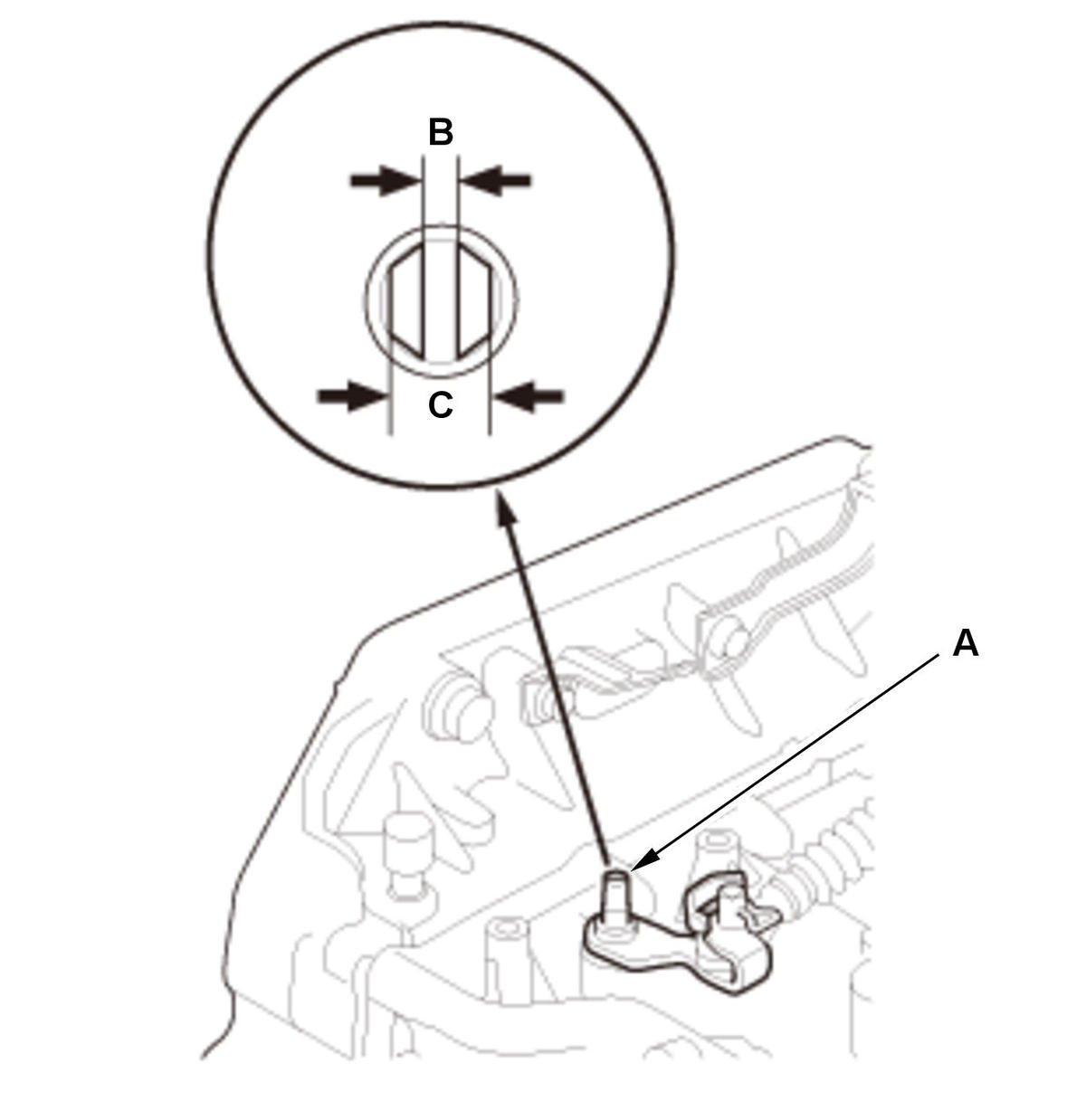

1. Check the end of the control shaft (A). - If the measurement at the end of the control shaft is within the specification, replace the transmission range switch.
- If the measurement is out of the specification, repair the control shaft end, and recheck the transmission range switch continuity.
Control Shaft Specification End Gap (B): 1.8-2.0 mm (0.071-0.079 in) Width (C): 6.1-6.2 mm (0.240-0.244 in) - All Removed Parts - Install
1. Install the parts in the reverse order of removal. NOTE: Check the connector for corrosion, dirt, or oil, and clean or repair if necessary.
