Transmission Range Switch Removal, Installation, and Test: Removal

NOTE:  Unless otherwise indicated, illustrations used in the procedure are for 1.5 L engine.

1

Courtesy of HONDA, U.S.A., INC.

1. Air Cleaner - Remove
2. Throttle Body Inlet Pipe - Remove (1.5 L engine)
3. Shift Cable (Shift Lever Side) - Remove

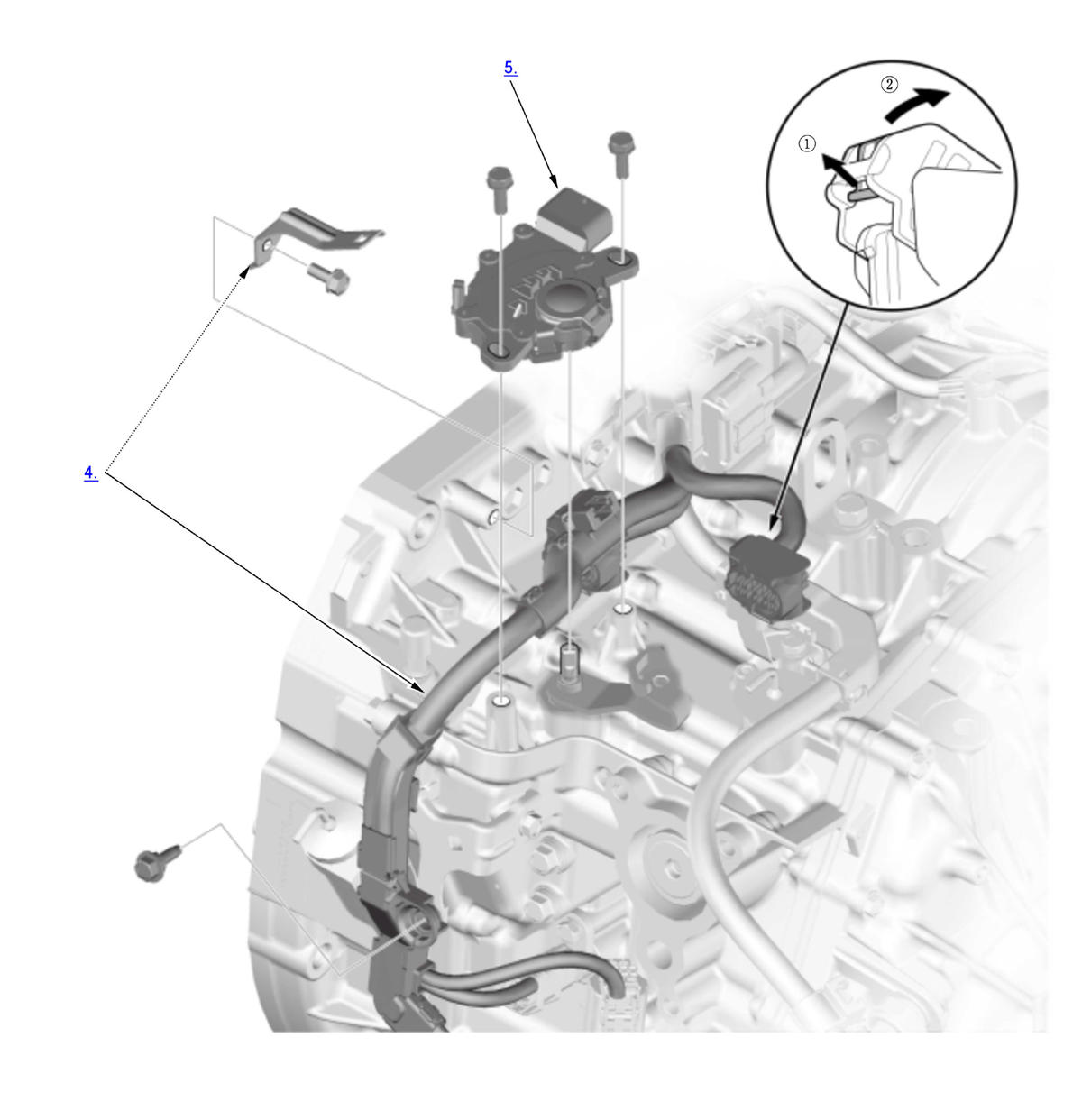

4. Transmission Harness - Remove
5. Transmission Range Switch - Remove
