Removal and Installation

NOTE:

• Where icon is shown, further information shown below.
• Keep all foreign particles out of the transmission.

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

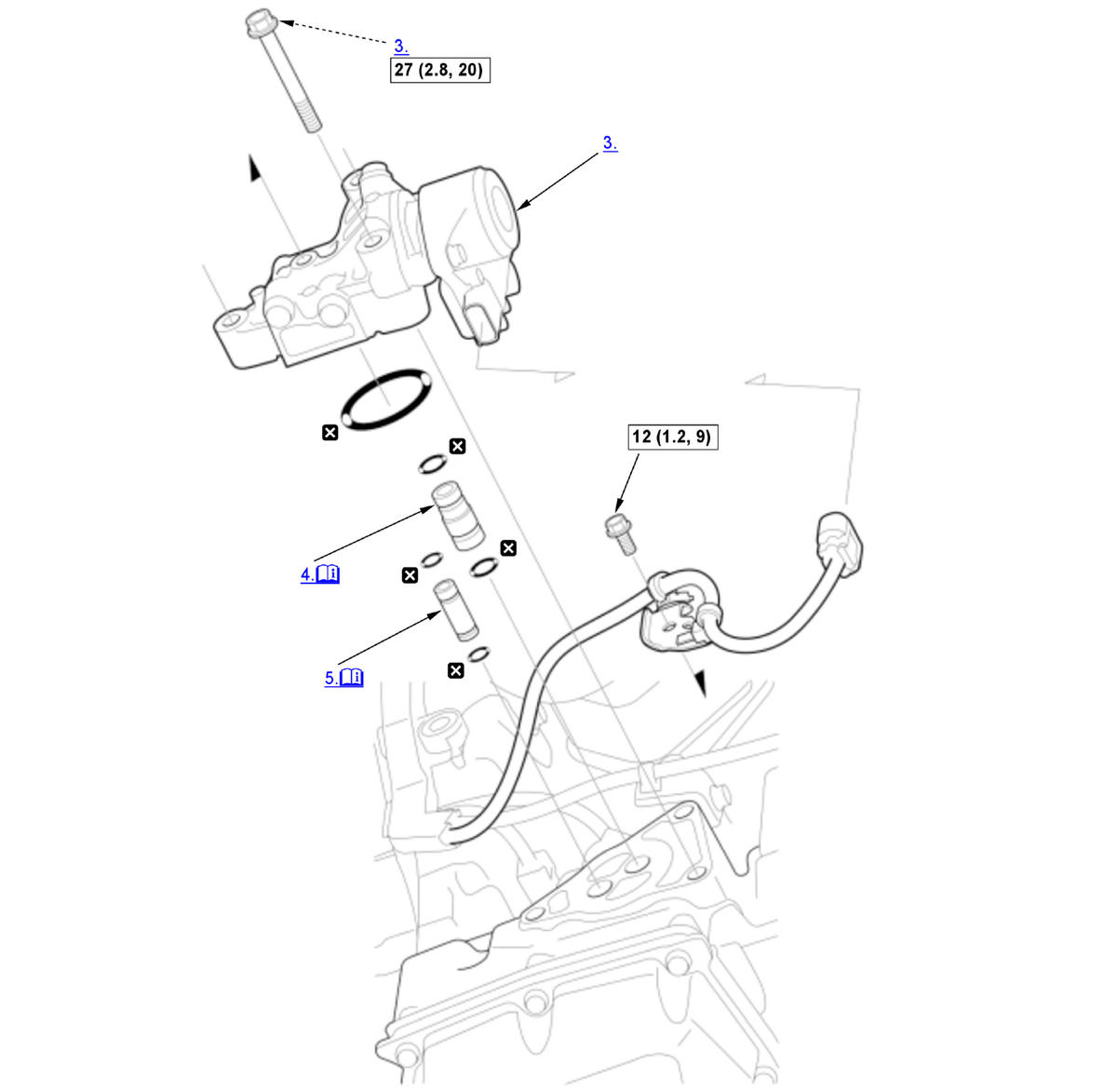

1. Vehicle - Lift
2. Engine Undercover - Remove
3. Auxiliary Transmission Fluid Pump - Remove
4. Delivery Pipe - Remove

   Courtesy of HONDA, U.S.A., INC.

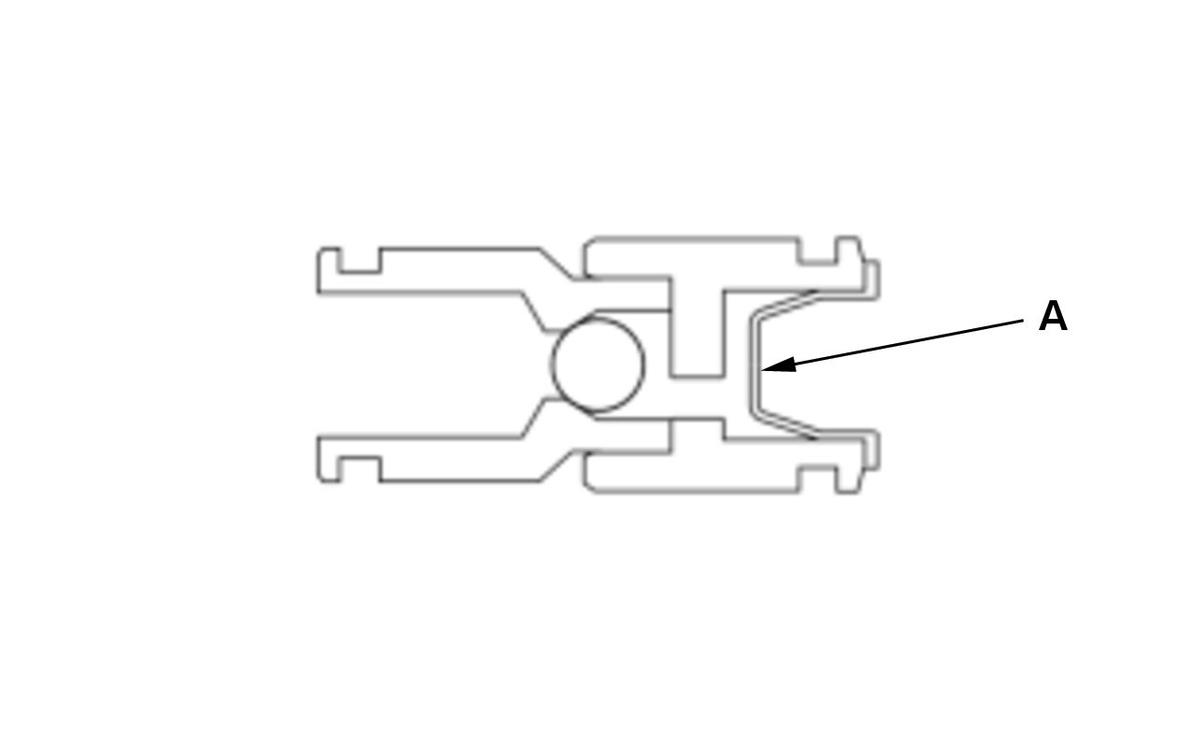

   NOTE:  The delivery pipe has the filter (A). The filter end should face the transmission side.

5. 10.9 x 31.5 mm Pipe - Remove

   Courtesy of HONDA, U.S.A., INC.

   NOTE:  The 10.9 x 31.5 mm pipe has the filter (A). The filter end should face the auxiliary transmission fluid pump side.

6. All Removed Parts - Install

   1. Install the parts in the reverse order of removal. NOTE: Be sure to use new O-rings which should be applied a light coat of clean transmission fluid before installation. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary.

7. Auxiliary Transmission Fluid Pump - Air Bleed
8. Transmission Fluid Level - Check
