Transfer Assembly Disassembly and Reassembly: Reassembly

NOTE:

• Where icon is shown, further information shown below.
• Apply a light coat of clean transmission fluid on all moving parts before reassembly.

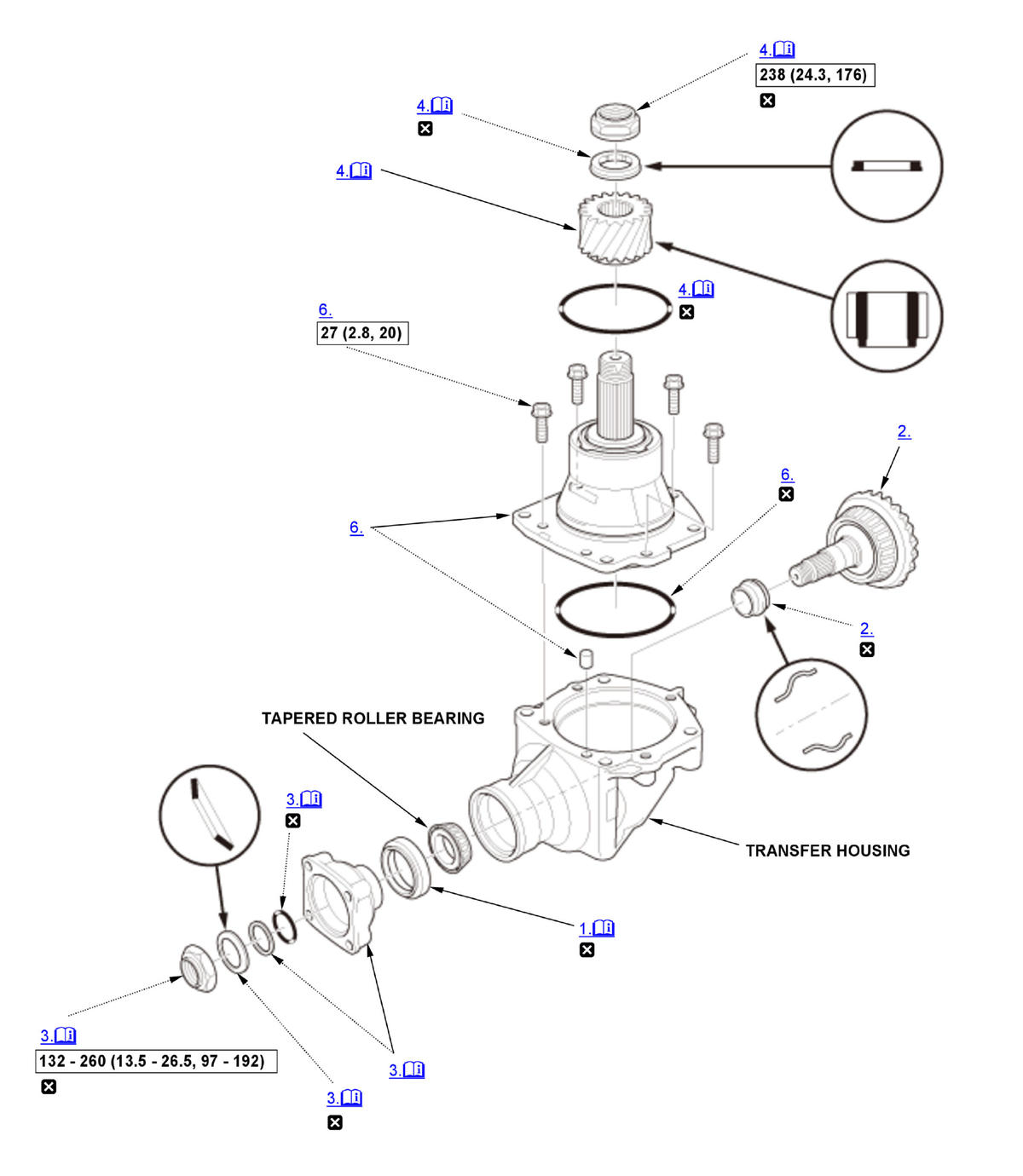

• Refer to the Exploded View as needed during the following procedure.

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

1. Transfer Oil Seal - Install

   Courtesy of HONDA, U.S.A., INC.

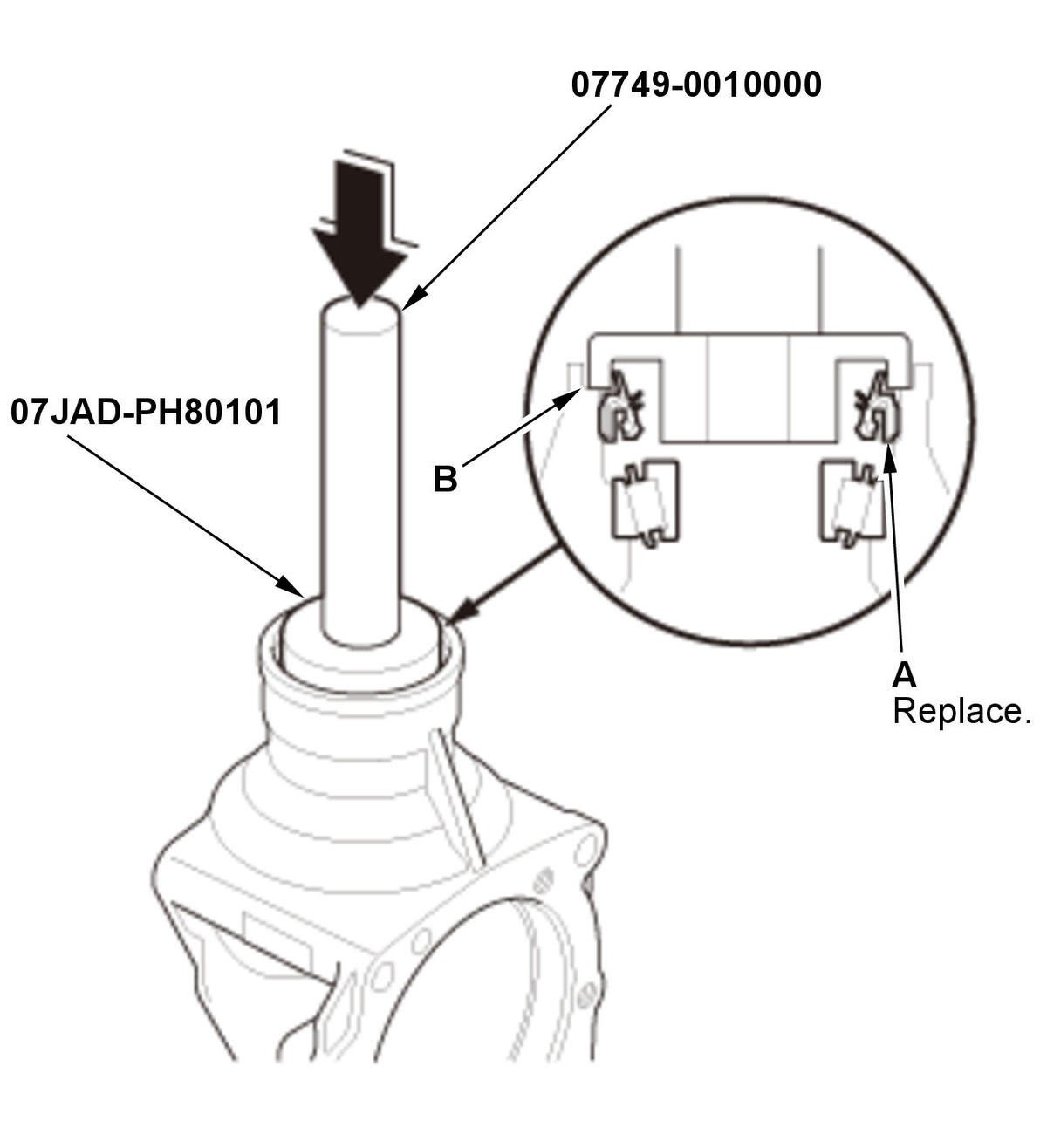

   1. Install a new transfer oil seal (A) flush with the transfer housing surface (B) using the 15 x 135L driver handle and the 58 mm oil seal driver attachment. NOTE: Apply a light coat of clean transmission fluid on oil seal before installation.

2. Transfer Hypoid Driven Gear - Install
3. Companion Flange - Install

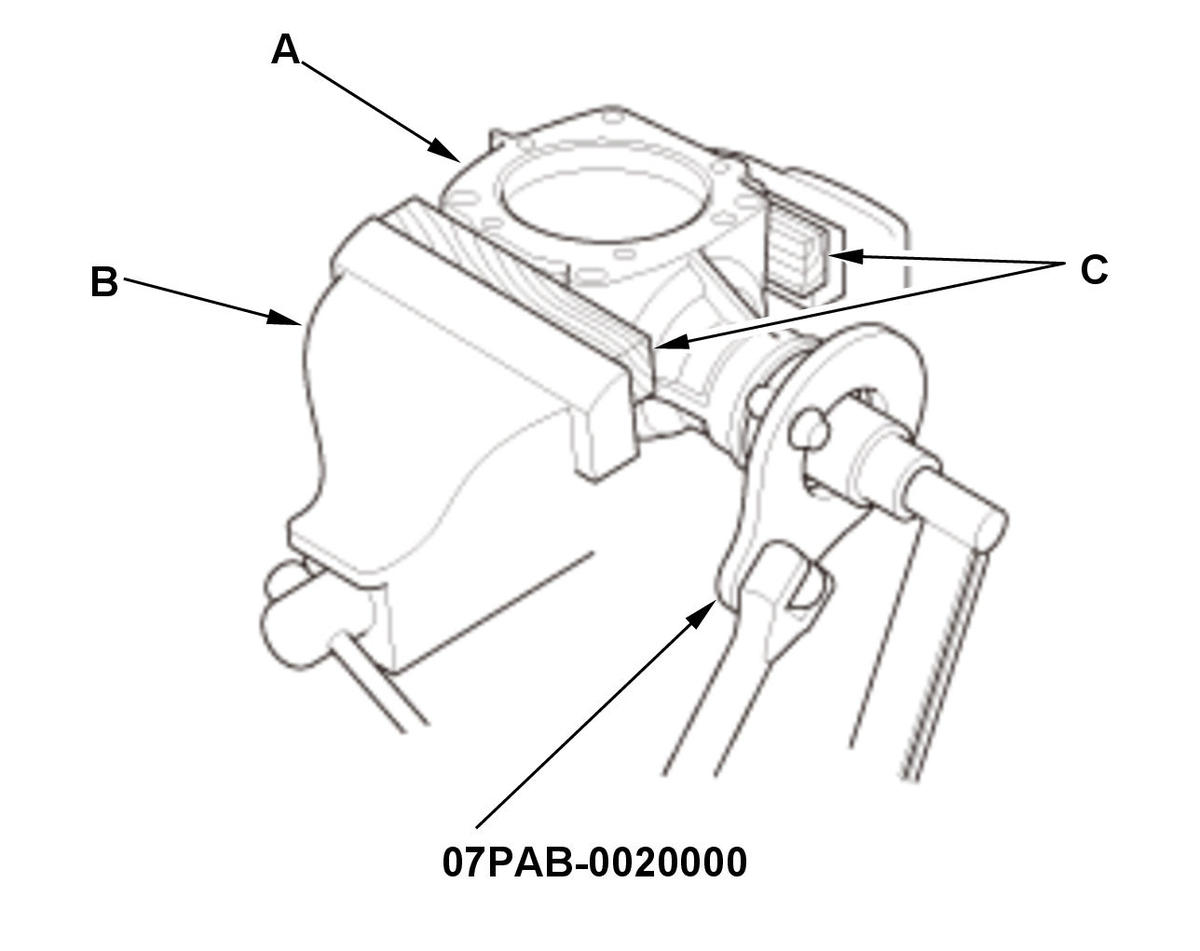

   1. Secure the transfer housing (A) in a bench vise (B).

   NOTE: To prevent damaging the transfer housing, always use wood blocks or equivalent materials (C) between the transfer housing and the bench vise.

   Courtesy of HONDA, U.S.A., INC.

   2. Install the companion holder.

   3. Tighten the locknut while measuring the starting torque of the transfer output shaft (hypoid gear) so the starting torque is within 0.98-1.39 N.m (10.0-14.2 kgf.cm, 8.7-12.3 Ibf.in). Tighten the locknut to the lower torque specification, then check the starting torque. If the starting torque is low, increase the torque on the locknut until the starting torque is acceptable.

   Tightening Torque:
   	132-260 N.m (13.5-26.5 kgf.m, 97-192 Ibf.ft)
   Starting Torque:
   	0.98-1.39 N.m (10.0-14.2 kgf.cm, 8.7-12.3 Ibf.in)

   NOTE:

   • Rotate the companion flange several times to seat the tapered roller bearings, then measure the starting torque.
   • If the starting torque exceeds 1.39 N.m (14.2 kgf.cm, 12.3 Ibf.in), replace the transfer spacer and reassemble the parts. Do not adjust the torque with the locknut loose.
   • If the tightening torque exceeds 260 N.m (26.5 kgf.m, 192 Ibf.ft), replace the transfer spacer and reassemble the parts.

   4. Remove the companion holder.

   Courtesy of HONDA, U.S.A., INC.

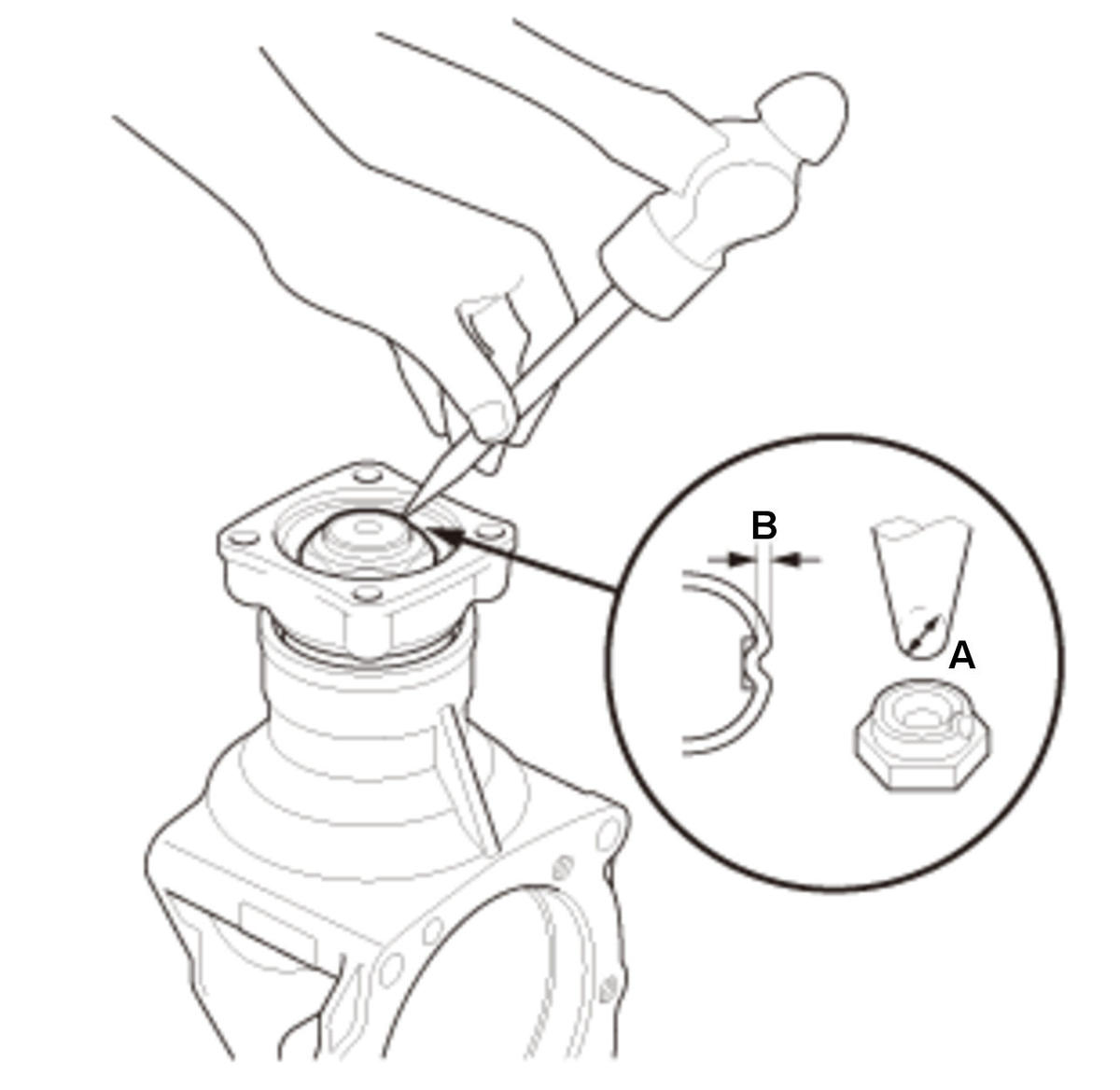

   5. Stake the locknut to a depth (A) of at least 0.7 mm (0.028 in) using a 3.0 - 3.5 mm (0.118 - 0.138 in) punch (B). NOTE: Be careful not to crack the locknut when staking.

4. Transfer Driven Gear - Install

   Courtesy of HONDA, U.S.A., INC.

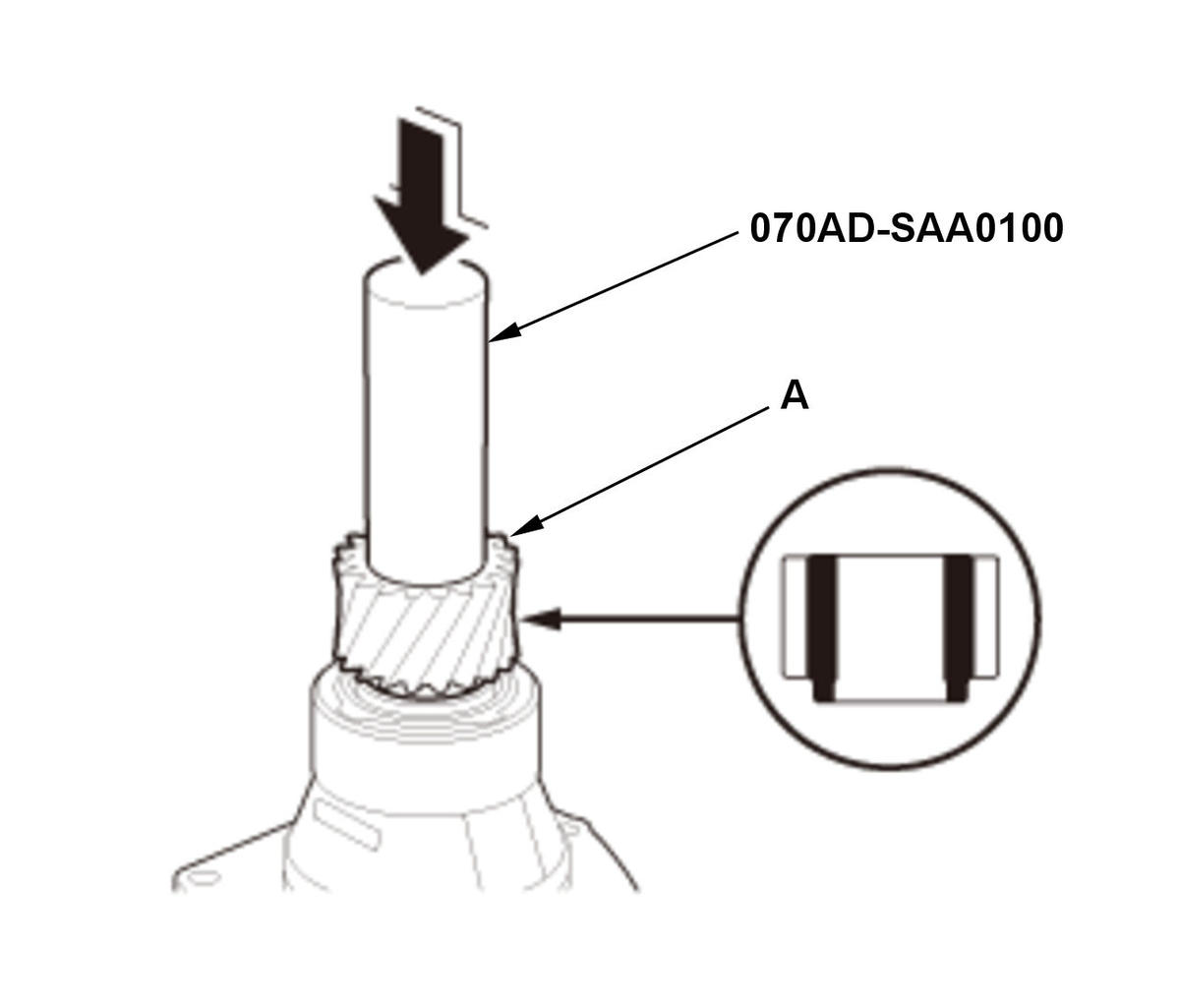

   1. Install the transfer driven gear (A) using the 32.5 mm driver attachment. NOTE: Install the transfer driven gear in the direction shown.

   Courtesy of HONDA, U.S.A., INC.

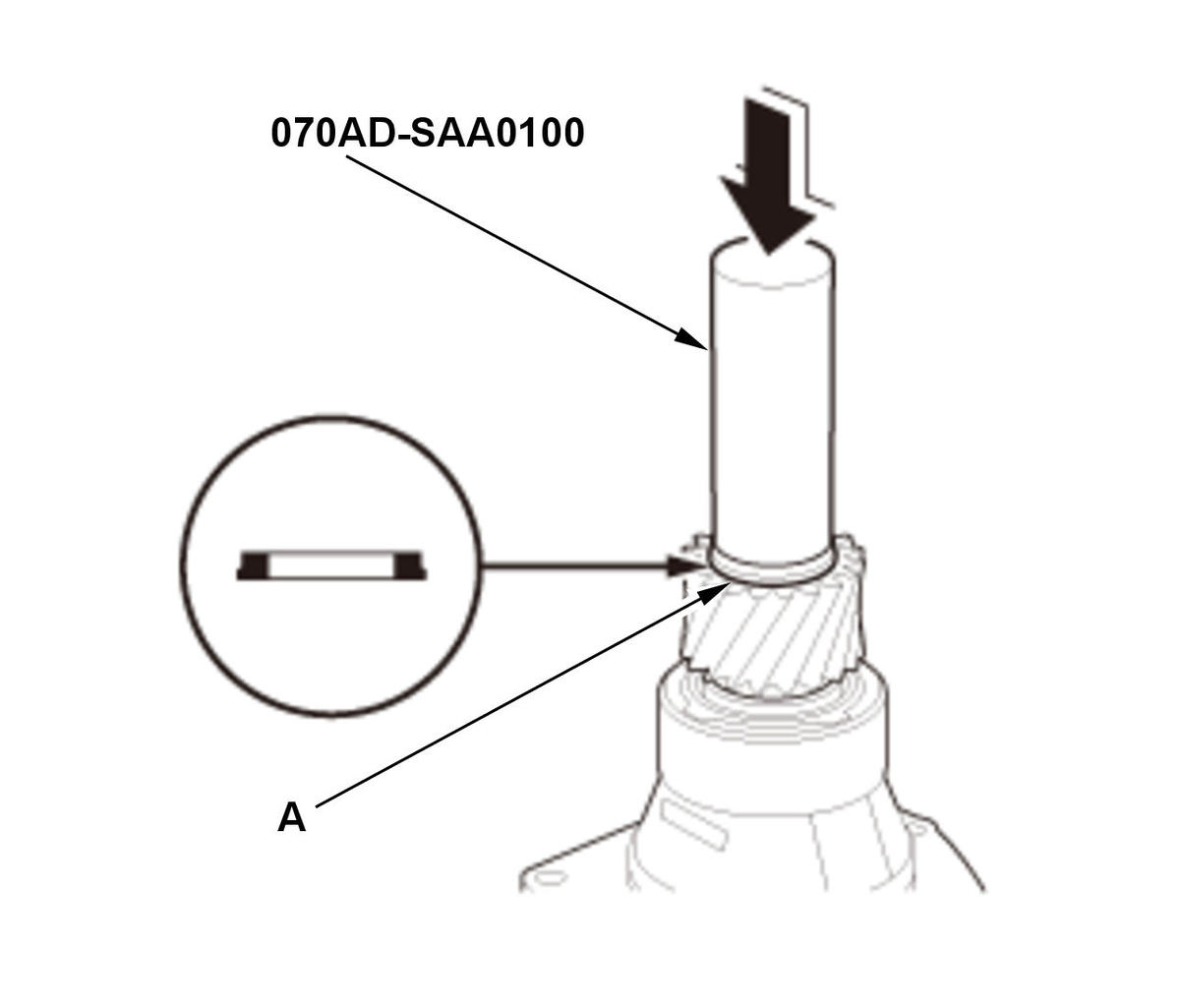

   2. Install a new thrust washer (A) using the 32.5 mm driver attachment. NOTE: Install the thrust washer in the direction shown.

   Courtesy of HONDA, U.S.A., INC.

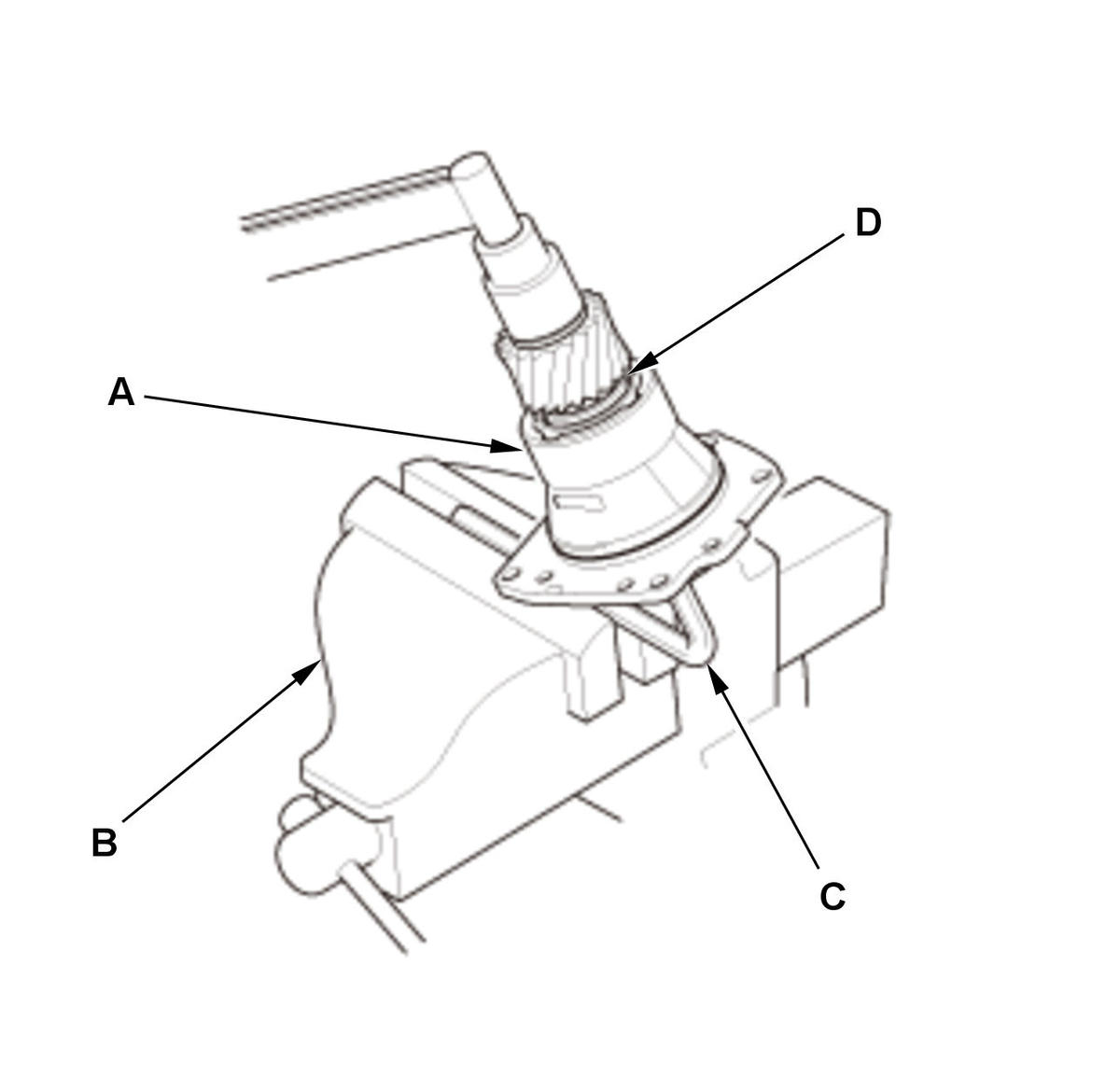

   3. Secure the transfer hypoid drive gear/shaft assembly (A) in a bench vise (B) with hex wrench (C). 4. Install a new locknut (D).

   Courtesy of HONDA, U.S.A., INC.

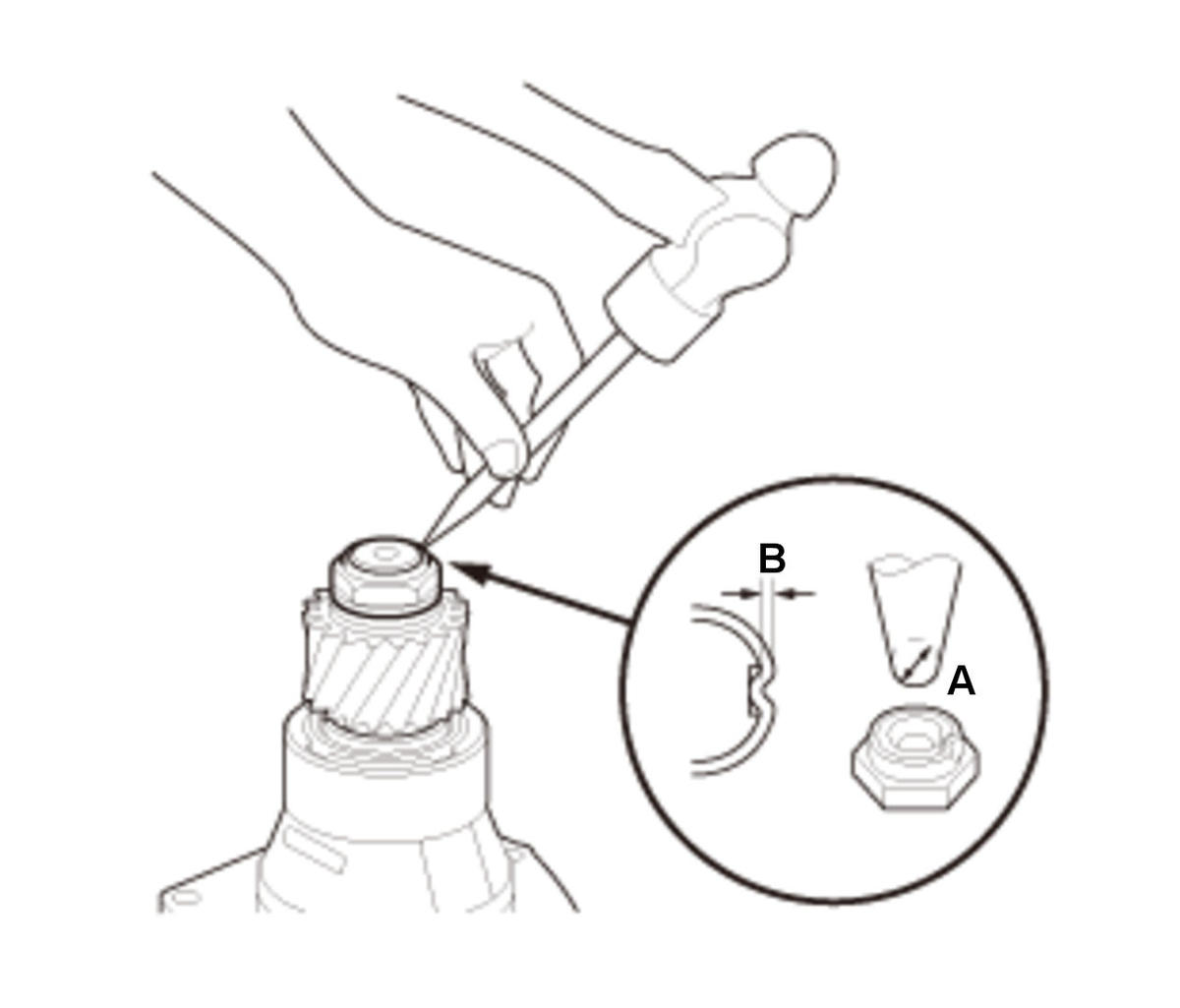

   5. Stake the locknut to a depth (A) of at least 0.7 mm (0.028 in) using a 3.0 - 3.5 mm (0.118 - 0.138 in) (B). NOTE: Be careful not to crack the locknut when staking.

   Courtesy of HONDA, U.S.A., INC.

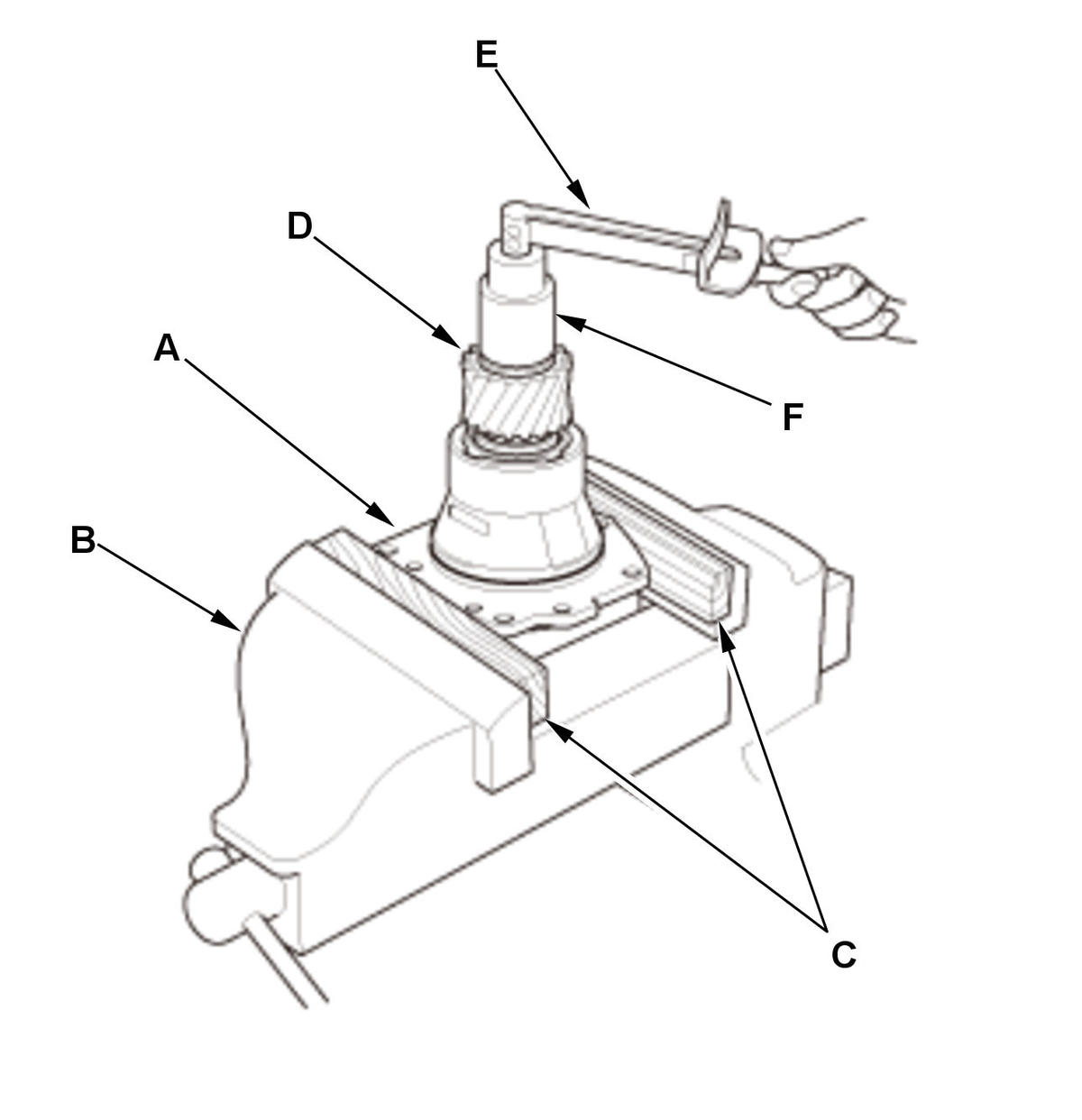

   6. Secure the transfer hypoid drive gear/shaft assembly (A) in a bench vise (B). NOTE: To prevent damaging the transfer hypoid drive gear/shaft assembly, always use wood blocks or equivalent materials (C) between the transfer hypoid drive gear/shaft assembly and the bench vise. 7. Rotate the transfer driven gear (D) in both directions to seat the bearings. 8. Measure the starting torque of the transfer hypoid drive gear/shaft assembly using the torque wrench (E), and a socket (F). 9. If the starting torque is out of the standard, replace the transfer assembly .

   Starting Torque:

   1.63-5.23 N.m (16.6-53.4 kgf.cm, 14.4-46.3 Ibf.in)

5. Transfer Hypoid Drive Gear - Tooth Contact Pattern Check
6. Transfer Hypoid Drive Gear/Shaft Assembly - Install
7. Transfer Assembly - Total Starting Torque Check
8. Transfer Assembly - Transfer Gear Backlash Check
